Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11652 - FXZ/GXZ THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

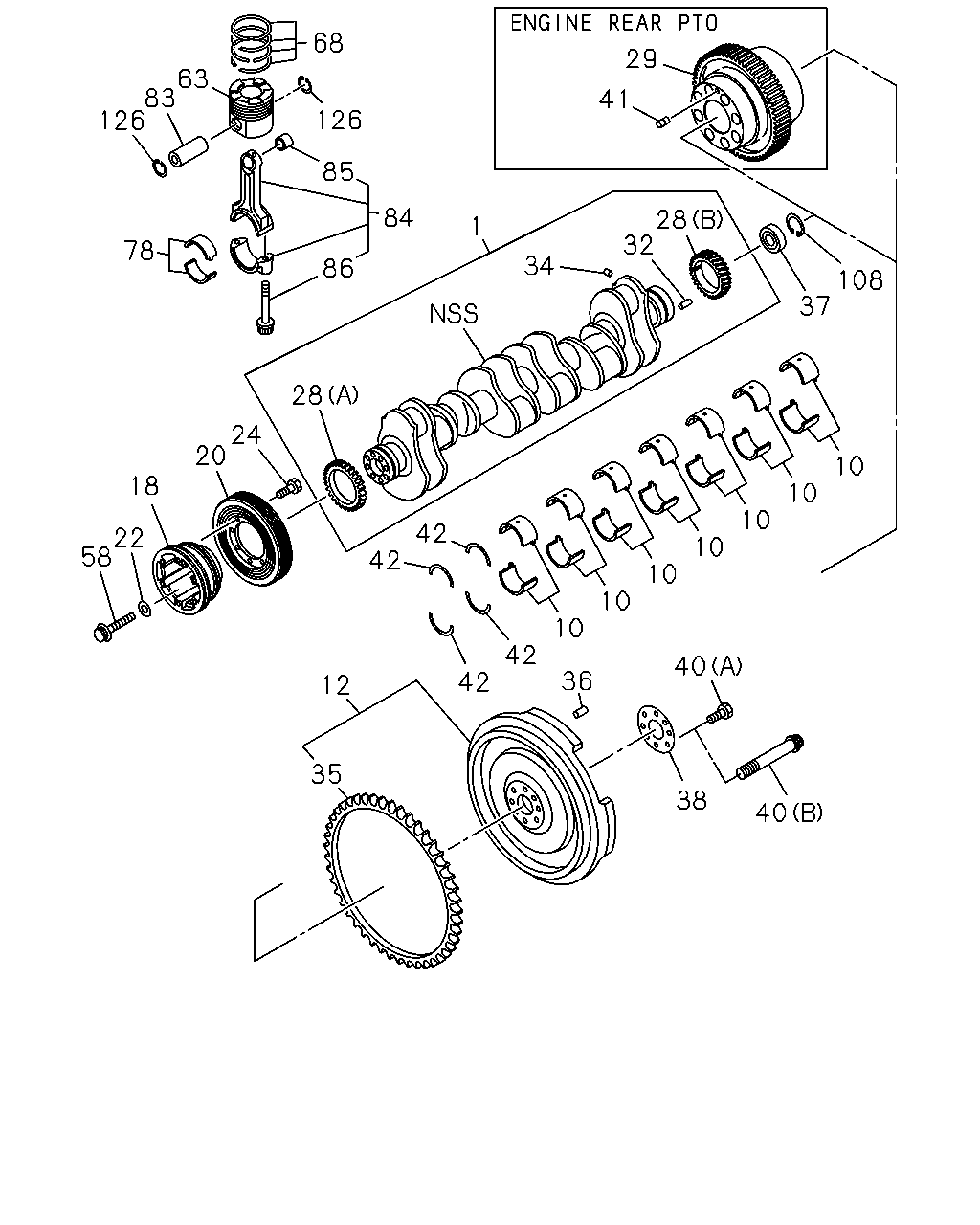

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#150666) — 33 parça
63
83
126
68
126
85
84
78
86
29
41
28
32
34
1
28
24
20
18
22
58
108
37
10
10
10
10
10
10
10
42
42
42
42
12
35
36
40
38
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
THA
8-97603-046-5
01
1
1410-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE THA
8-97609-768-0
07
1
1410-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK THA
8-97609-769-0
07
1
1410-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN THA
8-97609-770-0
07
1
1410-
12
FLYWHEEL
THA
1-12330-553-0
01
1
1410-
18
PULLEY; CR/SHF
1-GROOVE THA
8-97603-953-0
01
1
1410-
20
DAMPER; CR/SHF
THA
1-12375-195-0
01
1
1410-
22
PLATE; PULLEY
ID=17 OD=30 THA
9-09851-935-0
04
1
1410-
24
BOLT; DAMPER
M12X25 FLANGE THA
0-28161-225-0
08
1
1410-
28
GEAR; CR/SHF
(A) THA
8-97607-583-1
01
1
1410-
28
GEAR; CR/SHF
(B) THA
8-98002-332-1
01
1
1410-
29
GEAR; CR/SHF,PTO
ENGINE REAR PTO<SV1> THA
8-97603-913-0
01
1
1410-
32
PIN; FLYWHEEL
OD=8 L=16 THA
9-08150-816-0
01
1
1410-
34
PIN; GEAR SETTING
OD=5 L=6 THA
9-09878-626-0
01
1
1410-
35
GEAR; RING
Z=139 THA
1-12333-013-1
01
1
1410-
36
PIN; FLYWHEEL
OD=10 L=22 THA
9-08151-022-0
02
1
1410-
37
BEARING; PILOT,TOP GEAR SHAFT
THA
1-09800-257-0
01
1
1410-
38
WASHER; FLYWHEEL
THA
1-12336-006-0
01
1
1410-
40
BOLT; FLYWHEEL
ENGINE REAR PTO<SV1> (B) THA
8-97605-238-1
08
1
1410-
40
BOLT; FLYWHEEL
EXC. ENGINE REAR PTO<SV1> (A) M16X62 THA
1-09070-146-1
08
1
1410-
41
PIN; GEAR,CR/SHF PTO
ENGINE REAR PTO<SV1> OD=8 L=16 THA
9-08150-816-0
01
1
1410-
42
WASHER; THRUST,CR/SHF
THA
8-98106-007-0
04
1
1410-
58
BOLT; CR/SHF PULLEY
M16X70 FLANGE THA
0-28861-670-0
04
1
1410-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX THA
8-98028-737-2
06
1
1410-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX THA
8-98028-738-2
06
1
1410-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. THA
8-98056-464-1
06
1
1410-
78
METAL; CONNROD
THA
8-97605-484-0
06
1
1410-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET. THA
8-97603-263-0
06
1
1410-
84
ROD ASM; CONN
THA
8-98044-950-0
06
1
1410-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. THA
1-12251-051-0
06
1
1410-
86
BOLT; CONNROD
THA
1-12235-046-0
12
1
1410-
108
RING; SNAP,BRG SET
OD=67.2 THA
9-09180-163-0
01
1
1410-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. THA
1-09587-075-1
12
1
1410-
