Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11652 - FXZ/GXZ THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-12 - CYLINDER BLOCK
▶
0-12 — CYLINDER BLOCK
(#150663) — 33 parça
◀

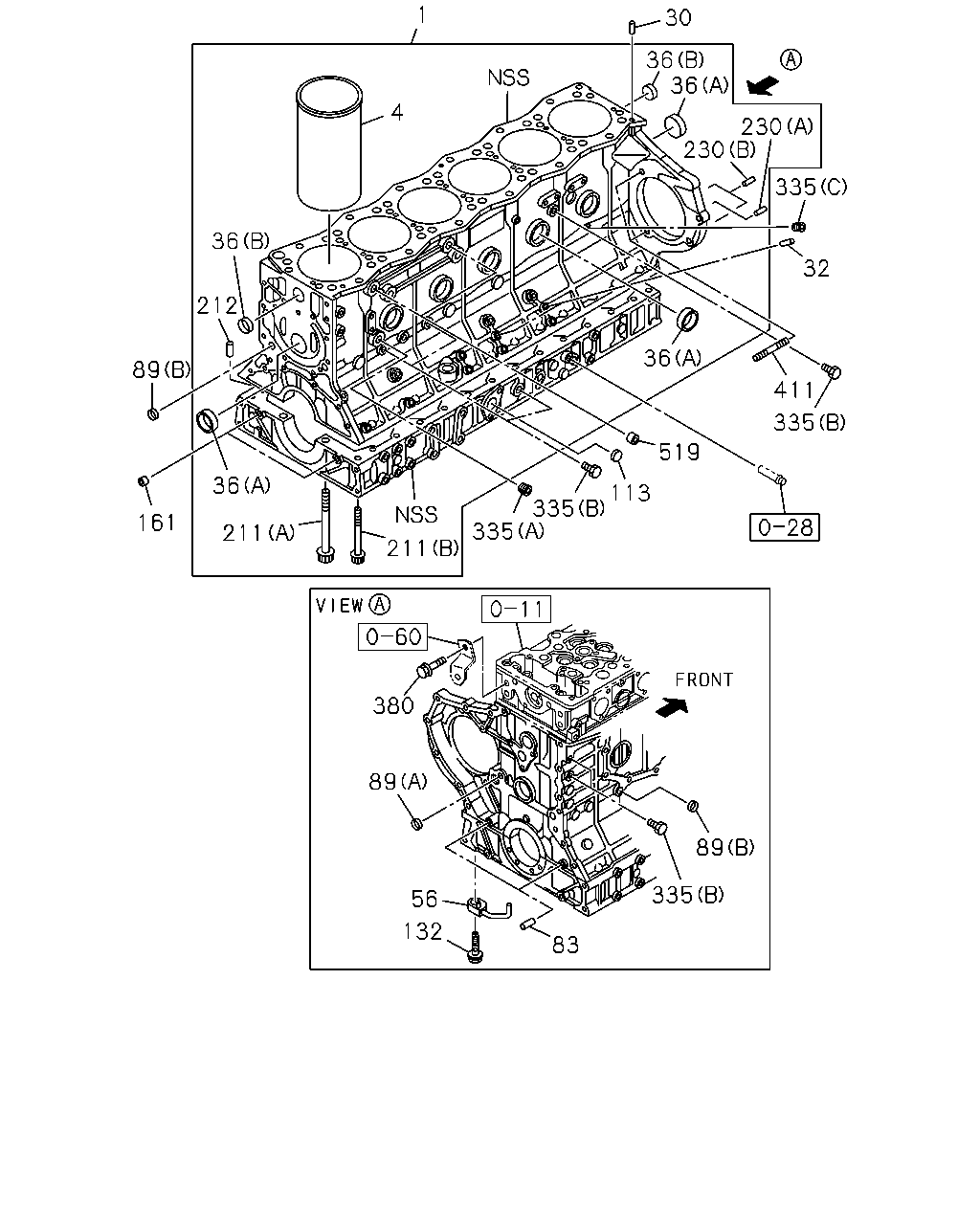

[012A] CYL BLOCK ASM (27 parça)

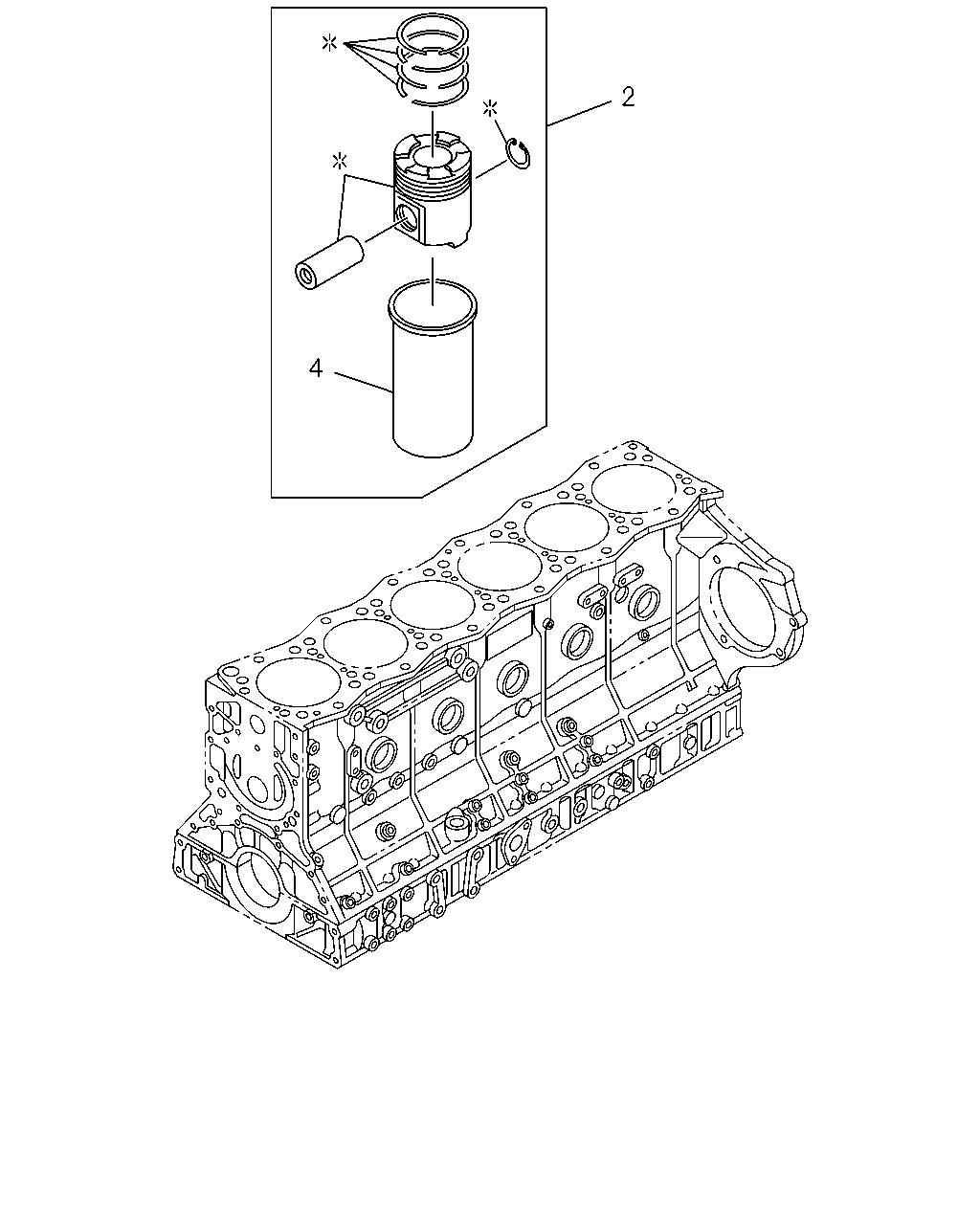

[012A] LINER SET (6 parça)
▶
1
4
30
36
36
230
230
335
32
411
335
519
113
36
335
335
211
211
36
89
212
36
161
380
89
335
83
132
56
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
THA
8-98141-539-4
01
1
1410-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX THA
1-11261-368-2
06
1
1410-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX THA
1-11261-369-2
06
1
1410-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX THA
1-11261-370-2
06
1
1410-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX THA
1-11261-371-2
06
1
1410-
30
PIN; CYL HD GASKET SETTING
OD=8 L=16 THA
9-08150-816-0
02
1
1410-
32
PIN; INJ PUMP BRKT
OD=8 L=16 THA
9-08150-816-0
02
1
1410-
36
CUP; SEALING,WATER JACKET
(A) OD=45 THA
1-09600-058-1
07
1
1410-
36
CUP; SEALING,WATER JACKET
(B) OD=32 THA
1-09600-059-1
02
1
1410-
56
JET; OIL,PISTON COOLING
THA
8-98275-246-0
06
1
1410-
83
PIN; FLYWHEEL HSG
OD=10 L=22 THA
9-08151-022-0
02
1
1410-
89
CUP; SEALING,OIL GALLERY
(A) OD=16 THA
5-11129-006-0
01
1
1410-
89
CUP; SEALING,OIL GALLERY
(B) OD=20 THA
9-11129-128-0
02
1
1410-
113
CUP; SEALING
OD=32 THA
1-09600-012-2
01
1
1410-
132
VALVE; CHECK,OIL
THA
8-98031-331-1
06
1
1410-
161
DOWEL; FRT COVER
THA
1-13119-004-0
02
1
1410-
211
BOLT; CRANKCASE
(B) THA
8-98141-538-0
28
1
1410-
211
BOLT; CRANKCASE
(A) THA
8-98229-864-0
14
1
1410-
212
PIN; CRANKCASE
THA
1-09740-031-0
02
1
1410-
230
PIN; THRUST METAL,CR/SHF
(A) L=25 THA
1-09749-025-1
02
1
1410-
230
PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 THA
9-08160-510-0
02
1
1410-
335
PLUG; C/BL,SIDE
(C) PT1/8 THA
1-09605-050-0
01
1
1410-
335
PLUG; C/BL,SIDE
(A) PT3/8 THA
1-09605-056-0
01
1
1410-
335
PLUG; C/BL,SIDE
(B) M14X16.5 THA
8-97329-617-0
06
1
1410-
380
BOLT; BRKT,HEAT PROTECTOR
ENGINE REAR PTO<SV1> M12X16 THA
0-28151-216-0
01
1
1410-
411
STUD; BRG CASE
M12X40 L=58 THA
9-94411-240-0
02
1
1410-
519
DOWEL; RAIL BRKT
OD=14 L=9 THA
9-19759-019-1
02
1
1410-
2
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINER SET; ENG CYL
GRADE=1X THA
1-87813-348-5
06
1
1410-
2
LINER SET; ENG CYL
GRADE=3X THA
1-87813-349-5
06
1
1410-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX THA
1-11261-368-2
06
1
1410-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX THA
1-11261-369-2
06
1
1410-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX THA
1-11261-370-2
06
1
1410-
4
LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX THA
1-11261-371-2
06
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
