◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11651 - FVZ THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#150655) — 21 parça

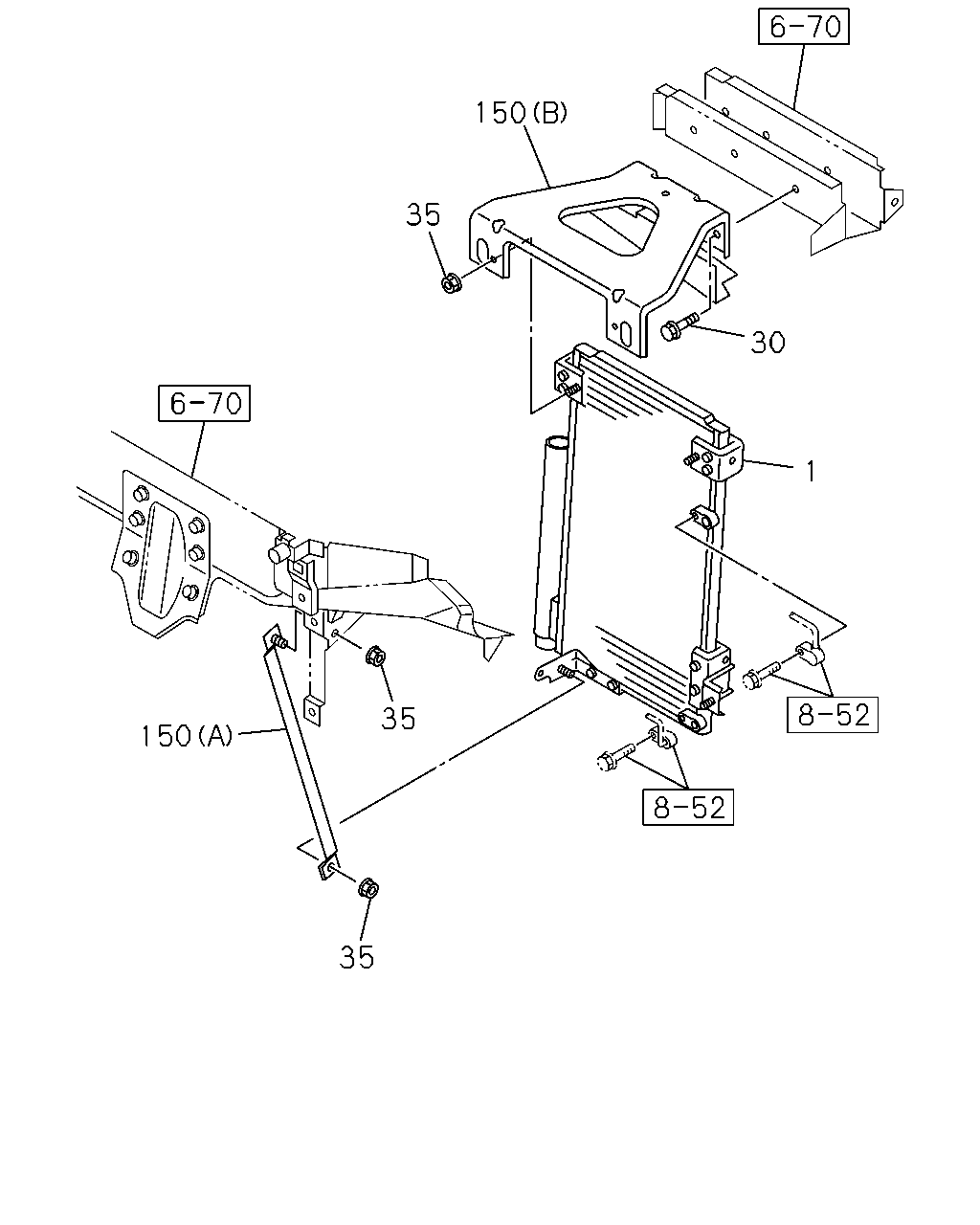

çizim 451433
150 35 35 1 30 35 150
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97926-687-1 01 1 1410-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA 		0-91180-108-0 05 1 1410-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA 		8-98270-947-0 01 1 1410-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA 		8-98242-412-0 01 1 1410-

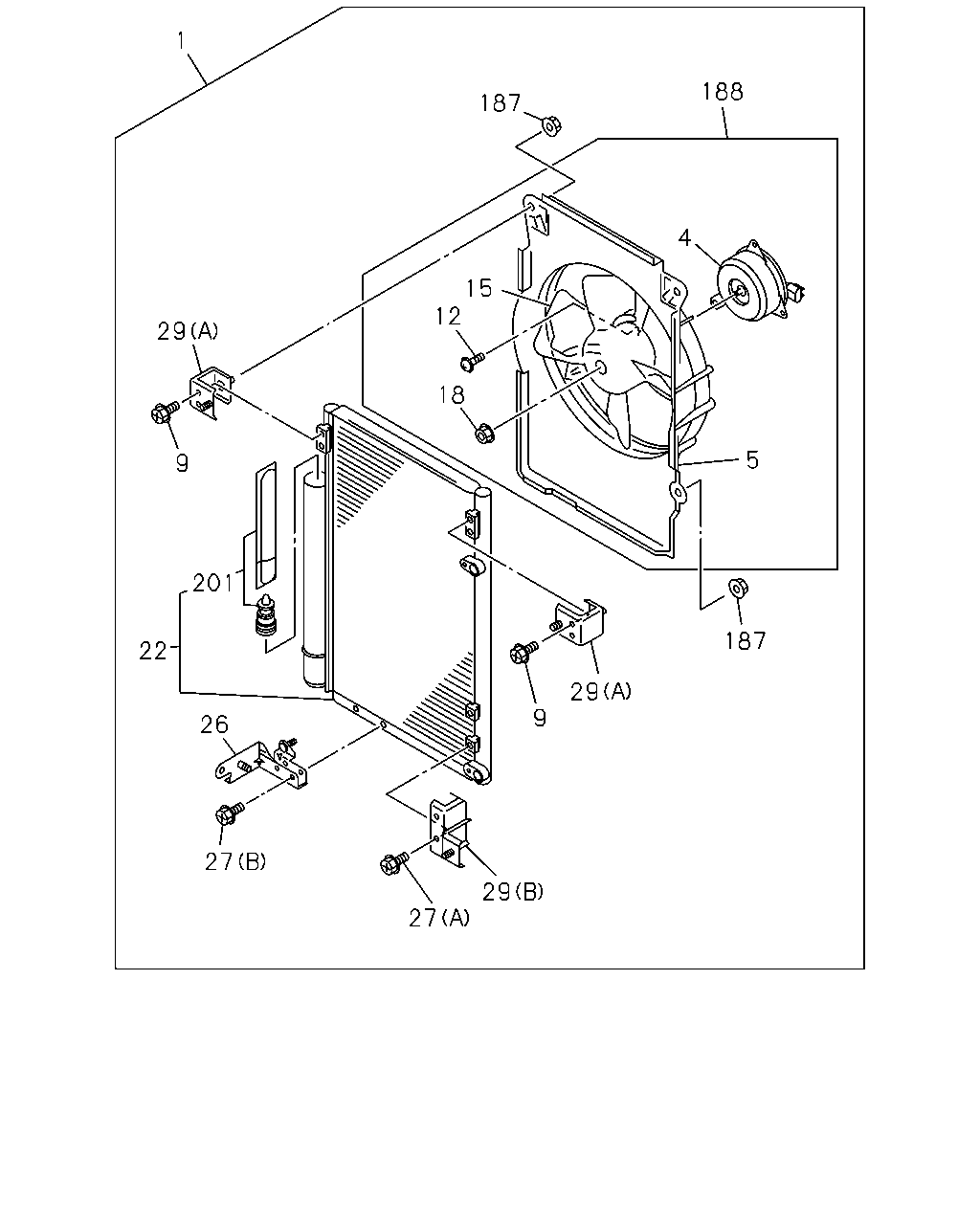

çizim 451674
1 187 188 15 12 4 5 187 29 9 18 29 9 201 22 26 27 27 29
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97926-687-1 01 1 1410-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98076-091-0 01 1 1410-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98076-093-0 01 1 1410-
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X14 THA 		1-83539-382-0 04 1 1410-
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97180-269-0 03 1 1410-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98152-860-0 01 1 1410-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5 FLANGE THA 		8-94157-075-0 01 1 1410-
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		1-83534-261-0 01 1 1410-
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		1-83573-281-0 01 1 1410-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X14 THA 		1-83539-382-0 02 1 1410-
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M5X25 THA 		8-97178-770-0 02 1 1410-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA 		8-98065-914-0 02 1 1410-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA 		8-98065-915-0 01 1 1410-
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 THA 		1-83539-354-0 04 1 1410-
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98235-916-1 01 1 1410-
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		1-83535-097-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
