8-73 — BLOWER UNIT (#150654) — 19 parça

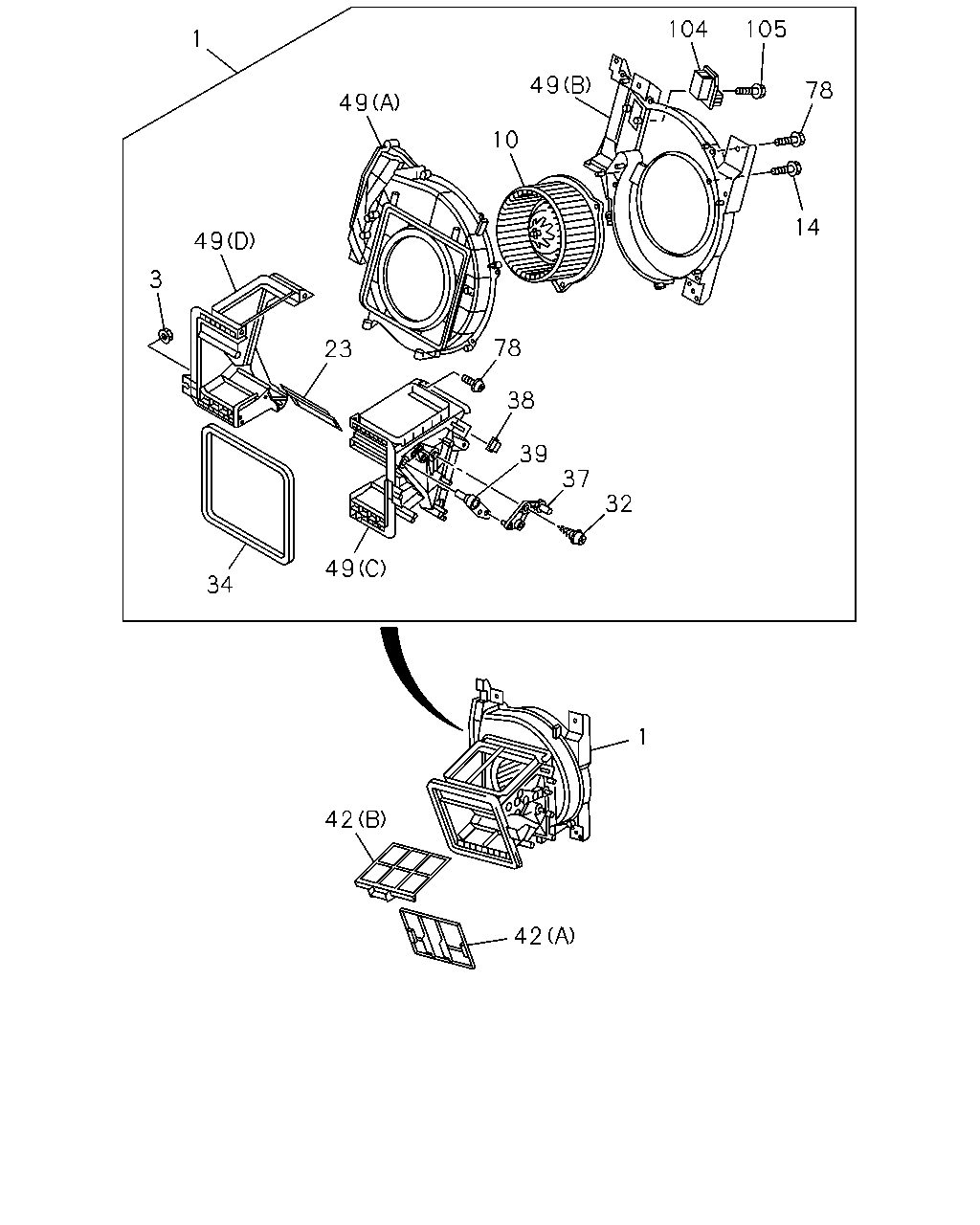

çizim 451734
1 49 49 104 105 78 14 10 49 23 3 78 38 39 37 32 49 34 42 1 42
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98171-720-0 01 1 1410-
3 NUT; CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 THA 		1-83539-354-0 02 1 1410-
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98183-924-0 01 1 1410-
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X16 THA 		8-98047-448-0 03 1 1410-
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98171-863-0 01 1 1410-
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 THA 		8-98047-416-0 01 1 1410-
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98096-453-0 01 1 1410-
37 LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98047-436-0 01 1 1410-
38 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98047-417-0 01 1 1410-
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98047-435-0 01 1 1410-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA 		8-98025-006-1 01 1 1410-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA 		8-98041-327-0 01 1 1410-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA 		8-98047-440-0 01 1 1410-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA 		8-98047-441-0 01 1 1410-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (D) THA 		8-98077-413-0 01 1 1410-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) THA 		8-98077-414-0 01 1 1410-
78 SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING THA 		8-97957-708-0 15 1 1410-
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98074-113-0 01 1 1410-
105 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING THA 		8-97957-708-0 02 1 1410-
