◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11651 - FVZ THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#150649) — 15 parça

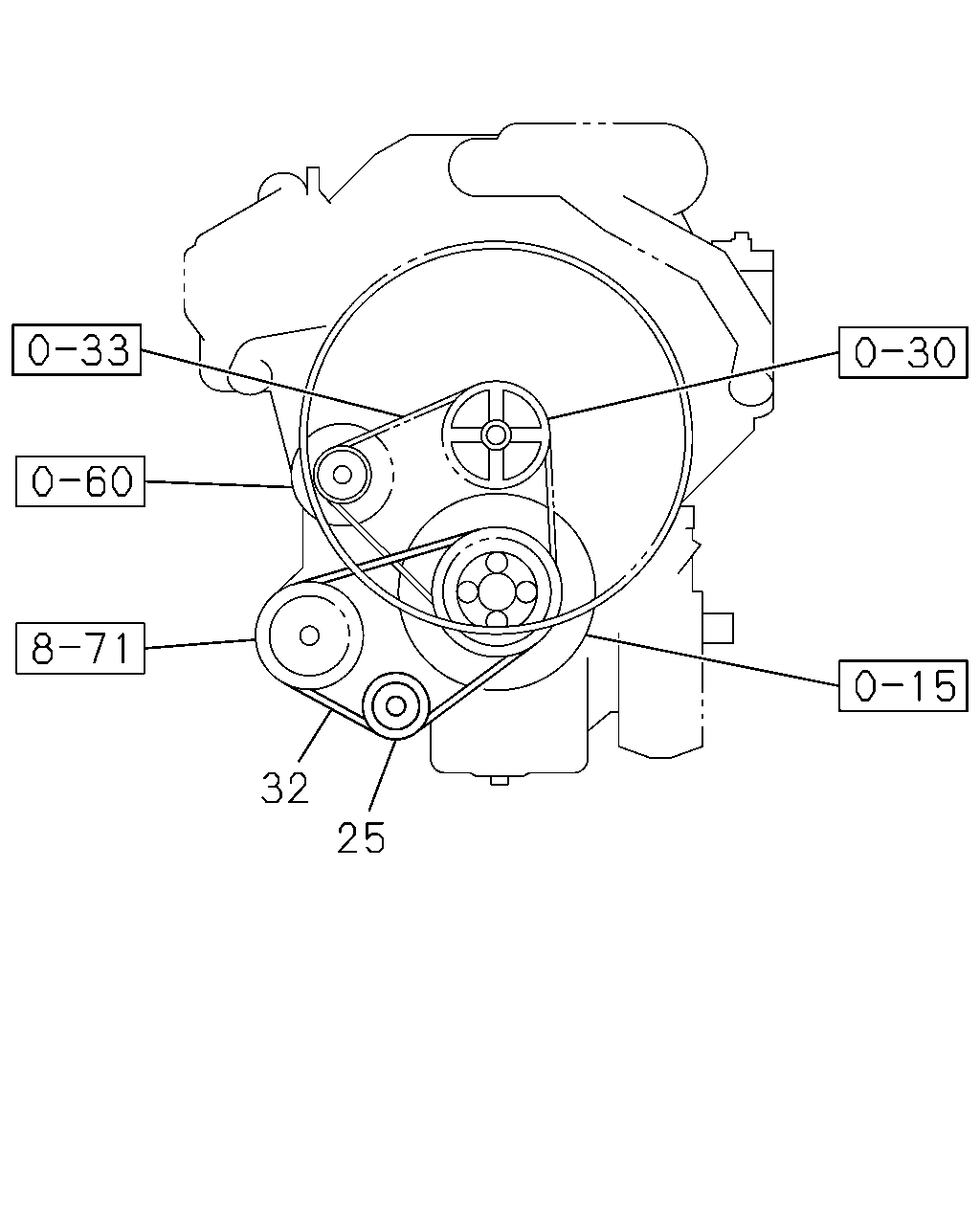

çizim 449259
32 25
BalonParca AdiParca NoAdetTipApplied Date
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97605-079-0 01 1 1410-
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1114 THA 		8-97605-102-0 01 1 1410-

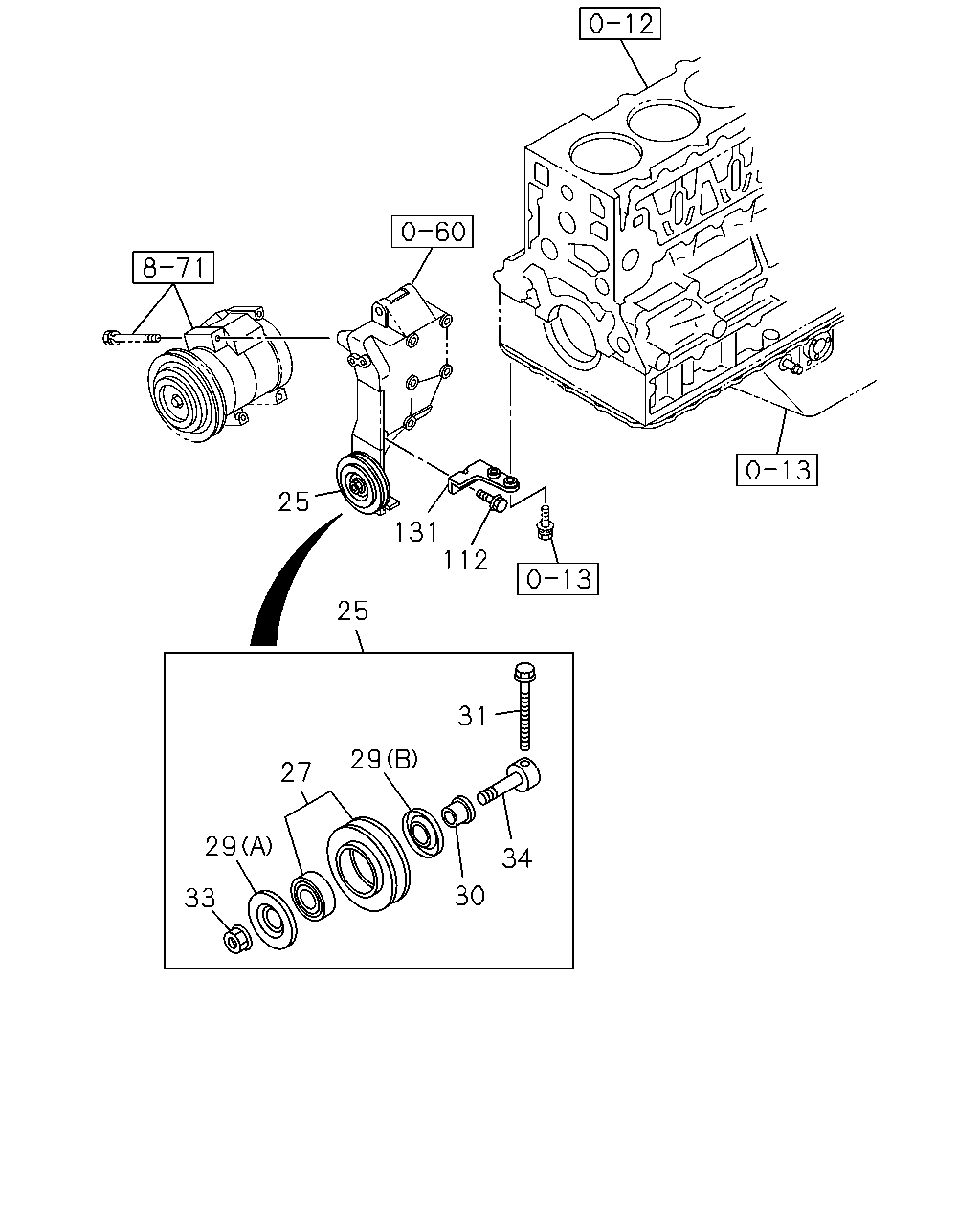

çizim 451591
25 25 131 112 31 29 27 29 33 30 34
BalonParca AdiParca NoAdetTipApplied Date
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97605-079-0 01 1 1410-
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97605-323-0 01 1 1410-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA 		8-97605-329-0 01 1 1410-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA 		8-97605-330-0 01 1 1410-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97605-328-0 01 1 1410-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97605-325-0 01 1 1410-
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97605-326-0 01 1 1410-
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97605-327-0 01 1 1410-
112 BOLT; STAY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X16 FLANGE THA 		0-28050-816-0 02 1 1410-
131 STAY; CMPR BRKT
THA 		8-94393-451-0 01 1 1410-
çizim 451763
378 378 201
BalonParca AdiParca NoAdetTipApplied Date
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-94423-042-0 01 1 1410-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA 		8-98041-428-0 01 1 1410-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA 		8-98204-846-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
