◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11651 - FVZ THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#150643) — 210 parça
çizim 448938
184 127 294 525 294 219 524 313 139 139 139 313 139 313 150 139 313 150 139 38 242 38 386 377 38 304 304 38 304 139 304 304 239
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER THA 		8-98141-255-0 03 1 1410-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1410-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1410-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1410-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET THA 		8-98063-767-0 01 1 1410-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 1410-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
139 BOLT; BRKT
(G) M8X35 FLANGE THA 		0-28650-835-0 01 1 1410-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
139 BOLT; BRKT
(D) M10X30 FLANGE THA 		0-28651-030-0 01 1 1410-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 1410-
150 BOLT; CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 THA 		1-09503-265-0 01 1 1410-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 THA 		1-09503-265-0 01 1 1410-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
239 BOLT; GRAND
M6X10 FLANGE THA 		0-28050-610-0 01 1 1410-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
294 NUT
POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1410-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1410-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE THA 		0-28050-612-0 01 1 1410-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE THA 		0-28050-810-0 01 1 1410-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 03 1 1410-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE THA 		0-28050-816-0 03 1 1410-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1410-
313 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> (D) M10X35 FLANGE THA 		0-28651-035-0 01 1 1410-
313 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
313 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 1410-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER THA 		8-97086-823-0 02 1 1410-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER THA 		8-98141-255-0 02 1 1410-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1410-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1410-
çizim 451538
16 306 48 305 305 16 305 16 305 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (M) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 THA 		1-09700-403-0 02 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26 THA 		1-09709-289-0 01 1 1410-
16 CLIP; HARNESS
(L) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
16 CLIP; HARNESS
(D) ID=14 H=50 L=20 THA 		1-09700-843-0 02 1 1410-
16 CLIP; HARNESS
(H) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
(E) ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(G) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
48 CLIP; FRAME HARNESS
(A) ID=16X2 L=50 THA 		0-95325-586-0 01 1 1410-
48 CLIP; FRAME HARNESS
(D) ID=11 L=41 THA 		1-09700-403-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 16 1 1410-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 THA 		1-09700-485-0 01 1 1410-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 THA 		1-09700-858-0 02 1 1410-
48 CLIP; FRAME HARNESS
(J) ID=14.5 H=23 L=30 THA 		1-09700-859-0 01 1 1410-
48 CLIP; FRAME HARNESS
(I) ID=35 L=50 THA 		1-09701-214-0 01 1 1410-
48 CLIP; FRAME HARNESS
(E) ID=33 L=83 THA 		1-09701-291-0 04 1 1410-
48 CLIP; FRAME HARNESS
(B) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(H) ID=18-24 L=26 THA 		1-09709-296-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1410-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 THA 		0-95235-576-0 01 1 1410-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 THA 		1-09700-766-1 01 1 1410-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 THA 		1-09700-972-1 01 1 1410-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 THA 		1-09701-006-0 01 1 1410-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 THA 		1-09701-041-1 01 1 1410-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 THA 		8-97367-985-1 01 1 1410-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 THA 		1-09701-107-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 THA 		1-09701-302-0 02 1 1410-

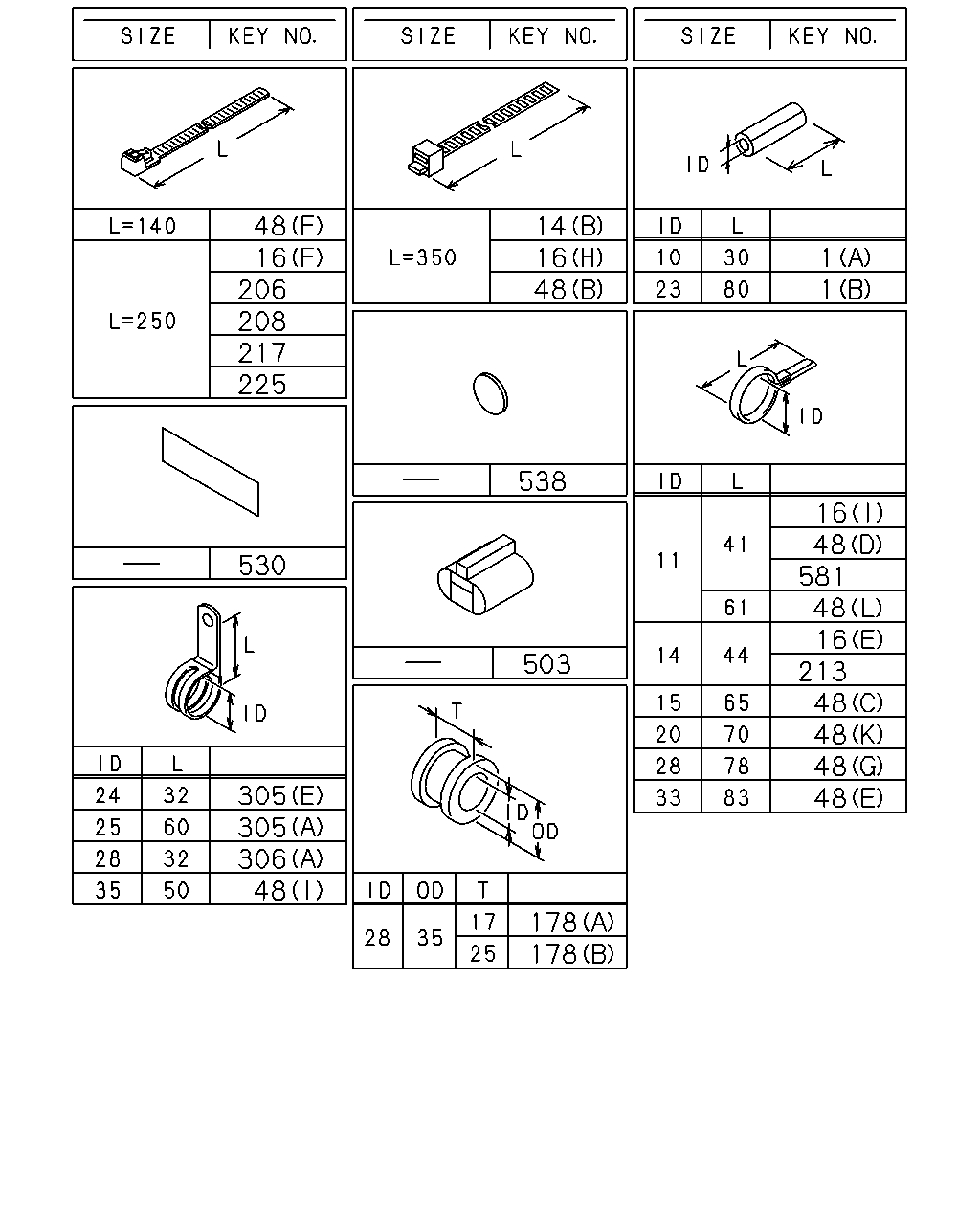

çizim 451751
48 16 206 208 217 225 530 305 305 306 48 14 16 48 538 503 178 178 1 1 16 48 581 48 16 213 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 THA 		8-97608-976-0 05 1 1410-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 THA 		9-09956-682-0 04 1 1410-
14 CLIP; BAND,HARNESS
(B) L=350 THA 		1-09707-183-0 01 1 1410-
14 CLIP; BAND,HARNESS
(C) L=251 THA 		8-97619-917-0 01 1 1410-
14 CLIP; BAND,HARNESS
(A) L=250 THA 		8-98216-430-0 14 1 1410-
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (M) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 THA 		1-09700-403-0 02 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26 THA 		1-09709-289-0 01 1 1410-
16 CLIP; HARNESS
(L) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
16 CLIP; HARNESS
(D) ID=14 H=50 L=20 THA 		1-09700-843-0 02 1 1410-
16 CLIP; HARNESS
(H) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
(E) ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(G) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
48 CLIP; FRAME HARNESS
(A) ID=16X2 L=50 THA 		0-95325-586-0 01 1 1410-
48 CLIP; FRAME HARNESS
(D) ID=11 L=41 THA 		1-09700-403-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 16 1 1410-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 THA 		1-09700-485-0 01 1 1410-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 THA 		1-09700-858-0 02 1 1410-
48 CLIP; FRAME HARNESS
(J) ID=14.5 H=23 L=30 THA 		1-09700-859-0 01 1 1410-
48 CLIP; FRAME HARNESS
(I) ID=35 L=50 THA 		1-09701-214-0 01 1 1410-
48 CLIP; FRAME HARNESS
(E) ID=33 L=83 THA 		1-09701-291-0 04 1 1410-
48 CLIP; FRAME HARNESS
(B) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(H) ID=18-24 L=26 THA 		1-09709-296-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1410-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 THA 		1-09332-011-1 01 1 1410-
178 GROMMET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25 THA 		1-09332-011-1 01 1 1410-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 THA 		1-09332-011-1 02 1 1410-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410-
206 CLIP; FUEL TANK HARNESS
L=250 THA 		5-09707-030-1 02 1 1410-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL<SV6> L=250 THA 		5-09707-030-1 01 1 1410-
208 CLIP; HARNESS,MAG VLV
L=250 THA 		5-09707-030-1 01 1 1410-
213 CLIP; END CROSS HARNESS
ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
217 CLIP; RR BODY HARNESS
L=250 THA 		5-09707-030-1 02 1 1410-
225 CLIP; AIR TANK HARNESS
L=250 THA 		5-09707-030-1 08 1 1410-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 THA 		0-95235-576-0 01 1 1410-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 THA 		1-09700-766-1 01 1 1410-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 THA 		1-09700-972-1 01 1 1410-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 THA 		1-09701-006-0 01 1 1410-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 THA 		1-09701-041-1 01 1 1410-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 THA 		8-97367-985-1 01 1 1410-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 THA 		1-09701-107-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 THA 		1-09701-302-0 02 1 1410-
503 CONNECTOR
THA 		1-82690-668-0 01 1 1410-
530 SEAL; HARNESS
180X40 THA 		1-72498-019-1 06 1 1410-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1410-
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 THA 		1-09700-403-0 01 1 1410-

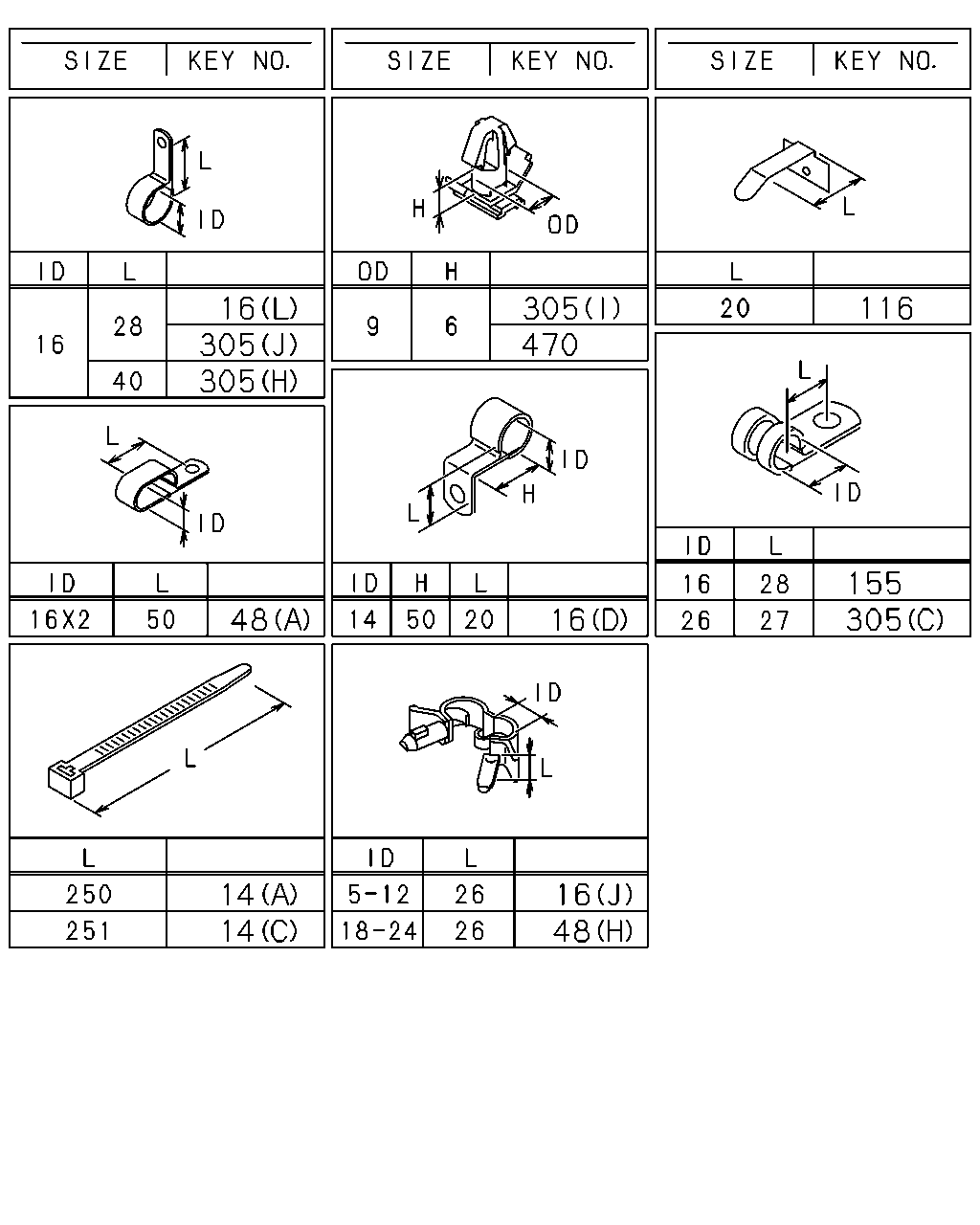

çizim 451915
16 305 305 48 14 14 305 470 16 16 48 116 155 305
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=350 THA 		1-09707-183-0 01 1 1410-
14 CLIP; BAND,HARNESS
(C) L=251 THA 		8-97619-917-0 01 1 1410-
14 CLIP; BAND,HARNESS
(A) L=250 THA 		8-98216-430-0 14 1 1410-
16 CLIP; HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (M) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 THA 		1-09700-403-0 02 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26 THA 		1-09709-289-0 01 1 1410-
16 CLIP; HARNESS
(L) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
16 CLIP; HARNESS
(D) ID=14 H=50 L=20 THA 		1-09700-843-0 02 1 1410-
16 CLIP; HARNESS
(H) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
(E) ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(G) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
POOR QUALITY DIESEL FUEL<KF0> (L) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
48 CLIP; FRAME HARNESS
(A) ID=16X2 L=50 THA 		0-95325-586-0 01 1 1410-
48 CLIP; FRAME HARNESS
(D) ID=11 L=41 THA 		1-09700-403-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 16 1 1410-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 THA 		1-09700-485-0 01 1 1410-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 THA 		1-09700-858-0 02 1 1410-
48 CLIP; FRAME HARNESS
(J) ID=14.5 H=23 L=30 THA 		1-09700-859-0 01 1 1410-
48 CLIP; FRAME HARNESS
(I) ID=35 L=50 THA 		1-09701-214-0 01 1 1410-
48 CLIP; FRAME HARNESS
(E) ID=33 L=83 THA 		1-09701-291-0 04 1 1410-
48 CLIP; FRAME HARNESS
(B) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(H) ID=18-24 L=26 THA 		1-09709-296-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1410-
116 CLIP; ROOF HARNESS
L=20 THA 		1-09987-246-2 03 1 1410-
155 CLIP; STARTER EARTH CABLE
ID=16 L=28 THA 		1-09700-872-0 01 1 1410-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 THA 		0-95235-576-0 01 1 1410-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 THA 		1-09700-766-1 01 1 1410-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 THA 		1-09700-972-1 01 1 1410-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 THA 		1-09701-006-0 01 1 1410-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 THA 		1-09701-041-1 01 1 1410-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 THA 		8-97367-985-1 01 1 1410-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 1410-

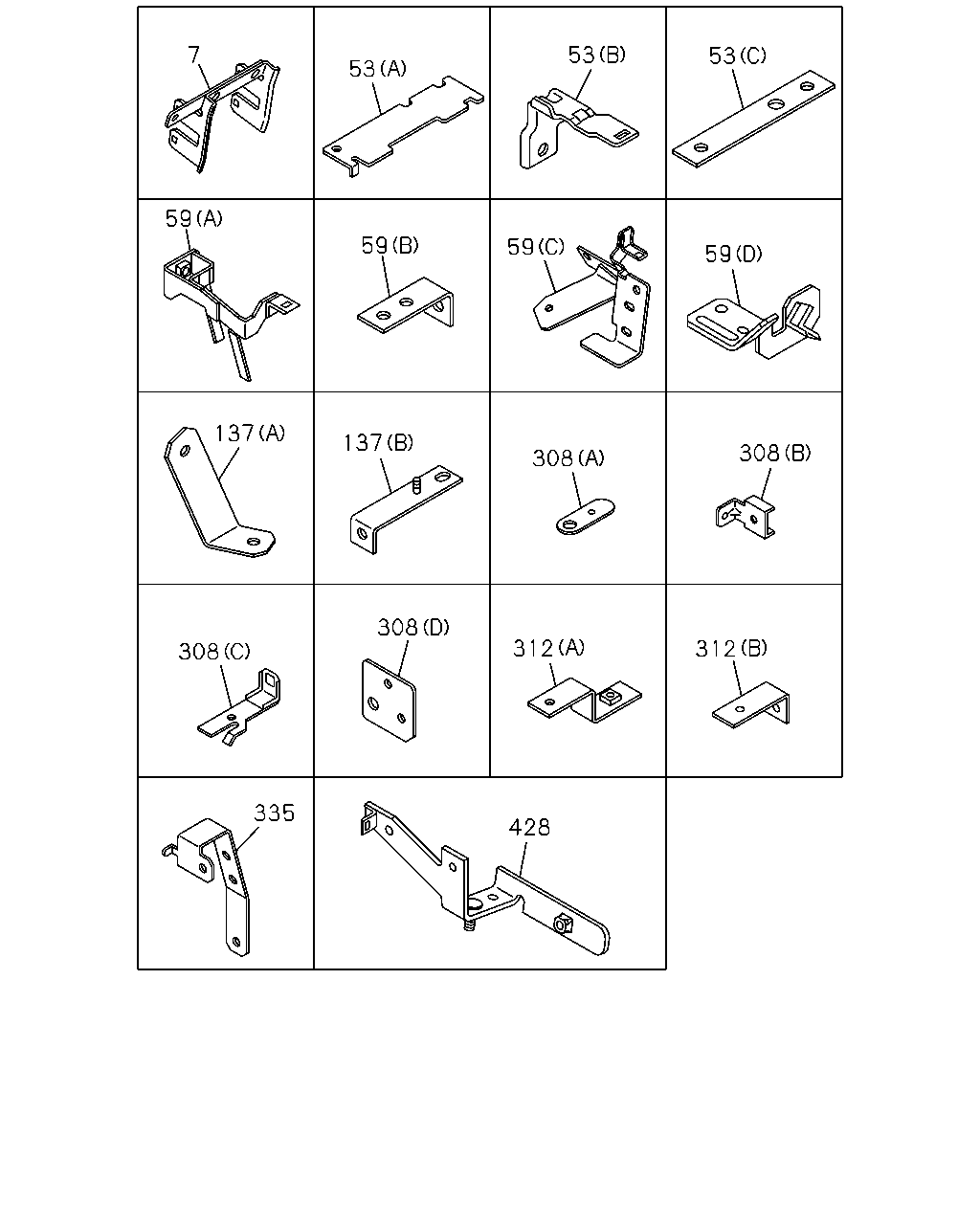

çizim 451957
7 53 53 53 59 59 59 59 137 137 308 308 308 308 312 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1410-
53 BRACKET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (C) L=170 THA 		1-47479-380-0 01 1 1410-
53 BRACKET; HARNESS
(B) THA 		8-98052-458-0 01 1 1410-
53 BRACKET; HARNESS
(A) THA 		8-98127-093-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(B) THA 		1-21464-170-2 01 1 1410-
59 BRACKET; FRAME HARNESS
(A) THA 		8-97609-264-2 01 1 1410-
59 BRACKET; FRAME HARNESS
(D) THA 		8-97616-305-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(C) THA 		8-98107-611-0 01 1 1410-
137 BRACKET; HARNESS CLAMP
(A) THA 		8-97614-728-1 01 1 1410-
137 BRACKET; HARNESS CLAMP
(B) THA 		8-97624-013-0 01 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(A) THA 		8-97601-310-0 03 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(B) THA 		8-97614-078-0 01 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(C) THA 		8-98021-291-2 01 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(D) THA 		8-98021-692-1 01 1 1410-
312 BRACKET; CLIP HARNESS
(B) L=55 THA 		1-47475-304-0 01 1 1410-
312 BRACKET; CLIP HARNESS
(A) THA 		8-97609-110-1 01 1 1410-
335 BRACKET; CONNECTOR
THA 		8-97619-097-1 01 1 1410-
428 BRACKET
THA 		8-98212-082-1 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
