8-03 — LAMP; REAR AND REAR SIDE (#150640) — 29 parça

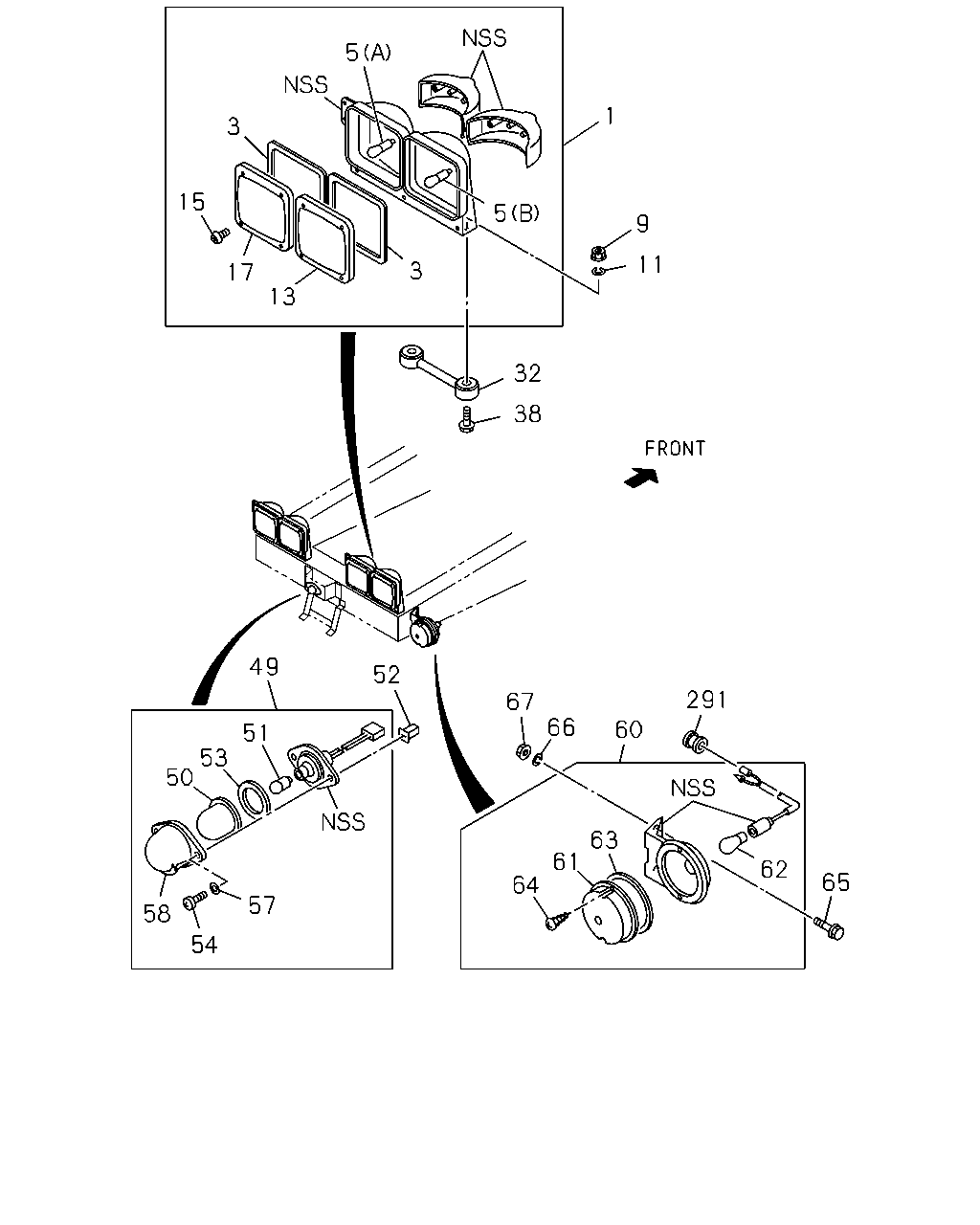

çizim 451685
3 15 17 3 13 5 5 1 9 11 32 38 49 51 53 50 52 58 57 54 67 66 60 62 291 63 61 64 65
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
THA 		8-97917-339-1 01 1 1410-
1 LAMP ASM; RR COMB
THA 		8-97917-340-1 01 1 1410-
3 GASKET; RR COMB LAMP
THA 		8-97921-655-0 04 1 1410-
5 BULB; RR COMB LAMP
(A) 24V 25W THA 		8-97921-653-0 02 1 1410-
5 BULB; RR COMB LAMP
(B) 24V 25/10W THA 		8-97921-654-0 02 1 1410-
9 NUT; LAMP,RR COMB
THA 		8-97917-353-0 04 1 1410-
11 WASHER; PL,LAMP,RR COMB
ID=8.4 OD=18 THA 		9-09160-608-0 04 1 1410-
13 LENS; TURN SIGNAL
THA 		8-97921-657-0 02 1 1410-
15 SCREW; RR COMB LAMP
THA 		8-97921-652-0 16 1 1410-
17 LENS; STOP,RR COMB LAMP
THA 		8-97921-656-0 02 1 1410-
32 PLATE; DIST RR COMB LAMP
THA 		8-97916-000-0 02 1 1410-
38 BOLT; LAMP,RR COMB
M8X50 FLANGE THA 		0-28050-850-0 04 1 1410-
49 LAMP; LICENSE PLATE
THA 		8-97915-946-0 01 1 1410-
50 LENS; LICENSE PLATE LAMP
THA 		1-82235-006-0 01 1 1410-
51 BULB; LICENSE PLATE LAMP
24V 10W THA 		1-82194-037-0 01 1 1410-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK THA 		8-94275-946-0 02 1 1410-
53 GASKET; LICENSE LAMP
THA 		1-82126-005-0 01 1 1410-
54 SCREW; LICENSE PLATE LAMP
M5X20 THA 		1-82129-007-0 02 1 1410-
57 WASHER; PL,LICENSE PLATE LAMP
THA 		1-82129-008-0 02 1 1410-
58 COVER; LICENSE PLATE LAMP
THA 		1-82129-005-0 01 1 1410-
60 LAMP; BACKUP
THA 		8-97916-602-0 01 1 1410-
61 LENS; BACKUP LAMP
THA 		8-97921-661-0 01 1 1410-
62 BULB; BACKUP LAMP
24V 25W THA 		8-97921-659-0 01 1 1410-
63 GASKET; BACKUP LAMP
THA 		8-97921-660-0 01 1 1410-
64 SCREW; BACKUP LAMP
M4X15 THA 		8-97921-658-0 02 1 1410-
65 BOLT; LAMP,BACKUP
THA 		8-97916-894-1 02 1 1410-
66 WASHER; LK,BACKUP LAMP
ID=10.2 THA 		0-91510-510-0 02 1 1410-
67 NUT; FLANGE
THA 		8-97916-605-0 02 1 1410-
291 GROMMET; BACK UP LAMP
THA 		8-97916-014-0 01 1 1410-
