◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11651 - FVZ THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#150620) — 59 parça

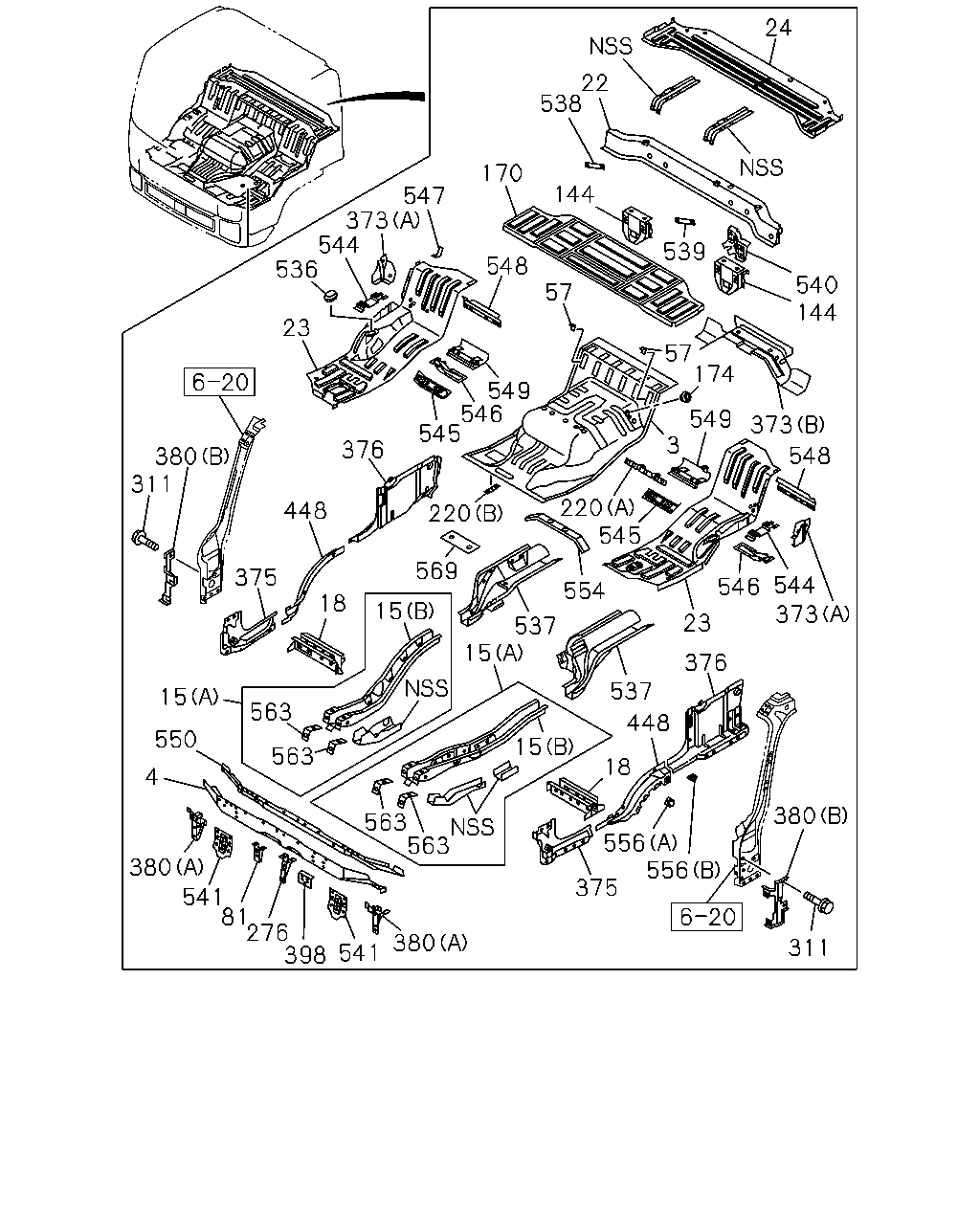

çizim 449509
24 22 538 170 144 547 373 544 540 144 548 539 536 23 380 311 448 376 375 15 550 4 380 541 81 276 398 541 380 549 546 545 57 220 569 18 15 563 563 563 563 57 220 537 15 15 174 549 3 373 545 554 548 546 544 23 373 376 537 448 18 556 375 556 380 311
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1410-
4 FRAME; FLOOR,FRT
THA 		8-98073-693-1 01 1 1410-
15 FRAME; UNDER
(A) THA 		8-97584-387-9 01 1 1410-
15 FRAME; UNDER
(B) THA 		8-97584-388-9 01 1 1410-
15 FRAME; UNDER
(A) THA 		8-97584-411-9 01 1 1410-
15 FRAME; UNDER
(B) THA 		8-97584-412-6 01 1 1410-
18 FRAME; FLOOR,CENTER SIDE
THA 		8-97584-398-4 01 1 1410-
18 FRAME; FLOOR,CENTER SIDE
THA 		8-97584-421-4 01 1 1410-
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 1410-
23 PANEL; FLOOR,SIDE
THA 		8-98073-691-1 01 1 1410-
23 PANEL; FLOOR,SIDE
THA 		8-97584-372-7 01 1 1410-
24 PANEL; BED PAN
THA 		8-97584-378-6 01 1 1410-
57 BRACKET; SPARE TIRE
THA 		8-98038-970-1 02 1 1410-
81 BRACKET; HARNESS SUPPORT
THA 		8-98041-333-3 01 1 1410-
144 BRACKET; MTG,RR
THA 		8-97584-432-6 01 1 1410-
144 BRACKET; MTG,RR
THA 		8-97589-666-6 01 1 1410-
170 EXTENSION; RR FLOOR
THA 		8-97589-207-4 01 1 1410-
174 GROMMET; AIR PIPE
OD=35 THA 		8-94122-971-0 01 1 1410-
220 PATCH
(A) THA 		8-97588-840-4 01 1 1410-
220 PATCH
(B) THA 		8-97589-603-3 01 1 1410-
276 BRACKET; RAD GRILLE
THA 		8-97589-596-3 01 1 1410-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1410-
373 REINFORCEMENT; SEAT BELT
(A) THA 		8-97584-367-2 01 1 1410-
373 REINFORCEMENT; SEAT BELT
(A) THA 		8-97584-375-2 01 1 1410-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1410-
375 CLOSING; PILLAR
THA 		8-98044-897-3 01 1 1410-
375 CLOSING; PILLAR
THA 		8-98044-898-3 01 1 1410-
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1410-
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1410-
380 BRACKET; HEAD LAMP
(B) THA 		8-98032-614-1 01 1 1410-
380 BRACKET; HEAD LAMP
(B) THA 		8-98032-615-1 01 1 1410-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1410-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1410-
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1410-
448 CLOSING; ROCKER
THA 		8-97589-551-2 01 1 1410-
448 CLOSING; ROCKER
THA 		8-97589-552-2 01 1 1410-
536 PLUG; CABLE,PTO
THA 		8-97612-074-1 01 1 1410-
537 SUPPORT ASM; MTG RR
THA 		8-97584-391-4 01 1 1410-
537 SUPPORT ASM; MTG RR
THA 		8-97584-417-4 01 1 1410-
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 1410-
539 PATCH ASM; SAFTY HOOK
THA 		8-97584-440-2 01 1 1410-
540 BRACKET ASM; CAB LOCK LEVER
THA 		8-97584-438-1 01 1 1410-
541 REINFORCEMENT; MTG,FRT
THA 		8-98067-903-0 02 1 1410-
544 BRACKET; DUMP CONT
THA 		8-97584-363-1 01 1 1410-
544 BRACKET; DUMP CONT
THA 		8-98049-529-0 01 1 1410-
545 BRACKET; SEAT FRT
THA 		8-97584-361-1 01 1 1410-
545 BRACKET; SEAT FRT
THA 		8-97584-373-1 01 1 1410-
546 REINFORCEMENT; FLOOR SIDE
THA 		8-97584-427-0 02 1 1410-
547 BRACKET; JACK HANDLE
THA 		8-97588-843-1 01 1 1410-
548 BRACKET; MUD GUARD
THA 		8-97588-961-1 01 1 1410-
548 BRACKET; MUD GUARD
THA 		8-97588-962-1 01 1 1410-
549 BRACKET; SEAT RR
THA 		8-97588-958-4 01 1 1410-
549 BRACKET; SEAT RR
THA 		8-97589-557-4 01 1 1410-
550 CLOSING ASM; MTG,FRT
THA 		8-97584-615-4 01 1 1410-
554 REINFORCEMENT; FLOOR CENTER
THA 		8-97584-351-2 01 1 1410-
556 BRACKET; TILT HANDLE
(A) THA 		8-98077-605-1 01 1 1410-
556 BRACKET; TILT HANDLE
(B) THA 		8-98077-606-1 01 1 1410-
563 REINFORCEMENT; MTG FRT,RR
THA 		8-97589-579-2 04 1 1410-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1410-
