Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11651 - FVZ THAILAND EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

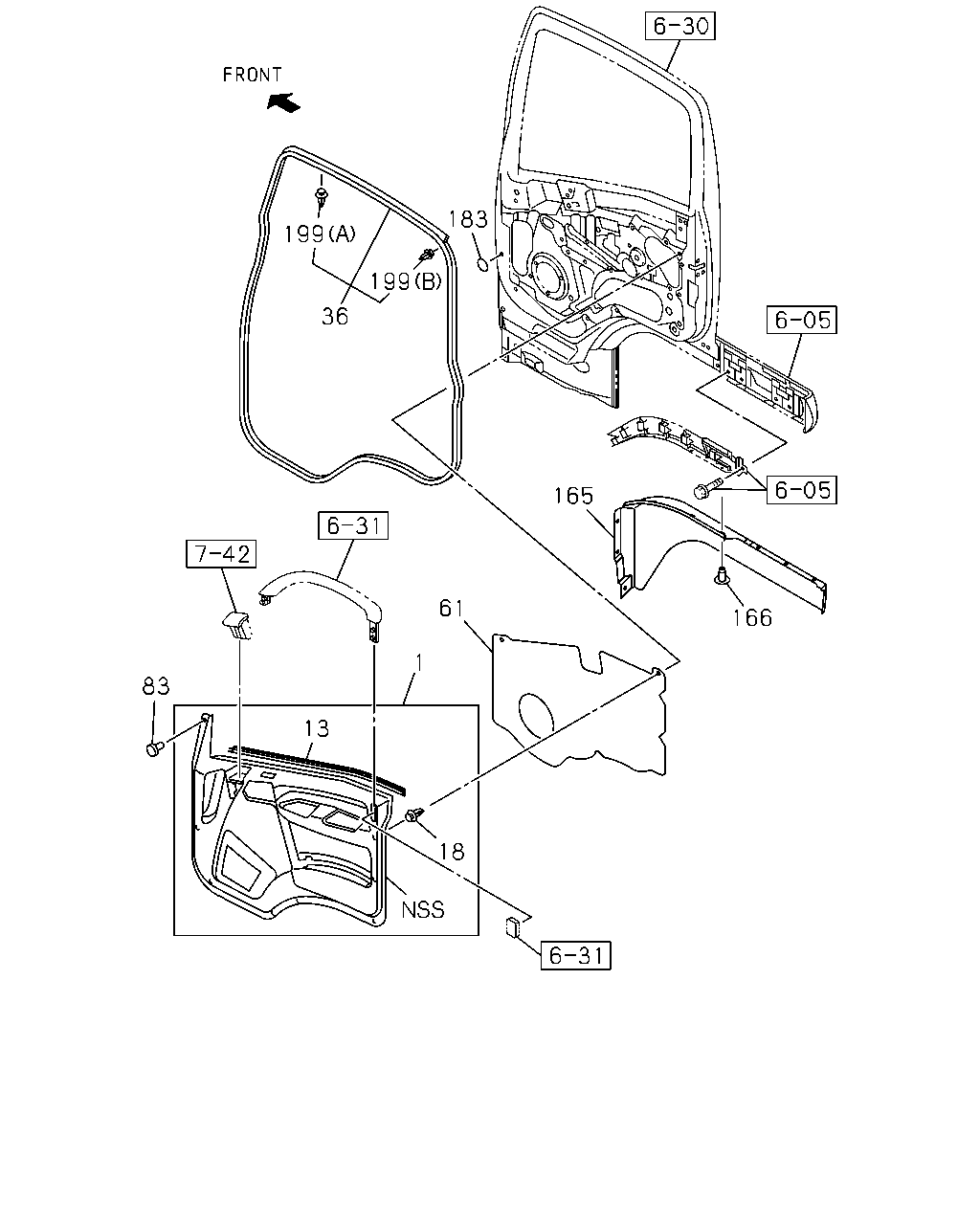

6-35 — FRONT DOOR TRIM
(#150615) — 16 parça
199
199
183
36
165
166
61
83
13
18
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
THA
8-97923-889-1
01
1
1410-
1
PAD; TRIM,FRT DOOR
THA
8-97923-890-1
01
1
1410-
13
SEAL; DOOR TRIM
THA
8-97923-891-0
01
1
1410-
13
SEAL; DOOR TRIM
THA
8-97923-892-0
01
1
1410-
18
CLIP; DOOR PAD
THA
8-98004-025-0
14
1
1410-
36
SEAL; DOOR,MAIN,CAB SIDE
THA
8-97926-951-0
01
1
1410-
36
SEAL; DOOR,MAIN,CAB SIDE
THA
8-97926-952-0
01
1
1410-
61
SEAL; WATER,DOOR PAD
THA
8-97948-264-0
01
1
1410-
61
SEAL; WATER,DOOR PAD
THA
8-97948-265-0
01
1
1410-
83
CLIP; DOOR TRIM
GRAY THA
8-97405-308-0
02
1
1410-
165
LINER; DOOR LWR
THA
8-98038-288-1
01
1
1410-
165
LINER; DOOR LWR
THA
8-98038-289-1
01
1
1410-
166
PLUG; HOLE
D8X13.5 THA
1-09987-248-1
09
1
1410-
183
SEAL; LOCATION HOLE
OD=25 BLACK THA
1-76798-019-0
02
1
1410-
199
CLIP; SEAL
(A) NATURAL THA
8-98062-270-0
80
1
1410-
199
CLIP; SEAL
(B) RED THA
8-98062-271-0
02
1
1410-
