1 |

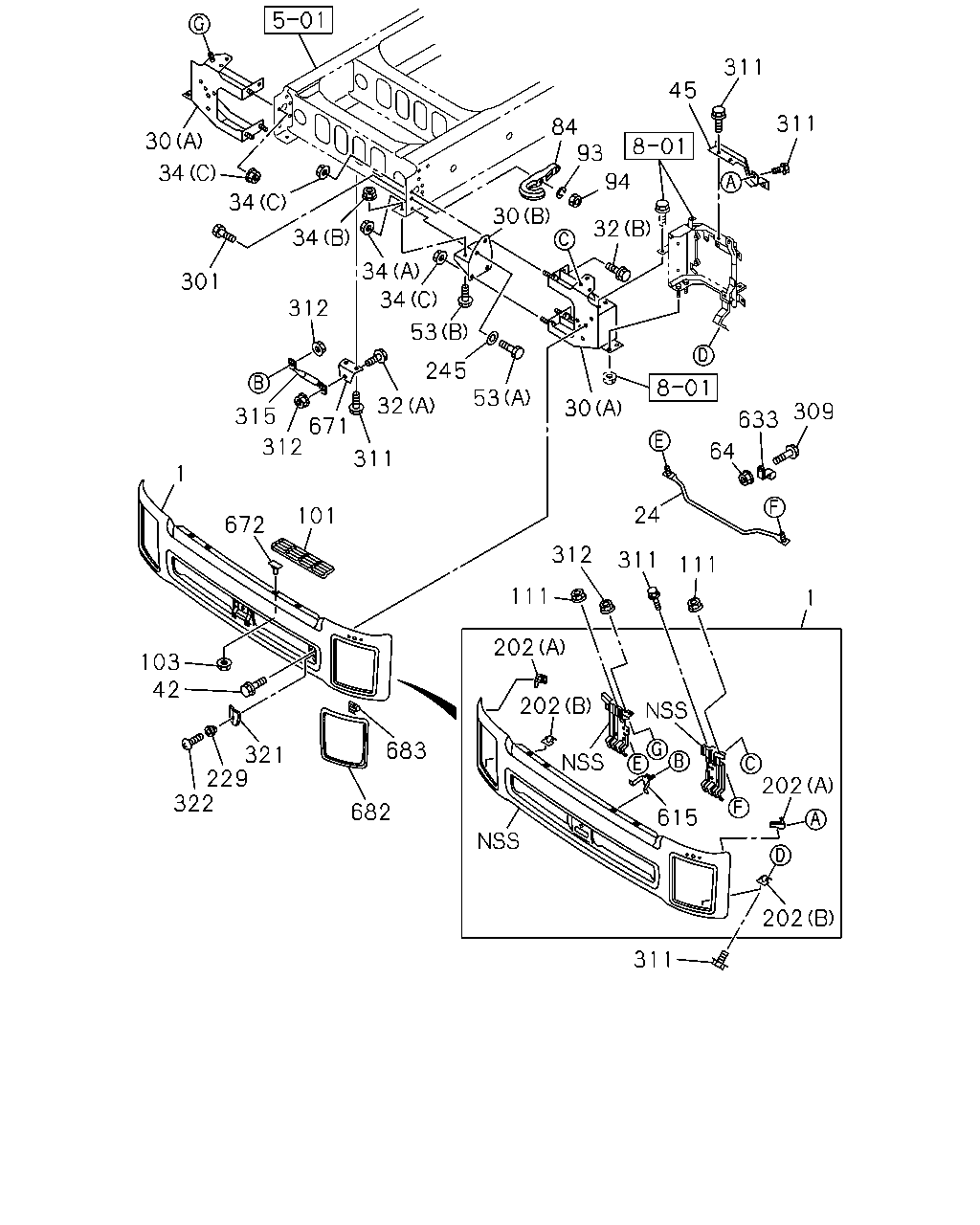

BUMPER ASM; FRT
WHITE
THA
|
8-97425-037-0 |
01 |
1 |
1410- |
| |
24 |
BAR; FRT BUMPER
THA
|
8-97625-359-0 |
01 |
1 |
1410- |
| |
30 |
BRACKET; FRT BUMPER
(A)
THA
|
8-98034-434-2 |
01 |
1 |
1410- |
| |
30 |
BRACKET; FRT BUMPER
(A)
THA
|
8-98034-435-2 |
01 |
1 |
1410- |
| |
30 |
BRACKET; FRT BUMPER
(B)
THA
|
8-98053-546-1 |
01 |
1 |
1410- |
| |
30 |
BRACKET; FRT BUMPER
(B)
THA
|
8-98053-547-1 |
01 |
1 |
1410- |
| |
32 |
BOLT; BRKT,BUMPER
(A)
M10X30
THA
|
8-94324-205-0 |
01 |
1 |
1410- |
| |
32 |
BOLT; BRKT,BUMPER
(B)
M12X35 FLANGE
THA
|
0-28051-235-0 |
02 |
1 |
1410- |
| |
34 |
NUT; BRKT,BUMPER
(B)
M14 FLANGE
THA
|
0-91180-214-0 |
04 |
1 |
1410- |
| |
34 |
NUT; BRKT,BUMPER
(A)
M16
THA
|
0-91110-516-0 |
02 |
1 |
1410- |
| |
34 |
NUT; BRKT,BUMPER
(C)
M12 FLANGE
THA
|
0-91180-212-0 |
06 |
1 |
1410- |
| |
42 |
BOLT; BUMPER
M10X30
THA
|
8-94324-205-0 |
06 |
1 |
1410- |
| |
45 |
BRACKET; BRKT TO BUMPER
THA
|
8-97613-647-2 |
01 |
1 |
1410- |
| |
45 |
BRACKET; BRKT TO BUMPER
THA
|
8-97613-648-2 |
01 |
1 |
1410- |
| |
53 |
BOLT; BRKT TO FRAME
(A)
M16X40
THA
|
0-20851-640-0 |
02 |
1 |
1410- |
| |
53 |
BOLT; BRKT TO FRAME
(B)
M14X45 FLANGE
THA
|
0-28851-445-0 |
04 |
1 |
1410- |
| |
64 |
NUT; CLIP
M6 FLANGE
THA
|
0-91180-106-0 |
01 |
1 |
1410- |
| |
84 |
HOOK
THA
|
8-97948-237-0 |
01 |
1 |
1410- |
| |
93 |
WASHER; LK,HOOK
ID=16.2
THA
|
0-91510-816-0 |
02 |
1 |
1410- |
| |
94 |
NUT; HOOK
M16
THA
|
0-91110-516-0 |
02 |
1 |
1410- |
| |
101 |
STEP; BUMPER
THA
|
8-97611-542-0 |
01 |
1 |
1410- |
| |
101 |
STEP; BUMPER
THA
|
8-97611-543-0 |
01 |
1 |
1410- |
| |
103 |
NUT; BUMPER STEP
M6 FLANGE
THA
|
0-91180-106-0 |
04 |
1 |
1410- |
| |
111 |
NUT; STAY
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
1410- |
| |
202 |
BRACKET; BUMPER SIDE
(A)
THA
|
8-98184-663-0 |
01 |
1 |
1410- |
| |
202 |
BRACKET; BUMPER SIDE
(A)
THA
|
8-98184-664-0 |
01 |
1 |
1410- |
| |
202 |
BRACKET; BUMPER SIDE
(B)
THA
|
8-98184-668-0 |
01 |
1 |
1410- |
| |
202 |
BRACKET; BUMPER SIDE
(B)
THA
|
8-98184-669-0 |
01 |
1 |
1410- |
| |
229 |
GROMMET
D=7X7 L=7.5
THA
|
5-09983-007-0 |
02 |
1 |
1410- |
| |
245 |
WASHER; PL,BRKT TO FRAME
ID=17 OD=30
THA
|
0-91610-516-0 |
02 |
1 |
1410- |
| |
301 |
BOLT; HOOK TO FRAME
M16X70
THA
|
0-10861-670-0 |
02 |
1 |
1410- |
| |
309 |
BOLT; CLIP
M6X16 FLANGE
THA
|
0-28650-616-0 |
01 |
1 |
1410- |
| |
311 |
BOLT; BRKT
M10X30
THA
|
8-94324-205-0 |
07 |
1 |
1410- |
| |
311 |
BOLT; BRKT
M10X25 FLANGE
THA
|
0-28651-025-0 |
06 |
1 |
1410- |
| |
312 |
NUT; BRKT
M10 FLANGE
THA
|
0-91180-210-0 |
05 |
1 |
1410- |
| |
315 |
STAY; BUMPER
THA
|
8-97613-645-1 |
01 |
1 |
1410- |
| |
321 |
COVER; BUMPER FRT SIDE
THA
|
8-97616-296-1 |
01 |
1 |
1410- |
| |
321 |
COVER; BUMPER FRT SIDE
THA
|
8-97616-297-1 |
01 |
1 |
1410- |
| |
322 |
SCREW; COVER FIX
T25 M5X16 TAPPING HEXALOBULAR
THA
|
0-72180-516-0 |
02 |
1 |
1410- |
| |
615 |
BRACKET; BUMPER CENTER
THA
|
8-98184-611-0 |
01 |
1 |
1410- |
| |
633 |
CLIP; BUMPER
ID=16 H=24 L=20
THA
|
0-95207-315-0 |
01 |
1 |
1410- |
| |
671 |
BRACKET; STAY
THA
|
8-97620-889-0 |
01 |
1 |
1410- |
| |
672 |
STUD; STEP
THA
|
8-97611-666-0 |
04 |
1 |
1410- |
| |
682 |
BEZEL; BUMPER
THA
|
8-97611-530-2 |
01 |
1 |
1410- |
| |
682 |
BEZEL; BUMPER
THA
|
8-97611-531-2 |
01 |
1 |
1410- |
| |
683 |
CLIP; BEZEL,BUMPER
THA
|
8-98084-293-0 |
08 |
1 |
1410- |
