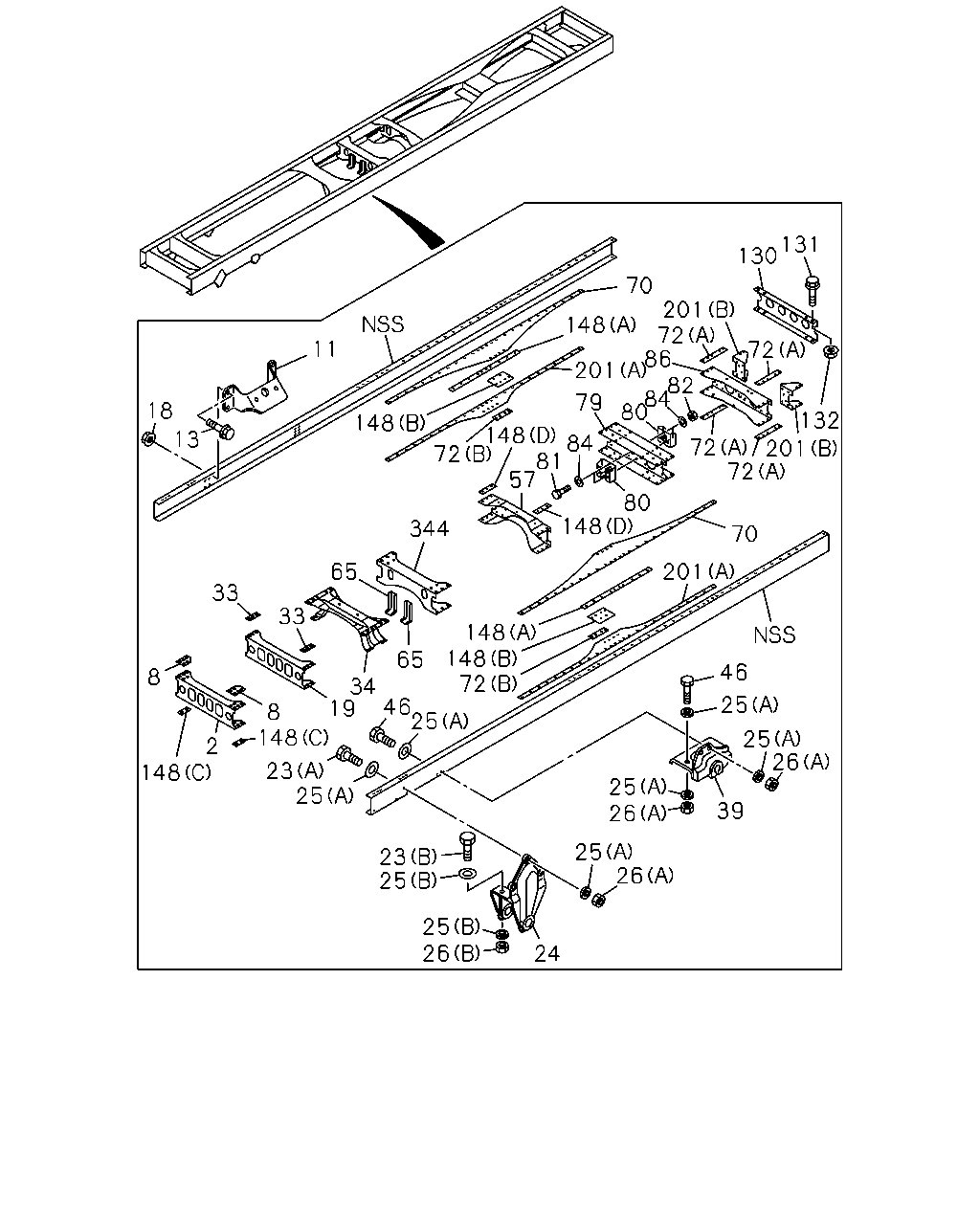

5-01 — FRAME AND OTHER PARTS
(#150602) — 40 parça
18
11
13
33
8
148
8
2
25
23
34
19
148
33
344
65
65
46
25
23
25
25
26
24
26
25
25
26
39
46
25
25
26
72
148
148
72
148
148
148
57
81
84
79
201
148
70
130
131
72
72
132
201
72
201
80
82
84
72
86
201
80
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
THA
8-97948-166-0
01
1
1410-
8
GUSSET; 1ST C/MBR
THA
8-97948-167-0
02
1
1410-
11
BRACKET; ENG MTG
THA
8-97619-550-0
02
1
1410-
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE THA
0-28661-240-0
08
1
1410-
18
NUT; BRKT,ENG MTG
M12 FLANGE THA
0-91180-212-0
08
1
1410-
19
MEMBER; CROSS,2ND
THA
8-97948-169-0
01
1
1410-
23
BOLT; BRKT,SPR
(A) M14X50 THA
0-20951-450-0
06
1
1410-
23
BOLT; BRKT,SPR
(B) M16X60 THA
0-20951-660-0
04
1
1410-
24
BRACKET; FRT SPR,FRT
THA
8-97948-158-0
01
1
1410-
24
BRACKET; FRT SPR,FRT
THA
8-97948-160-0
01
1
1410-
25
WASHER; PL,BRKT
(B) ID=16.2 THA
1-09503-316-0
08
1
1410-
25
WASHER; PL,BRKT
(A) ID=15 THA
8-98010-627-1
28
1
1410-
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
1410-
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
1410-
33
SPACER; 2ND C/MBR,UPR
THA
8-97948-140-0
02
1
1410-
34
MEMBER; CROSS,3RD
THA
8-97948-172-0
01
1
1410-
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
1410-
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
1410-
46
BOLT; BRKT FIX
M14X50 THA
0-20951-450-0
08
1
1410-
57
MEMBER; CROSS,RR SUSP FRT
THA
8-97612-103-1
01
1
1410-
65
BRACKET; CENTER BRG
THA
8-97614-126-0
02
1
1410-
70
GUSSET; TRUNNION,UPR
THA
8-97612-106-0
02
1
1410-
72
SPACER; TRUNNION
(A) THA
8-97948-182-0
04
1
1410-
72
SPACER; TRUNNION
(B) THA
8-97922-399-0
02
1
1410-
79
MEMBER; CROSS,TRUNNION ASM
THA
8-97612-104-0
01
1
1410-
80
BRACKET; C/MBR
THA
8-97948-138-0
02
1
1410-
81
BOLT; BRKT
M14X50 THA
0-10956-450-0
02
1
1410-
82
NUT; BRKT
M14 THA
0-91110-514-0
02
1
1410-
84
WASHER; PL,BRKT
ID=15 THA
8-98010-627-1
04
1
1410-
86
MEMBER; CROSS,RR SUSP RR
THA
8-97924-655-0
01
1
1410-
130
MEMBER; CROSS,END
THA
8-97916-031-0
01
1
1410-
131
BOLT; END C/MBR
M12X30 W/LK WASHER THA
0-50541-230-0
04
1
1410-
132
NUT; END C/MBR
M12 THA
0-91110-512-0
04
1
1410-
148
SPACER; C/MBR
(B) THA
8-97612-113-0
02
1
1410-
148
SPACER; C/MBR
(D) THA
8-97612-109-0
02
1
1410-
148
SPACER; C/MBR
(C) THA
8-97948-168-0
02
1
1410-
148
SPACER; C/MBR
(A) THA
8-97948-889-0
02
1
1410-
201
GUSSET; C/MBR
(A) THA
8-97618-440-1
02
1
1410-
201
GUSSET; C/MBR
(B) THA
8-97612-108-2
02
1
1410-
344
MEMBER; CROSS,4TH
THA
8-97948-180-0
01
1
1410-
