◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11651 - FVZ THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#150597) — 30 parça

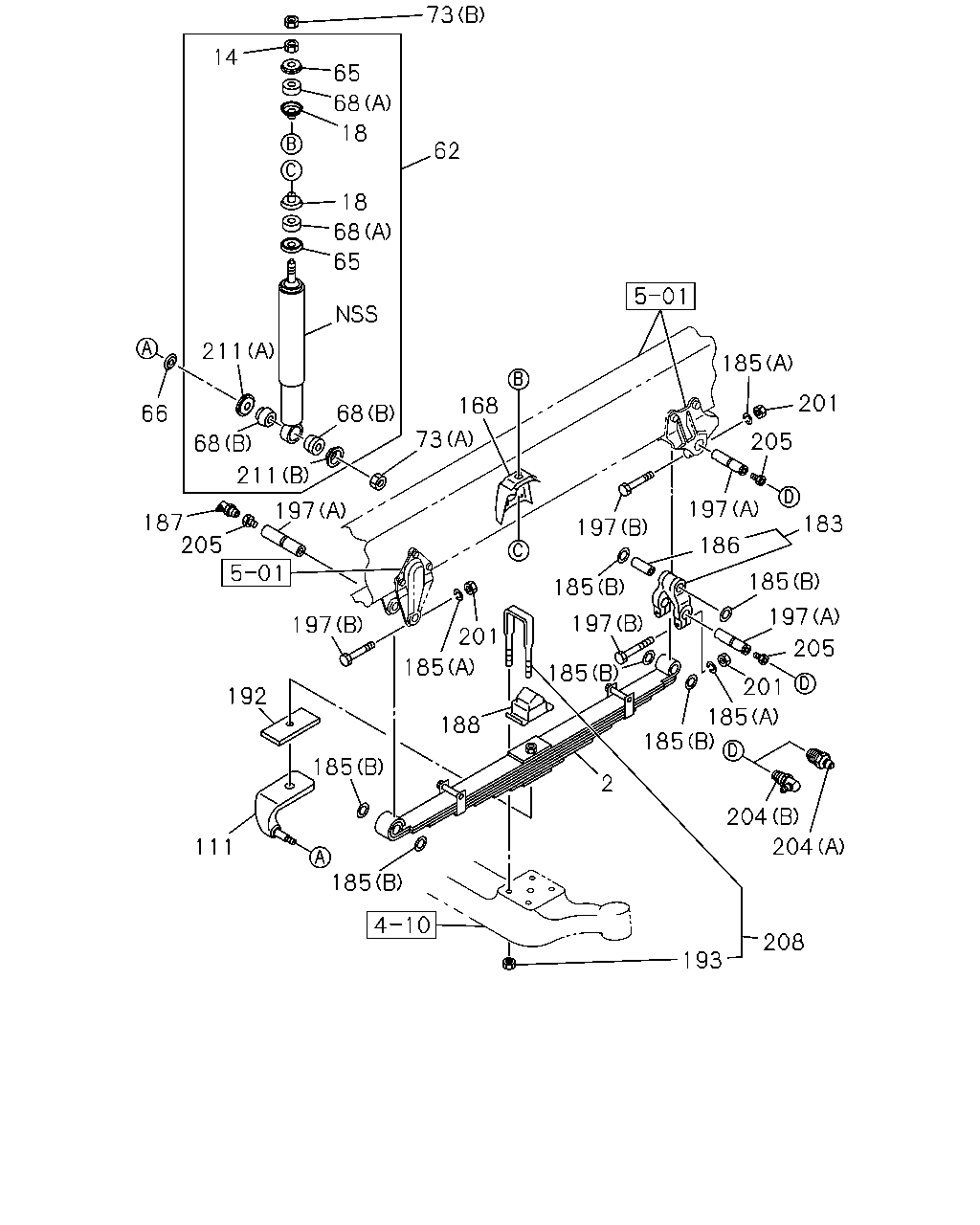

çizim 448672
193 204 208 204 2 185 185 201 197 205 185 183 186 197 205 201 185 185 197 185 197 188 185 197 185 185 111 192 201 168 73 197 205 187 211 68 68 66 211 65 68 18 18 68 65 62 73 14
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97948-186-0 02 1 1410-
14 NUT; S/ABS,UPR
M14 THA 		9-99111-414-0 02 1 1410-
18 WASHER; CENTERING,S/ABS
ID=20.8 THA 		9-51631-041-0 04 1 1410-
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-233-0 02 1 1410-
65 WASHER; S/ABS
ID=16.5 THA 		9-51631-040-0 04 1 1410-
66 WASHER; LK,S/ABS SETTING
ID=21 THA 		0-91610-520-0 02 1 1410-
68 BUSHING; S/ABS
(B) THA 		9-51631-026-0 04 1 1410-
68 BUSHING; S/ABS
(A) THA 		9-51631-039-0 04 1 1410-
73 NUT; BRKT,SHOCK
(A) M20 THA 		0-91110-520-0 02 1 1410-
73 NUT; BRKT,SHOCK
(B) M14 THA 		0-91111-514-0 02 1 1410-
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-497-0 01 1 1410-
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-498-0 01 1 1410-
168 BRACKET; S/ABS,FRT SUSP
THA 		1-51681-616-0 02 1 1410-
183 SHACKLE; FRT SUSP
THA 		1-51162-029-5 02 1 1410-
185 WASHER; LK,PIN
(A) ID=12.2 THA 		0-91510-612-0 12 1 1410-
185 WASHER; LK,PIN
(B) ID=32.4 THA 		1-51169-018-0 12 1 1410-
186 BUSHING; SHACKLE
OD=38 THA 		8-98081-829-0 02 1 1410-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW THA 		0-90301-610-0 02 1 1410-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97948-188-0 02 1 1410-
192 PIECE; DIST
80X144 ID=17.5 THA 		1-51177-284-1 AR 1 1410-
193 NUT; U BOLT
M22 THA 		8-98179-318-0 08 1 1410-
197 PIN; FRT SPR,FRT
(B) M12X80 THA 		0-10856-280-0 12 1 1410-
197 PIN; FRT SPR,FRT
(A) THA 		8-97948-141-0 06 1 1410-
201 NUT; PIN LK
M12 THA 		0-91110-512-0 12 1 1410-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1410-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410-
205 ATTACHMENT; GREASE NIPPLE
THA 		9-43165-001-0 06 1 1410-
208 U-BOLT SET; FRT SPRING
L=230 THA 		1-87870-493-0 04 1 1410-
211 WASHER; BRKT,SHOCK
(A) ID=27 THA 		9-51631-027-0 02 1 1410-
211 WASHER; BRKT,SHOCK
(B) ID=21 THA 		9-51631-028-0 02 1 1410-
