Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11651 - FVZ THAILAND EURO3
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#150582) — 45 parça
◀

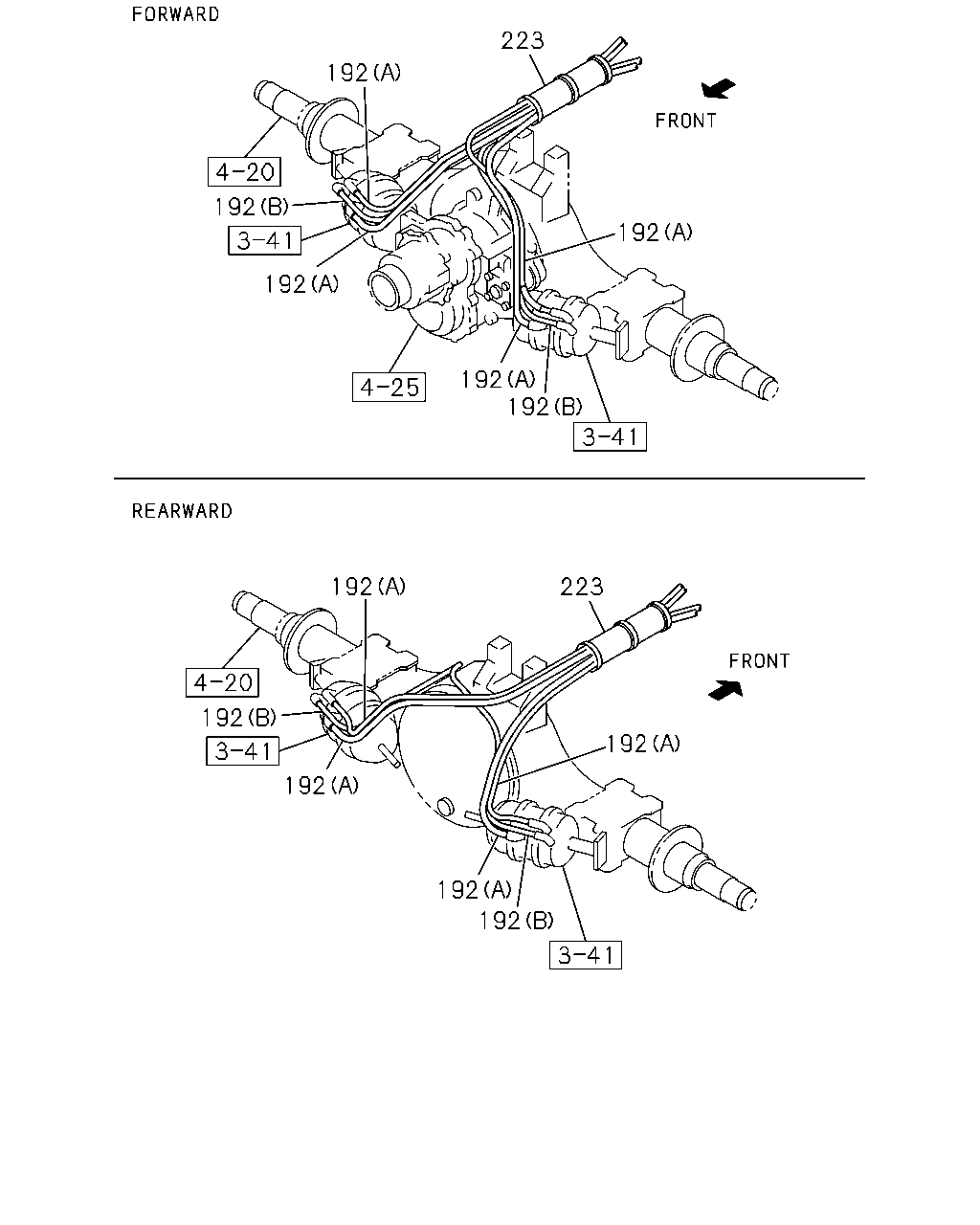

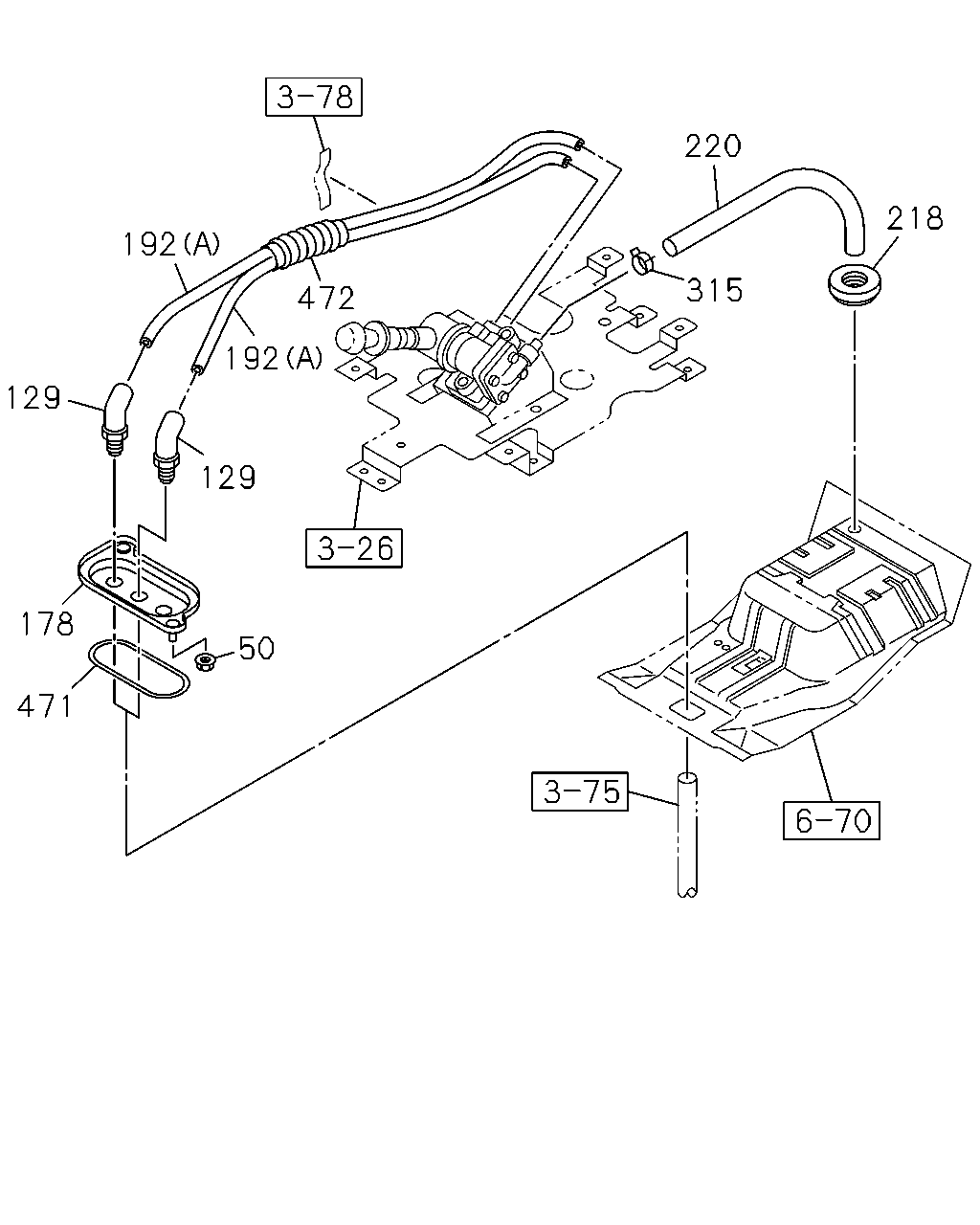

[377A] NO.1 (16 parça)
[377A] NO.2 (17 parça)
[377A] NO.3 (12 parça)
▶
192
129
178
471
50
129
192
472
220
315
218
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1410-
129
CONNECTOR; NYLON TUBE
THA
8-97611-963-1
02
1
1410-
178
BRACKET; UNION
THA
8-98017-054-1
01
1
1410-
192
TUBE; NYLON
(B) REARWARD L=915 OD=8 THA
1-49221-696-0
01
1
1410-
192
TUBE; NYLON
(B) FORWARD LH,REARWARD RH L=1125 OD=8 THA
1-49221-697-0
02
1
1410-
192
TUBE; NYLON
(B) FORWARD THA
8-98134-462-0
01
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 THA
1-87411-013-0
AR
1
1410-
218
GROMMET; VINYL HOSE
OD=24 THA
9-61166-007-0
01
1
1410-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 THA
9-09914-701-0
01
1
1410-
315
CLIP
ID=14 THA
8-94238-572-0
01
1
1410-
471
SEAL; BRKT
THA
1-79738-832-0
01
1
1410-
472
TUBE; SPUTTER
THA
8-98067-708-0
01
1
1410-
192
192
192
223
225
184
192
223
100
325
74
192
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
74
ADAPTER; UNION TO NYLON TUBE
DIN8 & M12 STRAIGHT THA
1-09660-873-0
01
1
1410-
100
NUT; UNION
M12 FLANGE THA
0-91180-112-0
01
1
1410-
184
BOLT; TUBE CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1410-
192
TUBE; NYLON
(B) REARWARD L=915 OD=8 THA
1-49221-696-0
01
1
1410-
192
TUBE; NYLON
(B) FORWARD LH,REARWARD RH L=1125 OD=8 THA
1-49221-697-0
02
1
1410-
192
TUBE; NYLON
(B) FORWARD THA
8-98134-462-0
01
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 THA
1-87411-013-0
AR
1
1410-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 THA
1-87411-020-0
AR
1
1410-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
AR
1
1410-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1410-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1410-
225
NUT; TUBE CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1410-
325
UNION; 2WAY
M12 2WAY THA
1-09654-059-2
01
1
1410-
192
223
192
192
192
192
192
192
223
192
192
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
192
TUBE; NYLON
(B) REARWARD L=915 OD=8 THA
1-49221-696-0
01
1
1410-
192
TUBE; NYLON
(B) FORWARD LH,REARWARD RH L=1125 OD=8 THA
1-49221-697-0
02
1
1410-
192
TUBE; NYLON
(B) FORWARD THA
8-98134-462-0
01
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1410-
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 THA
1-87411-013-0
AR
1
1410-
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 THA
1-87411-020-0
AR
1
1410-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
AR
1
1410-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1410-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
