Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11651 - FVZ THAILAND EURO3
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#150571) — 55 parça
◀

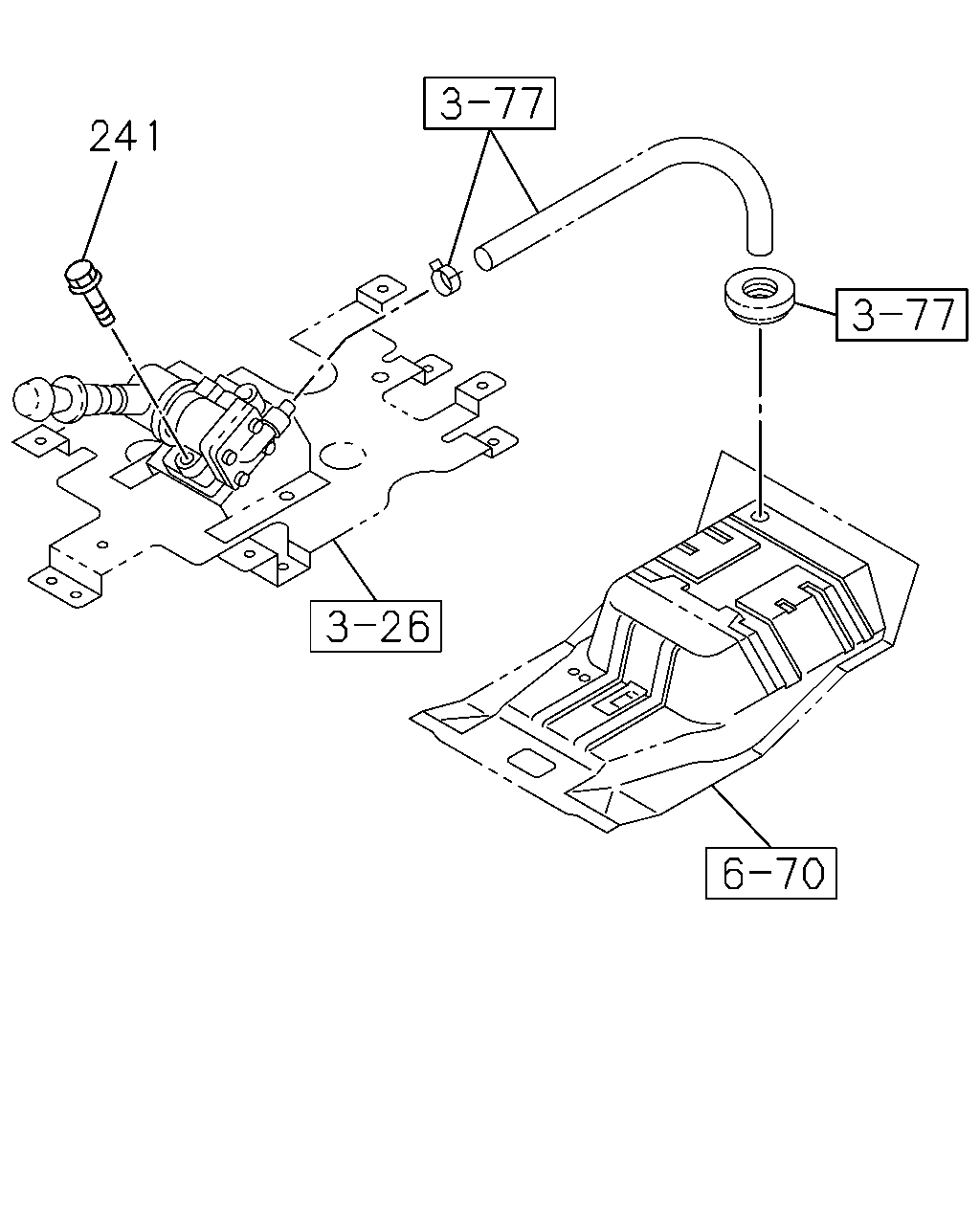

[320A] CAB SIDE (1 parça)
[320A] COMPONENT;MAIN AIR TANK (28 parça)
[320A] FIXING;MAIN AIR TANK (4 parça)
[320A] COMPONENT;SUB AIR TANK (22 parça)
▶
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
M8X70 FLANGE THA
0-28050-870-0
02
1
1410-
3

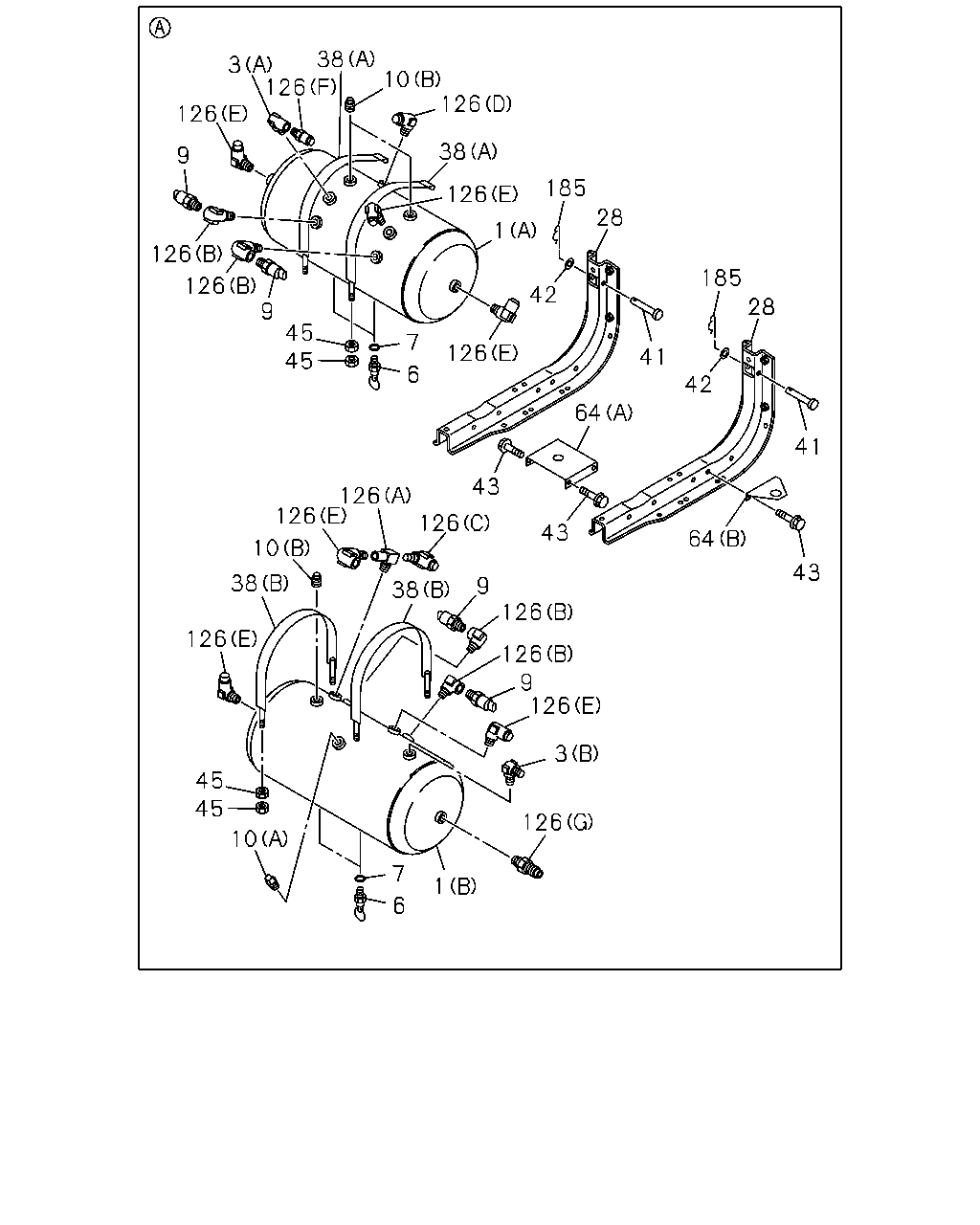

126
9
126
126
9
45
45
6
7
126
42
1
126
38
126
10
38
126
185
28
185
28
41
42
41
43
64
43
64
43
126
126
126
10
38
126
45
45
10
6
7
1
126
3
126
9
126
126
9
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A) THA
8-98202-945-0
01
1
1410-
1
TANK ASM; AIR
(B) THA
8-98202-946-0
01
1
1410-
3
VALVE; CHECK,AIR TANK
(A) THA
1-48320-031-1
01
1
1410-
3
VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW THA
1-48410-412-0
01
1
1410-
6
COCK; DRAIN,AIR TANK
THA
1-48312-015-0
01
1
1410-
6
COCK; DRAIN,AIR TANK
THA
1-48312-015-0
04
1
1410-
7
GASKET; DRAIN COCK
ID=14 THA
1-09630-145-0
01
1
1410-
7
GASKET; DRAIN COCK
ID=14 THA
1-09630-145-0
04
1
1410-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 THA
8-97609-249-0
04
1
1410-
10
PLUG; AIR TANK
(A) PT3/8 THA
9-09204-517-0
01
1
1410-
10
PLUG; AIR TANK
(B) PT3/4 THA
9-09204-526-0
03
1
1410-
28
BRACKET; AIR TANK
THA
8-97948-888-0
02
1
1410-
38
BAND; AIR TANK
(A) THA
1-48317-108-2
02
1
1410-
38
BAND; AIR TANK
(B) THA
1-48317-109-2
02
1
1410-
41
PIN; BAND FIX
OD=10 L=60 THA
0-82254-060-0
02
1
1410-
42
WASHER; PL
ID=10.5 THA
0-91614-510-0
02
1
1410-
43
BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE THA
0-28650-825-0
06
1
1410-
45
NUT; AIR TANK,MAIN
M8 THA
0-91110-508-0
12
1
1410-
64
STAY; AIR TANK,MAIN
(A) THA
1-48317-607-0
01
1
1410-
64
STAY; AIR TANK,MAIN
(B) THA
1-48317-691-0
01
1
1410-
126
CONNECTOR; ELBOW
(G) THA
1-09650-283-1
01
1
1410-
126
CONNECTOR; ELBOW
(B) PT1/4 2WAY THA
1-09660-693-0
04
1
1410-
126
CONNECTOR; ELBOW
(C) DIN8 & R1/4 ELBOW THA
1-09660-956-0
01
1
1410-
126
CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW THA
1-09660-957-0
01
1
1410-
126
CONNECTOR; ELBOW
(E) DIN12 & R3/8 ELBOW THA
1-09660-959-0
06
1
1410-
126
CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA
1-09660-965-0
01
1
1410-
126
CONNECTOR; ELBOW
(A) THA
8-98166-127-0
01
1
1410-
185
PIN; SNAP
L=32.6 THA
8-98062-280-0
02
1
1410-

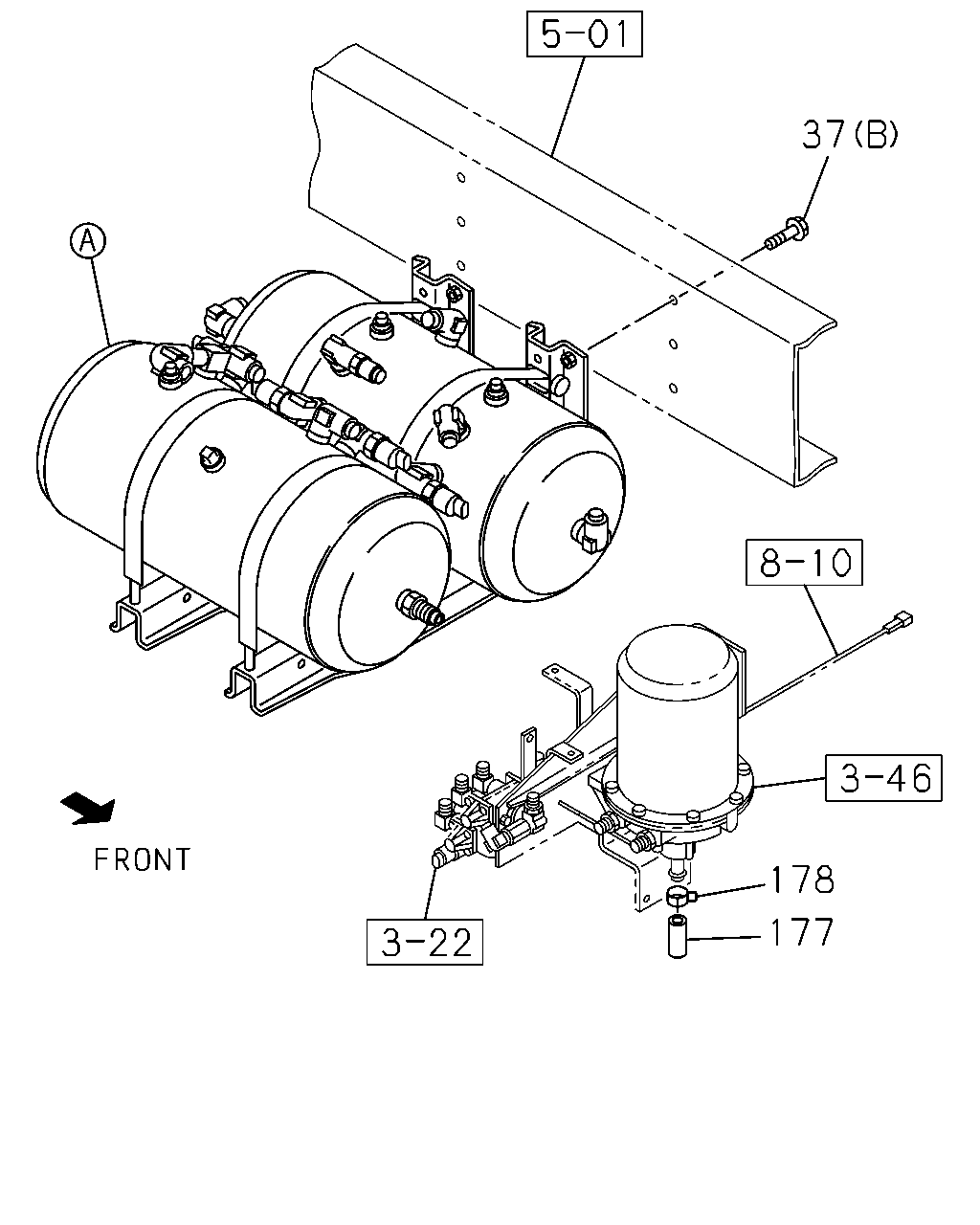

37
178
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
(B) M12X40 FLANGE THA
0-28651-240-0
08
1
1410-
37
BOLT; AIR TANK
(A) M14X50 FLANGE THA
0-28851-450-0
04
1
1410-
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA
0-03566-300-0
01
1
1410-
178
CLIP; HOSE
ID=21 THA
8-94242-034-0
01
1
1410-
26
2
39
39
37
32
214
30
80
80
46
46
46
46
30
80
27
27
26
7
6
30
46
30
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
TANK; AIR
THA
8-98219-013-0
01
1
1410-
6
COCK; DRAIN,AIR TANK
THA
1-48312-015-0
01
1
1410-
6
COCK; DRAIN,AIR TANK
THA
1-48312-015-0
04
1
1410-
7
GASKET; DRAIN COCK
ID=14 THA
1-09630-145-0
01
1
1410-
7
GASKET; DRAIN COCK
ID=14 THA
1-09630-145-0
04
1
1410-
26
PLUG; SUB AIR TANK
PT3/8 THA
9-09204-517-0
02
1
1410-
27
UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW THA
1-09660-959-0
01
1
1410-
27
UNION; ELBOW,AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA
1-09661-026-0
01
1
1410-
30
BRACKET; AIR TANK,SUB
(C) THA
1-48316-024-3
01
1
1410-
30
BRACKET; AIR TANK,SUB
(A) THA
1-48317-994-2
01
1
1410-
30
BRACKET; AIR TANK,SUB
(B) THA
8-98182-085-0
01
1
1410-
30
BRACKET; AIR TANK,SUB
(D) THA
8-98218-960-0
01
1
1410-
32
NUT; BRKT TO FRAME
M14 THA
0-91110-514-0
04
1
1410-
37
BOLT; AIR TANK
(B) M12X40 FLANGE THA
0-28651-240-0
08
1
1410-
37
BOLT; AIR TANK
(A) M14X50 FLANGE THA
0-28851-450-0
04
1
1410-
39
U-BOLT; AIR TANK
L=253 THA
8-97948-475-0
02
1
1410-
46
NUT; U-BOLT
(A) M8 THA
0-91110-508-0
08
1
1410-
46
NUT; U-BOLT
(B) M8 FLANGE THA
0-91180-108-0
01
1
1410-
46
NUT; U-BOLT
(C) M12 FLANGE THA
0-91180-212-0
01
1
1410-
80
BOLT; BRKT
(A) M8X25 FLANGE THA
0-28650-825-0
01
1
1410-
80
BOLT; BRKT
(B) M12X30 FLANGE THA
0-28651-230-0
04
1
1410-
214
WASHER; LK,BRKT TO FRAME
ID=14.2 THA
0-91510-514-0
04
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
