Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11651 - FVZ THAILAND EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#150560) — 131 parça
◀
[230A] CLIP;PIPE (2 parça)
[230A] AIR HOSE (12 parça)
[230A] SPRING AND SNAP RING (7 parça)
[230A] QUAD BOX (20 parça)
[230A] SHAFT;SHIFT LEVER (15 parça)
[230A] SELECT LEVER AND LINK ROD (13 parça)
[230A] CYLINDER;AIR,SHIFT AND RANGE CHANGE (27 parça)
[230A] COVER (14 parça)
[230A] SHIFT ARM (21 parça)
▶

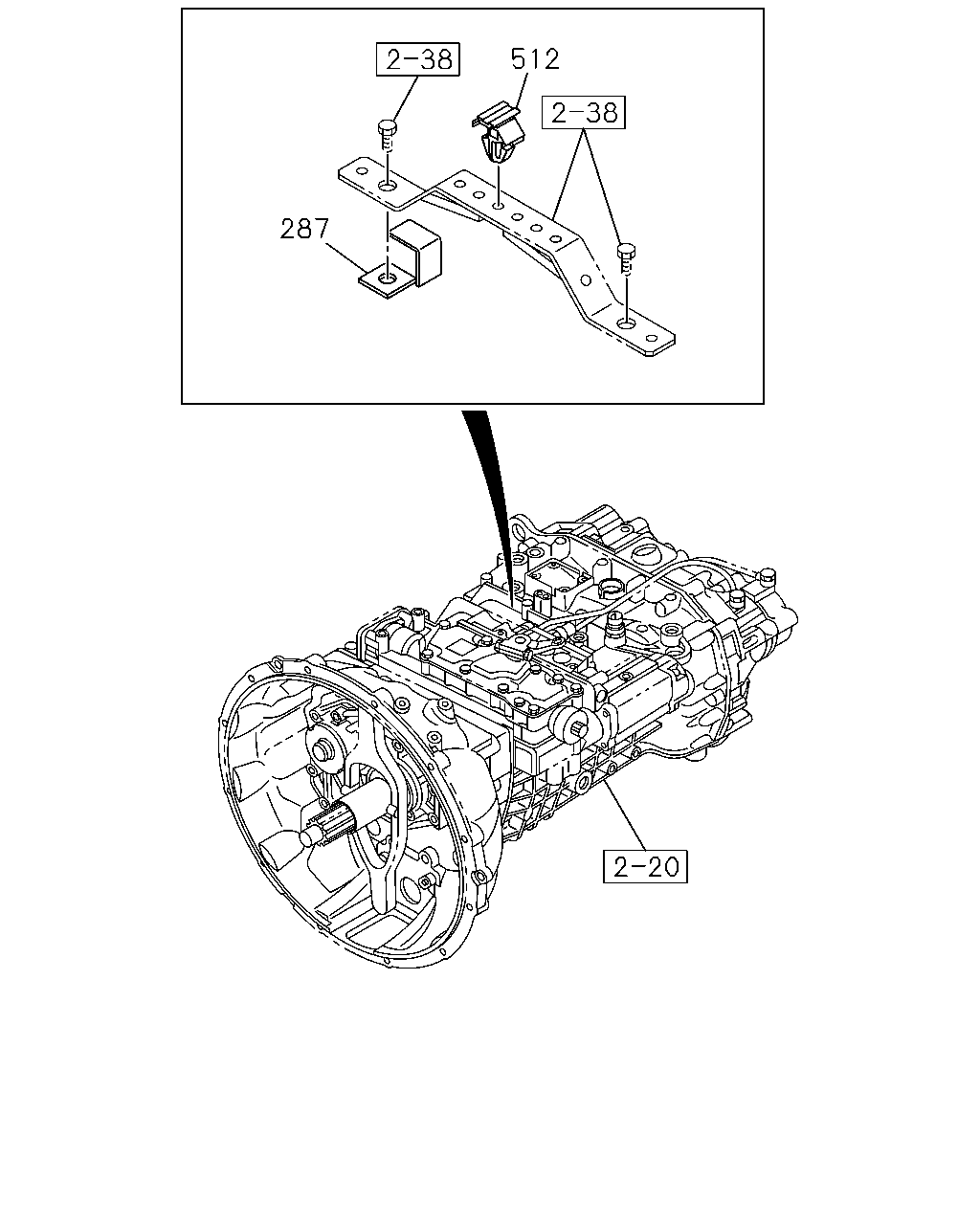

512
287
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
287
COVER; AIR BREATHER
THA
1-34141-026-0
01
1
1410-
512
CLIP; PIPE
OD=9 H=6 THA
1-09709-178-0
04
1
1410-

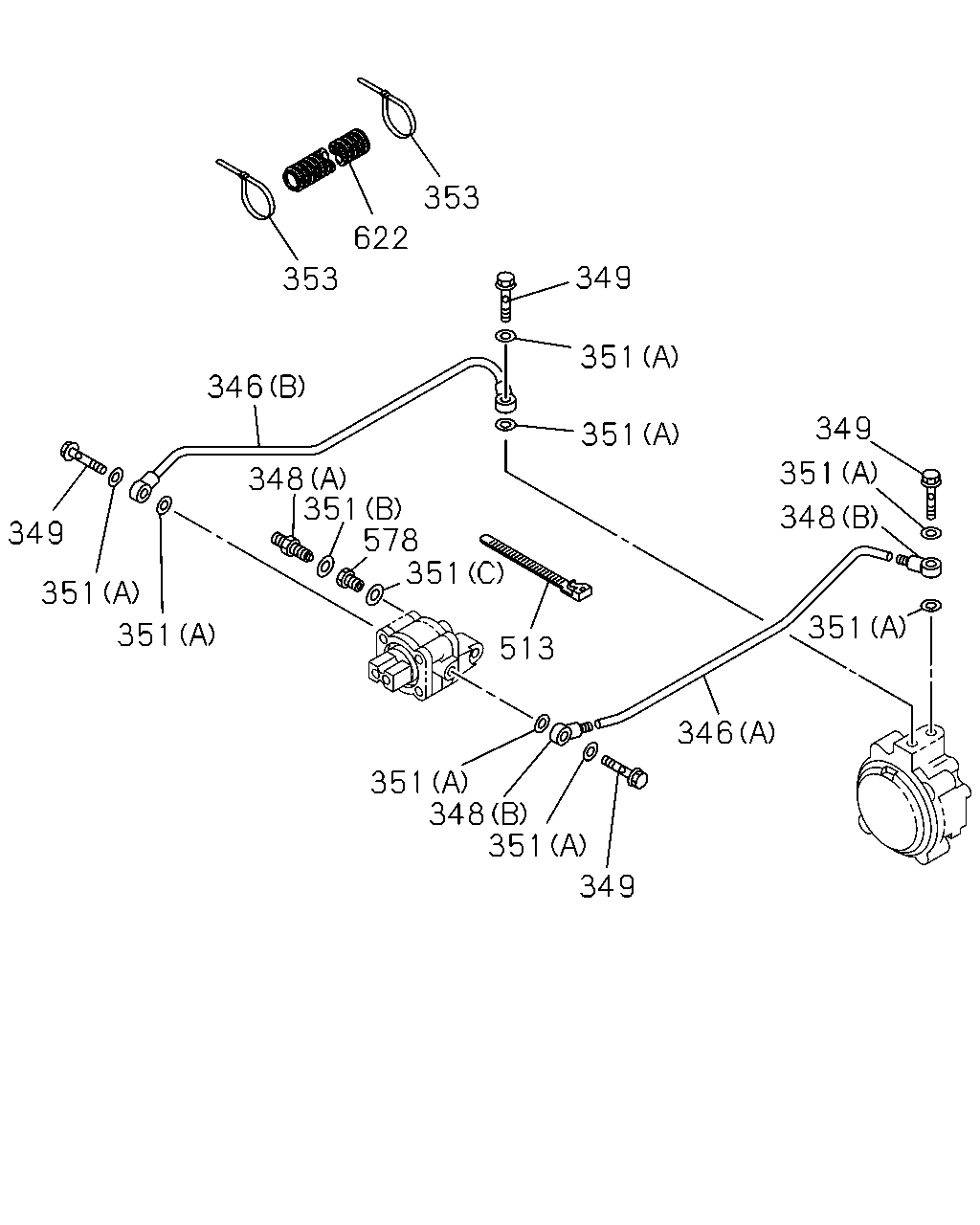

353
622
353
346
349
351
351
348
351
578
351
513
351
348
351
349
346
351
348
351
349
351
351
349
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
346
HOSE; AIR
(B) THA
1-33549-598-0
01
1
1410-
346
HOSE; AIR
(A) THA
1-33549-618-0
01
1
1410-
348
CONNECTOR; AIR HOSE
(A) M12 STRAIGHT THA
1-09654-246-0
01
1
1410-
348
CONNECTOR; AIR HOSE
(B) THA
1-33549-593-0
04
1
1410-
349
BOLT; EYE,AIR HOSE
M14 THA
1-33549-592-0
04
1
1410-
351
GASKET; CONNECTOR
(B) ID=12.2 THA
8-98251-344-0
01
1
1410-
351
GASKET; CONNECTOR
(C) THA
1-33549-554-0
01
1
1410-
351
GASKET; CONNECTOR
(A) THA
1-33549-578-0
08
1
1410-
353
CLIP; AIR HOSE
THA
1-33549-475-0
02
1
1410-
513
CLIP; BAND
L=250 THA
5-09707-030-1
05
1
1410-
578
CONNECTOR
THA
1-33549-553-0
01
1
1410-
622
TUBE; CORRUGATE
L=100 ID=22 L=350 THA
1-83129-017-0
01
1
1410-
234
277
19
19
303
277
19
303
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
SPRING; COIL COMP
(A) THA
1-33539-027-0
01
1
1410-
19
SPRING; COIL COMP
(C) THA
1-33539-030-0
02
1
1410-
19
SPRING; COIL COMP
(D) THA
1-33539-104-0
01
1
1410-
19
SPRING; COIL COMP
(B) THA
1-33549-221-0
01
1
1410-
234
RING; SNAP
THA
1-44519-224-0
01
1
1410-
277
PLATE; SPRING SEAT
THA
1-33539-107-0
02
1
1410-
303
RING; SNAP,SHAFT
THA
1-33539-040-0
02
1
1410-

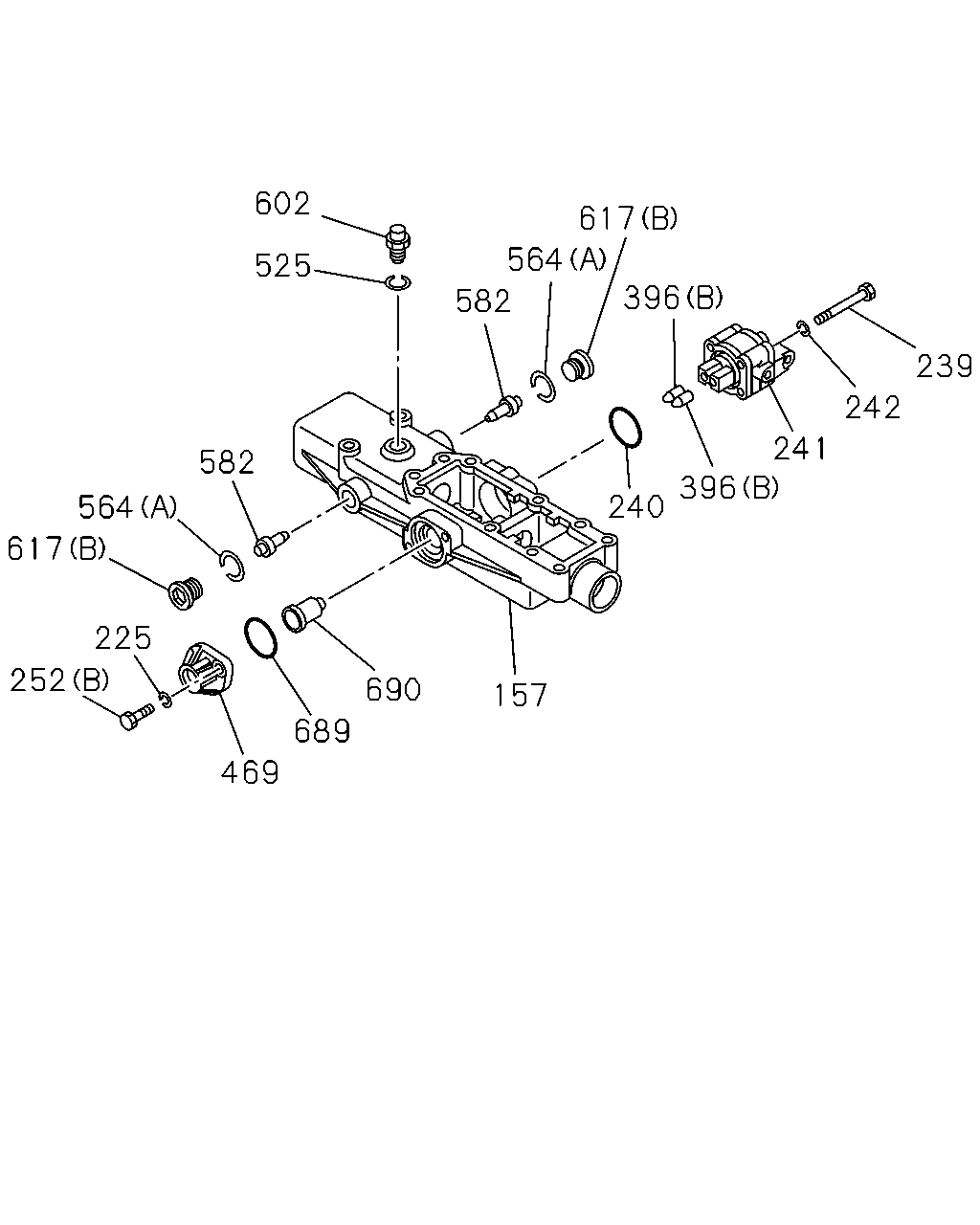

602
525
582
564
617
225
252
469
689
690
157
240
396
241
242
239
396
617
564
582
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
157
BOX; QUAD,TRANS
THA
1-33549-570-0
01
1
1410-
225
WASHER; LK,QUAD BOX
THA
1-33549-583-0
14
1
1410-
239
BOLT; CUT OFF VALVE
THA
1-33549-585-0
04
1
1410-
240
GASKET; CUT OFF VALVE
THA
1-33549-198-0
01
1
1410-
241
VALVE; CUT OFF
THA
1-33549-495-0
01
1
1410-
242
WASHER; CUT OFF VALVE
THA
1-33549-583-0
04
1
1410-
252
BOLT; SIDE COVER
(B) M8X30 THA
1-33549-581-0
02
1
1410-
252
BOLT; SIDE COVER
(A) M8X20 THA
1-33549-591-0
04
1
1410-
396
PLUNGER; SHIFT ROD
(A) THA
1-33519-189-0
01
1
1410-
396
PLUNGER; SHIFT ROD
(B) THA
1-33529-085-0
02
1
1410-
469
COVER; SPRING,QUAD BOX
THA
1-33549-216-0
01
1
1410-
525
RING; DETENT
THA
1-33119-286-0
01
1
1410-
564
SEAL; RING
(A) THA
1-33119-249-0
02
1
1410-
564
SEAL; RING
(B) THA
1-33549-578-0
01
1
1410-
582
BOLT; SPRING GUIDE
THA
1-33549-487-0
02
1
1410-
602
PLUNGER; DETENT
THA
1-33119-618-0
01
1
1410-
617
PLUG
(B) THA
1-33119-619-0
02
1
1410-
617
PLUG
(A) THA
1-33539-109-0
01
1
1410-
689
GASKET; COVER
THA
1-33542-063-0
01
1
1410-
690
PIN; STOP
THA
1-33549-496-0
01
1
1410-
165
289
165
165
271
90
430
304
90
298
569
332
48
42
264
265
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
CAP; QUAD BOX
THA
1-33549-589-0
01
1
1410-
48
LEVER; 4TH,SHIFT
THA
8-98085-725-0
01
1
1410-
90
RING; SNAP,SHIFT ROD
THA
1-33549-494-0
02
1
1410-
165
LEVER; SHIFT
(C) THA
1-33549-488-0
01
1
1410-
165
LEVER; SHIFT
(B) THA
1-33549-489-0
01
1
1410-
165
LEVER; SHIFT
(A) THA
1-33549-603-0
01
1
1410-
264
SEAL; DUST,SHAFT
THA
1-33549-119-0
01
1
1410-
265
SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). THA
1-33549-118-0
01
1
1410-
271
BUSHING; QUAD BOX
THA
1-33549-124-0
01
1
1410-
289
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). THA
1-33549-491-0
01
1
1410-
298
SHAFT; SHIFT LEVER
THA
1-33522-205-0
01
1
1410-
304
BLOCK; SHIFT SHAFT
THA
1-33549-492-0
01
1
1410-
332
BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA
0-28650-840-0
01
1
1410-
430
PIN; SPR,SHIFT ROD
THA
1-33549-493-0
01
1
1410-
569
PIN; QUADRANT BOX
THA
1-33529-128-0
02
1
1410-

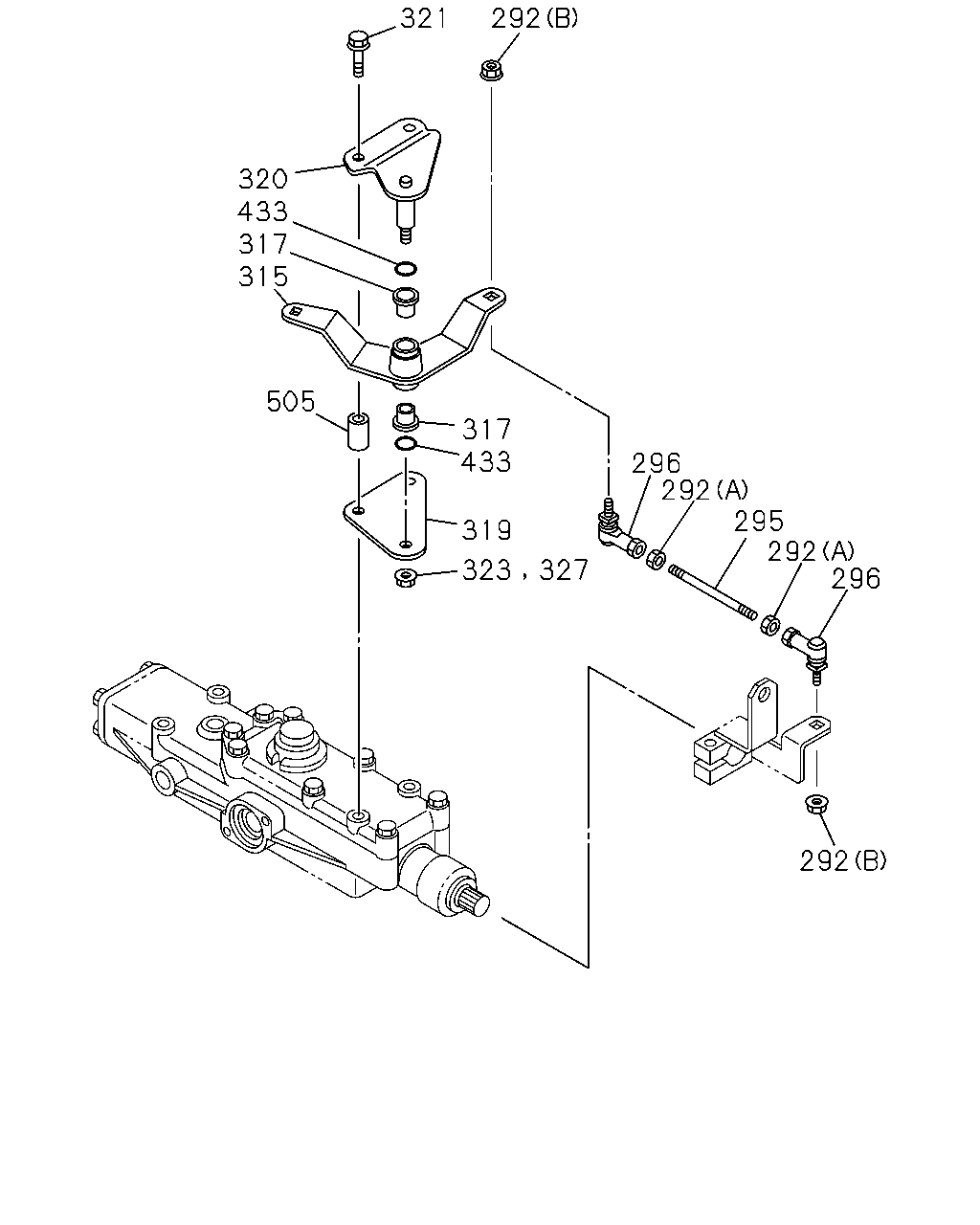

321
292
320
317
433
315
505
317
319
433
323
327
296
295
292
292
296
292
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
292
NUT; LINK ROD
(A) M8 THA
0-91111-508-0
02
1
1410-
292
NUT; LINK ROD
(B) M8 FLANGE THA
1-09440-062-1
02
1
1410-
295
ROD; LINK,RELAY LEVER
M8 L=50 THA
9-08400-805-0
01
1
1410-
296
ROD END
THA
1-09760-108-0
02
1
1410-
315
LEVER; SELECT
THA
8-98085-738-0
01
1
1410-
317
BUSHING; LEVER
THA
1-09330-119-0
02
1
1410-
319
BRACKET; SELECT LEVER
THA
8-98085-740-0
01
1
1410-
320
SHAFT; LEVER
THA
8-98085-739-0
01
1
1410-
321
BOLT; BRKT,RELAY LEVER
M8X130 FLANGE THA
0-28065-813-0
02
1
1410-
323
NUT; LK,SELECT LEVER
M10 FLANGE THA
0-91180-110-0
01
1
1410-
327
NUT; BRKT,RELAY LEVER
M10 FLANGE THA
0-91180-110-0
01
1
1410-
433
GASKET; BUSHING
THA
1-09623-594-0
02
1
1410-
505
SPACER; BRKT
L=24.5 THA
1-33659-186-1
02
1
1410-

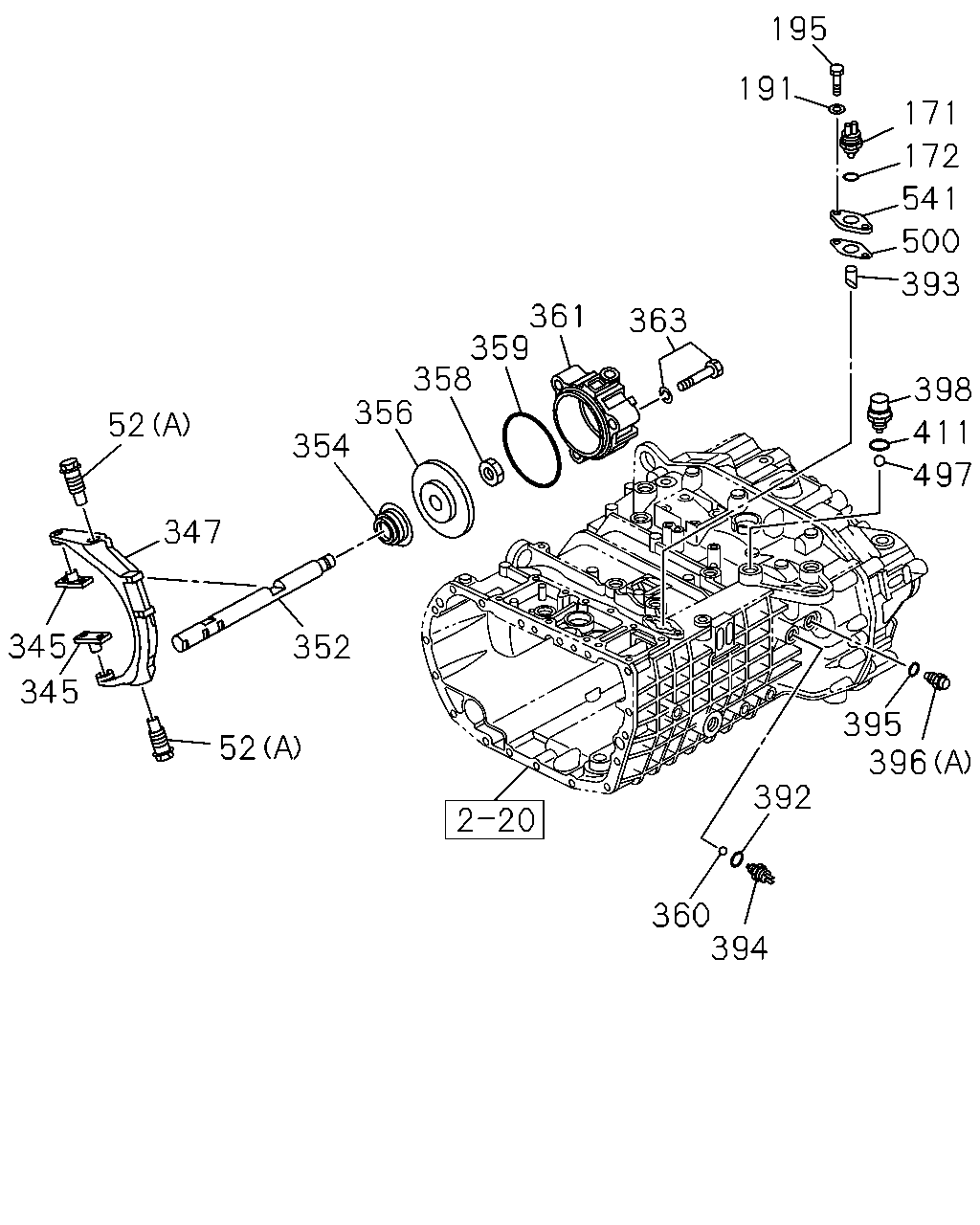

195
191
171
172
541
500
393
398
411
497
395
396
392
360
394
52
352
345
345
347
52
354
356
358
359
361
363
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
BOLT; SHIFT ARM
(B) THA
1-33519-190-0
07
1
1410-
52
BOLT; SHIFT ARM
(A) THA
1-33519-196-0
02
1
1410-
171
SWITCH; NEUTRAL
THA
1-33119-627-0
01
1
1410-
172
GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). THA
1-33119-249-0
01
1
1410-
191
WASHER; LK
THA
1-33549-583-0
02
1
1410-
195
BOLT
THA
1-33119-593-0
02
1
1410-
345
BLOCK; SHIFT,RANGE CHANGE
THA
1-33519-095-0
02
1
1410-
347
ARM; SHIFT,RANGE CHANGE
THA
1-33511-529-0
01
1
1410-
352
ROD; SHIFT,RANGE CHANGE
PTO ZF TRANS RR<BDM> THA
1-33531-495-0
01
1
1410-
354
SEAL; AIR CYL
THA
1-33519-045-0
01
1
1410-
356
PISTON; AIR CYL
THA
1-33519-197-0
01
1
1410-
358
NUT; SHIFT ROD
THA
1-33519-188-0
01
1
1410-
359
GASKET; AIR CYL
THA
1-33519-093-0
01
1
1410-
360
BALL; AIR CYL
THA
1-33119-252-0
01
1
1410-
361
CYLINDER; AIR,SHIFT
THA
1-33519-092-0
01
1
1410-
363
BOLT; AIR CYL
M10X70 THA
1-33119-616-0
03
1
1410-
392
GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). THA
1-33119-249-0
01
1
1410-
393
PIN; SW
THA
1-33119-298-0
01
1
1410-
394
SWITCH; RANGE CHANGE
THA
1-33119-627-0
01
1
1410-
395
GASKET; PLUNGER
THA
1-33519-171-0
01
1
1410-
396
PLUNGER; SHIFT ROD
(A) THA
1-33519-189-0
01
1
1410-
396
PLUNGER; SHIFT ROD
(B) THA
1-33529-085-0
02
1
1410-
398
SWITCH; REV LAMP
THA
1-38119-062-0
01
1
1410-
411
GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). THA
1-33119-249-0
01
1
1410-
497
BALL; SWITCH
THA
1-33119-252-0
01
1
1410-
500
GASKET; SW
THA
1-33119-299-0
01
1
1410-
541
PLATE; SWITCH
THA
1-33119-300-0
01
1
1410-

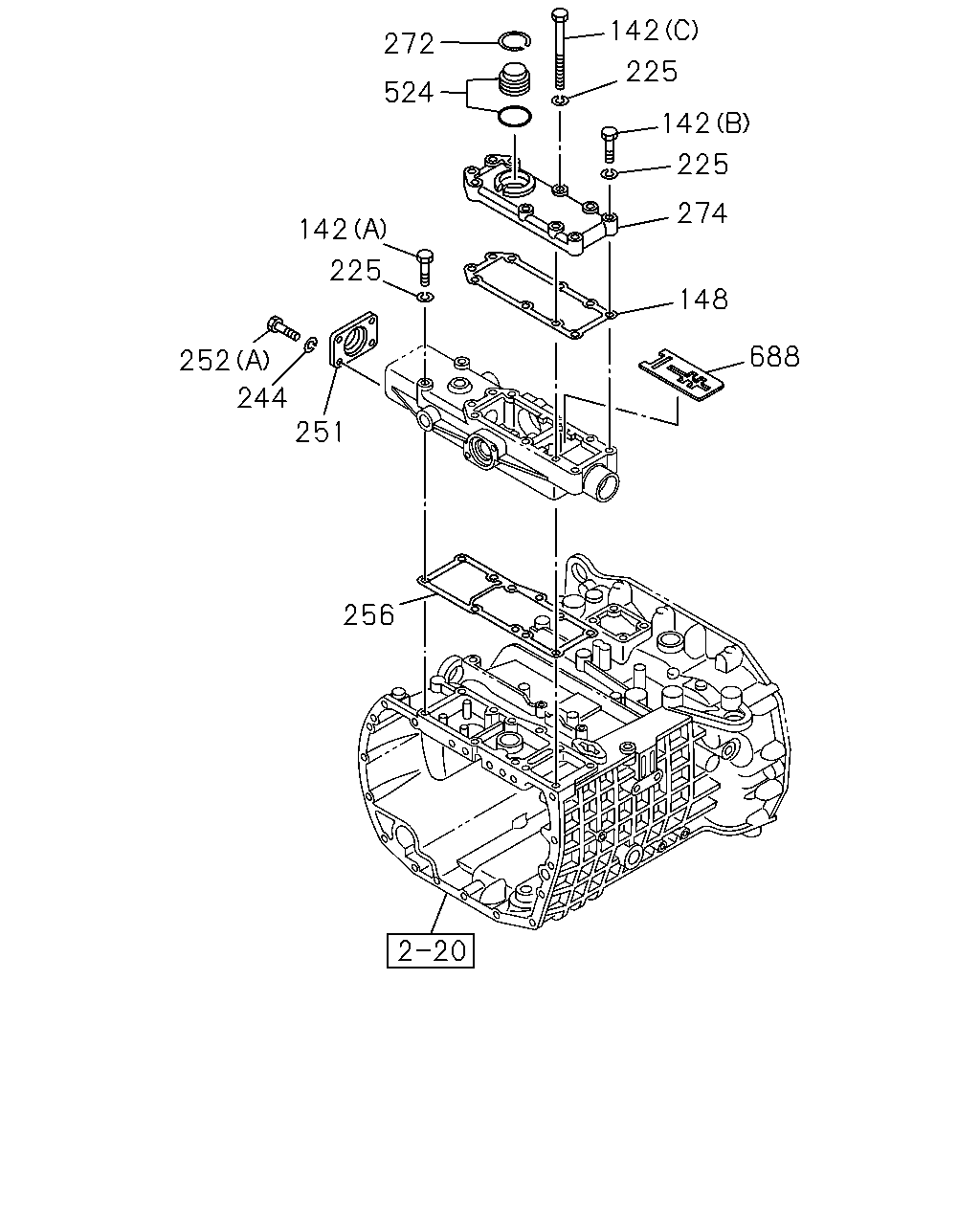

272
524
142
142
225
225
148
274
688
251
244
252
256
225
142
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
142
BOLT; QUAD BOX
(C) M8X100 THA
1-33549-582-0
06
1
1410-
142
BOLT; QUAD BOX
(A) M8X75 THA
1-33549-584-0
02
1
1410-
142
BOLT; QUAD BOX
(B) M8X40 THA
1-33549-587-0
04
1
1410-
148
GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). THA
1-33542-064-0
01
1
1410-
225
WASHER; LK,QUAD BOX
THA
1-33549-583-0
14
1
1410-
244
WASHER; LK,COVER
THA
1-33549-583-0
04
1
1410-
251
COVER; SIDE
THA
1-33549-590-0
01
1
1410-
252
BOLT; SIDE COVER
(B) M8X30 THA
1-33549-581-0
02
1
1410-
252
BOLT; SIDE COVER
(A) M8X20 THA
1-33549-591-0
04
1
1410-
256
GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). THA
1-33542-065-0
01
1
1410-
272
RING; SNAP,QUAD BOX
THA
1-44519-217-0
01
1
1410-
274
COVER; SHAFT,QUAD BOX
THA
1-33549-579-0
01
1
1410-
524
DETENT; QUAD BOX
THA
1-33549-501-0
01
1
1410-
688
SHIFT; INTERLOCK
THA
1-33549-572-0
01
1
1410-

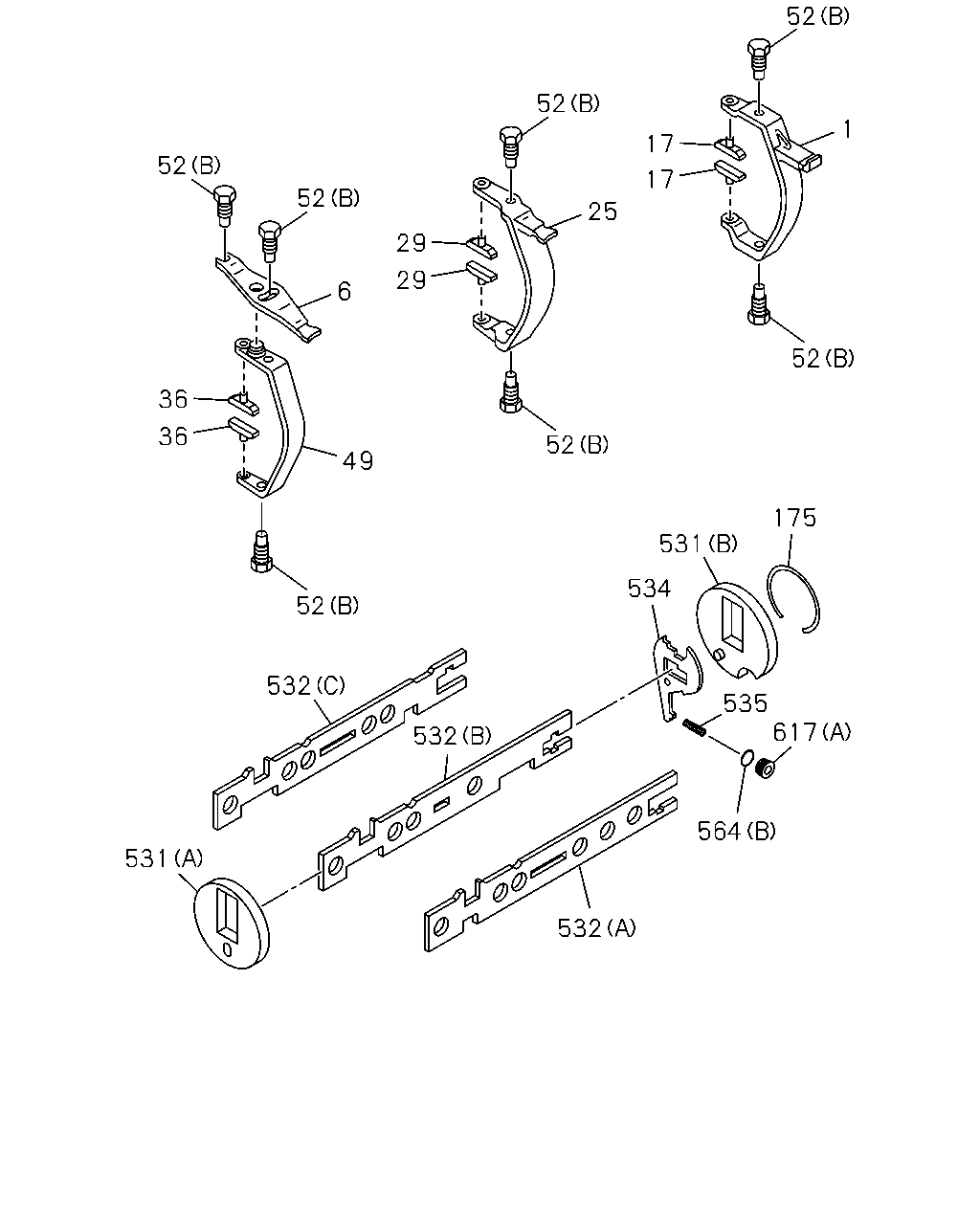

52
1
17
17
52
25
52
52
29
29
52
52
6
36
36
49
52
532
531
532
532
564
535
617
534
531
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; SHIFT,1ST & REV
THA
1-33511-657-0
01
1
1410-
6
LEVER; RELAY
THA
1-33511-658-0
01
1
1410-
17
BLOCK; SHIFT,1ST & REV
THA
1-33519-172-0
02
1
1410-
25
ARM; SHIFT,2ND & 3RD
THA
1-33511-642-0
01
1
1410-
29
BLOCK; SHIFT,2ND & 3RD
THA
1-33519-081-0
02
1
1410-
36
BLOCK; SHIFT,4TH & 5TH
THA
1-33519-170-0
02
1
1410-
49
ARM; SHIFT,4TH & 5TH
THA
1-33511-640-0
01
1
1410-
52
BOLT; SHIFT ARM
(B) THA
1-33519-190-0
07
1
1410-
52
BOLT; SHIFT ARM
(A) THA
1-33519-196-0
02
1
1410-
175
RING; STOPPER,SHIFT LEVER
THA
1-33539-103-0
01
1
1410-
531
PLATE; BEARING
(A) THA
1-33539-044-0
01
1
1410-
531
PLATE; BEARING
(B) THA
1-33539-047-0
01
1
1410-
532
PLATE; SHIFT FORK
(A) THA
1-33531-492-0
01
1
1410-
532
PLATE; SHIFT FORK
(B) THA
1-33531-493-0
01
1
1410-
532
PLATE; SHIFT FORK
(C) THA
1-33531-494-0
01
1
1410-
534
LEVER; LOCK,SHIFT PLATE
THA
1-33539-087-0
01
1
1410-
535
SPRING; LEVER
THA
1-33539-049-0
01
1
1410-
564
SEAL; RING
(A) THA
1-33119-249-0
02
1
1410-
564
SEAL; RING
(B) THA
1-33549-578-0
01
1
1410-
617
PLUG
(B) THA
1-33119-619-0
02
1
1410-
617
PLUG
(A) THA
1-33539-109-0
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
