0-32 — WATER PIPING; ENGINE (#15056) — 222 parça
çizim 61171

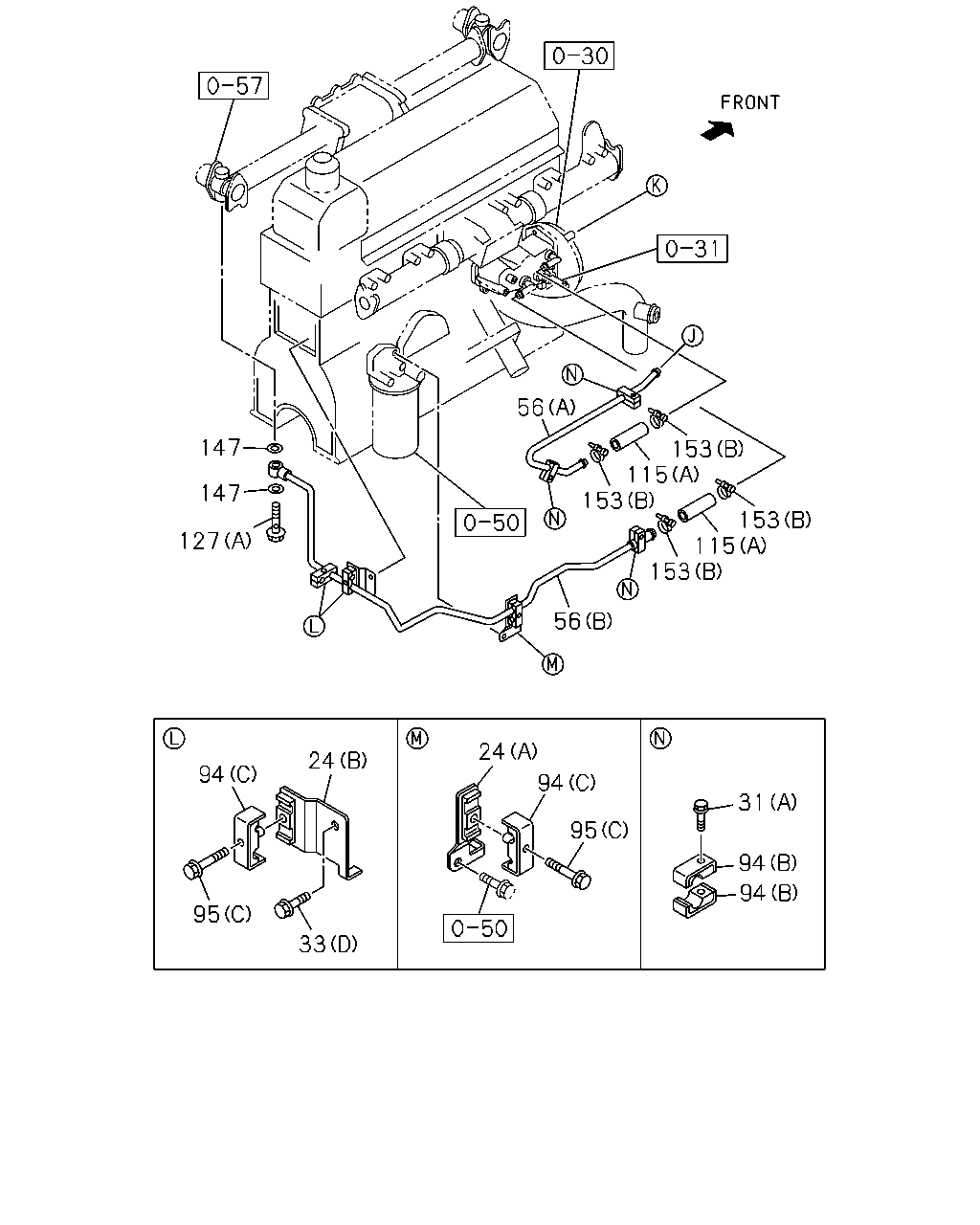

56 147 153 115 153 147 153 115 153 127 56 24 24 94 94 31 95 94 94 95 33
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		1-13729-023-0 01 1 0804-
24 BRACKET; WATER PIPE
(B) 		1-13729-024-0 01 1 0804-
24 BRACKET; WATER PIPE
(C) 		8-97618-522-2 01 1 0804-
24 BRACKET; WATER PIPE
(D) 		8-97619-916-1 01 1 0804-
24 BRACKET; WATER PIPE
(E) 		8-97620-760-1 01 1 0804-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0804-
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 03 1 0804-
33 BOLT; BRKT
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0804-
33 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 06 1 0804-
33 BOLT; BRKT
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0804-
33 BOLT; BRKT
(D) M14X20 FLANGE 		0-28951-420-0 01 1 0804-
33 BOLT; BRKT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0804-
33 BOLT; BRKT
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0804-
56 PIPE; WATER OUTLET
(C) 		1-13721-855-0 01 1 0804-
56 PIPE; WATER OUTLET
(B) 		8-97618-520-0 01 1 0804-
56 PIPE; WATER OUTLET
(D) 		8-97620-786-0 01 1 0804-
56 PIPE; WATER OUTLET
(A) 		8-97620-787-0 01 1 0804-
56 PIPE; WATER OUTLET
(E) 		8-98059-769-0 01 1 0804-
56 PIPE; WATER OUTLET
(F) 		8-98090-465-0 01 1 0804-
94 CLIP; WATER PIPE
(A) 		1-09701-210-0 04 1 0804-
94 CLIP; WATER PIPE
(B) ID=17 L=17 		1-09701-284-0 08 1 0804-
94 CLIP; WATER PIPE
(C) 		8-94393-037-0 02 1 0804-
94 CLIP; WATER PIPE
(D) 		8-98081-240-0 04 1 0804-
95 BOLT; CLIP
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0804-
95 BOLT; CLIP
(B) M6X35 FLANGE 		0-28050-635-0 05 1 0804-
95 BOLT; CLIP
(C) M6X40 FLANGE 		0-28050-640-0 04 1 0804-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 03 1 0804-
115 HOSE; RUBBER
(C) 		1-09361-081-1 01 1 0804-
115 HOSE; RUBBER
(B) L=60 		1-09361-084-0 02 1 0804-
115 HOSE; RUBBER
(D) 		1-13729-039-0 01 1 0804-
115 HOSE; RUBBER
(E) 		8-97620-794-0 01 1 0804-
127 BOLT; EYE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 0804-0805
127 BOLT; EYE
(D) M10X21 FLANGE 		8-97372-238-0 01 1 0806-
127 BOLT; EYE
(A) M16X30 FLANGE 		1-09675-095-1 07 1 0804-
127 BOLT; EYE
(B) M14X27 EYE-BOLT 		1-09675-193-0 02 1 0804-
127 BOLT; EYE
(C) M16X30 FLANGE 		1-09675-230-0 01 1 0804-
147 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 		1-09630-086-0 12 1 0804-
153 CLIP; RUBBER HOSE
(A) ID=20 		1-09707-084-1 04 1 0804-
153 CLIP; RUBBER HOSE
(B) ID=25 		8-97177-581-0 08 1 0804-
çizim 61232

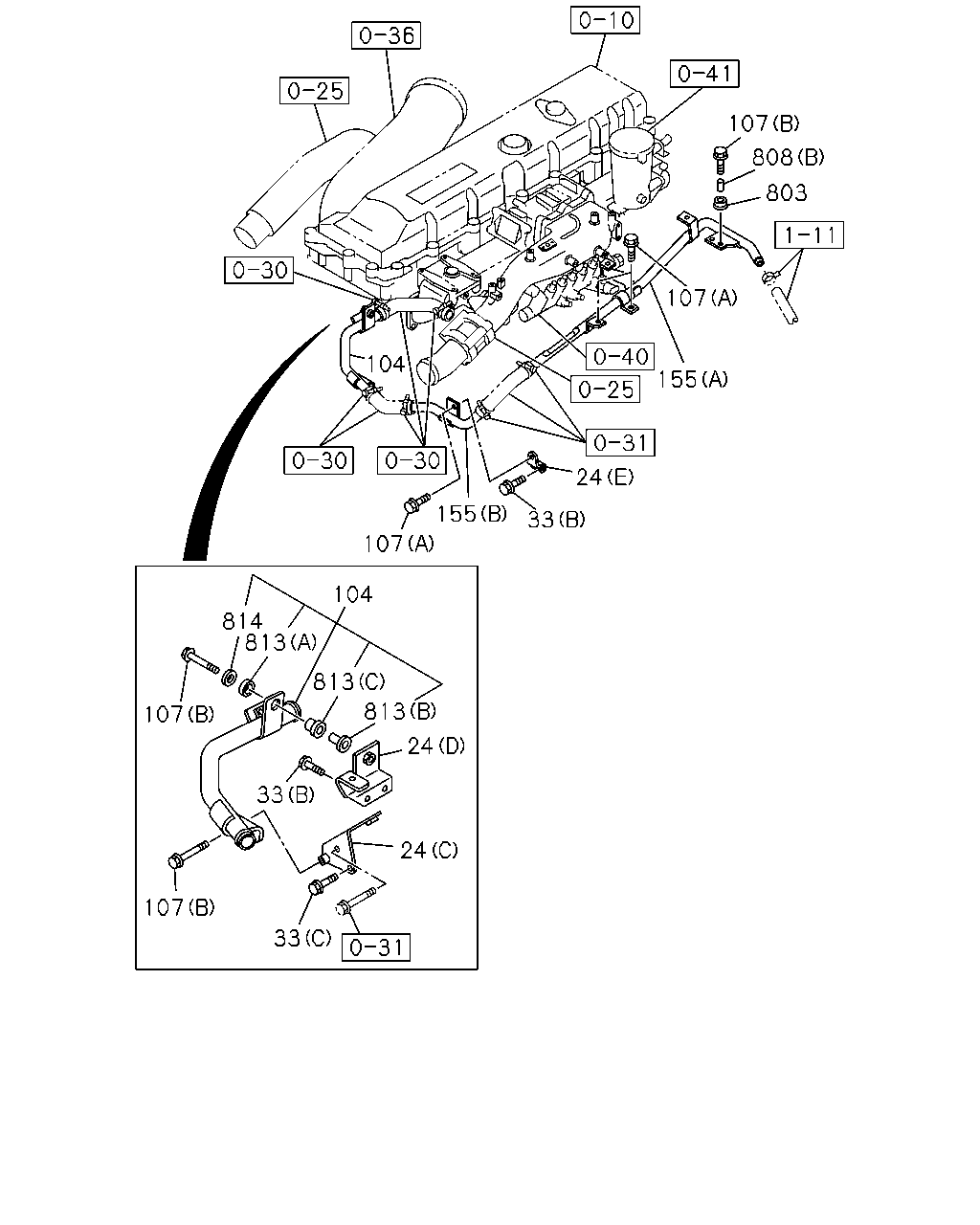

107 808 803 107 104 155 24 155 33 107 104 814 813 813 813 107 24 33 24 107 33
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		1-13729-023-0 01 1 0804-
24 BRACKET; WATER PIPE
(B) 		1-13729-024-0 01 1 0804-
24 BRACKET; WATER PIPE
(C) 		8-97618-522-2 01 1 0804-
24 BRACKET; WATER PIPE
(D) 		8-97619-916-1 01 1 0804-
24 BRACKET; WATER PIPE
(E) 		8-97620-760-1 01 1 0804-
33 BOLT; BRKT
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0804-
33 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 06 1 0804-
33 BOLT; BRKT
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0804-
33 BOLT; BRKT
(D) M14X20 FLANGE 		0-28951-420-0 01 1 0804-
33 BOLT; BRKT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0804-
33 BOLT; BRKT
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0804-
104 PIPE; WATER CHARGE 8-97618-511-2 01 1 0804-
107 BOLT; WATER PIPE
(A) M10X20 FLANGE 		0-28151-020-0 06 1 0804-
107 BOLT; WATER PIPE
(B) M10X35 FLANGE 		0-28151-035-0 04 1 0804-
155 PIPE ASM; WATER
(A) 		8-97623-463-0 01 1 0804-
155 PIPE ASM; WATER
(B) 		8-97623-464-0 01 1 0804-
803 SPACER 8-98090-852-0 02 1 0804-
808 RUBBER; MTG
(B) 		8-98090-853-0 04 1 0804-
808 RUBBER; MTG
(A) 		1-09337-017-0 04 1 0804-
813 MOUNTING
(A) ID=19 OD=26 		8-94160-177-0 01 1 0804-
813 MOUNTING
(B) OD=28 		8-94390-551-1 01 1 0804-
813 MOUNTING
(C) OD=26 		8-94394-529-0 01 1 0804-
814 PLATE
ID=13 OD=28 		8-94394-504-0 01 1 0804-
çizim 61254

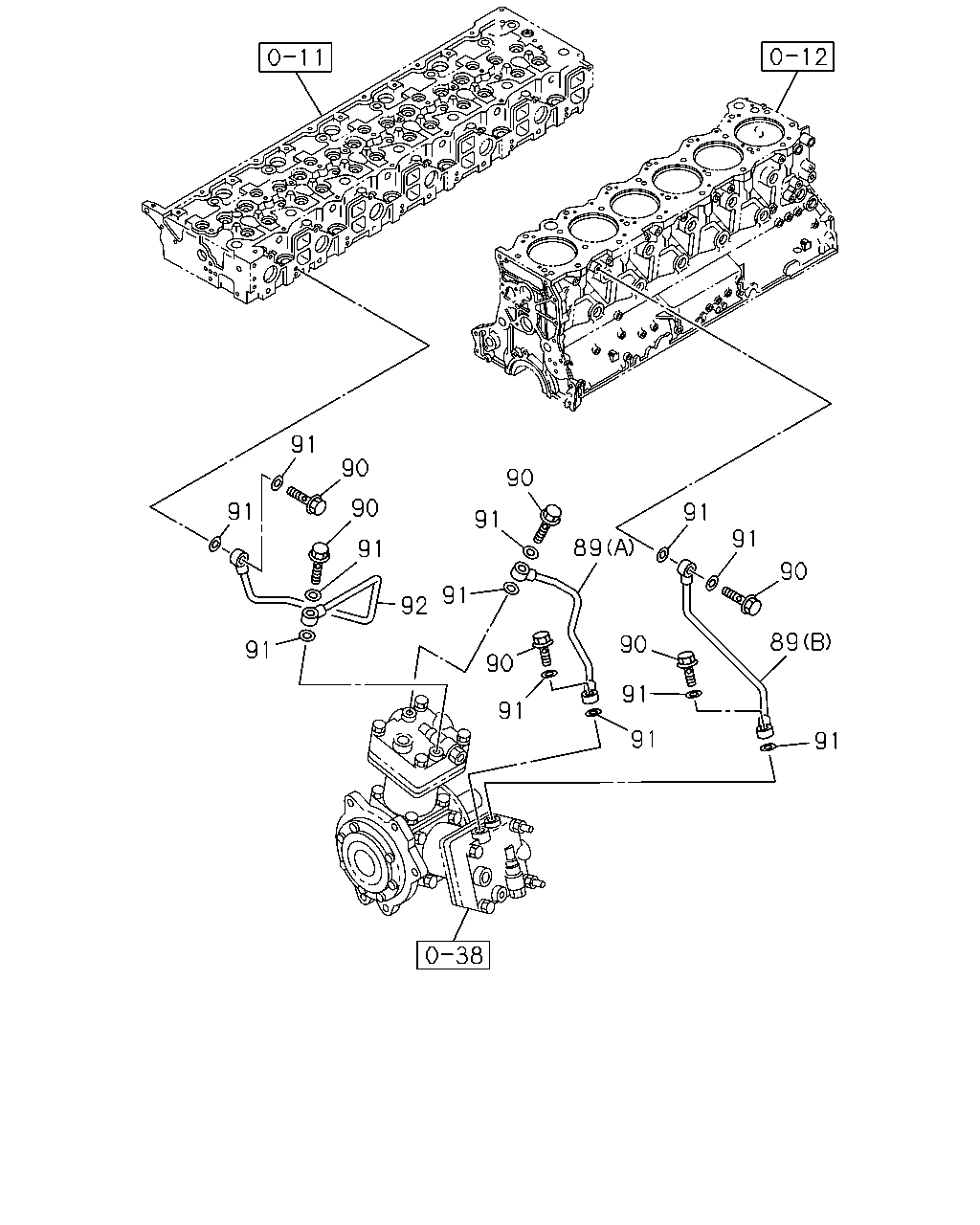

91 90 90 90 91 91 91 91 89 91 90 91 92 89 90 91 90 91 91 91 91
BalonParca AdiParca NoAdetTipApplied Date
89 PIPE; WATER,AIR CMPR,IN
(B) 		1-13722-007-0 01 1 0804-
89 PIPE; WATER,AIR CMPR,IN
(A) 		1-13722-008-0 01 1 0804-
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 06 1 0804-
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 12 1 0804-
92 PIPE; WATER,AIR CMPR,OUT 1-13722-009-0 01 1 0804-
çizim 61333

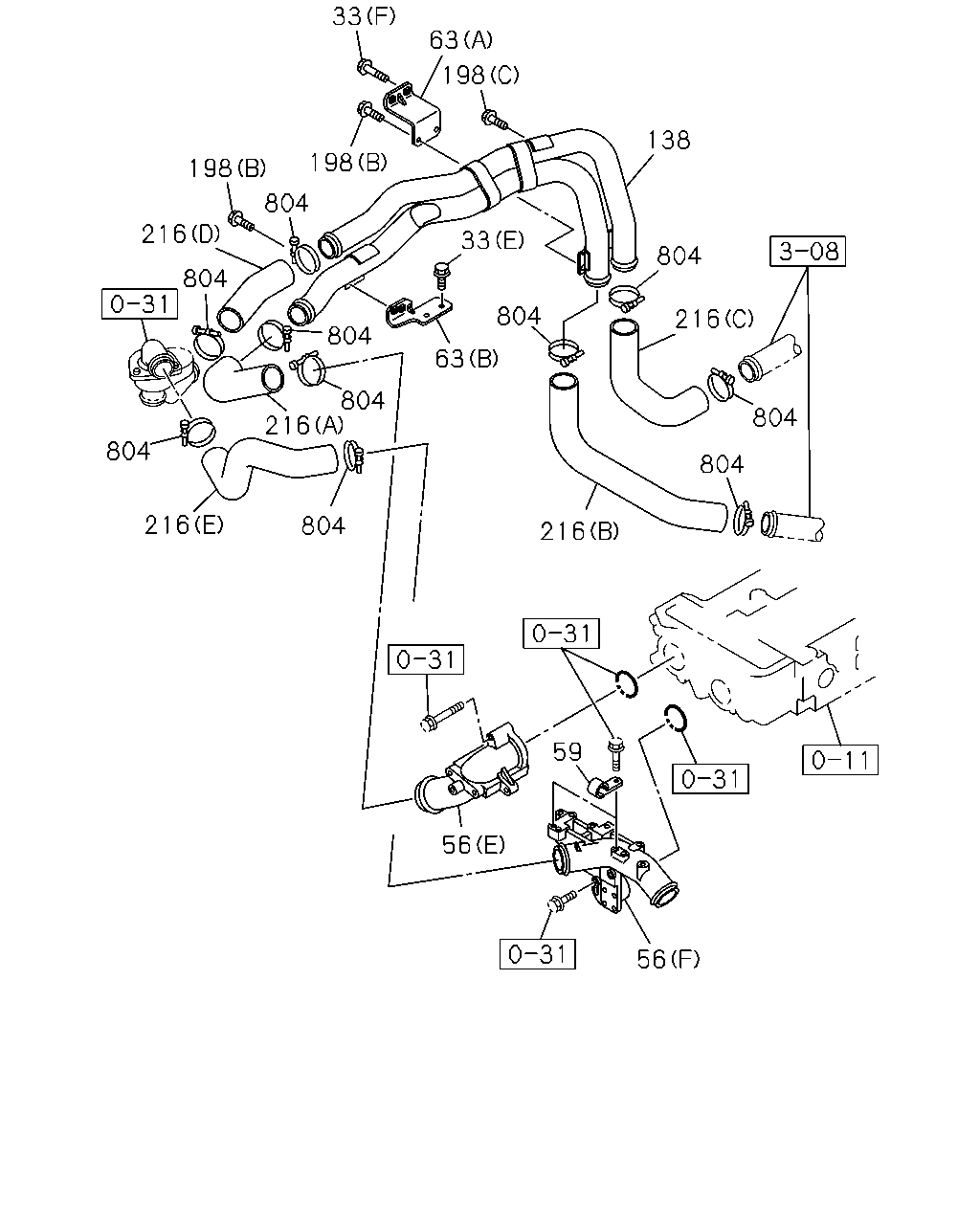

33 63 198 138 198 198 804 216 33 804 804 804 216 804 63 804 804 216 804 804 216 804 216 59 56 56
BalonParca AdiParca NoAdetTipApplied Date
33 BOLT; BRKT
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0804-
33 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 06 1 0804-
33 BOLT; BRKT
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0804-
33 BOLT; BRKT
(D) M14X20 FLANGE 		0-28951-420-0 01 1 0804-
33 BOLT; BRKT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0804-
33 BOLT; BRKT
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0804-
56 PIPE; WATER OUTLET
(C) 		1-13721-855-0 01 1 0804-
56 PIPE; WATER OUTLET
(B) 		8-97618-520-0 01 1 0804-
56 PIPE; WATER OUTLET
(D) 		8-97620-786-0 01 1 0804-
56 PIPE; WATER OUTLET
(A) 		8-97620-787-0 01 1 0804-
56 PIPE; WATER OUTLET
(E) 		8-98059-769-0 01 1 0804-
56 PIPE; WATER OUTLET
(F) 		8-98090-465-0 01 1 0804-
59 CLIP; HARNESS,WATER OUTLET PIPE
ID=11 L=24 		0-95235-045-0 02 1 0804-
63 BRACKET; WATER PIPE
(A) 		8-98070-149-1 01 1 0804-
63 BRACKET; WATER PIPE
(B) 		8-98071-949-1 01 1 0804-
138 PIPE; WATER 8-98054-611-4 01 1 0804-
198 BOLT; PIPE
(A) M10X45 FLANGE 		0-28051-045-0 02 1 0804-
198 BOLT; PIPE
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0804-
198 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0804-
216 HOSE; WATER
(A) 		1-21430-174-2 01 1 0804-1006
216 HOSE; WATER
(A) 		8-98176-294-0 01 1 1007-
216 HOSE; WATER
(B) 		1-21430-175-1 01 1 0804-1006
216 HOSE; WATER
(D) 		8-98176-295-0 01 1 1007-
216 HOSE; WATER
(C) 		1-21430-176-3 01 1 0804-1006
216 HOSE; WATER
(B) 		8-98176-296-0 01 1 1007-
216 HOSE; WATER
(D) 		1-21430-177-2 01 1 0804-1006
216 HOSE; WATER
(C) 		8-98176-297-0 01 1 1007-
216 HOSE; WATER
(E) 		1-21430-178-3 01 1 0804-
216 HOSE; WATER
(F) 		1-21430-180-2 01 1 0804-
804 CLIP; BAND
ID=58-79 		1-09707-136-0 08 1 1007-
804 CLIP; BAND
ID=72 		1-09704-068-0 12 1 0804-1006
804 CLIP; BAND
ID=72 		1-09704-068-0 04 1 1007-
çizim 61342

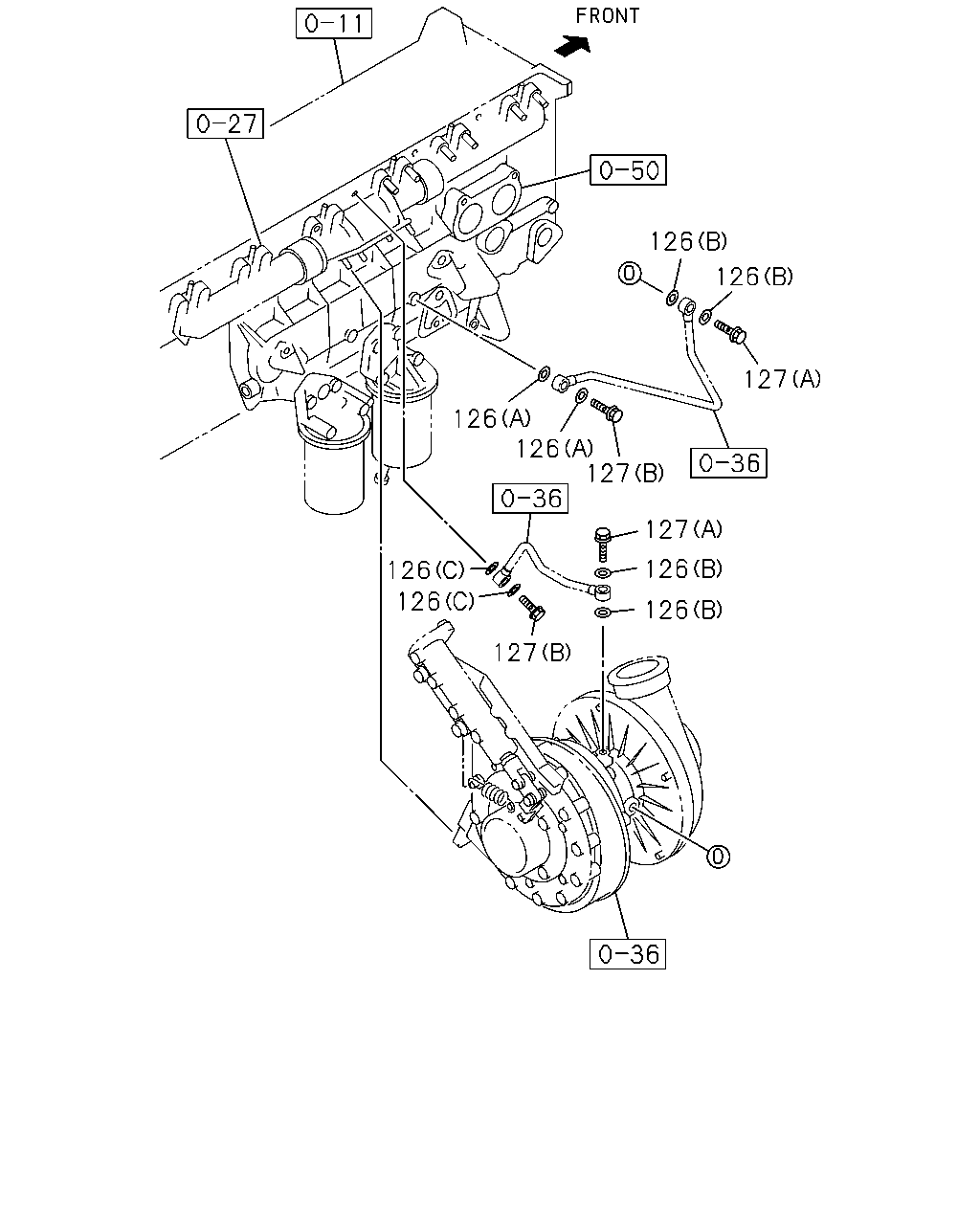

126 126 127 126 126 127 127 126 126 126 126 127
BalonParca AdiParca NoAdetTipApplied Date
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0804-1312
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 04 1 0804-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0804-
127 BOLT; EYE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 0804-0805
127 BOLT; EYE
(D) M10X21 FLANGE 		8-97372-238-0 01 1 0806-
127 BOLT; EYE
(A) M16X30 FLANGE 		1-09675-095-1 07 1 0804-
127 BOLT; EYE
(B) M14X27 EYE-BOLT 		1-09675-193-0 02 1 0804-
127 BOLT; EYE
(C) M16X30 FLANGE 		1-09675-230-0 01 1 0804-
çizim 61347

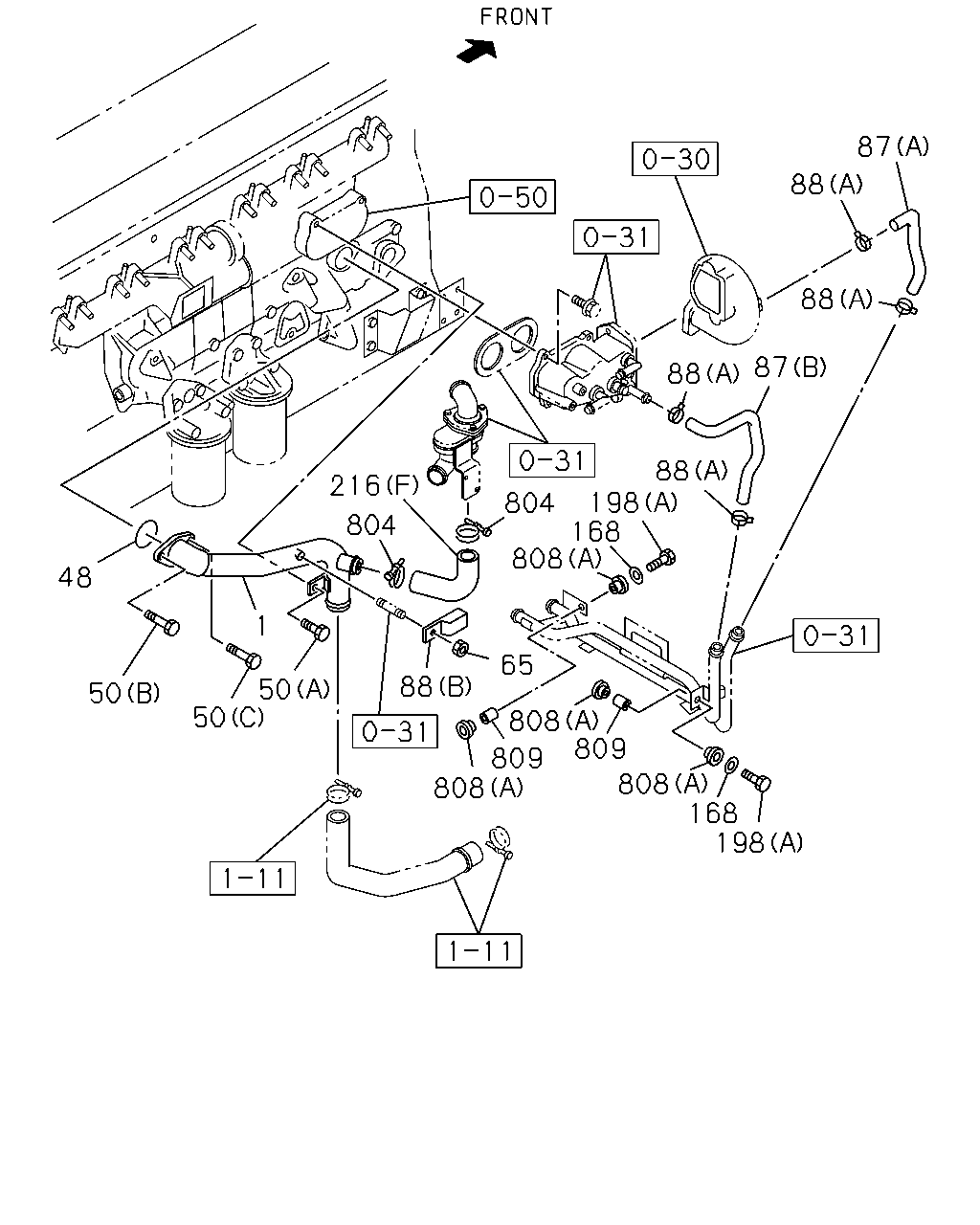

87 88 88 87 88 88 198 168 808 216 804 804 48 1 65 88 50 50 50 808 809 809 808 808 168 198
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; WATER PUMP,INL 8-97618-510-1 01 1 0804-0808
1 PIPE; WATER PUMP,INL 8-98100-167-0 01 1 0809-
48 GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 0804-
50 BOLT; WATER PIPE INL
(B) M10X30 FLANGE 		0-28151-030-0 01 1 0804-
50 BOLT; WATER PIPE INL
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0804-
50 BOLT; WATER PIPE INL
(A) M14X25 FLANGE 		0-28951-425-0 01 1 0804-0810
50 BOLT; WATER PIPE INL
(A) 		0-28951-450-0 01 1 0811-1306
50 BOLT; WATER PIPE INL
(A) M14X25 FLANGE 		0-28951-425-0 01 1 1307-1309
50 BOLT; WATER PIPE INL
(A) 		0-28951-450-0 01 1 1310-
65 NUT
M10 FLANGE 		0-91180-110-0 01 1 0804-
87 HOSE; RUBBER,HTR
(B) 		1-83565-572-0 01 1 0804-
87 HOSE; RUBBER,HTR
(A) 		1-83565-577-0 01 1 0804-
88 CLIP; HOSE,HTR
(A) ID=20 		1-09707-084-1 04 1 0804-
88 CLIP; HOSE,HTR
(B) 		9-09915-663-0 01 1 0804-1206
88 CLIP; HOSE,HTR
(B) 		8-98166-024-0 01 1 1207-
168 WASHER; PL,PIPE
ID=10.5 OD=26 		0-91614-710-0 02 1 0804-
198 BOLT; PIPE
(A) M10X45 FLANGE 		0-28051-045-0 02 1 0804-
198 BOLT; PIPE
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0804-
198 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0804-
216 HOSE; WATER
(A) 		1-21430-174-2 01 1 0804-1006
216 HOSE; WATER
(A) 		8-98176-294-0 01 1 1007-
216 HOSE; WATER
(B) 		1-21430-175-1 01 1 0804-1006
216 HOSE; WATER
(D) 		8-98176-295-0 01 1 1007-
216 HOSE; WATER
(C) 		1-21430-176-3 01 1 0804-1006
216 HOSE; WATER
(B) 		8-98176-296-0 01 1 1007-
216 HOSE; WATER
(D) 		1-21430-177-2 01 1 0804-1006
216 HOSE; WATER
(C) 		8-98176-297-0 01 1 1007-
216 HOSE; WATER
(E) 		1-21430-178-3 01 1 0804-
216 HOSE; WATER
(F) 		1-21430-180-2 01 1 0804-
804 CLIP; BAND
ID=58-79 		1-09707-136-0 08 1 1007-
804 CLIP; BAND
ID=72 		1-09704-068-0 12 1 0804-1006
804 CLIP; BAND
ID=72 		1-09704-068-0 04 1 1007-
808 RUBBER; MTG
(B) 		8-98090-853-0 04 1 0804-
808 RUBBER; MTG
(A) 		1-09337-017-0 04 1 0804-
809 TUBE; DIST
ID=11.8 L=27 		1-21559-149-0 02 1 0804-
çizim 61353

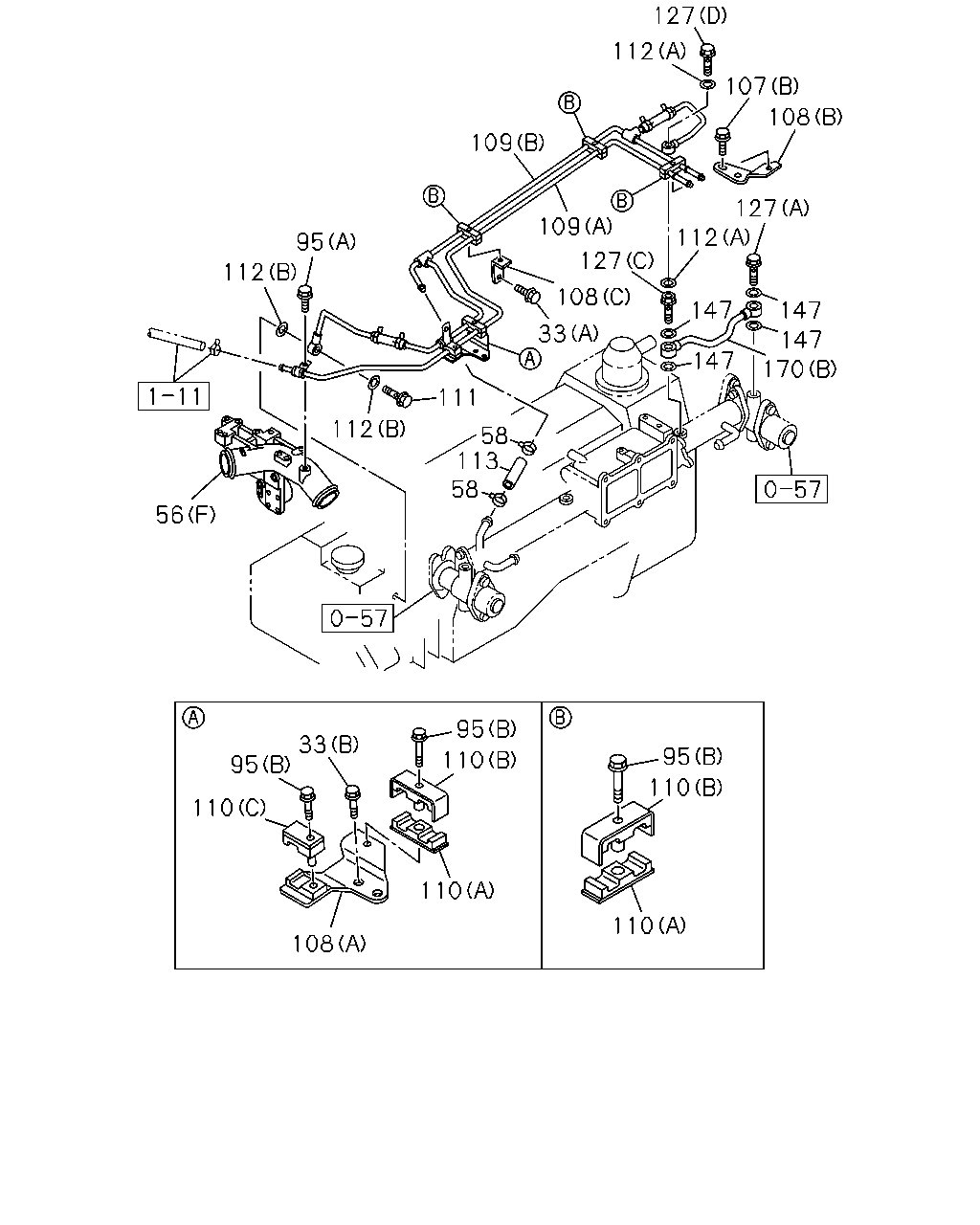

127 112 107 108 109 127 112 109 95 127 112 108 147 147 147 33 147 170 111 112 58 113 58 56 95 33 95 95 110 110 110 110 110 108
BalonParca AdiParca NoAdetTipApplied Date
33 BOLT; BRKT
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0804-
33 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 06 1 0804-
33 BOLT; BRKT
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0804-
33 BOLT; BRKT
(D) M14X20 FLANGE 		0-28951-420-0 01 1 0804-
33 BOLT; BRKT
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0804-
33 BOLT; BRKT
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0804-
56 PIPE; WATER OUTLET
(C) 		1-13721-855-0 01 1 0804-
56 PIPE; WATER OUTLET
(B) 		8-97618-520-0 01 1 0804-
56 PIPE; WATER OUTLET
(D) 		8-97620-786-0 01 1 0804-
56 PIPE; WATER OUTLET
(A) 		8-97620-787-0 01 1 0804-
56 PIPE; WATER OUTLET
(E) 		8-98059-769-0 01 1 0804-
56 PIPE; WATER OUTLET
(F) 		8-98090-465-0 01 1 0804-
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0804-
95 BOLT; CLIP
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0804-
95 BOLT; CLIP
(B) M6X35 FLANGE 		0-28050-635-0 05 1 0804-
95 BOLT; CLIP
(C) M6X40 FLANGE 		0-28050-640-0 04 1 0804-
107 BOLT; WATER PIPE
(A) M10X20 FLANGE 		0-28151-020-0 06 1 0804-
107 BOLT; WATER PIPE
(B) M10X35 FLANGE 		0-28151-035-0 04 1 0804-
108 BRACKET; WATER CHARGE
(A) 		8-98081-689-0 01 1 0804-
108 BRACKET; WATER CHARGE
(B) 		8-98082-162-0 01 1 0804-
108 BRACKET; WATER CHARGE
(C) 		8-98090-663-0 01 1 0804-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(A) 		8-97618-523-1 01 1 0804-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(B) 		8-97623-443-1 01 1 0804-
110 CLIP; AIR PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 04 1 0804-
110 CLIP; AIR PIPE
(C) 		1-15419-215-1 01 1 0804-
110 CLIP; AIR PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 04 1 0804-
111 BOLT; EYE,LEAK,THERMOSTAT HSG
M14X27 EYE-BOLT 		1-09675-193-0 01 1 0804-
112 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0804-
112 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25 		1-09630-141-0 04 1 0804-
113 HOSE; RUBBER,AIR LEAK
L=70 SERVICED BY L=3000 		0-03559-300-0 01 1 0804-
127 BOLT; EYE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 0804-0805
127 BOLT; EYE
(D) M10X21 FLANGE 		8-97372-238-0 01 1 0806-
127 BOLT; EYE
(A) M16X30 FLANGE 		1-09675-095-1 07 1 0804-
127 BOLT; EYE
(B) M14X27 EYE-BOLT 		1-09675-193-0 02 1 0804-
127 BOLT; EYE
(C) M16X30 FLANGE 		1-09675-230-0 01 1 0804-
147 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 		1-09630-086-0 12 1 0804-
170 PIPE; WATER,INL
(A) 		1-13721-744-0 01 1 0804-
170 PIPE; WATER,INL
(B) 		1-13721-745-0 01 1 0804-

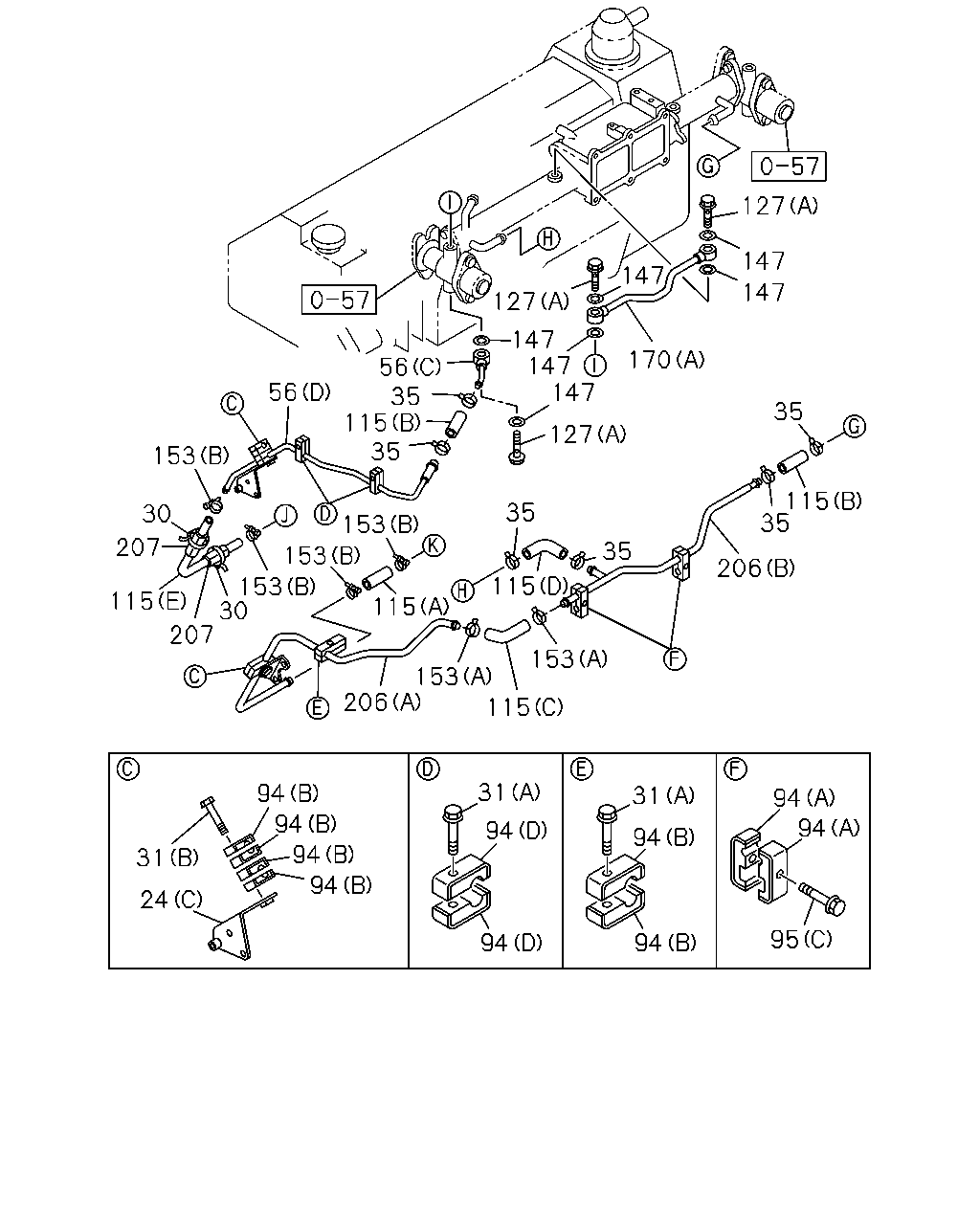

çizim 101751
127 147 147 147 127 147 147 147 170 56 35 115 35 56 35 127 153 115 35 35 30 153 207 35 153 206 115 153 30 207 115 115 153 153 206 115 31 94 31 94 94 94 94 94 94 31 94 24 95 94 94
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(A) 		1-13729-023-0 01 1 0804-
24 BRACKET; WATER PIPE
(B) 		1-13729-024-0 01 1 0804-
24 BRACKET; WATER PIPE
(C) 		8-97618-522-2 01 1 0804-
24 BRACKET; WATER PIPE
(D) 		8-97619-916-1 01 1 0804-
24 BRACKET; WATER PIPE
(E) 		8-97620-760-1 01 1 0804-
30 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0804-1205
30 CLIP; HARNESS
L=140 		8-98216-431-0 02 1 1206-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0804-
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 03 1 0804-
35 CLIP; RUBBER HOSE 1-09707-143-0 06 1 0804-
56 PIPE; WATER OUTLET
(C) 		1-13721-855-0 01 1 0804-
56 PIPE; WATER OUTLET
(B) 		8-97618-520-0 01 1 0804-
56 PIPE; WATER OUTLET
(D) 		8-97620-786-0 01 1 0804-
56 PIPE; WATER OUTLET
(A) 		8-97620-787-0 01 1 0804-
56 PIPE; WATER OUTLET
(E) 		8-98059-769-0 01 1 0804-
56 PIPE; WATER OUTLET
(F) 		8-98090-465-0 01 1 0804-
94 CLIP; WATER PIPE
(A) 		1-09701-210-0 04 1 0804-
94 CLIP; WATER PIPE
(B) ID=17 L=17 		1-09701-284-0 08 1 0804-
94 CLIP; WATER PIPE
(C) 		8-94393-037-0 02 1 0804-
94 CLIP; WATER PIPE
(D) 		8-98081-240-0 04 1 0804-
95 BOLT; CLIP
(A) M6X16 FLANGE 		0-28050-616-0 01 1 0804-
95 BOLT; CLIP
(B) M6X35 FLANGE 		0-28050-635-0 05 1 0804-
95 BOLT; CLIP
(C) M6X40 FLANGE 		0-28050-640-0 04 1 0804-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 03 1 0804-
115 HOSE; RUBBER
(C) 		1-09361-081-1 01 1 0804-
115 HOSE; RUBBER
(B) L=60 		1-09361-084-0 02 1 0804-
115 HOSE; RUBBER
(D) 		1-13729-039-0 01 1 0804-
115 HOSE; RUBBER
(E) 		8-97620-794-0 01 1 0804-
127 BOLT; EYE
(D) M10X21 FLANGE 		1-09675-077-0 01 1 0804-0805
127 BOLT; EYE
(D) M10X21 FLANGE 		8-97372-238-0 01 1 0806-
127 BOLT; EYE
(A) M16X30 FLANGE 		1-09675-095-1 07 1 0804-
127 BOLT; EYE
(B) M14X27 EYE-BOLT 		1-09675-193-0 02 1 0804-
127 BOLT; EYE
(C) M16X30 FLANGE 		1-09675-230-0 01 1 0804-
147 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 		1-09630-086-0 12 1 0804-
153 CLIP; RUBBER HOSE
(A) ID=20 		1-09707-084-1 04 1 0804-
153 CLIP; RUBBER HOSE
(B) ID=25 		8-97177-581-0 08 1 0804-
170 PIPE; WATER,INL
(A) 		1-13721-744-0 01 1 0804-
170 PIPE; WATER,INL
(B) 		1-13721-745-0 01 1 0804-
206 PIPE; WATER,EGR COOLER
(B) 		1-13721-853-0 01 1 0804-
206 PIPE; WATER,EGR COOLER
(A) 		8-97620-805-0 01 1 0804-
207 COUPLING; RUBBER
ID=14 OD=18 L=60 		1-09337-030-0 02 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
