Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#15054) — 36 parça
◀

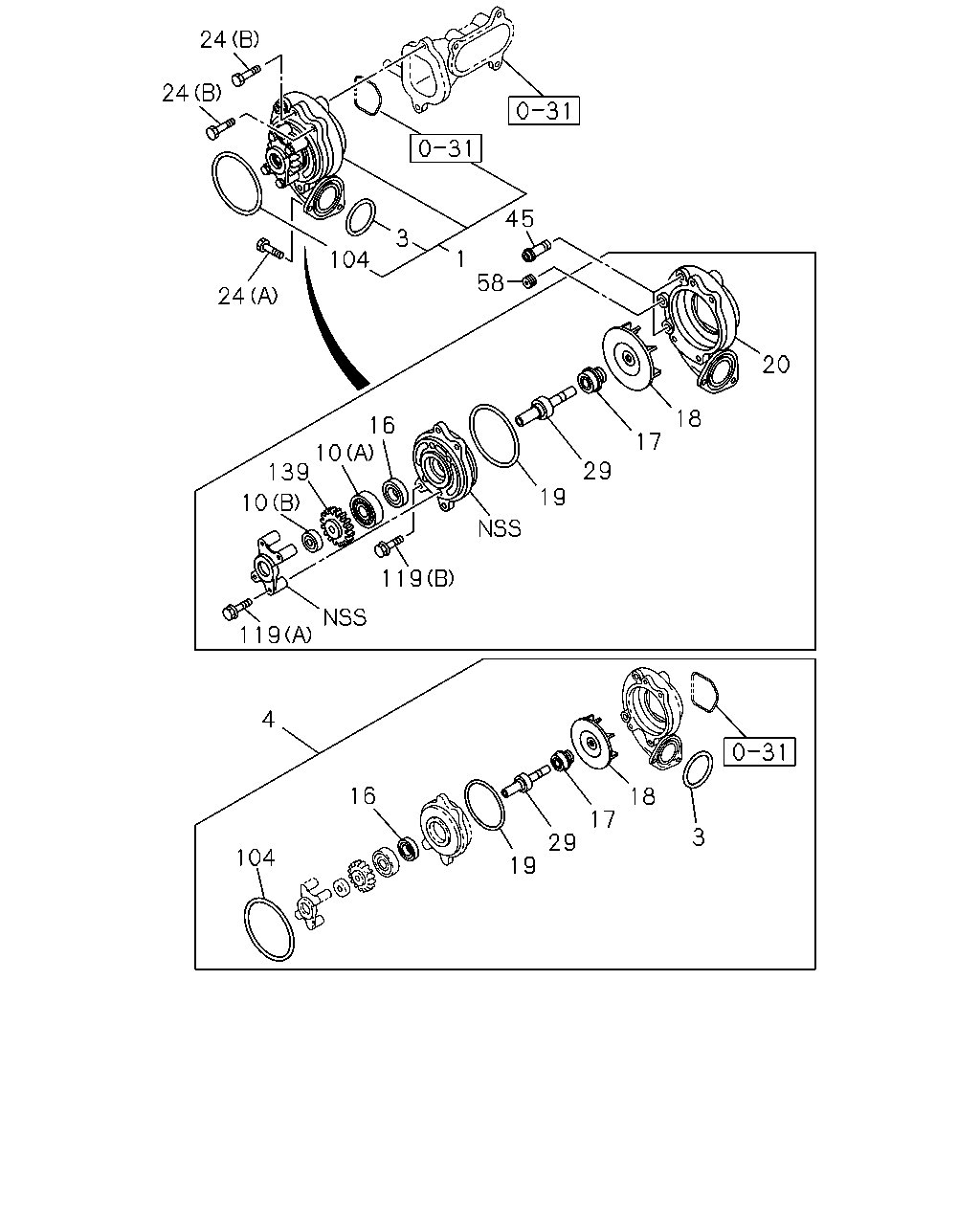

[030A] COMPONENT;WATER PUMP (31 parça)

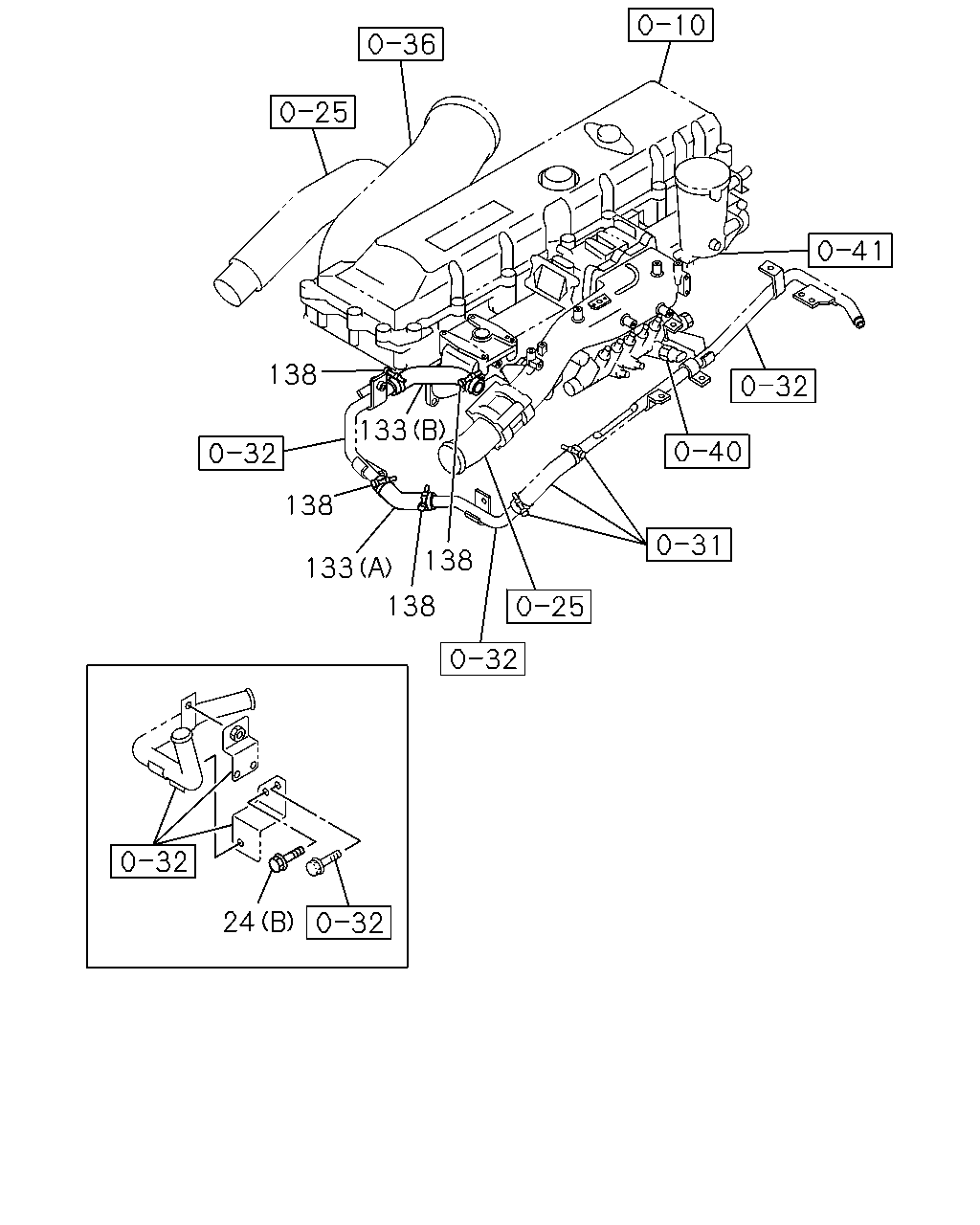

[030A] HOSE;WATER PIPE (5 parça)
▶
24
24
45
3
1
104
58
24
20
18
16
17
10
139
29
19
10
119
119
4
16
18
17
3
29
104
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
8-98098-792-0
01
1
0804-0902
1
PUMP ASM; WATER,W/GASKET
8-98146-072-0
01
1
0903-1207
1
PUMP ASM; WATER,W/GASKET
1-87310-864-0
01
1
1208-1312
1
PUMP ASM; WATER,W/GASKET
1-87310-956-0
01
1
1401-1406
1
PUMP ASM; WATER,W/GASKET
1-87310-995-0
01
1
1407-
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-586-1
01
1
0804-
4
REPAIR KIT; WATER PUMP
1-87813-314-1
01
1
0804-1111
4
REPAIR KIT; WATER PUMP
1-87813-815-0
01
1
1112-1207
4
REPAIR KIT; WATER PUMP
1-87813-955-0
01
1
1208-1312
4
REPAIR KIT; WATER PUMP
1-87813-815-0
01
1
1401-1406
4
REPAIR KIT; WATER PUMP
1-87814-620-0
01
1
1407-
10
BEARING; WATER PUMP
(A)
1-09800-252-0
01
1
0804-
10
BEARING; WATER PUMP
(B)
1-09800-253-0
01
1
0804-
16
SEAL; OIL,WATER PUMP
1-09625-551-0
01
1
0804-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0804-1207
17
SEAL UNIT; WATER PUMP
8-98221-159-0
01
1
1208-1312
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
1401-1406
17
SEAL UNIT; WATER PUMP
8-98272-791-0
01
1
1407-
18
IMPELLER; WATER PUMP
8-98075-723-0
01
1
0804-
19
GASKET; COVER TO BODY
8-97606-729-0
01
1
0804-
20
COVER; WATER PUMP
8-97611-134-0
01
1
0804-
24
BOLT; WATER PUMP
(A) M10X25 FLANGE
0-28151-025-0
02
1
0804-
24
BOLT; WATER PUMP
(B) M10X90 FLANGE
0-28151-090-0
04
1
0804-
29
SHAFT; WATER PUMP
1-13631-078-1
01
1
0804-0902
29
SHAFT; WATER PUMP
8-98141-463-0
01
1
0903-
45
JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47
9-09903-631-0
02
1
0804-
58
PLUG; HTR
PT3/8
5-09605-005-0
01
1
0804-
104
GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-494-0
01
1
0804-
119
BOLT; PUMP COVER
(A) M8X40 FLANGE
0-28050-840-0
04
1
0804-
119
BOLT; PUMP COVER
(B) M10X20 FLANGE
0-28151-020-0
01
1
0804-
139
GEAR; WATER PUMP,DRIVE
8-97606-219-1
01
1
0804-
138
133
138
138
133
138
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BOLT; WATER PUMP
(A) M10X25 FLANGE
0-28151-025-0
02
1
0804-
24
BOLT; WATER PUMP
(B) M10X90 FLANGE
0-28151-090-0
04
1
0804-
133
HOSE; RUBBER,WATER PIPE
(A)
8-97612-998-0
01
1
0804-
133
HOSE; RUBBER,WATER PIPE
(B)
8-97617-185-0
01
1
0804-
138
CLIP; RUBBER HOSE
ID=44
1-09704-077-0
04
1
0804-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
