0-36 — TURBOCHARGER SYSTEM (#150527) — 36 parça
çizim 448782
212 12 2 10 11 212 11 388 12 13 1 16 17 162 217 275 265 217 275 162 17 122 17 20 20 79 79 398 398 20 398 398 92 488 398 398 92 28 143 98 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97602-926-2 01 1 1410- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-94390-044-0 01 1 1410- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 THA 		1-09556-015-0 02 1 1410- ● ●
11 NUT; TURBOCHARGER
M10 THA 		1-09420-005-0 04 1 1410- ● ●
12 STUD; TURBOCHARGER
(A) THA 		9-04130-825-0 01 1 1410- ● ●
12 STUD; TURBOCHARGER
(B) THA 		9-04731-080-0 02 1 1410- ● ●
13 STUD; EXH PIPE
M12X103 L=123 THA 		8-94394-656-0 01 1 1410- ● ●
16 ADAPTER; EXH PIPE
THA 		8-94395-767-0 01 1 1410- ● ●
17 WASHER; PL,ADAPTER
T=1.9 THA 		5-09500-012-0 06 1 1410- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) THA 		8-97606-675-1 01 1 1410- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(C) THA 		8-97618-734-0 01 1 1410- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(A) THA 		8-98251-577-0 01 1 1410- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
THA 		8-94393-182-0 01 1 1410- ● ●
79 CLIP; RUBBER HOSE
ID=58-79 THA 		1-09707-136-0 02 1 1410- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1410- ● ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE THA 		0-28650-840-0 01 1 1410- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
THA 		8-98245-240-0 01 1 1410- ● ●
122 NUT; ADAPTER
M8 THA 		1-09400-118-1 01 1 1410- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 THA 		8-94126-771-0 02 1 1410- ● ●
162 BOLT; ADAPTER
M8X57 THA 		5-09000-275-0 05 1 1410- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 THA 		1-09503-033-1 04 1 1410- ● ●
217 BOLT; BRKT
M12X30 THA 		8-94394-324-0 03 1 1410- ● ●
265 BRACKET; EXH PIPE
THA 		8-94395-764-2 01 1 1410- ● ●
275 WASHER; PL
ID=12.2 THA 		1-09503-008-0 03 1 1410- ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA 		8-94394-248-2 01 1 1410- ● ●
398 MOUNTING
(F) THA 		8-94160-177-0 01 1 1410- ● ●
398 MOUNTING
(C) THA 		8-94390-551-1 01 1 1410- ● ●
398 MOUNTING
(D) THA 		8-94394-504-0 01 1 1410- ● ●
398 MOUNTING
(E) THA 		8-94394-529-0 01 1 1410- ● ●
398 MOUNTING
(A) THA 		8-94395-766-0 01 1 1410- ● ●
398 MOUNTING
(B) OD=23 THA 		8-97105-689-6 01 1 1410- ● ●
488 HOSE; RUBBER
THA 		8-98245-240-0 01 1 1410- ● ●

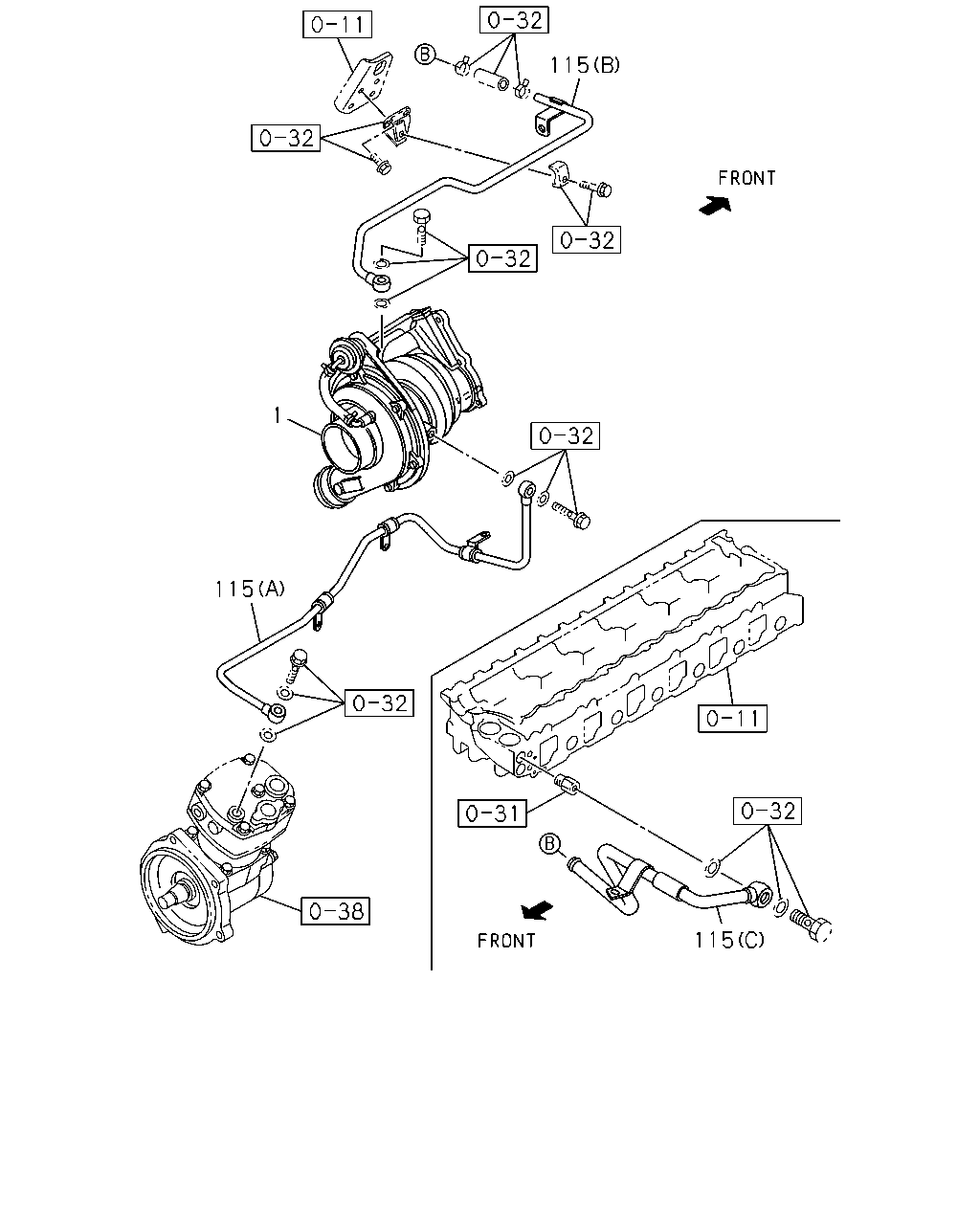

çizim 449183
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-97602-926-2 01 1 1410- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) THA 		8-94392-950-0 01 1 1410- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) THA 		8-94395-454-4 01 1 1410- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) THA 		8-97618-807-0 01 1 1410- ● ●
