Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11651 - FVZ THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶

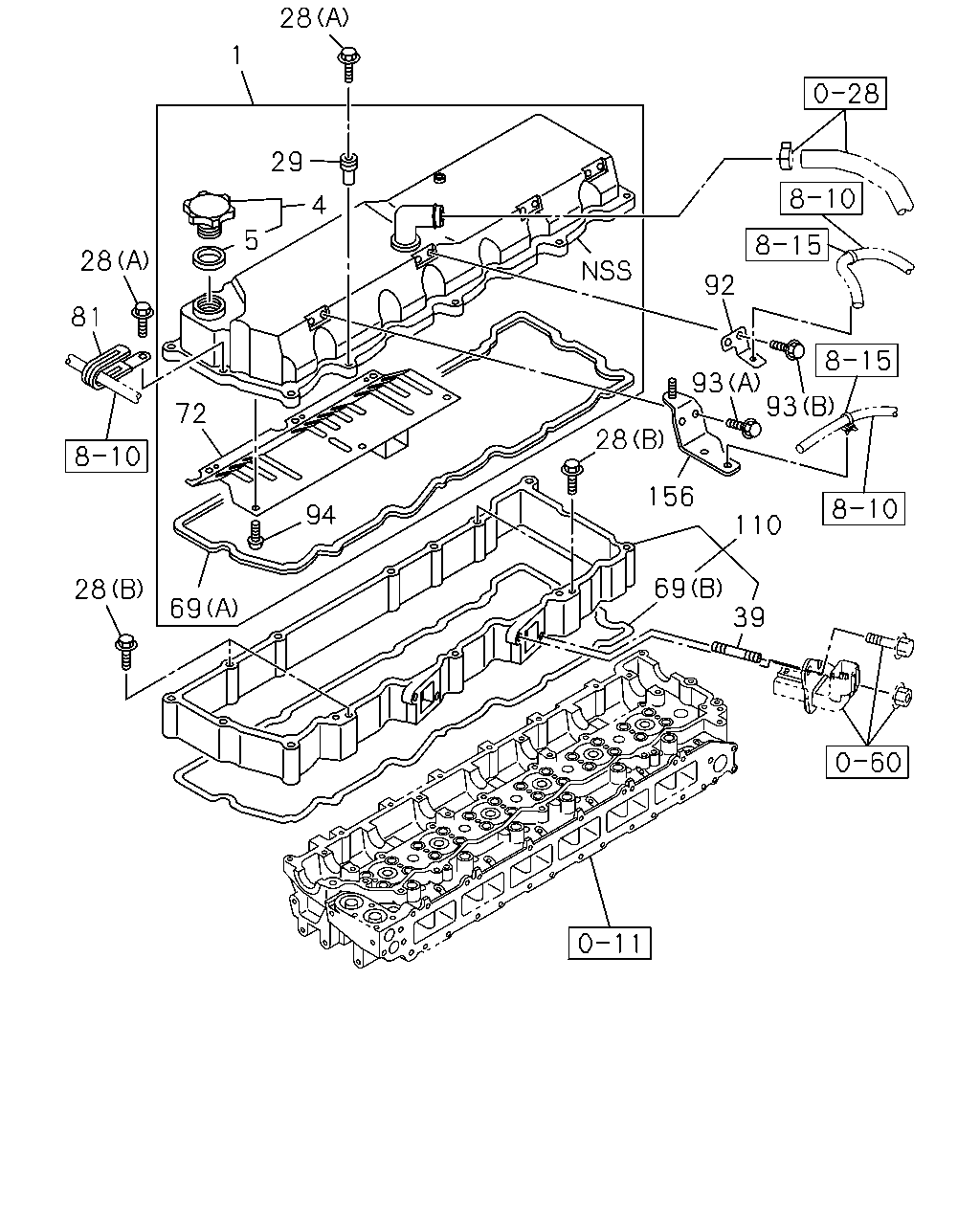

0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#150511) — 17 parça
Tümü
A - 6HK1-TCS ENG
B - 6HK1-TCN ENG
92
28
156
69
39
69
94
72
28
81
28
29
5
4
1
28
93
110
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
THA
8-98208-874-0
01
1
1410-
●
●
4
CAP; OIL FILLER
THA
8-94399-723-0
01
1
1410-
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 THA
8-94399-689-0
01
1
1410-
●
●
28
BOLT; HD COVER
(B) M8X45 FLANGE THA
0-28050-845-0
04
1
1410-
●
●
28
BOLT; HD COVER
(A) M8X70 FLANGE THA
0-28050-870-0
11
1
1410-
●
●
29
RUBBER; MTG,HD COVER
THA
8-94392-097-0
11
1
1410-
●
●
39
STUD; COVER,HD
M8X28 L=38 THA
8-94396-512-0
02
1
1410-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) THA
8-94391-379-0
01
1
1410-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) THA
8-94391-380-0
01
1
1410-
●
●
72
PLATE; INNER HD COVER
THA
8-94392-655-0
01
1
1410-
●
●
81
CLIP; HARNESS
ID=18 L=44 THA
8-97367-985-1
01
1
1410-
●
●
92
BRACKET; CLIP
THA
8-98271-674-0
01
1
1410-
●
●
93
BOLT; BRKT
(A) M8X12 FLANGE THA
0-28050-812-0
04
1
1410-
●
●
93
BOLT; BRKT
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
●
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 THA
0-35050-408-0
06
1
1410-
●
●
110
COVER; CYL HEAD LWR
THA
8-94390-862-3
01
1
1410-
●
●
156
BRACKET; ENGINE COVER
THA
8-97616-751-0
01
1
1410-
●
●
