0-22 — ENGINE MOUNTING (#15050) — 31 parça

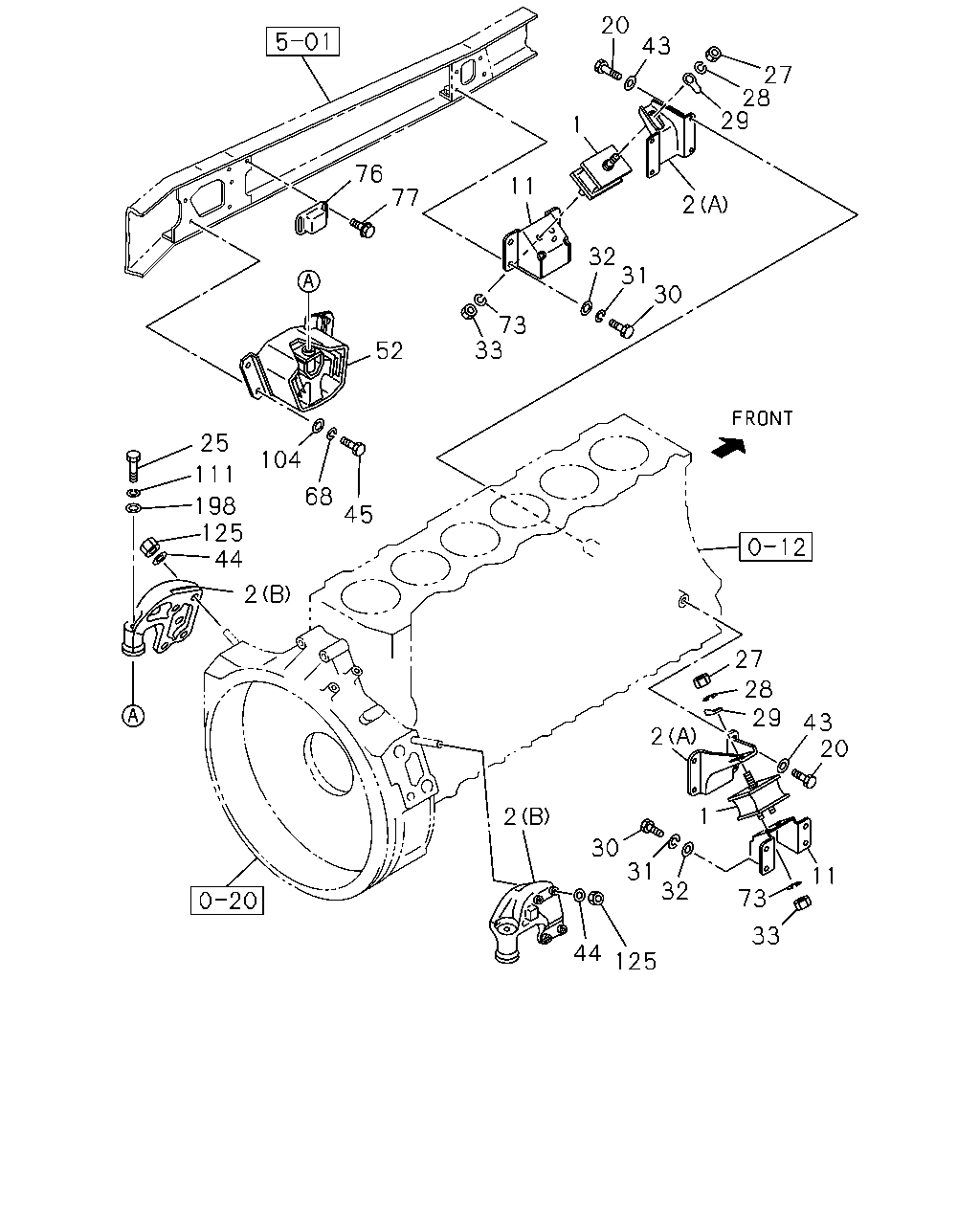

çizim 101754
44 125 33 73 32 31 30 2 1 11 2 20 43 29 27 28 2 44 125 198 45 68 104 111 25 52 33 73 30 31 32 11 2 1 29 28 27 43 20 76 77
BalonParca AdiParca NoAdetTipApplied Date
1 RUBBER; ENG FOOT,FRT 1-53215-132-2 02 1 0804-
2 FOOT; ENG
(A) FRONT 		1-11771-220-0 02 1 0804-
2 FOOT; ENG
(B) REAR 		1-11777-189-1 01 1 0804-
2 FOOT; ENG
(B) REAR 		1-11777-197-1 01 1 0804-
11 BRACKET; CUSHION RUBBER,FRT 1-53211-272-0 02 1 0804-
20 BOLT; ENG FOOT
M14X32 		9-92361-432-0 08 1 0804-
25 BOLT; CUSHION RUBBER TO BRKT
M22X105 		1-09000-773-0 02 1 0804-
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		0-91110-518-0 02 1 0804-
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		0-91510-518-0 02 1 0804-
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 0804-
30 BOLT; BRKT TO FRAME
M14X35 		0-20951-435-0 08 1 0804-
31 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-814-0 08 1 0804-
32 WASHER; PL,BRKT TO FRAME
ID=15 		9-09651-069-0 08 1 0804-1003
32 WASHER; PL,BRKT TO FRAME
ID=15 		8-98010-627-1 08 1 1004-
33 NUT; CUSHION RUBBER TO BRKT
M14 		0-91110-514-0 04 1 0804-
43 WASHER; ENG FOOT
ID=14.2 		1-09503-050-0 08 1 0804-
44 WASHER; LK,ENG FOOT
ID=18.2 OD=29 		1-09503-032-0 08 1 0804-
45 BOLT; CUSHION RUBBER TO FRAME
M14X40 		0-20951-440-0 10 1 0804-
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-370-1 01 1 0804-
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-371-1 01 1 0804-
68 WASHER; LK,CUSHION RUBBER
ID=14.2 		0-91510-814-0 10 1 0804-
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-514-0 04 1 0804-1003
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-814-0 04 1 1004-
76 STOPPER; ENG MTG RUBBER 1-53229-056-1 02 1 0804-
77 BOLT; STOPPER
M8X16 FLANGE 		0-28050-816-0 04 1 0804-
104 WASHER; PL,CUSHION RUBBER
ID=15 		9-09651-069-0 10 1 0804-1003
104 WASHER; PL,CUSHION RUBBER
ID=15 		8-98010-627-1 10 1 1004-
111 WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5 		0-91510-622-0 02 1 0804-
125 NUT; ENG FOOT
M18 		0-91110-518-0 08 1 0804-
198 WASHER; PL,CUSHION TO BRKT,RR 9-09164-622-0 02 1 0804-1003
198 WASHER; PL,CUSHION TO BRKT,RR
ID=22 		0-91614-622-0 02 1 1004-
