◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#150496) — 25 parça

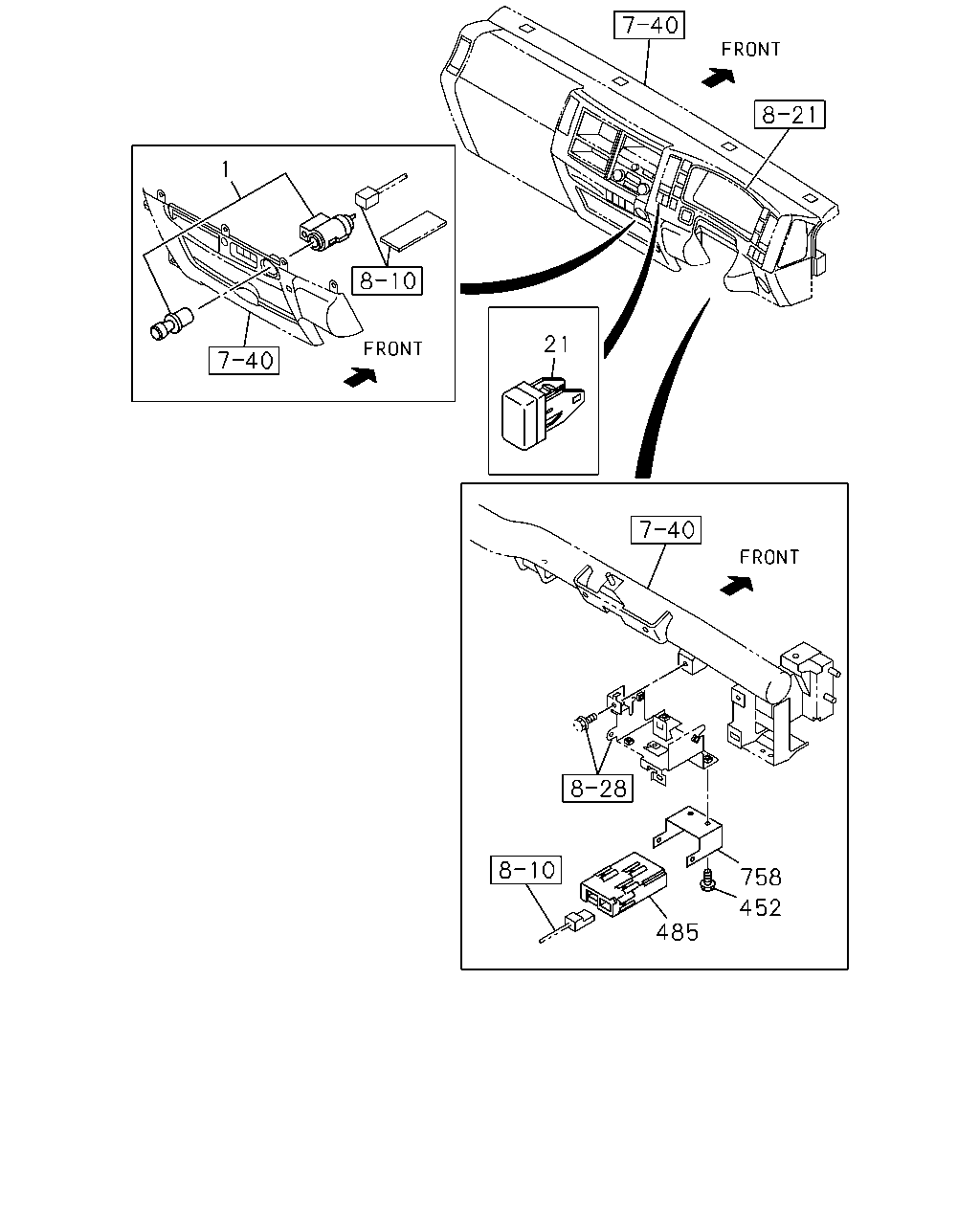

çizim 448701
21 1 758 452 485
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
THA 		8-98142-962-0 01 1 1410-
21 COVER; HOLE
THA 		8-98025-954-1 01 1 1410-
452 BOLT; BRKT
ZF9S1110 M/T<Y5E> M6X16 FLANGE THA 		0-28650-616-0 02 1 1410-
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T<Y5E> 		8-98232-695-0 01 1 1409-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T<Y5E> THA 		8-98048-743-1 01 1 1410-

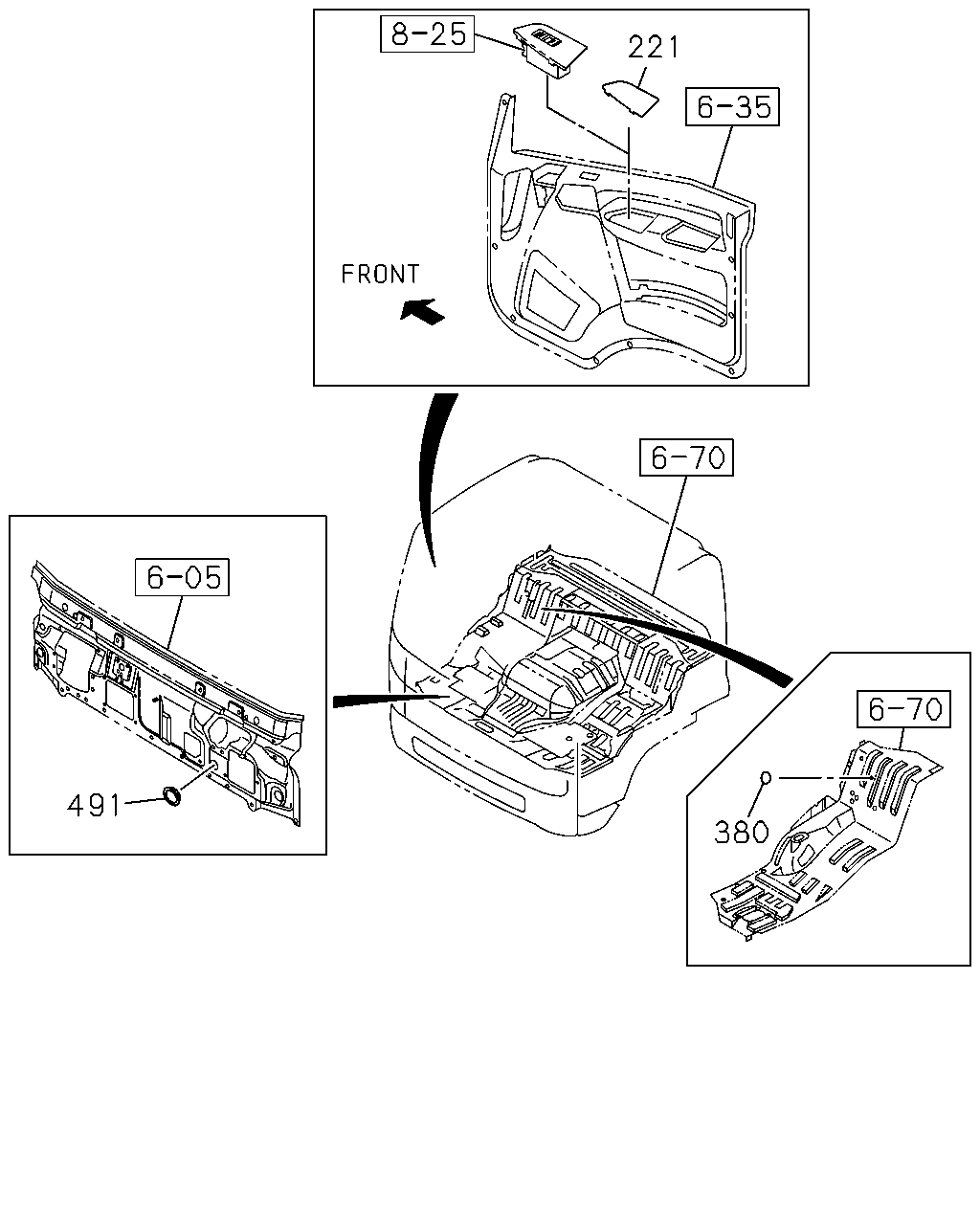

çizim 448990
221 491 380
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
THA 		8-98029-915-2 01 1 1410-
221 COVER; HOLE,DOOR LOCK SW
THA 		8-98029-916-2 01 1 1410-
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 1410-
491 PLUG; HOLE,CONT UNIT
THA 		8-98054-651-0 01 1 1410-

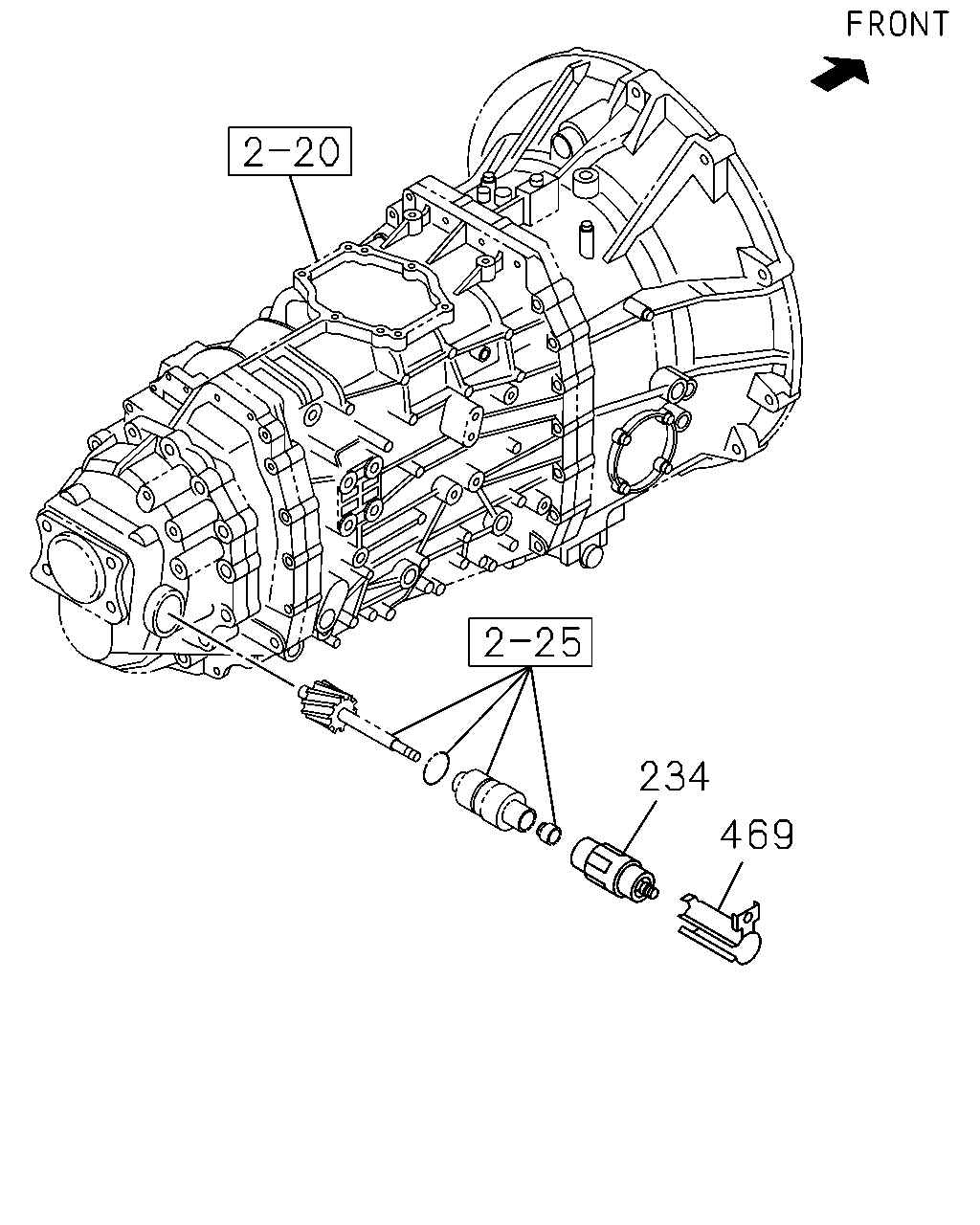

çizim 449595
234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
MZW6P M/T<RSZ> 25 PULSE ALUMINUM THA 		8-97328-058-1 01 1 1410-
469 PROTECTOR; SPEED SENSOR
MZW6P M/T<RSZ> THA 		8-98119-901-0 01 1 1410-

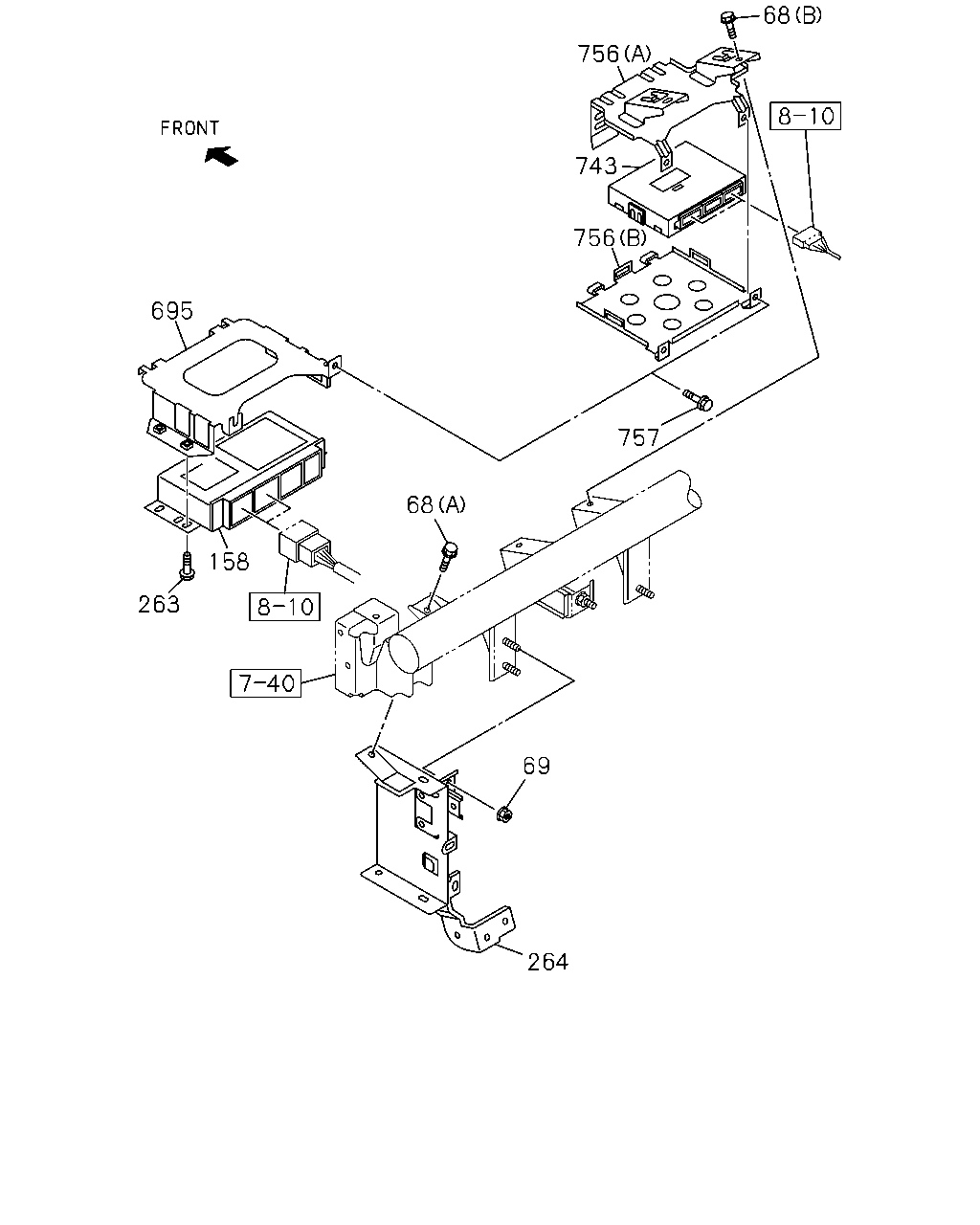

çizim 451663
695 158 263 68 757 69 264 756 743 756 68
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER THA 		1-09980-492-0 02 1 1410-
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER THA 		1-09980-492-0 02 1 1410-
68 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1410-
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1410-
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> THA 		8-98170-648-0 01 1 1410-
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA 		0-28650-616-0 04 1 1410-
264 BRACKET; CONT UNIT
THA 		8-97609-985-9 01 1 1410-
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> THA 		8-98045-016-1 01 1 1410-
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> THA 		8-98182-026-2 01 1 1410-
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (A) THA 		8-98056-411-3 01 1 1410-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (A) THA 		8-98056-411-3 01 1 1410-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) THA 		8-98111-836-1 01 1 1410-
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 1410-
757 BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 1410-
