Isuzu WW
▶
TRUCKS
▶
FVM
▶
11649 - FVM THAILAND EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#150495) — 31 parça
◀
[825A] RELAY;CAB HARNESS (7 parça)
[825A] RELAY;FRAME HARNESS (2 parça)
[825A] OTHER PARTS (9 parça)
[825A] SWITCH NO.1 (3 parça)
[825A] SWITCH NO.2 (10 parça)
▶
164
317
610
99
595
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
99
RELAY; FOG LAMP
24V 10A PANASONIC THA
8-97173-035-1
01
1
1410-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 24V 10A PANASONIC THA
8-97173-035-1
01
1
1410-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 24V 12.5A PANASONIC THA
8-97262-933-0
01
1
1410-
317
RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 24V 12.5A PANASONIC THA
8-97262-933-0
01
1
1410-
595
RELAY; IGNITION
24V 10A PANASONIC THA
8-97173-035-1
01
1
1410-
610
RELAY; KEY ON
(B) 24V 10A PANASONIC THA
8-97173-035-1
01
1
1410-
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC THA
8-97262-933-0
01
1
1410-
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 24V 10A PANASONIC THA
8-97173-035-1
01
1
1410-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 24V 12.5A PANASONIC THA
8-97262-933-0
01
1
1410-
257
29
30
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

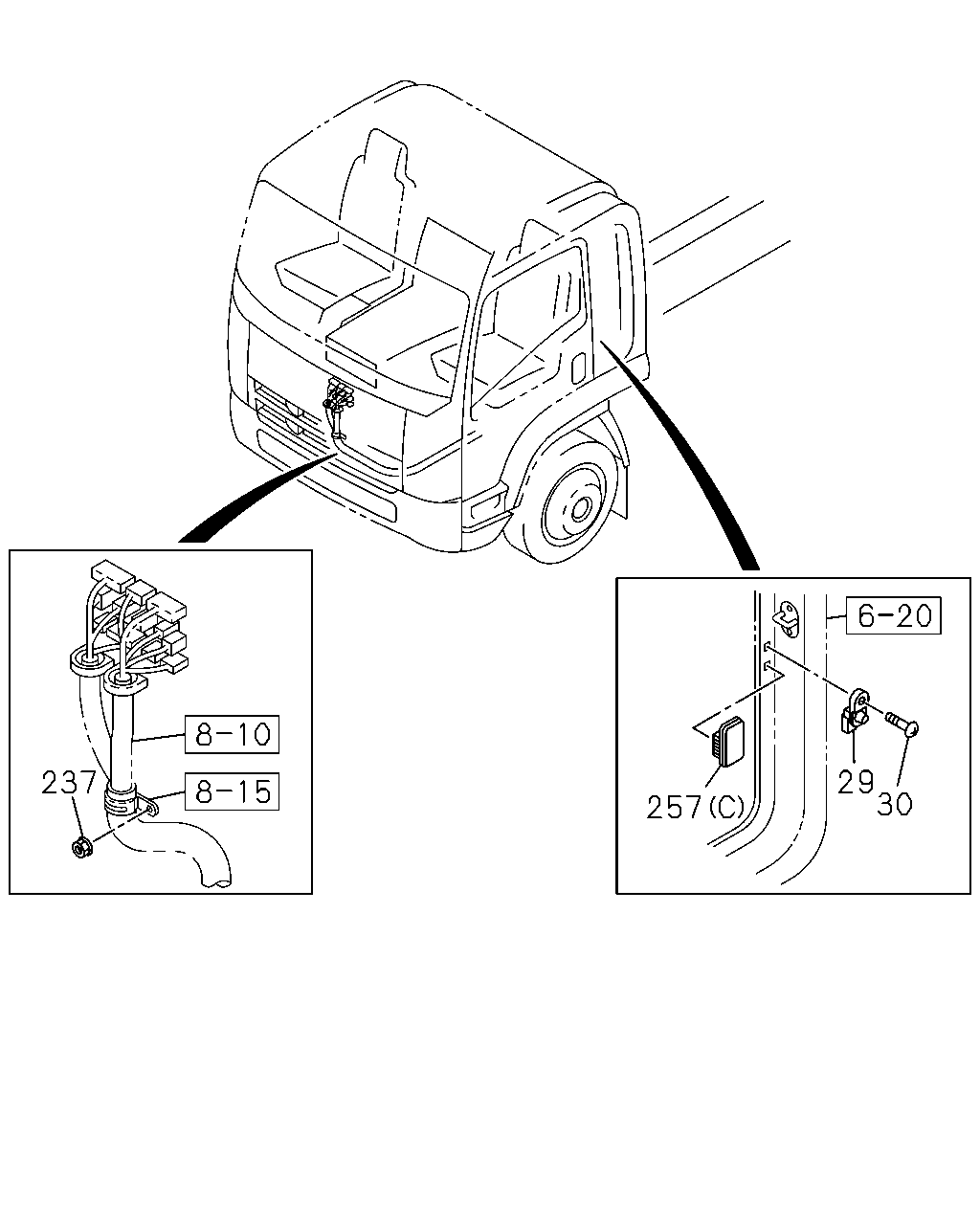

29
SWITCH; DOOR
BLACK THA
8-98022-211-0
01
1
1410-
30
SCREW; DOOR SW
M5X18 THA
8-98047-201-0
01
1
1410-
237
NUT
M8 FLANGE THA
0-91180-108-0
01
1
1410-
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
07
1
1410-
257
COVER; HOLE,SW
(B) THA
8-98029-914-1
01
1
1410-
257
COVER; HOLE,SW
(C) THA
8-98029-917-0
01
1
1410-
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
01
1
1410-
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
01
1
1410-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) THA
8-98025-954-1
01
1
1410-
3
1
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

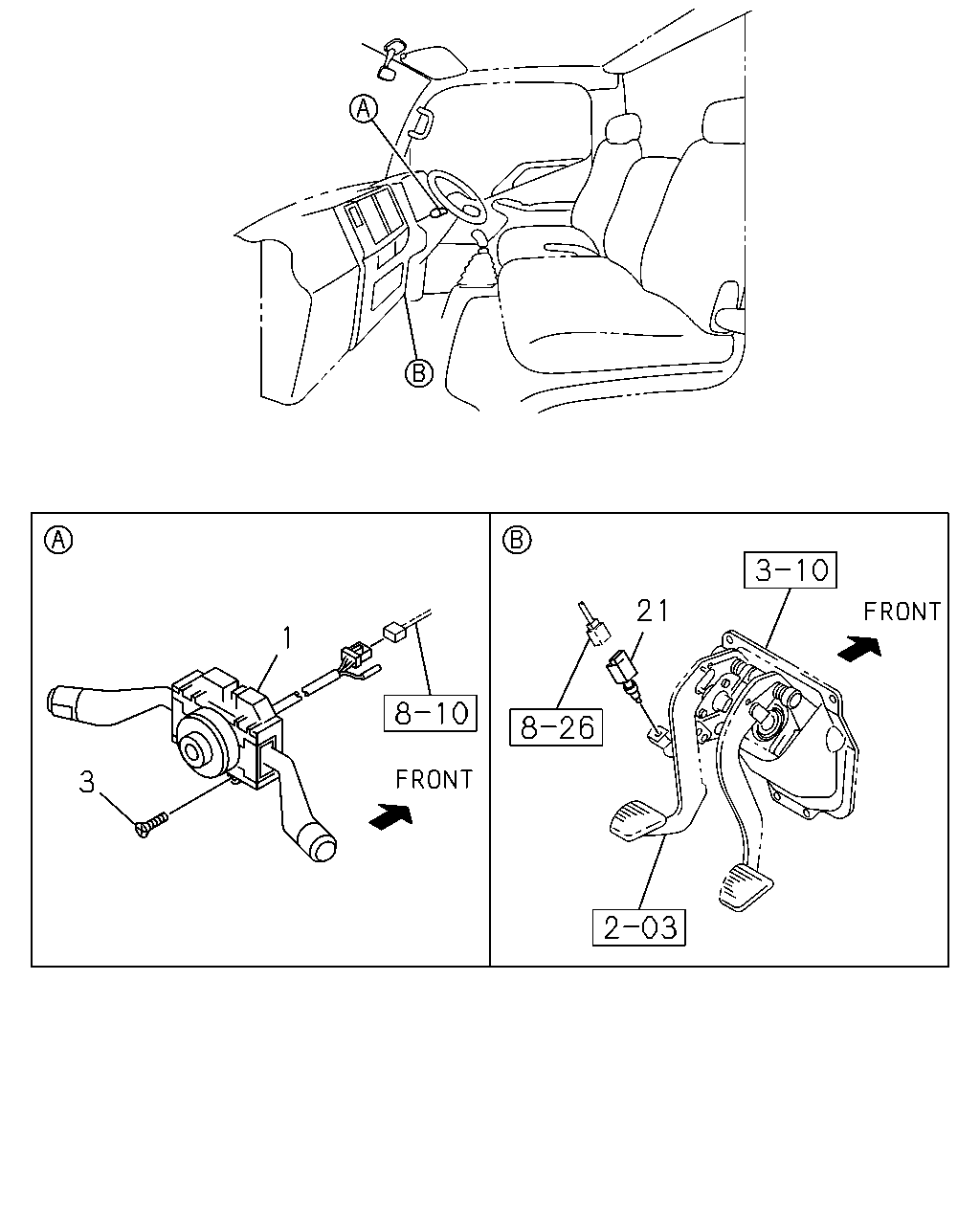

1
SWITCH; COMB
THA
8-98243-704-0
01
1
1410-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES THA
8-98061-743-0
02
1
1410-
21
SWITCH; CLU
EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> THA
8-97358-248-0
01
1
1410-
249
96
253
257
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

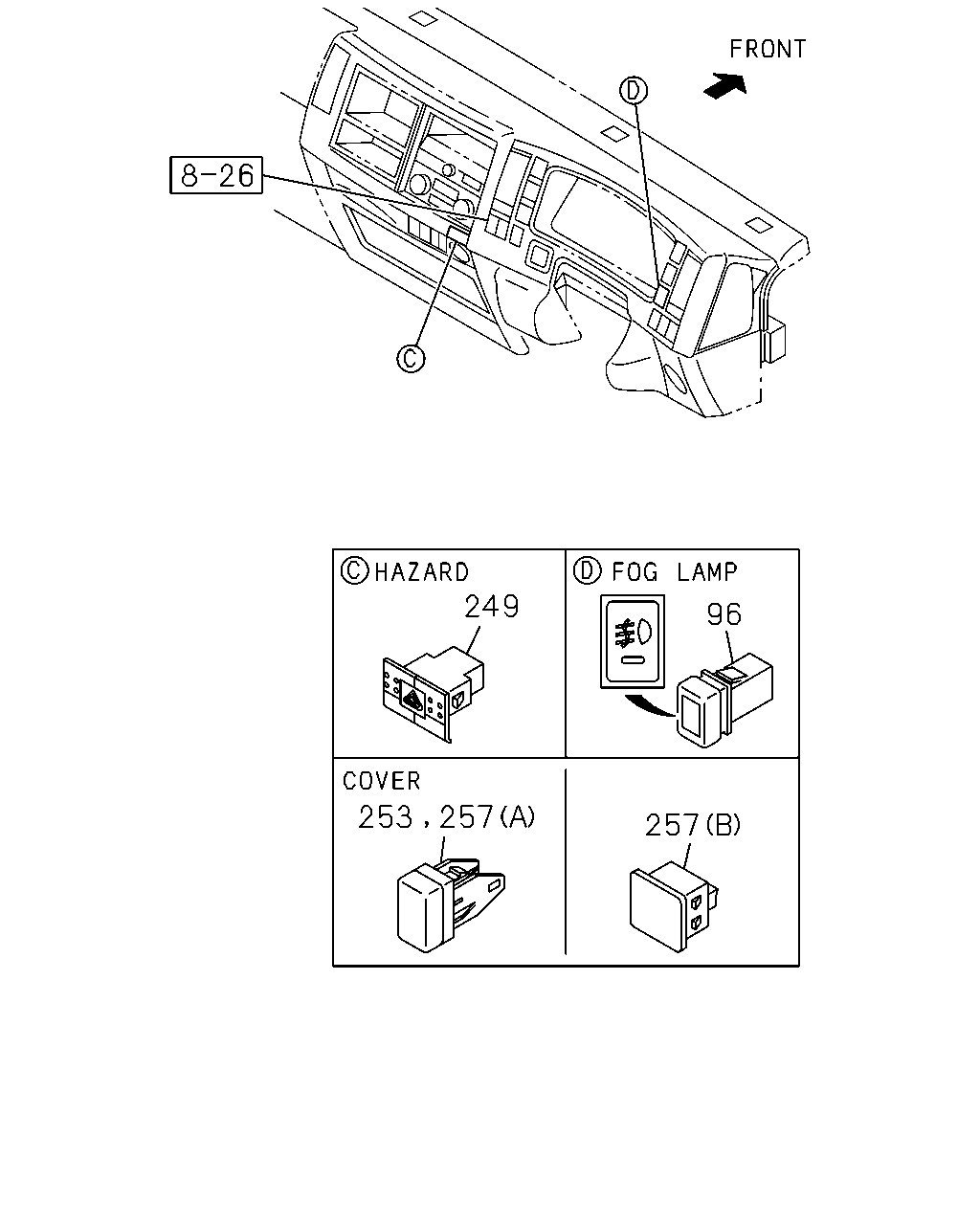

96
SWITCH; FOG LAMP
THA
8-97387-031-4
01
1
1410-
249
SWITCH; HAZARD
THA
8-97948-258-0
01
1
1410-
253
COVER; SW HOLE
THA
8-98025-954-1
01
1
1410-
253
COVER; SW HOLE
THA
8-98025-954-1
03
1
1410-
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
07
1
1410-
257
COVER; HOLE,SW
(B) THA
8-98029-914-1
01
1
1410-
257
COVER; HOLE,SW
(C) THA
8-98029-917-0
01
1
1410-
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
01
1
1410-
257
COVER; HOLE,SW
(A) THA
8-98025-954-1
01
1
1410-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) THA
8-98025-954-1
01
1
1410-
