◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#150493) — 9 parça

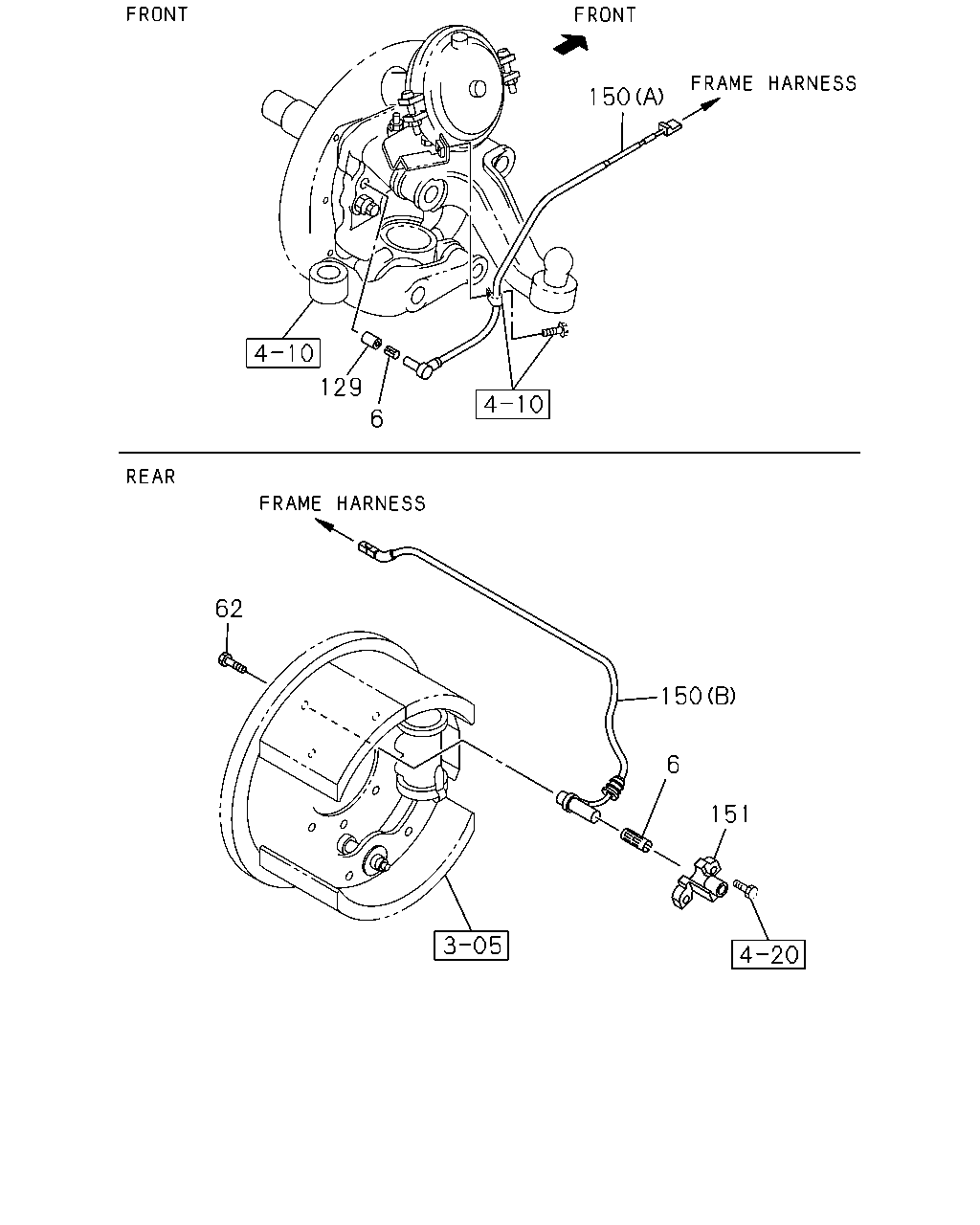

çizim 451623
129 6 150 62 150 6 151
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> THA 		1-83129-260-1 02 1 1410-
6 HOLDER; SPD SENSOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> THA 		1-83129-260-1 02 1 1410-
62 BOLT; SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X16 HEX SOCKET THA 		0-58330-816-0 02 1 1410-
129 COLLAR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-83129-471-0 02 1 1410-
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		1-83227-024-1 02 1 1410-
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98040-694-1 01 1 1410-
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98040-695-1 01 1 1410-
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-83129-403-0 01 1 1410-
151 BRACKET; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-83129-404-0 01 1 1410-
