◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#150492) — 300 parça
çizim 448555
386 184 38 313 127 294 525 294 219 524 139 139 139 313 139 313 150 139 38 313 150 139 38 242 38 377 304 304 38 304 139 304 304 239
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER THA 		8-98141-255-0 03 1 1410-
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (E) M8X30 FLANGE THA 		0-28650-830-0 02 1 1410-
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T<Y5E> (C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1410-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1410-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1410-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET THA 		8-98063-767-0 01 1 1410-
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1410-
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE THA 		0-28650-830-0 04 1 1410-
139 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) M8X35 FLANGE THA 		0-28650-835-0 01 1 1410-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 1410-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
139 BOLT; BRKT
(D) M10X30 FLANGE THA 		0-28651-030-0 01 1 1410-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 1410-
150 BOLT; CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 THA 		1-09503-265-0 01 1 1410-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 THA 		1-09503-265-0 01 1 1410-
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE THA 		0-91180-108-0 03 1 1410-
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE THA 		0-91180-108-0 02 1 1410-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE THA 		0-91180-108-0 02 1 1410-
239 BOLT; GRAND
M6X10 FLANGE THA 		0-28050-610-0 01 1 1409-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE THA 		0-91180-108-0 04 1 1410-
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE THA 		0-91180-108-0 02 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1410-
294 NUT
POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1410-
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1410-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE THA 		0-28050-612-0 01 1 1410-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE THA 		0-28050-810-0 01 1 1410-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 03 1 1410-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE THA 		0-28050-816-0 03 1 1410-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1410-
313 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> (D) M10X35 FLANGE THA 		0-28651-035-0 01 1 1410-
313 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
313 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 02 1 1410-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER THA 		8-97086-823-0 02 1 1410-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER THA 		8-98141-255-0 02 1 1410-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1410-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1410-

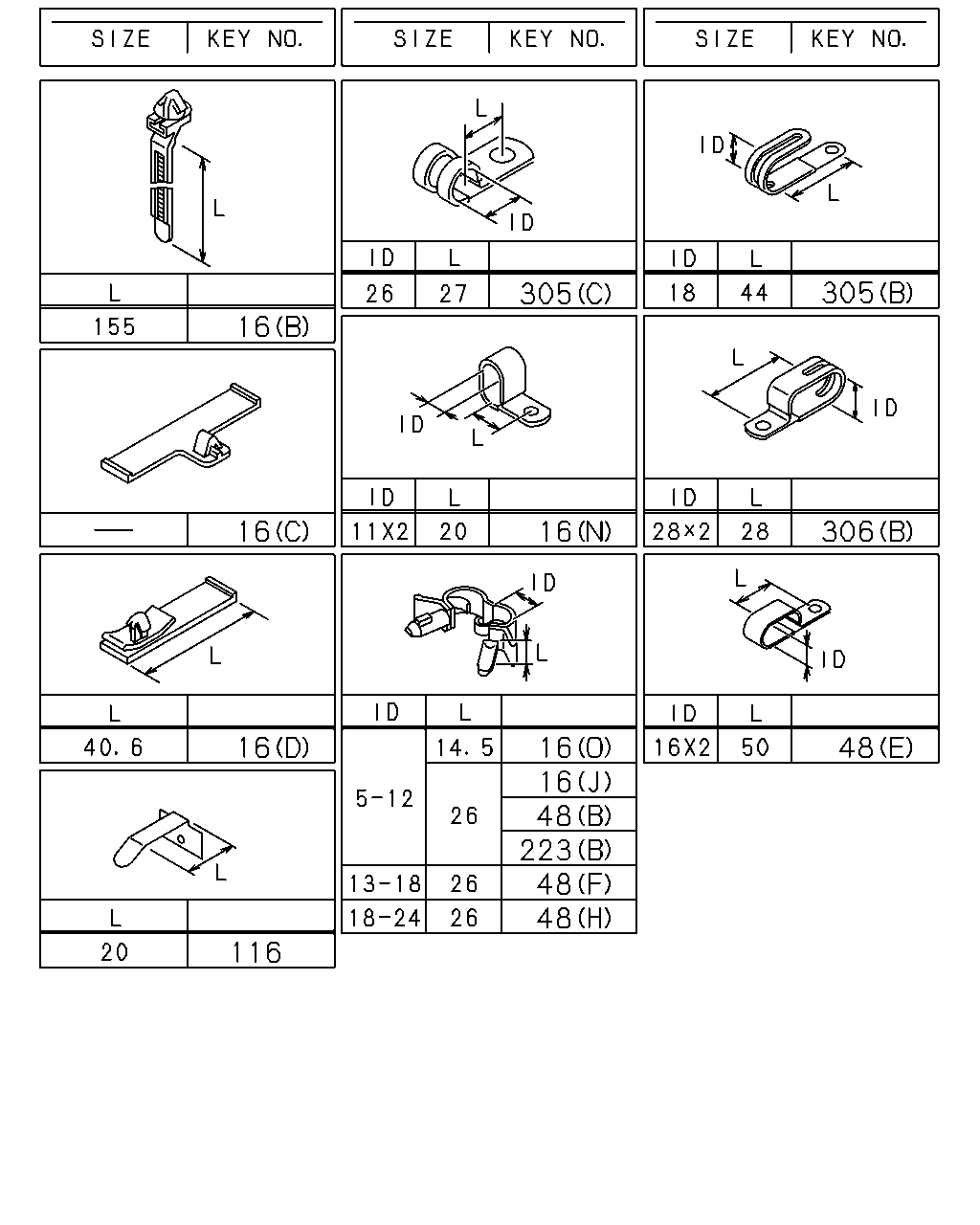

çizim 451537
16 16 16 116 305 16 16 16 48 223 48 8 305 306 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=11 L=16 THA 		0-95235-025-0 02 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (N) ID=22X11 L=20 THA 		1-09700-871-0 03 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (O) ID=5-12 L=14.5 THA 		1-09987-221-0 02 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 H=20 L=20 THA 		8-98033-780-0 01 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (L) ID=20 L=50 THA 		9-09917-430-0 03 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 THA 		1-09700-403-0 02 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26 THA 		1-09709-289-0 01 1 1410-
16 CLIP; HARNESS
(Q) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 THA 		1-09700-843-0 02 1 1410-
16 CLIP; HARNESS
(G) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
EXC. ANTI LOCK BRAKE<JE5> (K) ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70 THA 		1-09700-485-0 01 1 1410-
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 01 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 19 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 19 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 03 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 03 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 18 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70 THA 		1-09700-485-0 24 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 05 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 19 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 19 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> (E) ID=16X2 L=50 THA 		0-95325-586-0 01 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> (J) ID=14.5 H=23 L=30 THA 		1-09700-859-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 17 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 22 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) ID=28 L=78 THA 		1-09700-858-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26 THA 		1-09709-289-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) ID=13-18 L=26 THA 		1-09709-293-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) ID=18-24 L=26 THA 		1-09709-296-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (N) ID=11 L=41 THA 		1-09700-403-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (M) ID=28 L=78 THA 		1-09700-858-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) ID=18-24 L=26 THA 		1-09709-296-0 01 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 THA 		1-09700-466-0 07 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 THA 		1-09700-466-0 24 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 01 1 1410-
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 THA 		1-09701-214-0 01 1 1410-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 THA 		1-09701-291-0 04 1 1410-
48 CLIP; FRAME HARNESS
(C) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(A) L=140 THA 		8-97920-656-0 02 1 1410-
116 CLIP; ROOF HARNESS
L=20 THA 		1-09987-246-2 03 1 1410-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26 THA 		1-09709-289-0 03 1 1410-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44 THA 		9-09917-427-0 02 1 1410-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 THA 		0-95235-576-0 01 1 1410-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 THA 		1-09700-766-1 01 1 1410-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 THA 		1-09700-972-1 01 1 1410-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 THA 		1-09701-006-0 01 1 1410-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 THA 		1-09701-041-1 01 1 1410-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 THA 		8-97367-985-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 THA 		1-09701-107-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 THA 		1-09701-302-0 02 1 1410-
çizim 451750
48 16 206 217 225 14 14 16 48 14 14 538 503 530 1 1 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 THA 		8-97608-976-0 05 1 1410-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 THA 		9-09956-682-0 04 1 1410-
14 CLIP; BAND,HARNESS
(B) L=350 THA 		1-09707-183-0 01 1 1410-
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=250 THA 		1-09707-126-0 02 1 1410-
14 CLIP; BAND,HARNESS
(C) L=251 THA 		8-97619-917-0 01 1 1410-
14 CLIP; BAND,HARNESS
(A) L=250 THA 		8-98216-430-0 14 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=11 L=16 THA 		0-95235-025-0 02 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (N) ID=22X11 L=20 THA 		1-09700-871-0 03 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (O) ID=5-12 L=14.5 THA 		1-09987-221-0 02 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 H=20 L=20 THA 		8-98033-780-0 01 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (L) ID=20 L=50 THA 		9-09917-430-0 03 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 THA 		1-09700-403-0 02 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26 THA 		1-09709-289-0 01 1 1410-
16 CLIP; HARNESS
(Q) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 THA 		1-09700-843-0 02 1 1410-
16 CLIP; HARNESS
(G) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
EXC. ANTI LOCK BRAKE<JE5> (K) ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70 THA 		1-09700-485-0 01 1 1410-
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 01 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 19 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 19 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 03 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 03 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 18 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70 THA 		1-09700-485-0 24 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 05 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 19 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 19 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> (E) ID=16X2 L=50 THA 		0-95325-586-0 01 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> (J) ID=14.5 H=23 L=30 THA 		1-09700-859-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 17 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 22 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) ID=28 L=78 THA 		1-09700-858-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26 THA 		1-09709-289-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) ID=13-18 L=26 THA 		1-09709-293-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) ID=18-24 L=26 THA 		1-09709-296-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (N) ID=11 L=41 THA 		1-09700-403-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (M) ID=28 L=78 THA 		1-09700-858-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) ID=18-24 L=26 THA 		1-09709-296-0 01 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 THA 		1-09700-466-0 07 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 THA 		1-09700-466-0 24 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 01 1 1410-
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 THA 		1-09701-214-0 01 1 1410-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 THA 		1-09701-291-0 04 1 1410-
48 CLIP; FRAME HARNESS
(C) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(A) L=140 THA 		8-97920-656-0 02 1 1410-
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17 THA 		9-09956-256-2 02 1 1410-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 THA 		1-09332-011-1 01 1 1410-
178 GROMMET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25 THA 		1-09332-011-1 01 1 1410-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 THA 		1-09332-011-1 02 1 1410-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410-
206 CLIP; FUEL TANK HARNESS
L=250 THA 		5-09707-030-1 02 1 1410-
217 CLIP; RR BODY HARNESS
L=250 THA 		5-09707-030-1 02 1 1410-
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=250 THA 		5-09707-030-1 01 1 1410-
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=250 THA 		5-09707-030-1 03 1 1410-
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=250 THA 		5-09707-030-1 08 1 1410-
503 CONNECTOR
THA 		1-82690-668-0 01 1 1410-
530 SEAL; HARNESS
180X40 THA 		1-72498-019-1 06 1 1410-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1410-

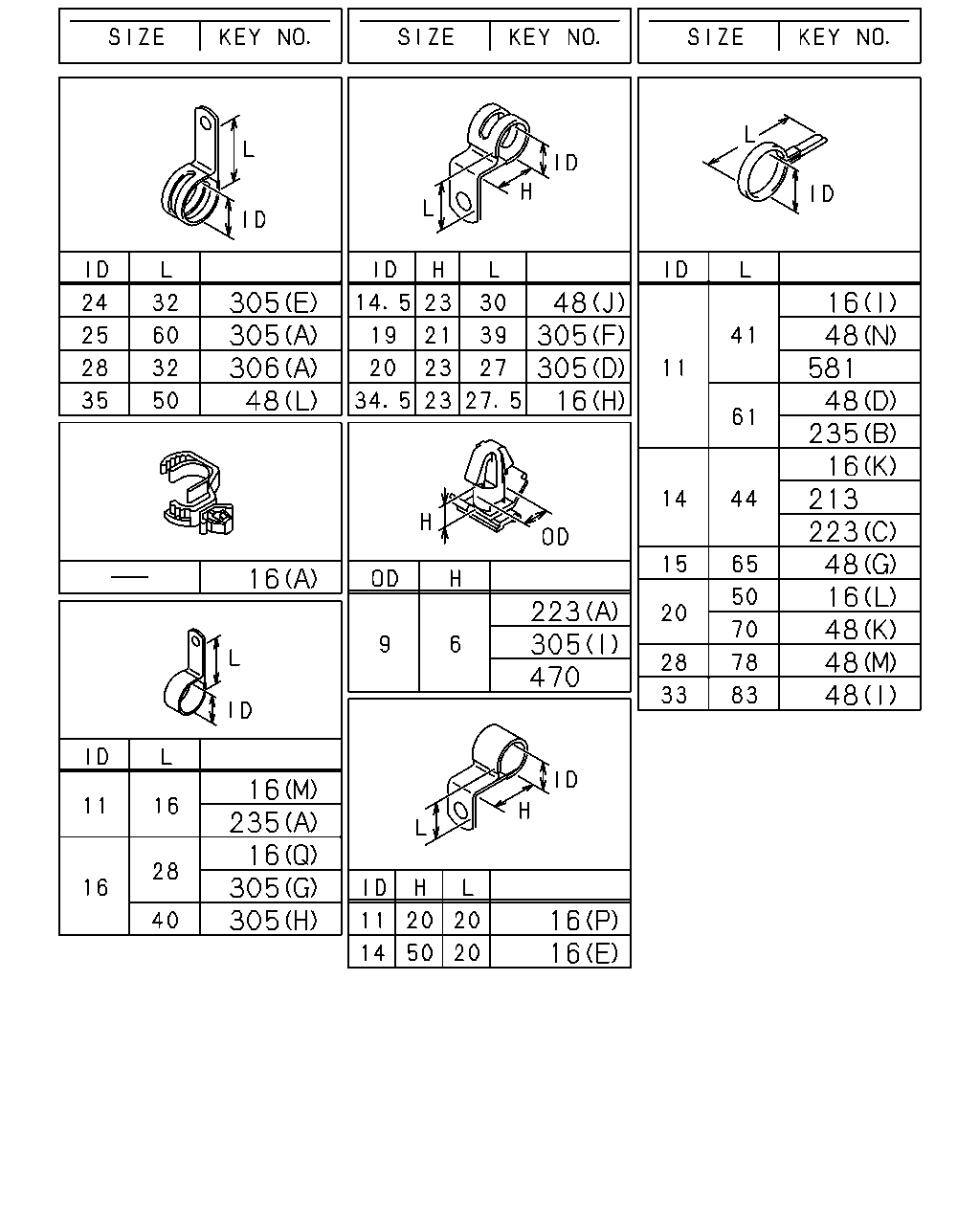

çizim 451914
305 305 306 48 16 16 235 16 305 305 48 305 305 16 223 305 470 16 16 16 48 581 48 235 16 213 223 48 46 48 48 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=11 L=16 THA 		0-95235-025-0 02 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (N) ID=22X11 L=20 THA 		1-09700-871-0 03 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (O) ID=5-12 L=14.5 THA 		1-09987-221-0 02 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 H=20 L=20 THA 		8-98033-780-0 01 1 1410-
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (L) ID=20 L=50 THA 		9-09917-430-0 03 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 THA 		1-09700-403-0 02 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26 THA 		1-09709-289-0 01 1 1410-
16 CLIP; HARNESS
(Q) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 THA 		1-09700-843-0 02 1 1410-
16 CLIP; HARNESS
(G) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
EXC. ANTI LOCK BRAKE<JE5> (K) ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70 THA 		1-09700-485-0 01 1 1410-
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 01 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 19 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 19 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 03 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 03 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 18 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 THA 		1-09700-466-0 01 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70 THA 		1-09700-485-0 24 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 05 1 1410-
48 CLIP; FRAME HARNESS
MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 19 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 19 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> (E) ID=16X2 L=50 THA 		0-95325-586-0 01 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> (J) ID=14.5 H=23 L=30 THA 		1-09700-859-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70 THA 		1-09700-485-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 17 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 02 1 1410-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65 THA 		1-09700-466-0 22 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) ID=28 L=78 THA 		1-09700-858-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26 THA 		1-09709-289-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) ID=13-18 L=26 THA 		1-09709-293-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) ID=18-24 L=26 THA 		1-09709-296-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (N) ID=11 L=41 THA 		1-09700-403-0 01 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (M) ID=28 L=78 THA 		1-09700-858-0 02 1 1410-
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) ID=18-24 L=26 THA 		1-09709-296-0 01 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 THA 		1-09700-466-0 07 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 THA 		1-09700-466-0 24 1 1410-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 THA 		1-09700-484-0 01 1 1410-
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 THA 		1-09701-214-0 01 1 1410-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 THA 		1-09701-291-0 04 1 1410-
48 CLIP; FRAME HARNESS
(C) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(A) L=140 THA 		8-97920-656-0 02 1 1410-
213 CLIP; END CROSS HARNESS
ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26 THA 		1-09709-289-0 03 1 1410-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44 THA 		9-09917-427-0 02 1 1410-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 THA 		0-95235-025-0 02 1 1410-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) ID=11 L=61 THA 		1-09700-484-0 02 1 1410-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 THA 		0-95235-576-0 01 1 1410-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 THA 		1-09700-766-1 01 1 1410-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 THA 		1-09700-972-1 01 1 1410-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 THA 		1-09701-006-0 01 1 1410-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 THA 		1-09701-041-1 01 1 1410-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 THA 		8-97367-985-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 THA 		1-09701-107-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 THA 		1-09701-302-0 02 1 1410-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
581 CLIP; HARNESS,REAR SUSP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=11 L=41 THA 		1-09700-403-0 01 1 1410-

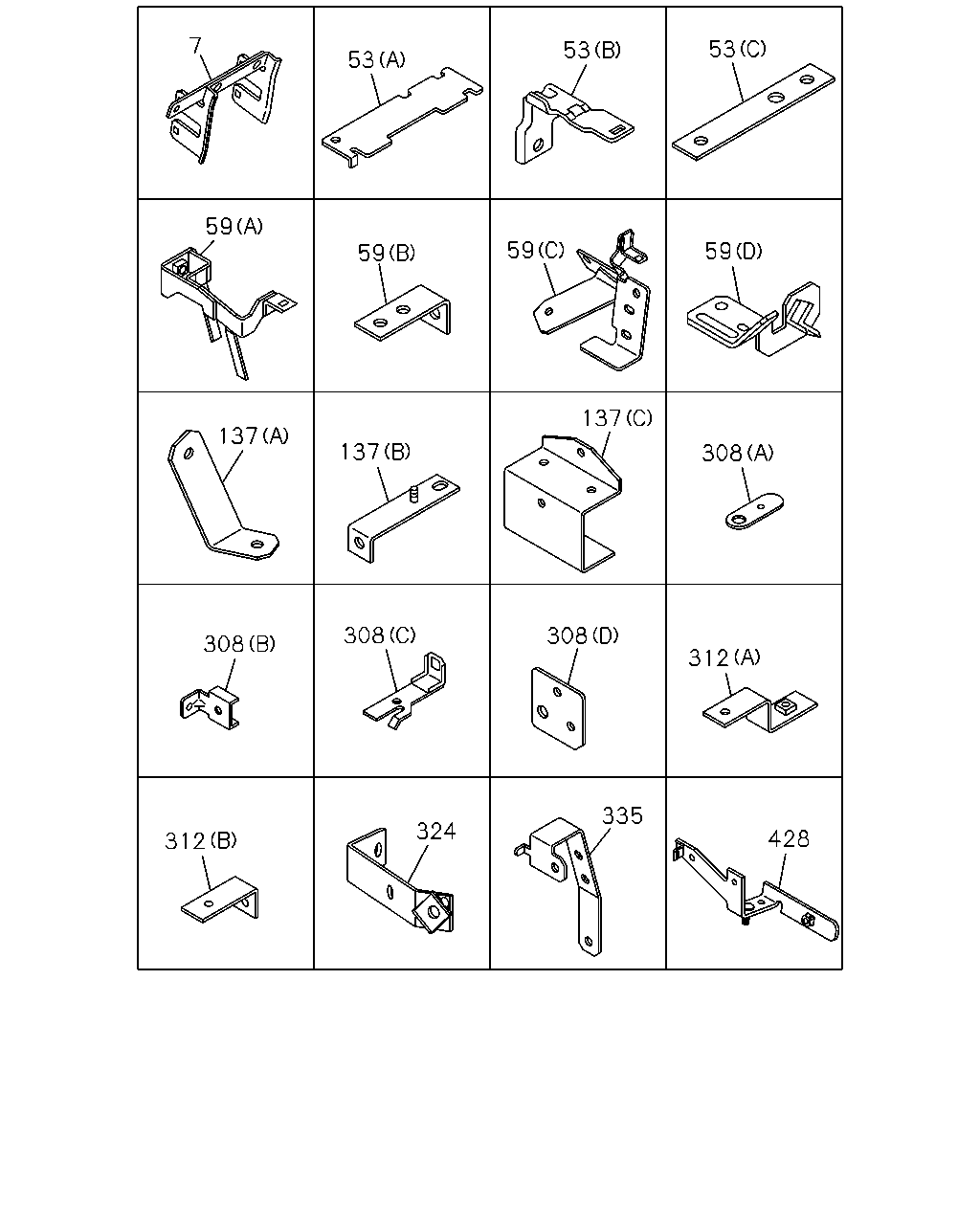

çizim 451956
7 53 53 53 59 59 59 59 137 137 137 308 308 308 308 312 312 324 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1410-
53 BRACKET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (C) L=170 THA 		1-47479-380-0 01 1 1410-
53 BRACKET; HARNESS
(B) THA 		8-98052-458-0 01 1 1410-
53 BRACKET; HARNESS
(A) THA 		8-98127-093-0 01 1 1410-
59 BRACKET; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-21464-170-2 01 1 1410-
59 BRACKET; FRAME HARNESS
(A) THA 		8-97609-264-2 01 1 1410-
59 BRACKET; FRAME HARNESS
(D) THA 		8-97616-305-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(C) THA 		8-98107-611-0 01 1 1410-
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (C) THA 		8-97609-797-1 02 1 1410-
137 BRACKET; HARNESS CLAMP
(A) THA 		8-97614-728-1 01 1 1410-
137 BRACKET; HARNESS CLAMP
(B) THA 		8-97624-013-0 01 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(A) THA 		8-97601-310-0 03 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(B) THA 		8-97614-078-0 01 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(C) THA 		8-98021-291-2 01 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(D) THA 		8-98021-692-1 01 1 1410-
312 BRACKET; CLIP HARNESS
(B) L=55 THA 		1-47475-304-0 01 1 1410-
312 BRACKET; CLIP HARNESS
(A) THA 		8-97609-110-1 01 1 1410-
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> THA 		8-98210-921-1 01 1 1410-
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> THA 		8-98210-922-1 01 1 1410-
335 BRACKET; CONNECTOR
THA 		8-97619-097-1 01 1 1410-
428 BRACKET
THA 		8-98212-082-1 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
