Isuzu WW
▶
TRUCKS
▶
FVM
▶
11649 - FVM THAILAND EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

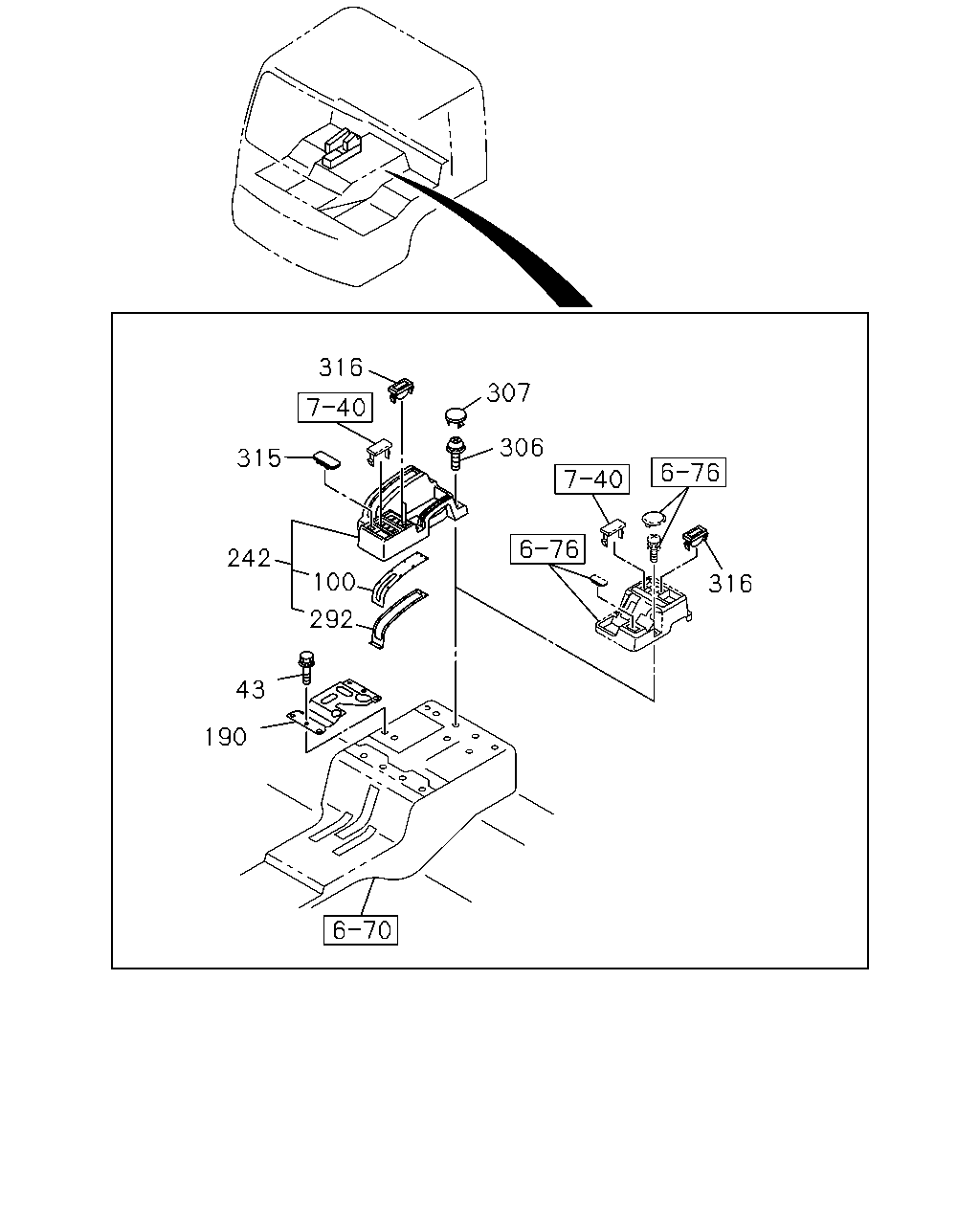

7-45 — CONSOLE BOX
(#150484) — 9 parça
316
307
316
306
315
242
190
43
292
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
SCREW; BRKT,PARCEL BOX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M6X19.5 W/LK&PL WASHER THA
8-94279-201-0
02
1
1410-
100
RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-72538-161-3
01
1
1410-
190
BRACKET; PARCEL BOX,SEAT SIDE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
8-98059-836-0
01
1
1410-
242
TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> GRAY THA
8-97407-950-1
01
1
1410-
292
RETAINER; COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-72538-162-1
01
1
1410-
306
SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
04
1
1410-
307
COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> GRAY THA
8-97407-951-0
04
1
1410-
315
COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> GRAY THA
8-97409-339-0
01
1
1410-
316
BOX; COIN
THA
8-94482-280-2
02
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
