◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#150481) — 103 parça

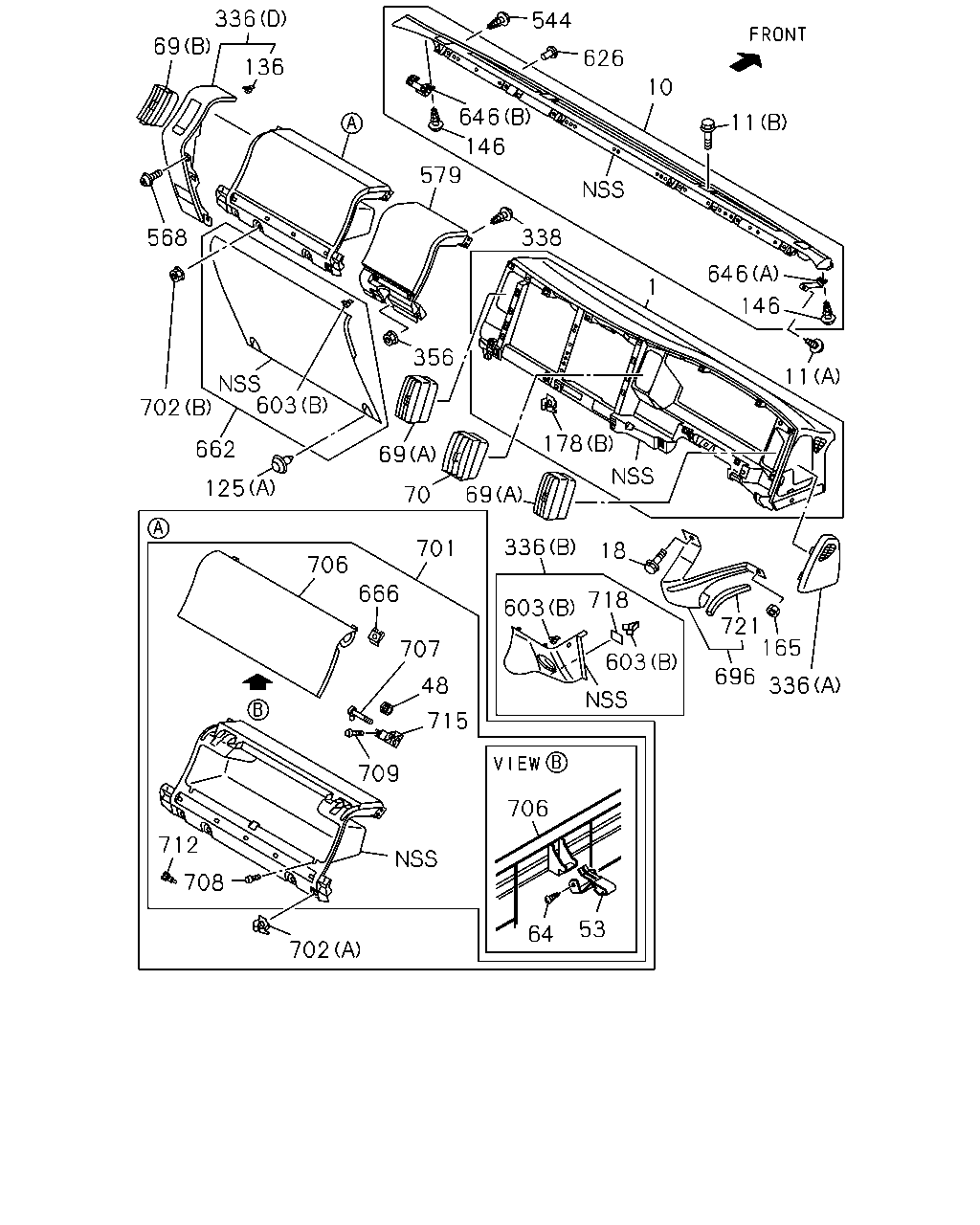

çizim 448603
336 69 136 568 544 626 10 11 646 146 579 338 646 146 11 1 356 178 702 603 662 125 69 70 69 336 18 603 718 603 721 165 336 696 706 64 53 702 708 712 709 715 48 707 666 706 701
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
THA 		8-97926-376-1 01 1 1410-
10 PANEL ASM; GARNISH
GRAY THA 		8-97422-097-0 01 1 1410-
11 BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 08 1 1410-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER THA 		8-98018-440-0 04 1 1410-
18 BOLT; BRKT
M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 01 1 1410-
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1410-
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1410-
53 STRIKER; GLOVE BOX
THA 		8-97926-403-1 01 1 1410-
64 SCREW; STRIKER
M4X85 THA 		8-97926-404-0 01 1 1410-
69 GRILLE; SIDE,AIR OUTLET
(A) THA 		8-98028-561-2 02 1 1410-
69 GRILLE; SIDE,AIR OUTLET
(B) THA 		8-98028-562-2 01 1 1410-
70 GRILLE; CENTER,AIR OUTLET
THA 		8-98028-563-2 01 1 1410-
125 CLIP; INST PANEL
(B) GRAY THA 		8-97408-817-0 04 1 1410-
125 CLIP; INST PANEL
(A) GRAY THA 		8-97419-968-1 02 1 1410-
136 CLIP; INST COVER
THA 		8-97926-885-0 02 1 1410-
146 SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 03 1 1410-
165 NUT; BRKT KNEE PAD
M6 FLANGE THA 		0-91180-106-0 01 1 1410-
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1410-
178 NUT; INST PANEL
(B) THA 		8-97926-385-0 30 1 1410-
336 COVER; INST PANEL SIDE
(A) THA 		8-97926-875-0 01 1 1410-
336 COVER; INST PANEL SIDE
(D) THA 		8-97926-876-0 01 1 1410-
336 COVER; INST PANEL SIDE
(C) THA 		8-97926-879-0 01 1 1410-
336 COVER; INST PANEL SIDE
(B) THA 		8-97926-882-0 01 1 1410-
338 SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 04 1 1410-
356 NUT; COVER
M6 FLANGE THA 		0-91180-106-0 01 1 1410-
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 03 1 1410-
568 BOLT; COVER
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 01 1 1410-
579 COVER; INST PNL
THA 		8-97926-878-0 01 1 1410-
603 CLIP; COVER
(B) THA 		8-97926-387-0 04 1 1410-
603 CLIP; COVER
(B) THA 		8-97926-387-0 05 1 1410-
603 CLIP; COVER
(A) THA 		8-97926-890-0 01 1 1410-
626 RETAINER
OD=15 BLACK THA 		8-94279-804-0 02 1 1410-
646 BRACKET; GARNISH PANEL
(A) THA 		8-98051-490-2 01 1 1410-
646 BRACKET; GARNISH PANEL
(B) THA 		8-98051-492-2 01 1 1410-
662 COVER; LWR,INST PANEL
THA 		8-97926-877-0 01 1 1410-
666 INSERT; INST PANEL
M5 THA 		8-97926-400-0 04 1 1410-
696 BRACKET; KNEE
THA 		8-98066-085-1 01 1 1410-
701 TRAY; INST
THA 		8-97926-381-1 01 1 1410-
702 NUT; TRAY
(A) THA 		8-98037-629-0 01 1 1410-
702 NUT; TRAY
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1410-
706 LID; TRAY INST
THA 		8-97926-402-1 01 1 1410-
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1410-
708 STOPPER; TRAY INST LID
THA 		8-97926-394-0 02 1 1410-
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1410-
712 LOCK; TRAY INST LID
THA 		8-97926-395-0 01 1 1410-
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1410-
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1410-
718 SEAL; COVER
THA 		8-97926-893-0 01 1 1410-
721 FINISHER; BRKT,KNEE
L=140 THA 		8-97892-742-0 01 1 1410-

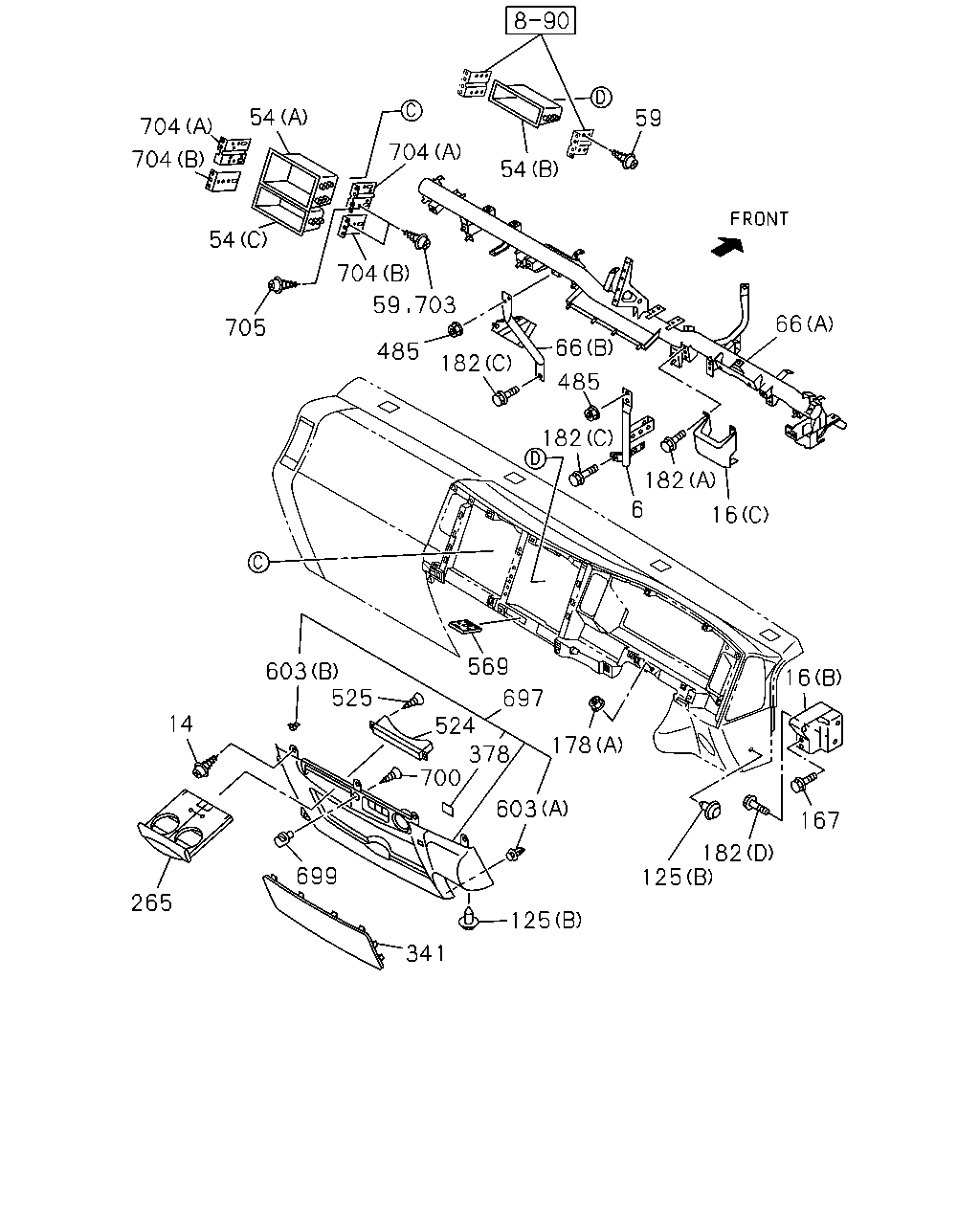

çizim 448703
59 54 704 54 66 704 704 54 704 59 703 705 485 182 66 485 182 182 16 6 569 697 178 16 167 182 125 603 378 524 525 603 700 14 265 699 341 125
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
THA 		8-98196-255-0 01 1 1410-
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 04 1 1410-
16 BRACKET; INST PNL
(A) THA 		8-97585-612-2 01 1 1410-
16 BRACKET; INST PNL
(C) THA 		8-98053-711-0 01 1 1410-
16 BRACKET; INST PNL
(B) THA 		8-97926-511-0 01 1 1410-
16 BRACKET; INST PNL
(B) THA 		8-97926-512-0 01 1 1410-
54 POCKET; CENTER CLUSTER
(B) THA 		8-97926-412-0 01 1 1410-
54 POCKET; CENTER CLUSTER
(C) THA 		8-97926-414-0 01 1 1410-
54 POCKET; CENTER CLUSTER
(A) THA 		8-97926-874-0 01 1 1410-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR THA 		8-98058-632-0 04 1 1410-
66 REINFORCEMENT; INST PANEL
(B) THA 		8-98151-167-0 01 1 1410-
66 REINFORCEMENT; INST PANEL
(A) THA 		8-98240-609-0 01 1 1410-
125 CLIP; INST PANEL
(B) GRAY THA 		8-97408-817-0 04 1 1410-
125 CLIP; INST PANEL
(A) GRAY THA 		8-97419-968-1 02 1 1410-
167 BOLT; REINF TO INST
M8X23 FLANGE THA 		8-97264-766-0 04 1 1410-
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1410-
178 NUT; INST PANEL
(B) THA 		8-97926-385-0 30 1 1410-
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 01 1 1410-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER THA 		8-98018-439-0 01 1 1410-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1410-
182 BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1410-
265 HOLDER; CUP
GRAY THA 		8-97418-528-0 01 1 1410-
341 LID; FUSE BOX
THA 		8-97926-881-0 01 1 1410-
378 SEAL; INST PANEL
THA 		8-97926-891-0 01 1 1410-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1410-
524 STAND ASM; CUP,INST
THA 		8-98054-414-0 01 1 1410-
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 03 1 1410-
569 HOLDER; CARD
THA 		8-97410-276-0 01 1 1410-
603 CLIP; COVER
(B) THA 		8-97926-387-0 04 1 1410-
603 CLIP; COVER
(B) THA 		8-97926-387-0 05 1 1410-
603 CLIP; COVER
(A) THA 		8-97926-890-0 01 1 1410-
697 PANEL; INST CENTER
THA 		8-97926-880-0 01 1 1410-
699 HOOK; INST PANEL
GRAY THA 		8-97408-927-0 01 1 1410-
700 BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 01 1 1410-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR THA 		8-98058-632-0 04 1 1410-
704 BRACKET; CENTER POCKET
(B) THA 		8-97585-616-2 02 1 1410-
704 BRACKET; CENTER POCKET
(A) THA 		8-97585-618-2 02 1 1410-
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR THA 		0-72180-520-0 08 1 1410-

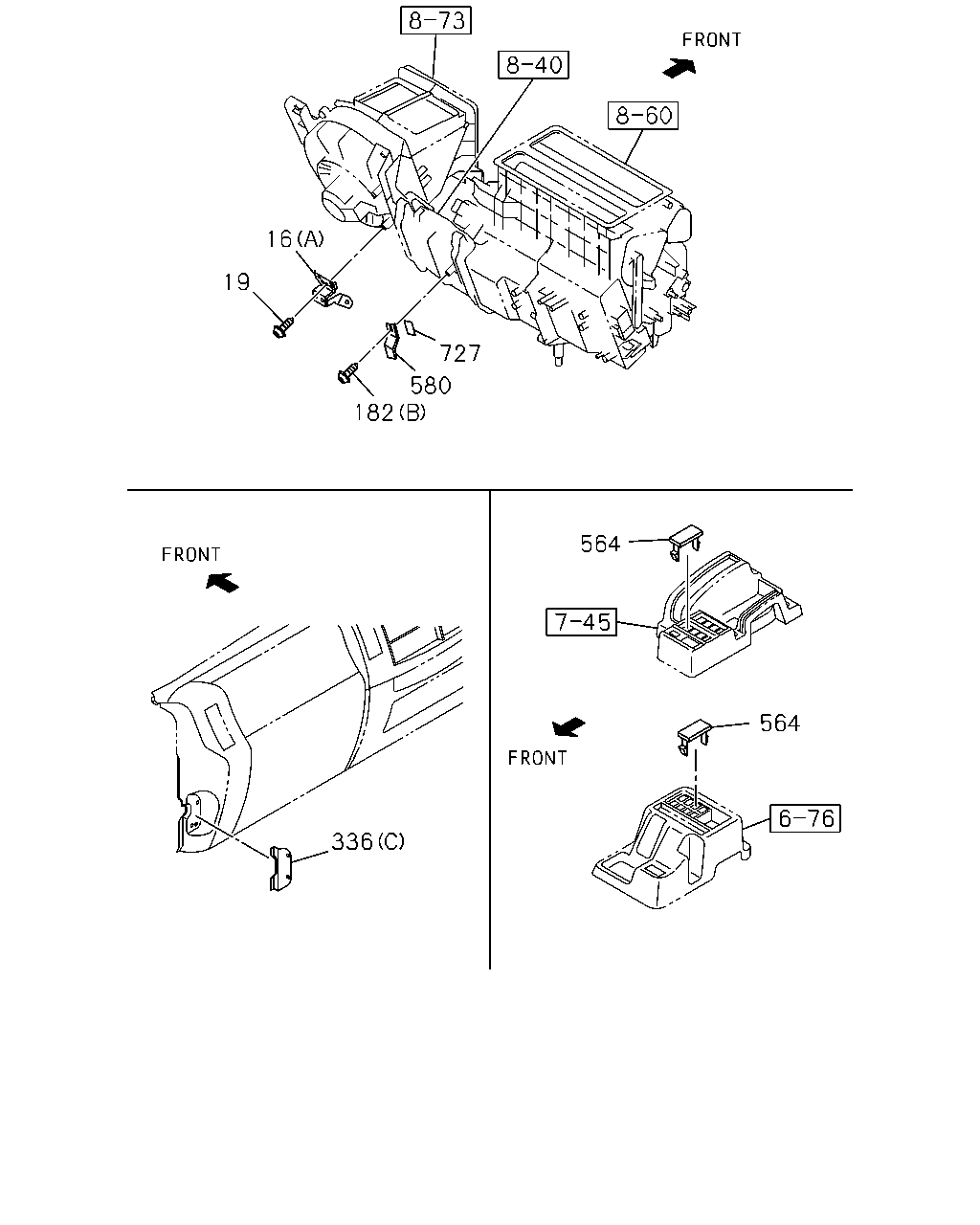

çizim 451256
16 19 727 580 182 564 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) THA 		8-97585-612-2 01 1 1410-
16 BRACKET; INST PNL
(C) THA 		8-98053-711-0 01 1 1410-
16 BRACKET; INST PNL
(B) THA 		8-97926-511-0 01 1 1410-
16 BRACKET; INST PNL
(B) THA 		8-97926-512-0 01 1 1410-
19 SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 01 1 1410-
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 01 1 1410-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER THA 		8-98018-439-0 01 1 1410-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1410-
182 BOLT; BRKT,INST PANEL
(A) M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1410-
336 COVER; INST PANEL SIDE
(A) THA 		8-97926-875-0 01 1 1410-
336 COVER; INST PANEL SIDE
(D) THA 		8-97926-876-0 01 1 1410-
336 COVER; INST PANEL SIDE
(C) THA 		8-97926-879-0 01 1 1410-
336 COVER; INST PANEL SIDE
(B) THA 		8-97926-882-0 01 1 1410-
564 COVER; SW
THA 		8-97043-732-1 06 1 1410-
580 BRACKET; COVER
THA 		8-98017-528-1 01 1 1410-
727 SEAL; BRACKET
THA 		8-98186-934-0 01 1 1410-
