Isuzu WW
▶
TRUCKS
▶
FVM
▶
11649 - FVM THAILAND EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

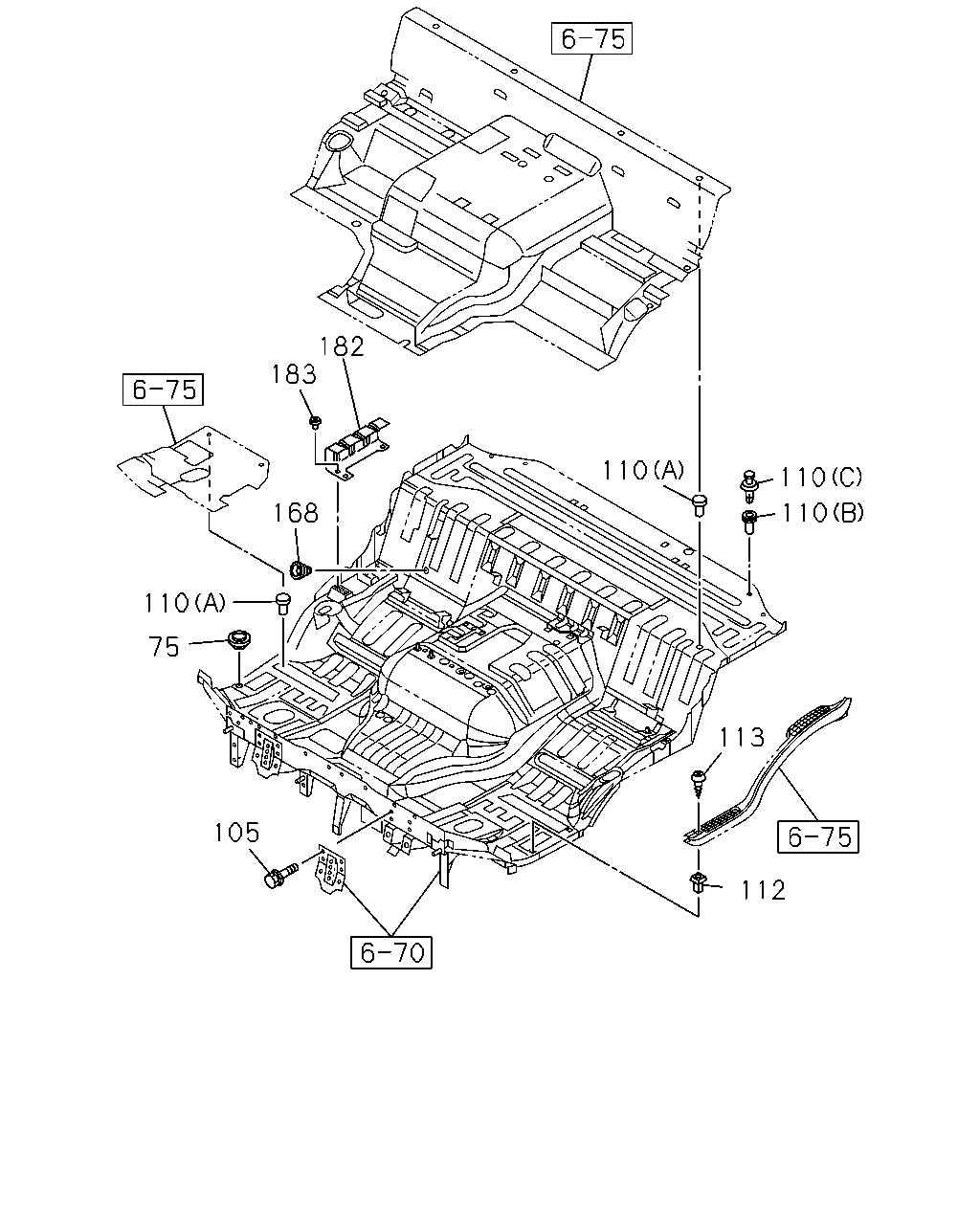

6-78 — FLOOR HOLE PLUG
(#150472) — 11 parça
110
110
110
113
112
105
110
75
168
183
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
75
PLUG; RUBBER,FLOOR
OD=23.5 THA
1-09983-101-0
04
1
1410-
105
BOLT; FLOOR
M10X30 FLANGE THA
0-28661-030-0
16
1
1410-
110
FASTENER; FLOOR MAT
(A) BLACK THA
8-94279-089-0
08
1
1410-
110
FASTENER; FLOOR MAT
(B) THA
8-97319-495-0
04
1
1410-
110
FASTENER; FLOOR MAT
(C) GRAY THA
8-97405-247-0
04
1
1410-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL THA
8-94279-043-0
08
1
1410-
113
SCREW; TRIM COVER
T25 M5X16 TAPPING HEXALOBULAR THA
0-72180-516-0
08
1
1410-
168
COVER; HOLE,ANNTENA CABLE
THA
1-79998-891-1
01
1
1410-
182
REINFORCEMENT; SILL SIDE
THA
8-98056-072-1
01
1
1410-
182
REINFORCEMENT; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4> THA
8-98056-071-1
01
1
1410-
183
SCREW; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4> T40 M8X16.5 HEXALOBULAR THA
8-98066-813-0
06
1
1410-
