◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#150469) — 59 parça

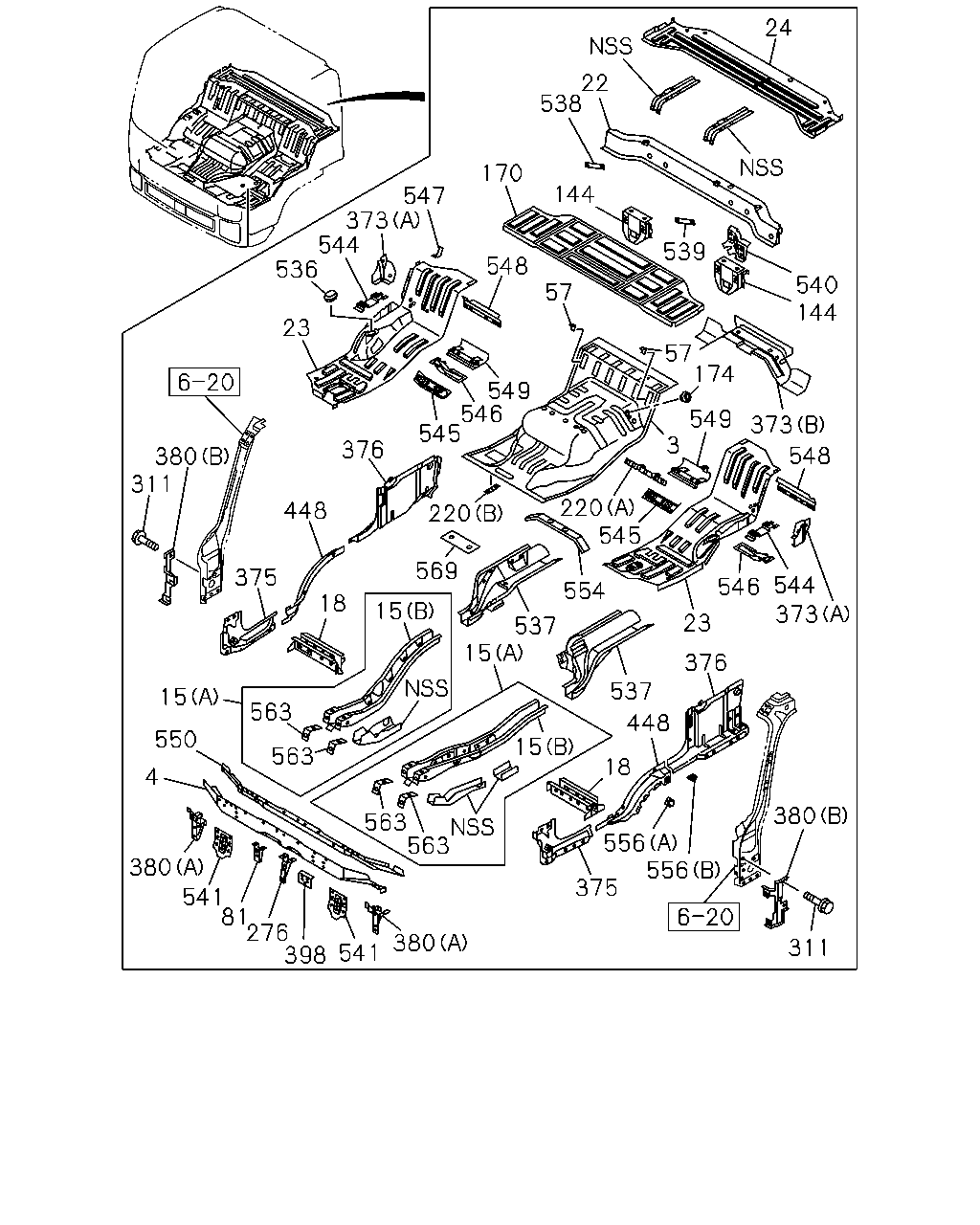

çizim 449345
24 22 538 170 539 540 144 144 547 548 57 549 174 373 548 549 373 57 544 536 546 545 23 220 546 544 373 23 554 220 376 380 311 448 375 18 569 537 376 537 448 380 556 556 375 563 563 380 541 398 276 81 541 380 550 15 563 563 15 15 15 18 311 3 545 4
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1410-
4 FRAME; FLOOR,FRT
THA 		8-98073-693-1 01 1 1410-
15 FRAME; UNDER
(A) THA 		8-97584-387-9 01 1 1410-
15 FRAME; UNDER
(B) THA 		8-97584-388-9 01 1 1410-
15 FRAME; UNDER
(A) THA 		8-97584-411-9 01 1 1410-
15 FRAME; UNDER
(B) THA 		8-97584-412-7 01 1 1410-
18 FRAME; FLOOR,CENTER SIDE
THA 		8-97584-398-4 01 1 1410-
18 FRAME; FLOOR,CENTER SIDE
THA 		8-97584-421-4 01 1 1410-
22 FRAME; FLOOR REAR
THA 		8-97584-431-5 01 1 1410-
23 PANEL; FLOOR,SIDE
THA 		8-98073-691-1 01 1 1410-
23 PANEL; FLOOR,SIDE
THA 		8-97584-372-7 01 1 1410-
24 PANEL; BED PAN
THA 		8-97584-378-6 01 1 1410-
57 BRACKET; SPARE TIRE
THA 		8-98038-970-1 02 1 1410-
81 BRACKET; HARNESS SUPPORT
THA 		8-98041-333-3 01 1 1410-
144 BRACKET; MTG,RR
THA 		8-97584-432-6 01 1 1410-
144 BRACKET; MTG,RR
THA 		8-97589-666-6 01 1 1410-
170 EXTENSION; RR FLOOR
THA 		8-97589-207-4 01 1 1410-
174 GROMMET; AIR PIPE
OD=35 THA 		8-94122-971-0 01 1 1410-
220 PATCH
(A) THA 		8-97588-840-4 01 1 1410-
220 PATCH
(B) THA 		8-97589-603-3 01 1 1410-
276 BRACKET; RAD GRILLE
THA 		8-97589-596-3 01 1 1410-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1410-
373 REINFORCEMENT; SEAT BELT
(A) THA 		8-97584-367-2 01 1 1410-
373 REINFORCEMENT; SEAT BELT
(A) THA 		8-97584-375-2 01 1 1410-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1410-
375 CLOSING; PILLAR
THA 		8-98044-897-3 01 1 1410-
375 CLOSING; PILLAR
THA 		8-98044-898-3 01 1 1410-
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1410-
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1410-
380 BRACKET; HEAD LAMP
(B) THA 		8-98032-614-1 01 1 1410-
380 BRACKET; HEAD LAMP
(B) THA 		8-98032-615-1 01 1 1410-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1410-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1410-
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1410-
448 CLOSING; ROCKER
THA 		8-97589-551-2 01 1 1410-
448 CLOSING; ROCKER
THA 		8-97589-552-2 01 1 1410-
536 PLUG; CABLE,PTO
THA 		8-97612-074-1 01 1 1410-
537 SUPPORT ASM; MTG RR
THA 		8-97584-391-4 01 1 1410-
537 SUPPORT ASM; MTG RR
THA 		8-97584-417-4 01 1 1410-
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 1410-
539 PATCH ASM; SAFTY HOOK
THA 		8-97584-440-2 01 1 1410-
540 BRACKET ASM; CAB LOCK LEVER
THA 		8-97584-438-1 01 1 1410-
541 REINFORCEMENT; MTG,FRT
THA 		8-98067-903-0 02 1 1410-
544 BRACKET; DUMP CONT
THA 		8-97584-363-1 01 1 1410-
544 BRACKET; DUMP CONT
THA 		8-98049-529-0 01 1 1410-
545 BRACKET; SEAT FRT
THA 		8-97584-361-1 01 1 1410-
545 BRACKET; SEAT FRT
THA 		8-97584-373-1 01 1 1410-
546 REINFORCEMENT; FLOOR SIDE
THA 		8-97584-427-0 02 1 1410-
547 BRACKET; JACK HANDLE
THA 		8-97588-843-1 01 1 1410-
548 BRACKET; MUD GUARD
THA 		8-97588-961-1 01 1 1410-
548 BRACKET; MUD GUARD
THA 		8-97588-962-1 01 1 1410-
549 BRACKET; SEAT RR
THA 		8-97588-958-4 01 1 1410-
549 BRACKET; SEAT RR
THA 		8-97589-557-4 01 1 1410-
550 CLOSING ASM; MTG,FRT
THA 		8-97584-615-4 01 1 1410-
554 REINFORCEMENT; FLOOR CENTER
THA 		8-97584-351-2 01 1 1410-
556 BRACKET; TILT HANDLE
(A) THA 		8-98077-605-1 01 1 1410-
556 BRACKET; TILT HANDLE
(B) THA 		8-98077-606-1 01 1 1410-
563 REINFORCEMENT; MTG FRT,RR
THA 		8-97589-579-2 04 1 1410-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
