Isuzu WW
▶
TRUCKS
▶
FVM
▶
11649 - FVM THAILAND EURO3
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶

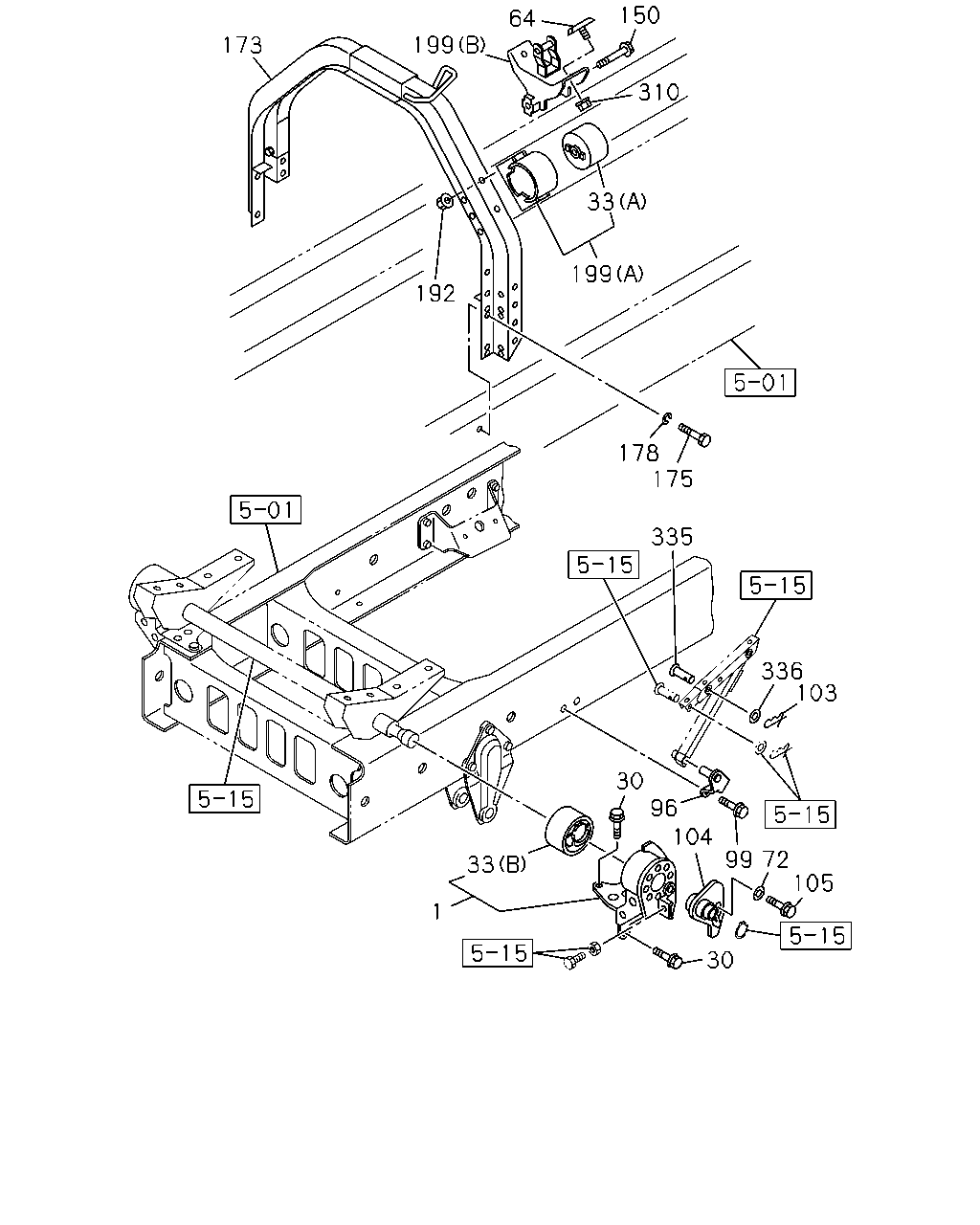

5-10 — CAB MOUNTING; FRAME SIDE
(#150452) — 22 parça
173
199
64
150
310
33
192
199
178
175
335
33
1
30
96
104
99
30
72
105
336
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
THA
8-98017-658-1
01
1
1410-
1
BRACKET; CAB MTG
THA
8-98017-659-1
01
1
1410-
30
BOLT; CAB FRT FOOT
M14X45 FLANGE THA
0-28861-445-0
10
1
1410-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(A) THA
8-98010-759-2
02
1
1410-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B) THA
8-98065-943-0
02
1
1410-
64
RUBBER; CUSHION
THA
8-97113-340-0
04
1
1410-
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36 THA
0-91614-714-0
01
1
1410-
96
BRACKET; CAB STAY
THA
1-62500-628-0
01
1
1410-
99
BOLT; BRKT
M10X30 FLANGE THA
0-28661-030-0
02
1
1410-
103
PIN; SPLIT,CAB STAY
L=32.6 THA
8-98062-280-0
01
1
1410-
104
BRACKET; CAB FRAME,CAB FRT MTG
THA
8-98010-753-3
01
1
1410-
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE THA
0-28661-435-0
01
1
1410-
150
BOLT; CAB MTG RR
M14X100 THA
0-10956-400-0
02
1
1410-
173
MEMBER; CAB MTG RR
THA
8-97948-157-0
01
1
1410-
175
BOLT; MEMBER TO FRAME
M12X35 THA
0-20951-235-0
08
1
1410-
178
WASHER; LK,MEMBER
ID=12.2 THA
0-91510-612-0
08
1
1410-
192
NUT; BRKT FIX
M12 FLANGE THA
0-91180-212-0
04
1
1410-
199
BRACKET; CAB RR MTG
(B) THA
8-98023-692-0
02
1
1410-
199
BRACKET; CAB RR MTG
(A) THA
8-98060-901-1
02
1
1410-
310
NUT; CUSHION
M8 FLANGE THA
0-91180-108-0
04
1
1410-
335
PIN; ADJ,STAY LOCK
OD=10 L=48 THA
1-09744-107-0
01
1
1410-
336
WASHER; PL,STAY LOCK
ID=10.5 T=2.0 THA
1-09985-183-0
01
1
1410-
