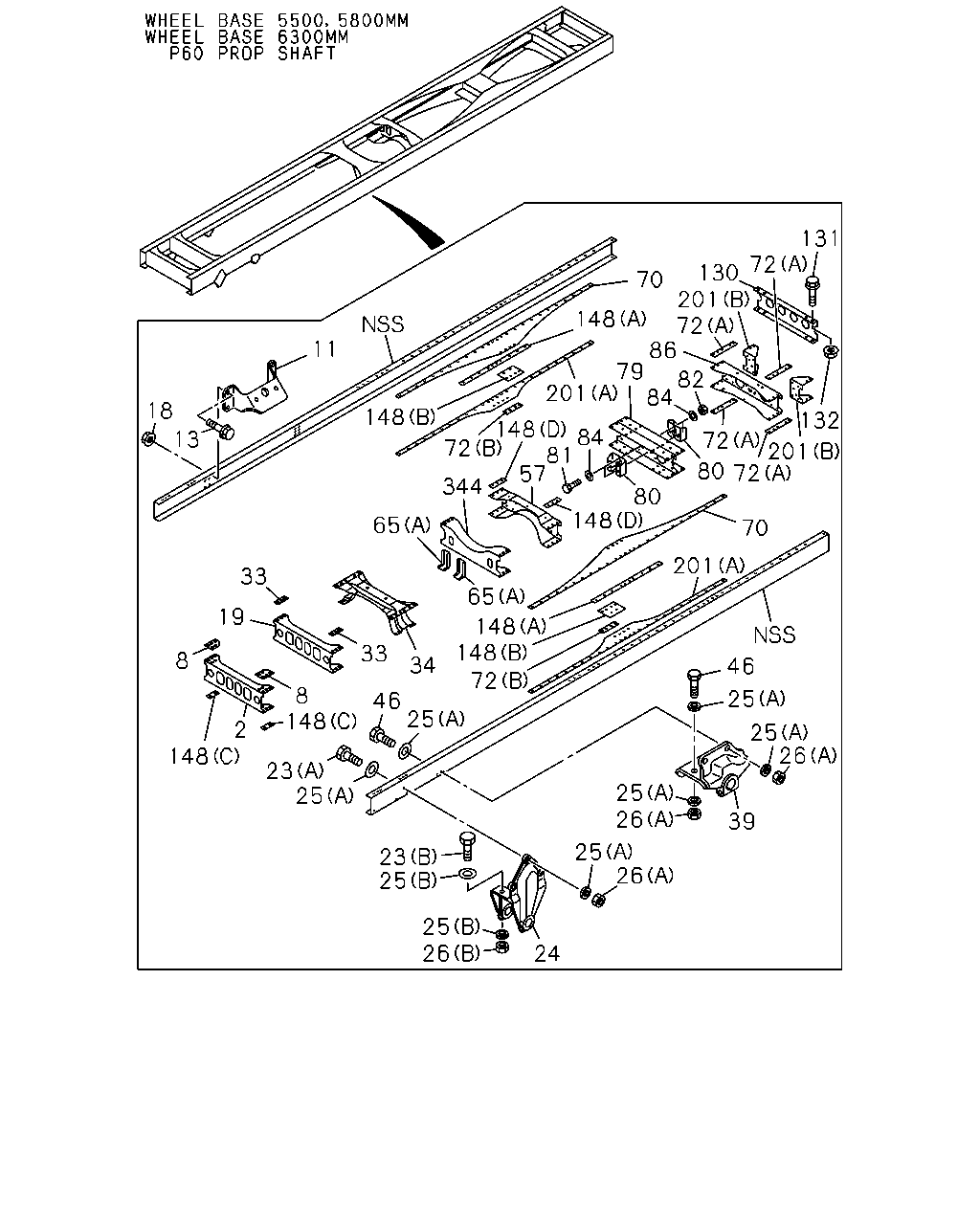

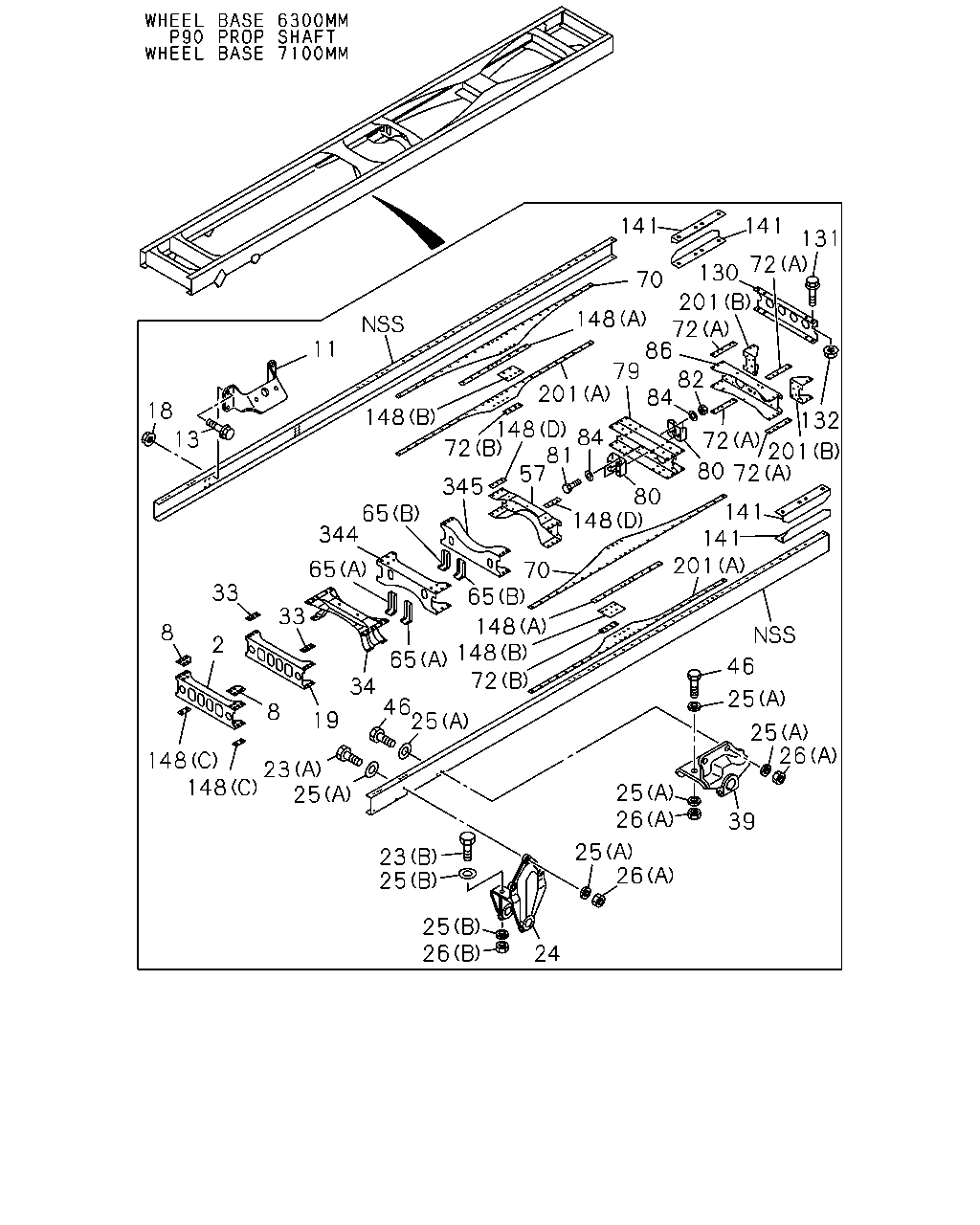

5-01 — FRAME AND OTHER PARTS (#150451) — 111 parça

18 11 13 33 8 2 148 8 148 25 23 33 19 65 25 46 34 23 25 25 26 24 26 25 25 39 26 25 25 26 46 72 65 148 65 148 70 80 80 141 201 72 201 132 72 84 79 86 148 201 148 72 148 65 344 345 57 81 84 82 72 201 130 131 72 70 148 141 141 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST THA	8-97948-166-0	01	1	1410-	●	●	●	●
8	GUSSET; 1ST C/MBR THA	8-97948-167-0	02	1	1410-	●	●	●	●
11	BRACKET; ENG MTG THA	8-97619-550-0	02	1	1410-	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE THA	0-28661-240-0	08	1	1410-	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE THA	0-91180-212-0	08	1	1410-	●	●	●	●
19	MEMBER; CROSS,2ND THA	8-97948-169-0	01	1	1410-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50 THA	0-20951-450-0	06	1	1410-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60 THA	0-20951-660-0	04	1	1410-	●	●	●	●
24	BRACKET; FRT SPR,FRT THA	8-97948-158-0	01	1	1410-	●	●	●	●
24	BRACKET; FRT SPR,FRT THA	8-97948-160-0	01	1	1410-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2 THA	1-09503-316-0	08	1	1410-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	28	1	1410-	●	●	●	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	14	1	1410-	●	●	●	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1410-	●	●	●	●
33	SPACER; 2ND C/MBR,UPR THA	8-97948-140-0	02	1	1410-	●	●	●	●
34	MEMBER; CROSS,3RD THA	8-97948-172-0	01	1	1410-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-625-0	01	1	1410-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-626-0	01	1	1410-	●	●	●	●
46	BOLT; BRKT FIX M14X50 THA	0-20951-450-0	08	1	1410-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT THA	8-97612-103-1	01	1	1410-	●	●	●	●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A) THA	8-97622-644-0	02	1	1410-	●
65	BRACKET; CENTER BRG (A) THA	8-97614-139-0	02	1	1410-		●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A) THA	8-97614-150-0	02	1	1410-			●
65	BRACKET; CENTER BRG (B) THA	8-97614-132-0	02	1	1410-				●
65	BRACKET; CENTER BRG (A) THA	8-97614-133-0	02	1	1410-				●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A) THA	8-97622-646-0	02	1	1410-	●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A) THA	8-97612-486-0	02	1	1410-			●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (B) THA	8-97614-125-0	02	1	1410-			●
70	GUSSET; TRUNNION,UPR THA	8-97612-106-0	02	1	1410-	●	●	●	●
72	SPACER; TRUNNION (A) THA	8-97948-182-0	04	1	1410-	●	●	●	●
72	SPACER; TRUNNION (B) THA	8-97922-399-0	02	1	1410-	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97612-104-0	01	1	1410-	●	●	●	●
80	BRACKET; C/MBR THA	8-97948-138-0	02	1	1410-	●	●	●	●
81	BOLT; BRKT M14X50 THA	0-10956-450-0	02	1	1410-	●	●	●	●
82	NUT; BRKT M14 THA	0-91110-514-0	02	1	1410-	●	●	●	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	04	1	1410-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR THA	8-97924-655-0	01	1	1410-	●	●	●	●
130	MEMBER; CROSS,END THA	8-97916-031-0	01	1	1410-	●	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER THA	0-50541-230-0	04	1	1410-	●	●	●	●
132	NUT; END C/MBR M12 THA	0-91110-512-0	04	1	1410-	●	●	●	●
141	STIFFENER THA	8-97926-003-1	04	1	1410-				●
148	SPACER; C/MBR (B) THA	8-97612-113-0	02	1	1410-	●	●	●	●
148	SPACER; C/MBR (D) THA	8-97612-109-0	02	1	1410-	●	●	●	●
148	SPACER; C/MBR (C) THA	8-97948-168-0	02	1	1410-	●	●	●	●
148	SPACER; C/MBR (A) THA	8-97948-889-0	02	1	1410-	●	●	●	●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	8-97640-348-1	01	1	1410-	●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	8-97640-712-1	01	1	1410-	●
201	GUSSET; C/MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> P60 PROP SHAFT<C2M> (A) THA	8-97622-841-2	02	1	1410-	●
201	GUSSET; C/MBR (A) THA	8-97618-438-2	02	1	1410-		●
201	GUSSET; C/MBR (A) THA	8-97635-951-1	02	1	1410-				●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A) THA	8-97618-439-2	02	1	1410-	●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A) THA	8-97612-107-3	02	1	1410-			●
201	GUSSET; C/MBR (B) THA	8-97612-108-2	02	1	1410-	●	●	●	●
201	GUSSET; C/MBR P60 PROP SHAFT<C2M> (A) THA	8-97926-855-1	02	1	1410-			●
344	MEMBER; CROSS,4TH THA	8-97948-180-0	01	1	1410-	●	●	●	●
345	MEMBER; CROSS,5TH P90 PROP SHAFT<C5T> THA	8-97948-180-0	01	1	1410-			●
345	MEMBER; CROSS,5TH THA	8-97948-180-0	01	1	1410-				●

18 13 11 148 33 19 8 148 8 2 23 33 148 25 46 25 34 65 72 148 70 130 131 72 72 201 148 201 80 148 201 70 201 132 82 84 80 72 86 79 84 81 57 344 65 148 148 72 23 25 25 26 25 26 24 25 26 39 26 25 25 72 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST THA	8-97948-166-0	01	1	1410-	●	●	●	●
8	GUSSET; 1ST C/MBR THA	8-97948-167-0	02	1	1410-	●	●	●	●
11	BRACKET; ENG MTG THA	8-97619-550-0	02	1	1410-	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X40 FLANGE THA	0-28661-240-0	08	1	1410-	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE THA	0-91180-212-0	08	1	1410-	●	●	●	●
19	MEMBER; CROSS,2ND THA	8-97948-169-0	01	1	1410-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50 THA	0-20951-450-0	06	1	1410-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60 THA	0-20951-660-0	04	1	1410-	●	●	●	●
24	BRACKET; FRT SPR,FRT THA	8-97948-158-0	01	1	1410-	●	●	●	●
24	BRACKET; FRT SPR,FRT THA	8-97948-160-0	01	1	1410-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2 THA	1-09503-316-0	08	1	1410-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	28	1	1410-	●	●	●	●
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	14	1	1410-	●	●	●	●
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	04	1	1410-	●	●	●	●
33	SPACER; 2ND C/MBR,UPR THA	8-97948-140-0	02	1	1410-	●	●	●	●
34	MEMBER; CROSS,3RD THA	8-97948-172-0	01	1	1410-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-625-0	01	1	1410-	●	●	●	●
39	BRACKET; FRT SPR,RR THA	8-97924-626-0	01	1	1410-	●	●	●	●
46	BOLT; BRKT FIX M14X50 THA	0-20951-450-0	08	1	1410-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT THA	8-97612-103-1	01	1	1410-	●	●	●	●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A) THA	8-97622-644-0	02	1	1410-	●
65	BRACKET; CENTER BRG (A) THA	8-97614-139-0	02	1	1410-		●
65	BRACKET; CENTER BRG P60 PROP SHAFT<C2M> (A) THA	8-97614-150-0	02	1	1410-			●
65	BRACKET; CENTER BRG (B) THA	8-97614-132-0	02	1	1410-				●
65	BRACKET; CENTER BRG (A) THA	8-97614-133-0	02	1	1410-				●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A) THA	8-97622-646-0	02	1	1410-	●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (A) THA	8-97612-486-0	02	1	1410-			●
65	BRACKET; CENTER BRG P90 PROP SHAFT<C5T> (B) THA	8-97614-125-0	02	1	1410-			●
70	GUSSET; TRUNNION,UPR THA	8-97612-106-0	02	1	1410-	●	●	●	●
72	SPACER; TRUNNION (A) THA	8-97948-182-0	04	1	1410-	●	●	●	●
72	SPACER; TRUNNION (B) THA	8-97922-399-0	02	1	1410-	●	●	●	●
79	MEMBER; CROSS,TRUNNION ASM THA	8-97612-104-0	01	1	1410-	●	●	●	●
80	BRACKET; C/MBR THA	8-97948-138-0	02	1	1410-	●	●	●	●
81	BOLT; BRKT M14X50 THA	0-10956-450-0	02	1	1410-	●	●	●	●
82	NUT; BRKT M14 THA	0-91110-514-0	02	1	1410-	●	●	●	●
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	04	1	1410-	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR THA	8-97924-655-0	01	1	1410-	●	●	●	●
130	MEMBER; CROSS,END THA	8-97916-031-0	01	1	1410-	●	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER THA	0-50541-230-0	04	1	1410-	●	●	●	●
132	NUT; END C/MBR M12 THA	0-91110-512-0	04	1	1410-	●	●	●	●
148	SPACER; C/MBR (B) THA	8-97612-113-0	02	1	1410-	●	●	●	●
148	SPACER; C/MBR (D) THA	8-97612-109-0	02	1	1410-	●	●	●	●
148	SPACER; C/MBR (C) THA	8-97948-168-0	02	1	1410-	●	●	●	●
148	SPACER; C/MBR (A) THA	8-97948-889-0	02	1	1410-	●	●	●	●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	8-97640-348-1	01	1	1410-	●
201	GUSSET; C/MBR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	8-97640-712-1	01	1	1410-	●
201	GUSSET; C/MBR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> P60 PROP SHAFT<C2M> (A) THA	8-97622-841-2	02	1	1410-	●
201	GUSSET; C/MBR (A) THA	8-97618-438-2	02	1	1410-		●
201	GUSSET; C/MBR (A) THA	8-97635-951-1	02	1	1410-				●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A) THA	8-97618-439-2	02	1	1410-	●
201	GUSSET; C/MBR P90 PROP SHAFT<C5T> (A) THA	8-97612-107-3	02	1	1410-			●
201	GUSSET; C/MBR (B) THA	8-97612-108-2	02	1	1410-	●	●	●	●
201	GUSSET; C/MBR P60 PROP SHAFT<C2M> (A) THA	8-97926-855-1	02	1	1410-			●
344	MEMBER; CROSS,4TH THA	8-97948-180-0	01	1	1410-	●	●	●	●
