◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#150447) — 15 parça

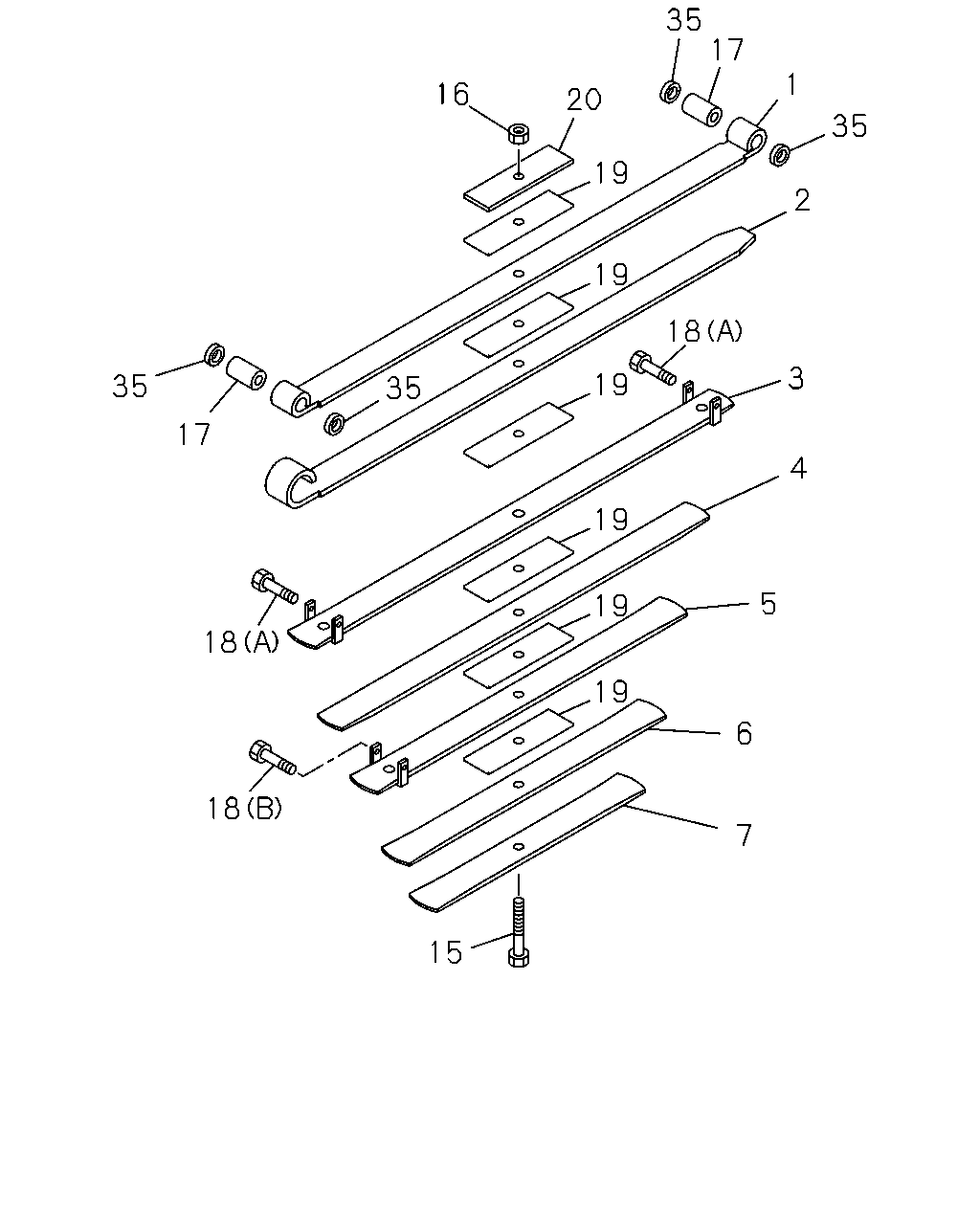

çizim 451568
35 17 35 18 18 15 7 6 5 4 3 18 19 19 19 19 19 19 20 16 35 17 1 35 2
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: A = 8-98167-308-0 		8-98167-548-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: A = 8-98167-308-0 		8-98167-549-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: A = 8-98167-308-0 		8-98167-550-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: A = 8-98167-308-0 		8-98167-551-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: A = 8-98167-308-0 		8-98167-552-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: A = 8-98167-308-0 		8-98167-553-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
THA ASM PART: A = 8-98167-308-0 		8-98167-554-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=150, THA ASM PART: A = 8-98167-308-0 		1-51156-328-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16, THA ASM PART: A = 8-98167-308-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42, THA ASM PART: A = 8-98167-308-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: A = 8-98167-308-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98167-308-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1, THA ASM PART: A = 8-98167-308-0 		1-51177-071-0 06 1 -
20 SEAT; LEAF SPR,FRT
T=14, THA ASM PART: A = 8-98167-308-0 		1-51177-097-0 01 1 -
35 SEAL; DUST
THA ASM PART: A = 8-98167-308-0 		1-51177-321-0 04 1 -
