◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#150446) — 30 parça

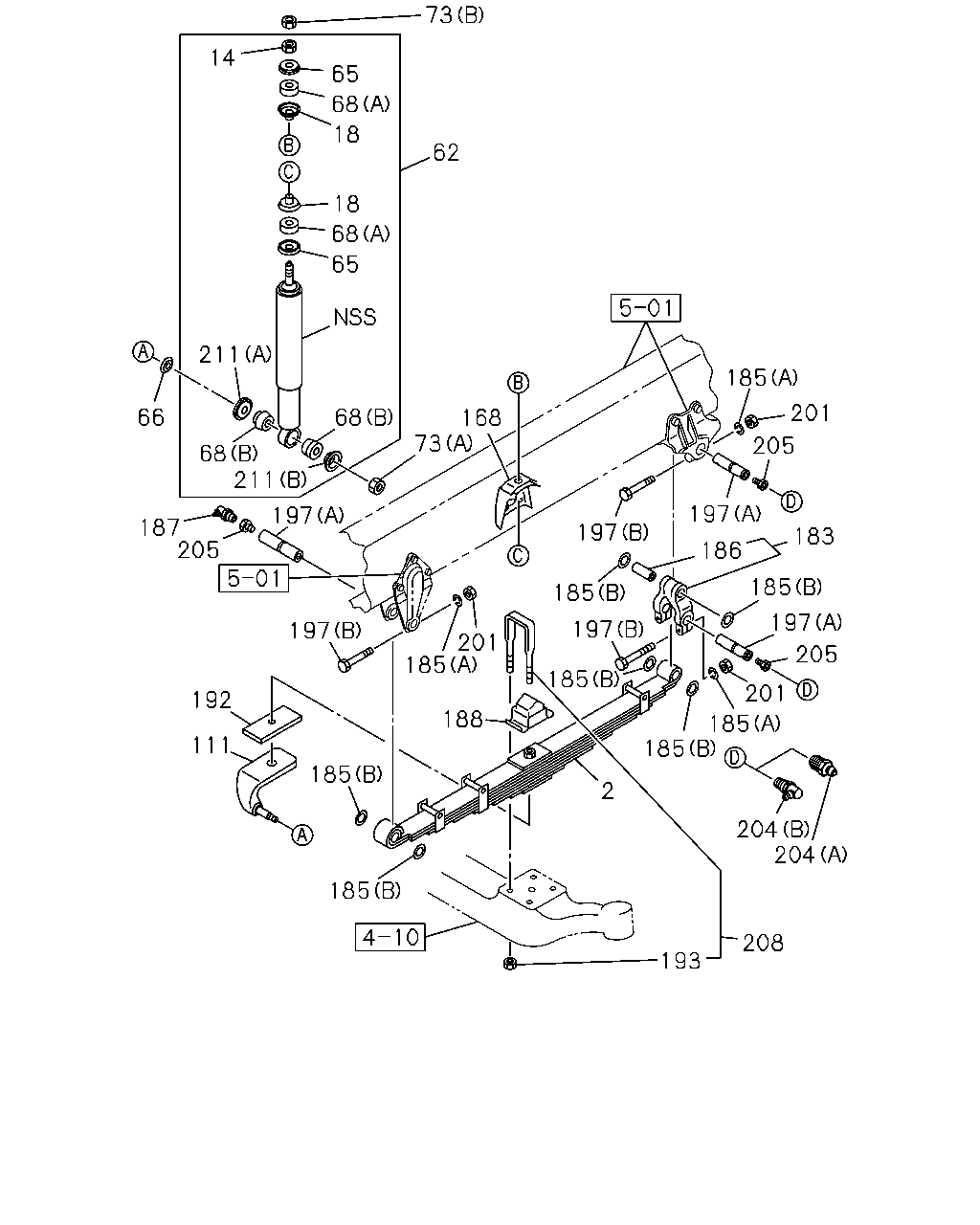

çizim 448784
185 193 204 208 204 185 201 185 205 197 185 183 186 197 205 201 185 197 185 197 185 188 185 2 201 185 111 192 197 168 73 197 205 187 211 68 66 68 211 65 68 18 62 18 68 65 73 14
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-98167-308-0 02 1 1410-
14 NUT; S/ABS,UPR
M14 THA 		9-99111-414-0 02 1 1410-
18 WASHER; CENTERING,S/ABS
ID=20.8 THA 		9-51631-041-0 04 1 1410-
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-224-0 02 1 1410-
65 WASHER; S/ABS
ID=16.5 THA 		9-51631-040-0 04 1 1410-
66 WASHER; LK,S/ABS SETTING
ID=21 THA 		0-91610-520-0 02 1 1410-
68 BUSHING; S/ABS
(B) THA 		9-51631-026-0 04 1 1410-
68 BUSHING; S/ABS
(A) THA 		9-51631-039-0 04 1 1410-
73 NUT; BRKT,SHOCK
(A) M20 THA 		0-91110-520-0 02 1 1410-
73 NUT; BRKT,SHOCK
(B) M14 THA 		0-91111-514-0 02 1 1410-
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-497-0 01 1 1410-
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-498-0 01 1 1410-
168 BRACKET; S/ABS,FRT SUSP
THA 		1-51681-616-0 02 1 1410-
183 SHACKLE; FRT SUSP
THA 		1-51162-029-5 02 1 1410-
185 WASHER; LK,PIN
(A) ID=12.2 THA 		0-91510-612-0 12 1 1410-
185 WASHER; LK,PIN
(B) ID=32.4 THA 		1-51169-018-0 12 1 1410-
186 BUSHING; SHACKLE
OD=38 THA 		8-98081-829-0 02 1 1410-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW THA 		0-90301-610-0 02 1 1410-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97948-188-0 02 1 1410-
192 PIECE; DIST
80X144 ID=17.5 THA 		1-51177-284-1 AR 1 1410-
193 NUT; U BOLT
M22 THA 		8-98179-318-0 08 1 1410-
197 PIN; FRT SPR,FRT
(B) M12X80 THA 		0-10856-280-0 12 1 1410-
197 PIN; FRT SPR,FRT
(A) THA 		8-97948-141-0 06 1 1410-
201 NUT; PIN LK
M12 THA 		0-91110-512-0 12 1 1410-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 02 1 1410-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410-
205 ATTACHMENT; GREASE NIPPLE
THA 		9-43165-001-0 06 1 1410-
208 U-BOLT SET; FRT SPRING
L=230 THA 		1-87870-493-0 04 1 1410-
211 WASHER; BRKT,SHOCK
(A) ID=27 THA 		9-51631-027-0 02 1 1410-
211 WASHER; BRKT,SHOCK
(B) ID=21 THA 		9-51631-028-0 02 1 1410-
