◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#150445) — 9 parça

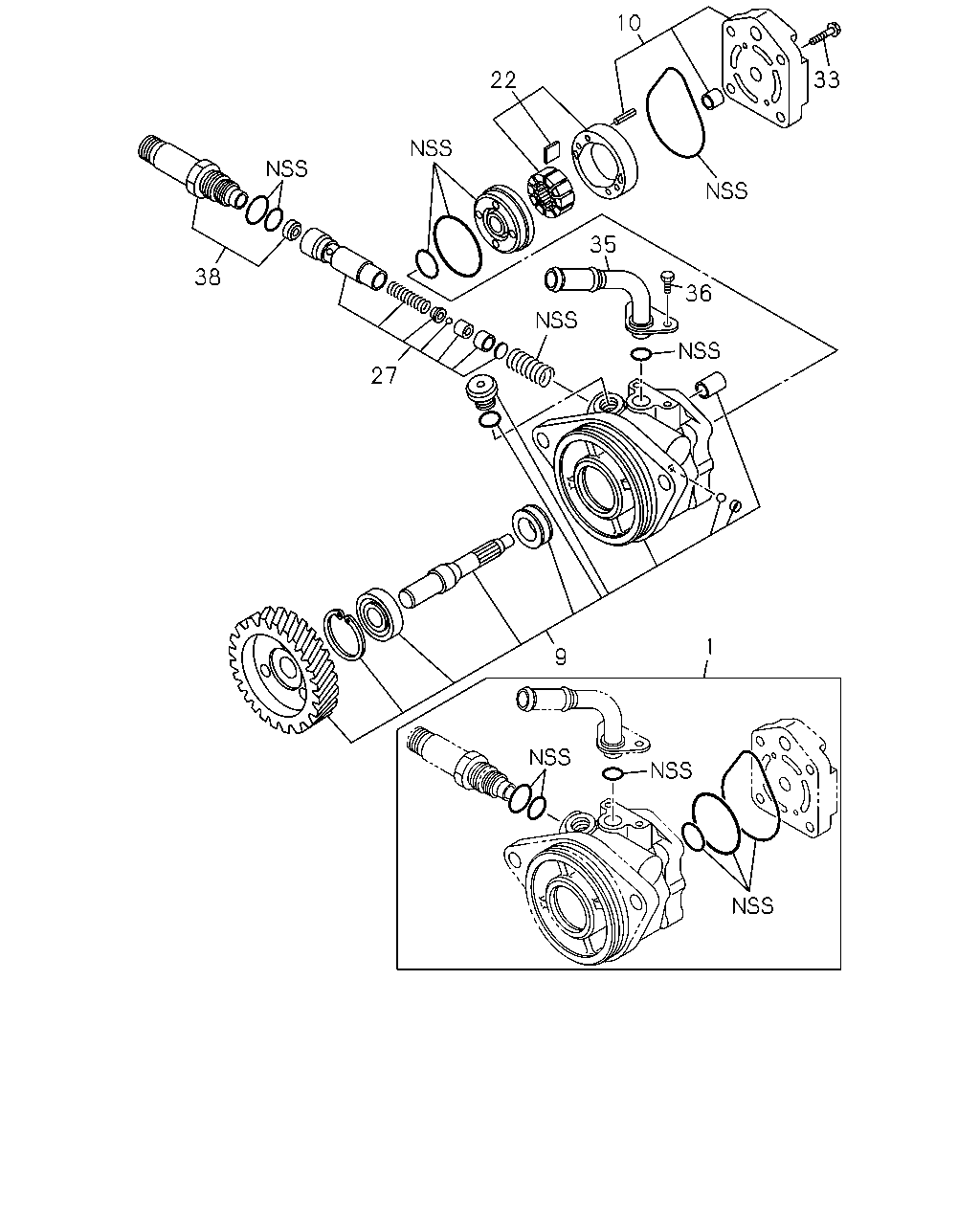

çizim 448286
10 33 35 36 27 38 22 9 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
THA ASM PART: A = 1-19500-629-1 		8-98077-484-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
THA ASM PART: A = 1-19500-629-1 		8-98077-485-0 01 1 -
10 BODY ASM; RR,OIL PUMP
THA ASM PART: A = 1-19500-629-1 		8-98077-477-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
THA ASM PART: A = 1-19500-629-1 		8-98077-476-0 01 1 -
27 VALVE ASM; OIL PUMP
THA ASM PART: A = 1-19500-629-1 		8-98077-479-0 01 1 -
33 BOLT; COVER
THA ASM PART: A = 1-19500-629-1 		8-98077-478-0 04 1 -
35 PIPE; HOSE CONN,OIL PUMP
THA ASM PART: A = 1-19500-629-1 		8-98077-482-0 01 1 -
36 BOLT; CONN,PIPE
THA ASM PART: A = 1-19500-629-1 		8-97184-763-0 02 1 -
38 CONNECTOR; OIL PUMP
THA ASM PART: A = 1-19500-629-1 		8-98077-481-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
