4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#150442) — 72 parça

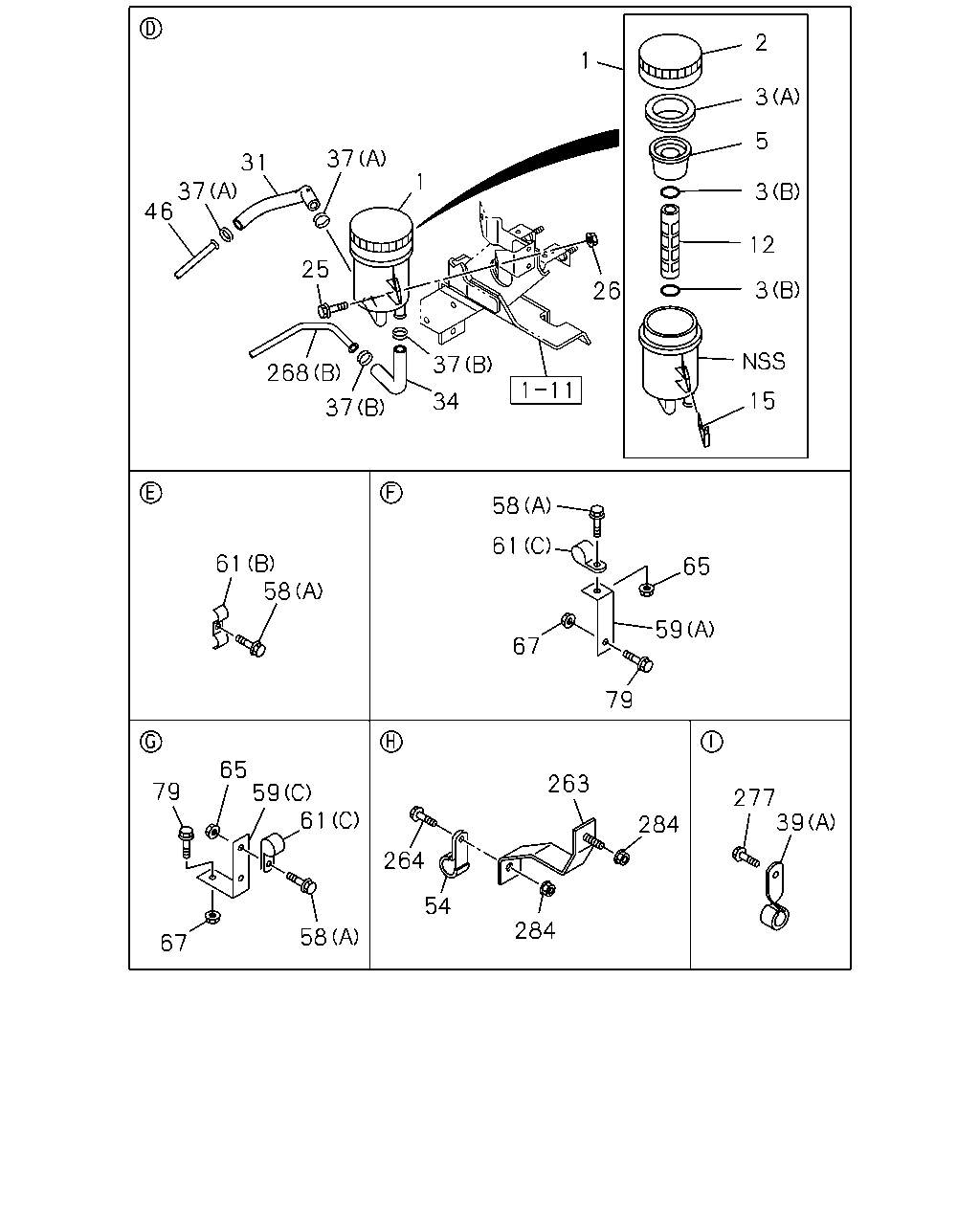

31 37 46 37 1 2 3 5 3 12 3 15 37 26 25 268 34 37 61 58 58 61 67 65 59 79 277 39 264 263 284 79 59 61 58 67 54 284 65 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S THA	8-97948-302-2	01	1	1410-
2	CAP; OIL TANK,P/S THA	8-97948-291-0	01	1	1410-
3	GASKET; OIL TANK,P/S (A) THA	8-97948-295-0	01	1	1410-
3	GASKET; OIL TANK,P/S (B) THA	8-97948-979-0	02	1	1410-
5	STRAINER; OIL TANK,P/S THA	8-98246-550-0	01	1	1410-
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-300-0	01	1	1410-
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	02	1	1410-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-
31	HOSE; P/S OIL TANK,INL THA	8-98092-730-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET THA	8-98021-827-0	01	1	1410-
37	CLIP; HOSE,P/S (A) ID=26 THA	1-09704-082-0	02	1	1410-
37	CLIP; HOSE,P/S (B) ID=32 THA	1-09704-085-0	02	1	1410-
39	CLIP; FLEX HOSE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=19 L=58 THA	1-09700-733-1	01	1	1410-
39	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=19 L=58 THA	1-09700-733-1	01	1	1410-
39	CLIP; FLEX HOSE (B) ID=40 THA	8-94226-553-0	01	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2771 THA	8-98123-973-0	01	1	1410-
54	CLIP; OIL PIPE ID=19 L=20 THA	0-95235-836-0	01	1	1410-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE (C) THA	1-21464-481-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE (B) THA	1-47475-427-1	01	1	1410-
59	BRACKET; CLIP,OIL PIPE (A) L=95 THA	1-82699-085-0	01	1	1410-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1410-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5 THA	1-09700-668-0	01	1	1410-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20 THA	1-09700-806-1	02	1	1410-
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1410-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-
67	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	02	1	1410-
79	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
263	BRACKET; P/S PIPE THA	8-98081-189-0	01	1	1410-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B) THA	8-98092-722-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1410-
277	BOLT; HOSE CLIP ANTI LOCK BRAKE<JE5> M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
277	BOLT; HOSE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
277	BOLT; HOSE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X16 FLANGE THA	0-28050-816-0	01	1	1410-
284	NUT; PIPE M8 FLANGE THA	0-91180-108-0	02	1	1410-

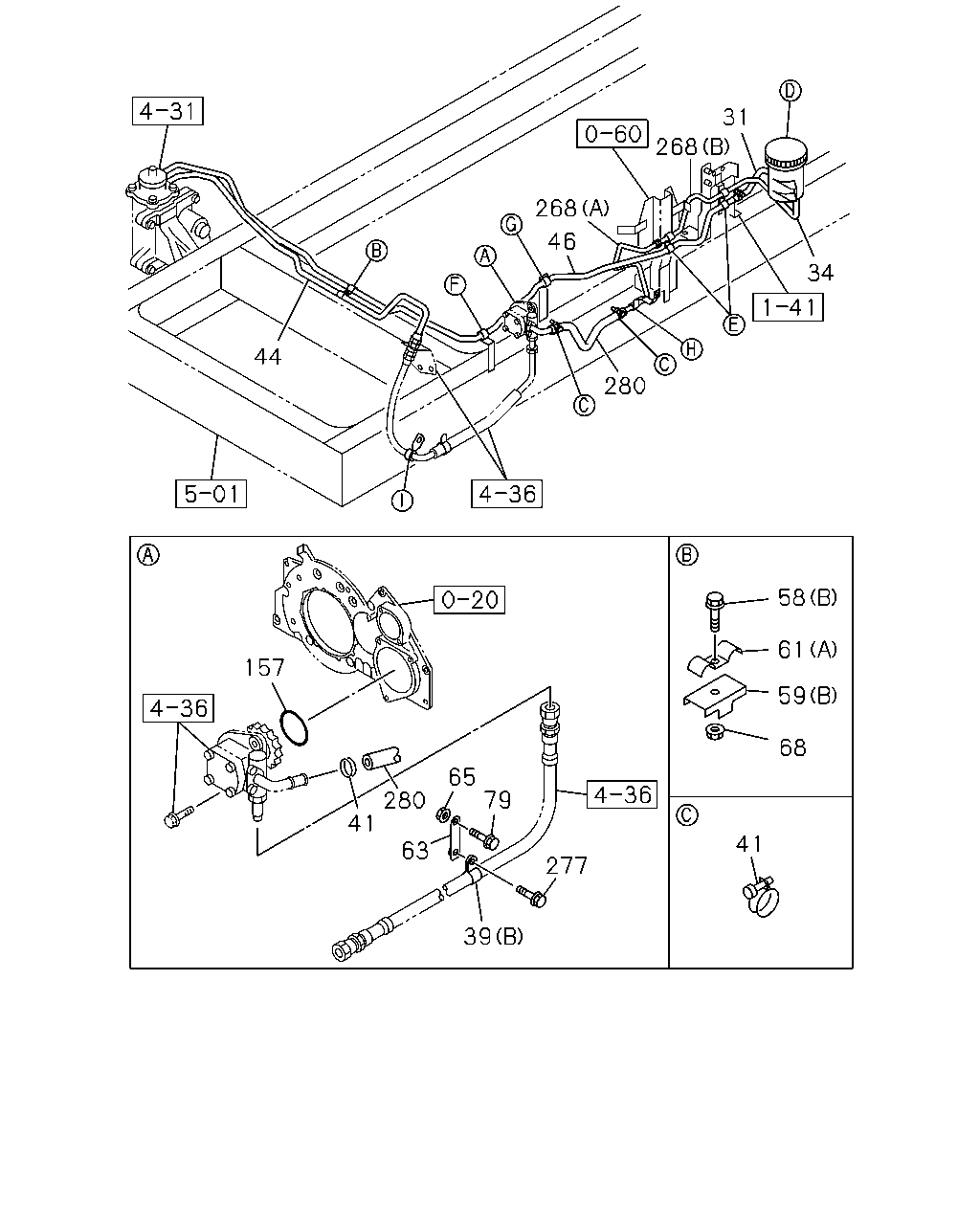

268 268 31 46 280 34 44 58 61 59 68 41 157 280 79 65 277 41 63 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL THA	8-98092-730-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET THA	8-98021-827-0	01	1	1410-
39	CLIP; FLEX HOSE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=19 L=58 THA	1-09700-733-1	01	1	1410-
39	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=19 L=58 THA	1-09700-733-1	01	1	1410-
39	CLIP; FLEX HOSE (B) ID=40 THA	8-94226-553-0	01	1	1410-
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	1410-
44	PIPE; OIL,P/S UNIT TO NIPPLE THA	8-97948-229-0	01	1	1410-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2771 THA	8-98123-973-0	01	1	1410-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE (C) THA	1-21464-481-0	01	1	1410-
59	BRACKET; CLIP,OIL PIPE (B) THA	1-47475-427-1	01	1	1410-
59	BRACKET; CLIP,OIL PIPE (A) L=95 THA	1-82699-085-0	01	1	1410-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1410-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5 THA	1-09700-668-0	01	1	1410-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20 THA	1-09700-806-1	02	1	1410-
63	BRACKET; CLIP,P/S BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47476-396-1	01	1	1410-
65	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1410-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1410-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1410-
79	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 THA	1-09623-467-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B) THA	8-98092-722-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1410-
277	BOLT; HOSE CLIP ANTI LOCK BRAKE<JE5> M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
277	BOLT; HOSE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
277	BOLT; HOSE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X16 FLANGE THA	0-28050-816-0	01	1	1410-
280	HOSE; P/S OIL PUMP,INL THA	8-98081-190-0	01	1	1410-
