◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#150438) — 70 parça

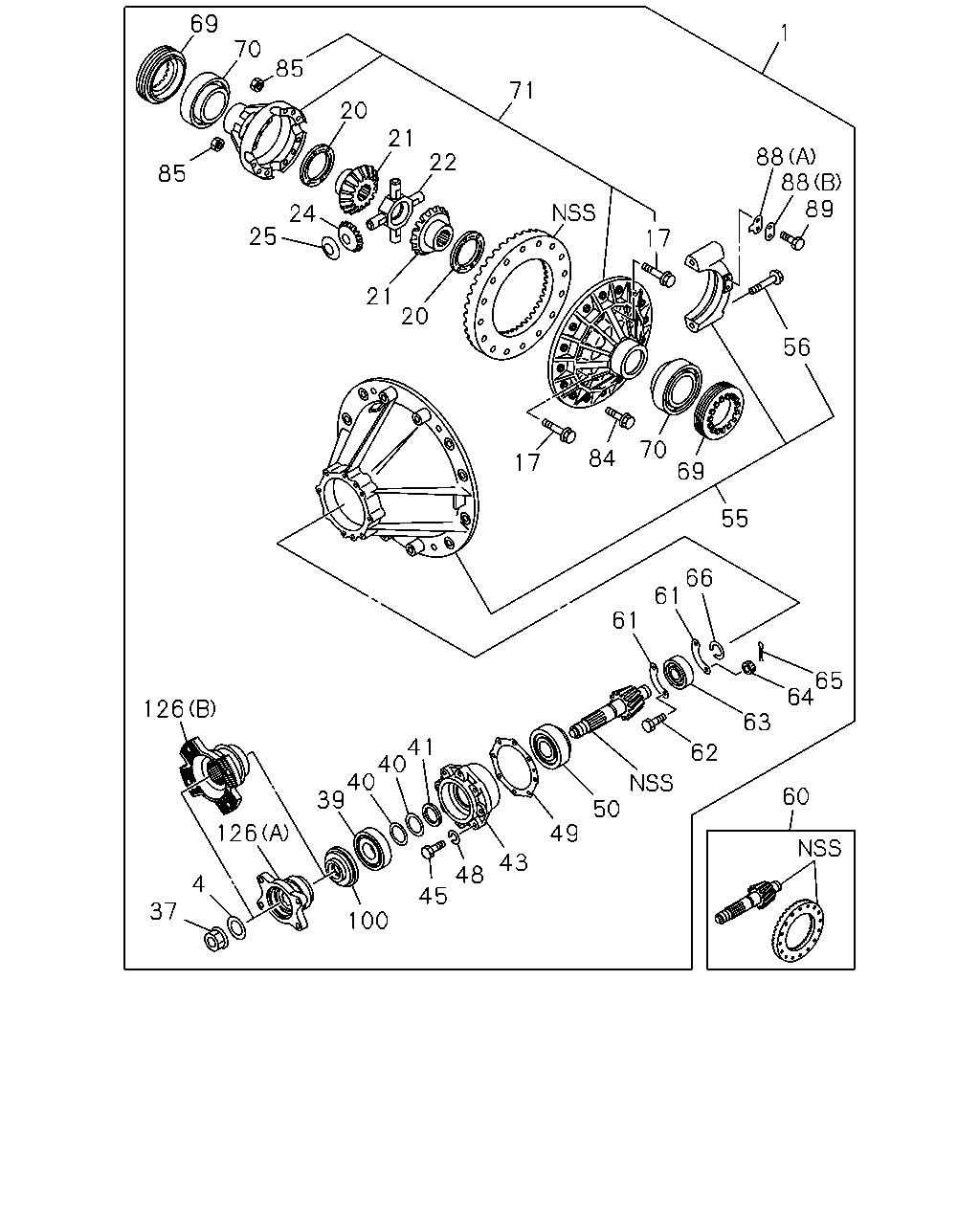

çizim 449098
69 70 85 20 21 22 71 85 25 24 21 20 17 88 88 89 17 84 70 69 55 56 126 37 4 126 39 40 40 41 61 61 66 100 45 48 43 49 50 62 63 64 65 60 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
39/7 THA 		1-41001-383-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
39/8 THA 		1-41002-378-0 01 1 1410- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 THA 		1-09623-386-0 01 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 THA 		1-09070-007-0 04 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 THA 		1-09070-018-0 08 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 THA 		1-41562-112-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 THA 		1-41562-113-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 THA 		1-41562-114-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 THA 		1-41562-115-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 THA 		1-41562-116-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 THA 		1-41562-117-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 THA 		1-41562-118-0 AR 1 1410- ● ●
21 GEAR; SIDE,DIFF
Z=16 THA 		1-41561-151-0 02 1 1410- ● ●
22 SPIDER; DIFF PINION
OD=35 THA 		1-41521-037-2 01 1 1410- ● ●
24 GEAR; PINION,DIFF
Z=10 THA 		1-41551-053-0 04 1 1410- ● ●
25 WASHER; THRUST,PINION
T=1.6 THA 		1-41552-017-0 04 1 1410- ● ●
37 NUT; DRIVING PINION
M46 FLANGE THA 		1-09449-071-0 01 1 1410- ● ●
39 BEARING; FINAL PINION
NSK THA 		1-09812-075-0 01 1 1410- ● ●
39 BEARING; FINAL PINION
JTEKT THA 		1-09812-076-1 01 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.25 THA 		1-41229-245-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.26 THA 		1-41229-246-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.27 THA 		1-41229-247-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.28 THA 		1-41229-248-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.29 THA 		1-41229-249-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.30 THA 		1-41229-250-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.31 THA 		1-41229-251-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.32 THA 		1-41229-252-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.33 THA 		1-41229-253-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.34 THA 		1-41229-254-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.35 THA 		1-41229-255-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 THA 		1-41229-237-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 THA 		1-41229-238-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 THA 		1-41229-239-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 THA 		1-41229-240-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 THA 		1-41229-241-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 THA 		1-41229-242-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 THA 		1-41229-243-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 THA 		1-41229-244-0 AR 1 1410- ● ●
43 CAGE; FINAL PINION
T=81 THA 		1-41151-030-0 01 1 1410- ● ●
45 BOLT; FINAL PINION CAGE
M16X55 THA 		0-16806-655-0 08 1 1410- ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 THA 		0-91510-516-0 08 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 THA 		1-41154-024-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 THA 		1-41154-025-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 THA 		1-41154-057-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 THA 		1-41154-058-0 AR 1 1410- ● ●
50 BEARING; FINAL PINION
NSK THA 		1-09812-073-1 01 1 1410- ● ●
50 BEARING; FINAL PINION
JTEKT THA 		1-09812-074-3 01 1 1410- ● ●
55 CARRIER; DIFF
THA 		1-41110-109-0 01 1 1410- ● ●
56 BOLT; BRG CAP
M20X112 THA 		1-09070-042-0 04 1 1410- ● ●
60 GEAR SET; FINAL DRIVE,RR
39/7 THA 		1-41210-604-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
39/8 THA 		1-41210-607-0 01 1 1410- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 THA 		1-41227-012-0 02 1 1410- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE THA 		1-09042-038-1 02 1 1410- ● ●
63 BEARING; PINION PILOT
JTEKT THA 		1-09810-182-0 01 1 1410- ● ●
63 BEARING; PINION PILOT
NSK THA 		1-09810-183-0 01 1 1410- ● ●
64 NUT; RET
M8 SLOTTED THA 		0-91117-508-0 02 1 1410- ● ●
65 PIN; SPLIT,RET
THA 		0-81122-012-0 02 1 1410- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 THA 		1-09588-086-2 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 THA 		1-41121-001-0 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 THA 		1-41121-002-0 01 1 1410- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 THA 		1-09812-225-0 02 1 1410- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
THA 		1-41510-141-0 01 1 1410- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE THA 		1-09009-049-1 16 1 1410- ● ●
85 NUT; DIFF CAGE SETTING
M16 THA 		0-91110-516-0 12 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 THA 		1-41124-006-0 02 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 THA 		9-41124-005-0 02 1 1410- ● ●
89 BOLT; LK PLATE
M8X16 THA 		0-20850-816-0 04 1 1410- ● ●
100 SEAL; OIL,FINAL PINION
NOK THA 		1-09625-322-0 01 1 1410- ● ●
126 COUPLING; DRIVING PINION
(A) THA 		1-37245-265-2 01 1 1410- ●
126 COUPLING; DRIVING PINION
(B) THA 		1-37245-343-0 01 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
