4-10 — FRONT AXLE (#150435) — 145 parça

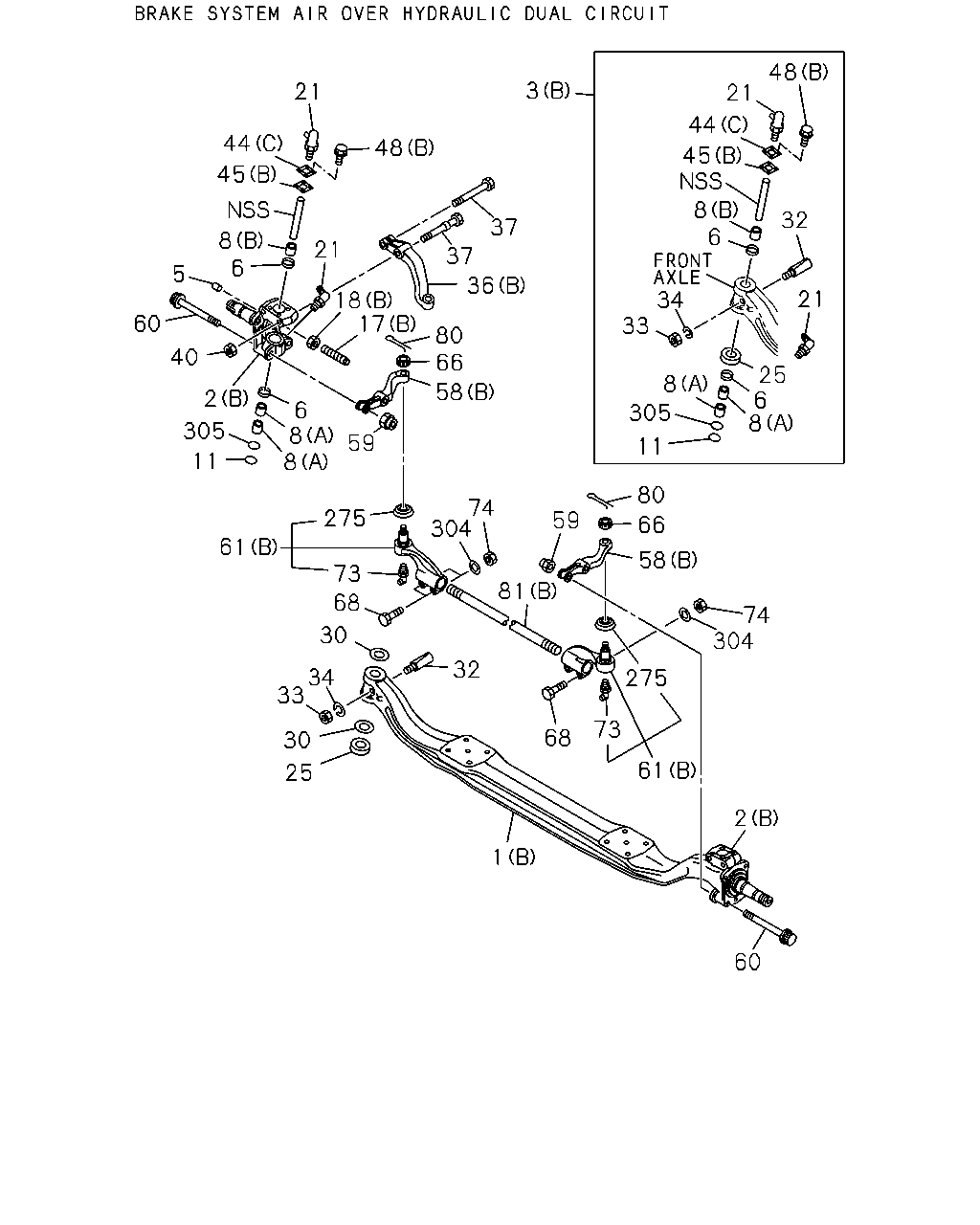

21 44 48 45 8 3 37 36 37 80 18 21 6 5 60 2 40 305 59 8 6 8 11 66 275 61 58 48 21 44 8 45 6 32 21 34 33 8 25 6 8 305 80 74 11 66 304 73 30 34 68 33 30 25 32 1 68 81 58 74 304 275 73 61 2 60 59 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43111-113-6	01	1	1410-
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98170-180-2	01	1	1410-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43131-079-1	01	1	1410-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43132-079-1	01	1	1410-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43131-118-1	01	1	1410-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43132-101-1	01	1	1410-
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-87831-302-2	02	1	1410-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-87831-349-2	02	1	1410-
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09740-072-0	02	1	1410-
6	SEAL; KING PIN THA	9-09926-024-0	04	1	1410-
8	BEARING; NEEDLE,KING PIN (A) NTN THA	9-00096-242-0	04	1	1410-
8	BEARING; NEEDLE,KING PIN (B) NTN THA	9-00096-243-0	02	1	1410-
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-09950-204-0	02	1	1410-
17	BOLT; STOPPER KNUCKLE (B) M18X43 THA	1-09009-190-0	02	1	1410-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M18X53 THA	1-09009-066-0	01	1	1410-
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) OCTAGON M18 THA	1-09469-011-1	01	1	1410-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	02	1	1410-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	04	1	1410-
25	BEARING; THRUST,KING PIN NSK THA	1-09829-043-2	02	1	1410-
30	WASHER; THRUST,KING PIN T=4.975 -5.000 THA	1-43171-189-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.000 -5.025 THA	1-43171-190-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.025 -5.050 THA	1-43171-191-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.050 -5.075 THA	1-43171-192-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	1410-
32	BOLT; KEY,KING PIN THA	1-43116-002-1	02	1	1410-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	1410-
34	WASHER; LK,KEY BOLT ID=10.2 THA	0-91510-510-0	02	1	1410-
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43133-063-3	01	1	1410-
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43133-073-3	01	1	1410-
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M22X179 THA	8-98052-380-1	01	1	1410-
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M22X167 THA	8-98052-381-1	01	1	1410-
40	NUT; KNUCKLE ARM M22 THA	1-09449-084-0	02	1	1410-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-43175-014-1	02	1	1410-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98100-654-0	02	1	1410-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98100-655-0	02	1	1410-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-42319-044-0	02	1	1410-
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98100-656-1	04	1	1410-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12X16 FLANGE THA	0-28051-216-0	08	1	1410-
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M10X25 FLANGE THA	0-28751-025-0	12	1	1410-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43134-042-3	01	1	1410-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43135-042-3	01	1	1410-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43134-049-4	01	1	1410-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43135-049-4	01	1	1410-
59	NUT; TIE ROD ARM M22 THA	1-09449-084-0	04	1	1410-
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M22X193 THA	8-98052-379-1	04	1	1410-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98236-800-0	01	1	1410-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98236-801-0	01	1	1410-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98228-106-0	01	1	1410-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98228-107-0	01	1	1410-
66	NUT; TIE ROD END M24 THA	1-09442-032-0	02	1	1410-
68	BOLT; TIE ROD END M12X65 THA	8-98053-922-0	04	1	1410-
73	NIPPLE; GREASE,TIE ROD END THA	1-43159-133-0	02	1	1410-
74	NUT; TIE ROD END M12 THA	0-91110-512-0	04	1	1410-
80	PIN; SPLIT,ROD END OD=4.6 L=35 THA	0-81125-035-0	02	1	1410-
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98193-965-0	01	1	1410-
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98171-947-0	01	1	1410-
275	BOOT; ROD END,TIE THA	8-98229-116-0	02	1	1410-
304	WASHER; PL ID=12.5 THA	0-91614-512-0	04	1	1410-
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-98052-291-0	02	1	1410-

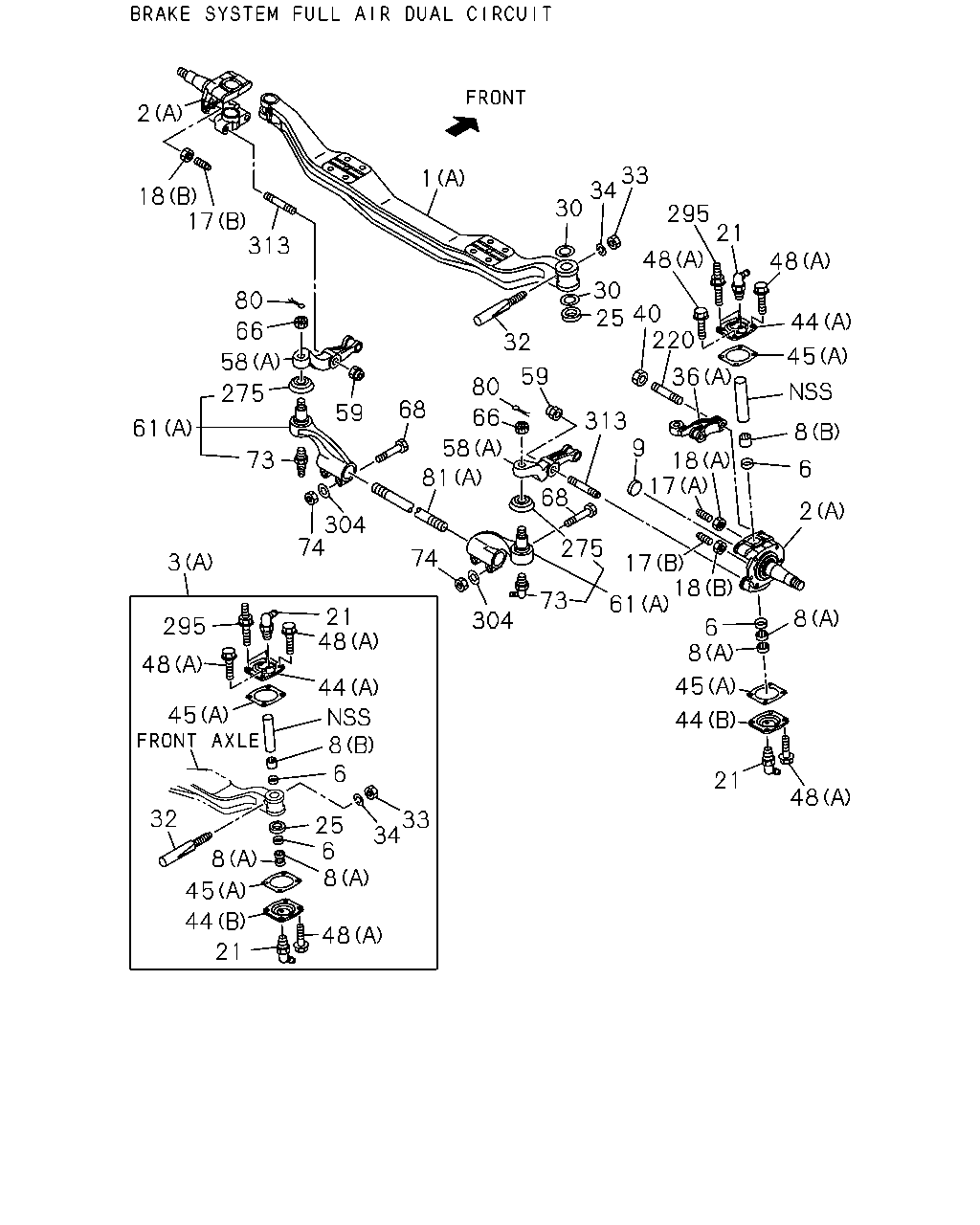

2 18 17 313 80 66 58 275 61 73 3 74 304 59 68 81 74 304 73 275 61 8 45 44 21 48 8 2 6 8 45 44 48 21 295 33 34 30 1 30 25 40 48 220 36 313 59 32 80 66 58 68 17 9 18 17 18 6 21 295 48 48 44 45 8 6 25 33 34 6 8 48 32 8 45 44 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43111-113-6	01	1	1410-
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98170-180-2	01	1	1410-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43131-079-1	01	1	1410-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43132-079-1	01	1	1410-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43131-118-1	01	1	1410-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43132-101-1	01	1	1410-
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-87831-302-2	02	1	1410-
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-87831-349-2	02	1	1410-
6	SEAL; KING PIN THA	9-09926-024-0	04	1	1410-
8	BEARING; NEEDLE,KING PIN (A) NTN THA	9-00096-242-0	04	1	1410-
8	BEARING; NEEDLE,KING PIN (B) NTN THA	9-00096-243-0	02	1	1410-
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> OD=22 THA	1-09600-011-2	02	1	1410-
17	BOLT; STOPPER KNUCKLE (B) M18X43 THA	1-09009-190-0	02	1	1410-
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M18X53 THA	1-09009-066-0	01	1	1410-
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) OCTAGON M18 THA	1-09469-011-1	01	1	1410-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	02	1	1410-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	04	1	1410-
25	BEARING; THRUST,KING PIN NSK THA	1-09829-043-2	02	1	1410-
30	WASHER; THRUST,KING PIN T=4.975 -5.000 THA	1-43171-189-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.000 -5.025 THA	1-43171-190-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.025 -5.050 THA	1-43171-191-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.050 -5.075 THA	1-43171-192-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	1410-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	1410-
32	BOLT; KEY,KING PIN THA	1-43116-002-1	02	1	1410-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	1410-
34	WASHER; LK,KEY BOLT ID=10.2 THA	0-91510-510-0	02	1	1410-
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43133-063-3	01	1	1410-
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43133-073-3	01	1	1410-
40	NUT; KNUCKLE ARM M22 THA	1-09449-084-0	02	1	1410-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-43175-014-1	02	1	1410-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98100-654-0	02	1	1410-
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98100-655-0	02	1	1410-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-42319-044-0	02	1	1410-
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98100-656-1	04	1	1410-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12X16 FLANGE THA	0-28051-216-0	08	1	1410-
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M10X25 FLANGE THA	0-28751-025-0	12	1	1410-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43134-042-3	01	1	1410-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-43135-042-3	01	1	1410-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43134-049-4	01	1	1410-
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-43135-049-4	01	1	1410-
59	NUT; TIE ROD ARM M22 THA	1-09449-084-0	04	1	1410-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98236-800-0	01	1	1410-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98236-801-0	01	1	1410-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98228-106-0	01	1	1410-
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98228-107-0	01	1	1410-
66	NUT; TIE ROD END M24 THA	1-09442-032-0	02	1	1410-
68	BOLT; TIE ROD END M12X65 THA	8-98053-922-0	04	1	1410-
73	NIPPLE; GREASE,TIE ROD END THA	1-43159-133-0	02	1	1410-
74	NUT; TIE ROD END M12 THA	0-91110-512-0	04	1	1410-
80	PIN; SPLIT,ROD END OD=4.6 L=35 THA	0-81125-035-0	02	1	1410-
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98193-965-0	01	1	1410-
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	8-98171-947-0	01	1	1410-
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-09300-127-1	02	1	1410-
275	BOOT; ROD END,TIE THA	8-98229-116-0	02	1	1410-
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X20,M10X26 L=56 THA	8-98010-334-0	04	1	1410-
304	WASHER; PL ID=12.5 THA	0-91614-512-0	04	1	1410-
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-09300-127-1	04	1	1410-

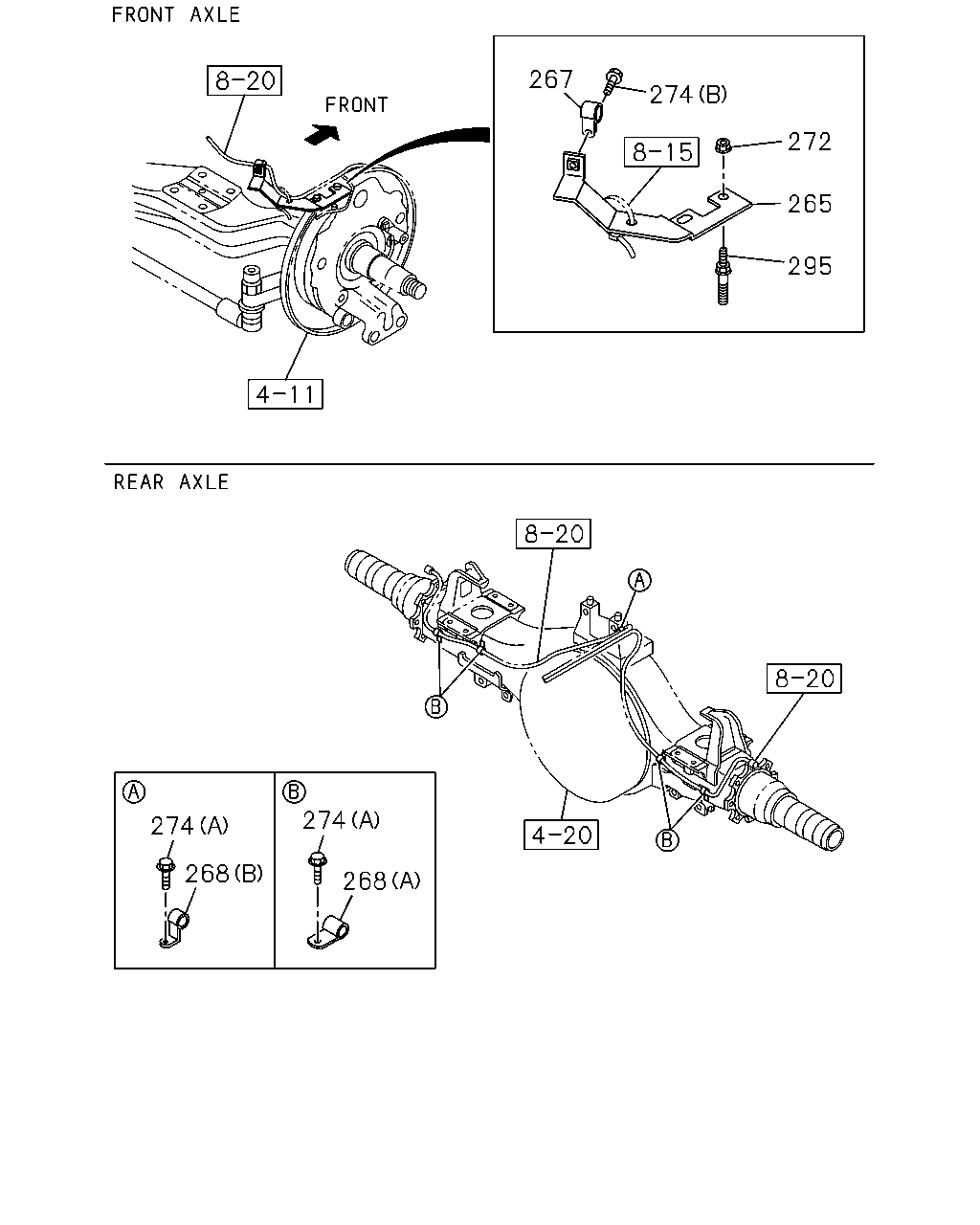

267 274 272 265 295 274 268 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-98073-525-0	01	1	1410-
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-98073-526-0	01	1	1410-
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=11 L=20 THA	0-95235-035-0	02	1	1410-
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=11 L=20 THA	0-95235-035-0	04	1	1410-
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=11 H=20 L=20 THA	8-98033-780-0	01	1	1410-
272	NUT; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-110-0	04	1	1410-
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X10 FLANGE THA	0-28050-810-0	05	1	1410-
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X20,M10X26 L=56 THA	8-98010-334-0	04	1	1410-
