◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#150433) — 496 parça

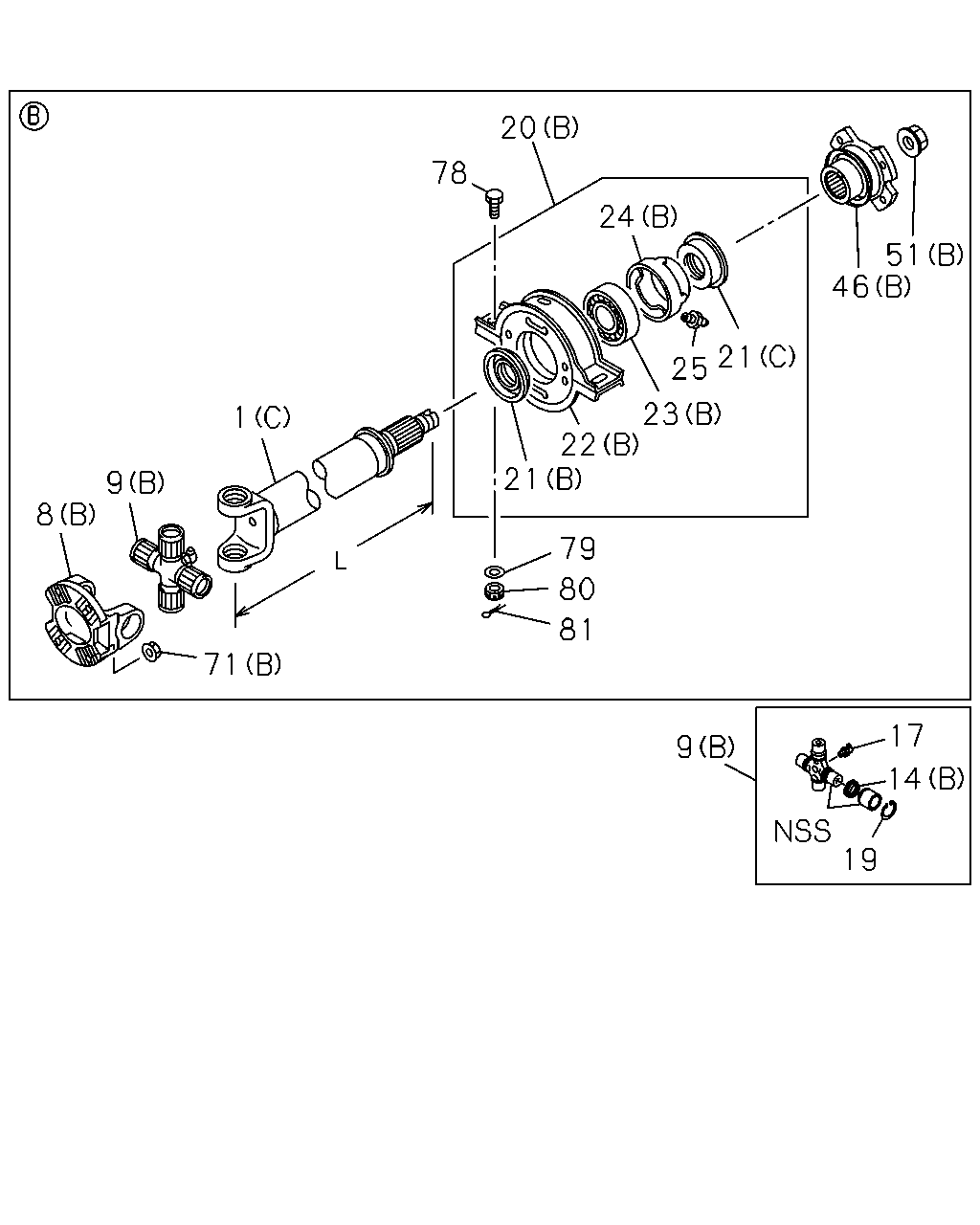

çizim 450484
20 78 1 9 8 71 79 80 81 21 22 23 25 21 46 51 9 17 14 19 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=784 THA 		1-37124-195-0 01 1 1410- ●
1 SHAFT; PROP
(F) L=1454 THA 		8-98185-868-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=706 THA 		1-37152-558-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=976 THA 		1-37153-100-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1459 THA 		8-98167-307-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=1199 THA 		8-98185-867-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 03 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) END THA 		1-37300-110-0 02 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-110-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-111-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 2ND THA 		1-37300-111-0 01 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 08 1 1410- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 12 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 04 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 DEGREES PT1/8 ELBOW THA 		0-90301-610-0 01 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 THA 		1-09587-102-1 08 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 THA 		1-09587-102-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 THA 		1-09587-102-1 04 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) THA 		1-37510-093-3 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) THA 		1-37510-093-3 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-126-0 02 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-126-0 02 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) THA 		1-37516-047-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) THA 		1-37516-047-2 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) THA 		9-00090-292-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) THA 		9-00090-292-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
(A) THA 		1-37529-039-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
(A) THA 		1-37529-039-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) THA 		1-37245-283-1 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) THA 		1-37245-283-1 01 1 1410- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ●
71 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE THA 		8-97365-444-0 04 1 1410- ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE THA 		1-09449-065-0 04 1 1410- ● ●
71 NUT; YOKE
(A) M16 FLANGE THA 		1-09449-065-0 04 1 1410- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 THA 		1-09042-030-0 02 1 1410- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 THA 		1-09503-241-1 02 1 1410- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED THA 		8-98049-689-0 02 1 1410- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 THA 		0-81124-025-0 02 1 1410- ● ● ● ●

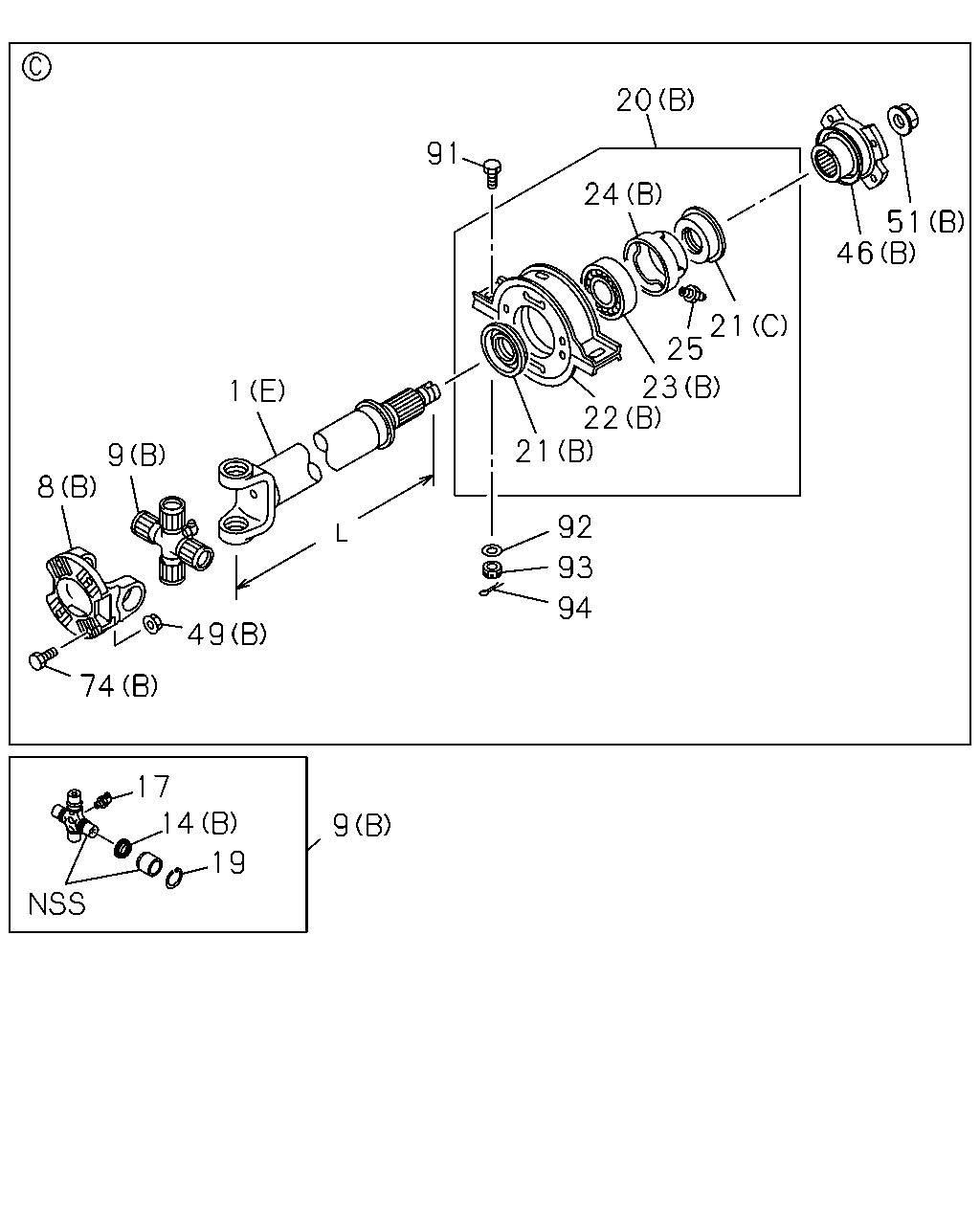

çizim 450580
8 9 1 91 20 51 46 24 21 25 23 22 21 92 93 94 74 49 17 14 19 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=784 THA 		1-37124-195-0 01 1 1410- ●
1 SHAFT; PROP
(F) L=1454 THA 		8-98185-868-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=706 THA 		1-37152-558-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=976 THA 		1-37153-100-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1459 THA 		8-98167-307-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=1199 THA 		8-98185-867-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 03 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) END THA 		1-37300-110-0 02 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-110-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-111-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 2ND THA 		1-37300-111-0 01 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 08 1 1410- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 12 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 04 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 DEGREES PT1/8 ELBOW THA 		0-90301-610-0 01 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 THA 		1-09587-102-1 08 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 THA 		1-09587-102-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 THA 		1-09587-102-1 04 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) THA 		1-37510-093-3 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) THA 		1-37510-093-3 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-126-0 02 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-126-0 02 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) THA 		1-37516-047-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) THA 		1-37516-047-2 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) THA 		9-00090-292-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) THA 		9-00090-292-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
(A) THA 		1-37529-039-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
(A) THA 		1-37529-039-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) THA 		1-37245-283-1 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) THA 		1-37245-283-1 01 1 1410- ●
49 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE THA 		8-97365-444-0 04 1 1410- ●
49 NUT; YOKE
(A) M16 FLANGE THA 		1-09449-065-0 04 1 1410- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 THA 		1-09000-383-0 08 1 1410- ● ●
74 BOLT; YOKE,TRANS
(A) M16X48 THA 		1-09000-383-0 08 1 1410- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 THA 		1-09000-645-0 04 1 1410- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 THA 		1-09000-645-0 04 1 1410- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 THA 		1-09000-645-0 04 1 1410- ●
74 BOLT; YOKE,TRANS
(A) M16X48 THA 		1-09000-383-0 04 1 1410- ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16X45 THA 		1-09042-030-0 02 1 1410- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 THA 		1-09042-030-0 02 1 1410- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> ID=17 THA 		1-09503-241-1 02 1 1410- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 THA 		1-09503-241-1 02 1 1410- ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED THA 		8-98049-689-0 02 1 1410- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED THA 		8-98049-689-0 02 1 1410- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT<C5T> OD=3.7 L=25 THA 		0-81124-025-0 02 1 1410- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 THA 		0-81124-025-0 02 1 1410- ●

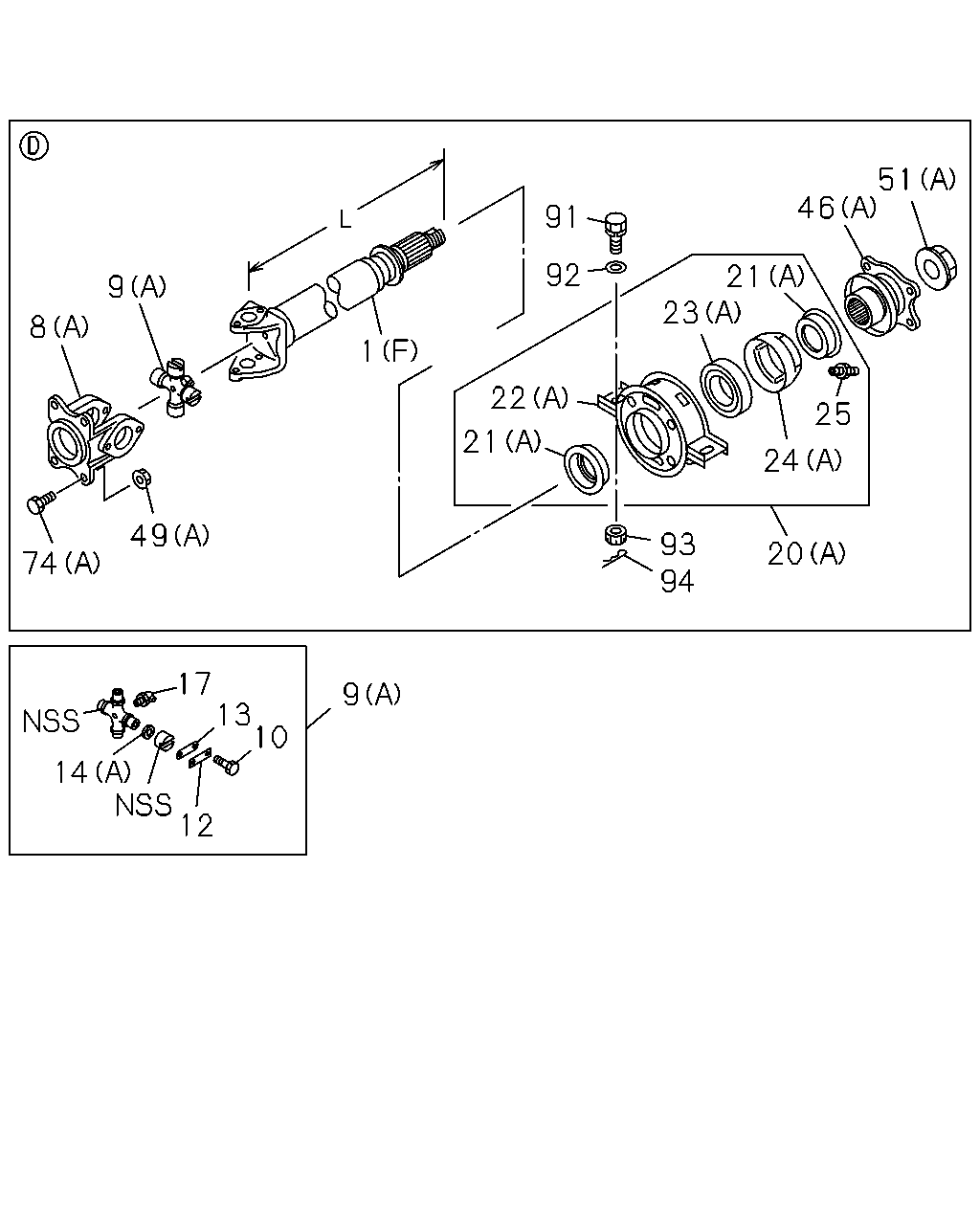

çizim 450688
8 9 74 49 1 91 92 46 51 21 23 22 21 93 94 25 24 20 17 13 10 14 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=784 THA 		1-37124-195-0 01 1 1410- ●
1 SHAFT; PROP
(F) L=1454 THA 		8-98185-868-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=706 THA 		1-37152-558-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=976 THA 		1-37153-100-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1459 THA 		8-98167-307-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=1199 THA 		8-98185-867-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 03 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) END THA 		1-37300-110-0 02 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-110-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-111-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 2ND THA 		1-37300-111-0 01 1 1410- ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 1410- ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 16 1 1410- ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 24 1 1410- ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1410- ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 08 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
THA 		1-37356-010-0 04 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
THA 		1-37356-010-0 04 1 1410- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
THA 		1-37356-010-0 08 1 1410- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1410- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1410- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 04 1 1410- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 04 1 1410- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 08 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 08 1 1410- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 12 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 04 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 DEGREES PT1/8 ELBOW THA 		0-90301-610-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) THA 		1-37510-093-3 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) THA 		1-37510-093-3 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-126-0 02 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-126-0 02 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) THA 		1-37516-047-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) THA 		1-37516-047-2 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) THA 		9-00090-292-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) THA 		9-00090-292-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
(A) THA 		1-37529-039-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
(A) THA 		1-37529-039-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) THA 		1-37245-283-1 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) THA 		1-37245-283-1 01 1 1410- ●
49 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE THA 		8-97365-444-0 04 1 1410- ●
49 NUT; YOKE
(A) M16 FLANGE THA 		1-09449-065-0 04 1 1410- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 THA 		1-09000-383-0 08 1 1410- ● ●
74 BOLT; YOKE,TRANS
(A) M16X48 THA 		1-09000-383-0 08 1 1410- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 THA 		1-09000-645-0 04 1 1410- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 THA 		1-09000-645-0 04 1 1410- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 THA 		1-09000-645-0 04 1 1410- ●
74 BOLT; YOKE,TRANS
(A) M16X48 THA 		1-09000-383-0 04 1 1410- ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16X45 THA 		1-09042-030-0 02 1 1410- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 THA 		1-09042-030-0 02 1 1410- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> ID=17 THA 		1-09503-241-1 02 1 1410- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 THA 		1-09503-241-1 02 1 1410- ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED THA 		8-98049-689-0 02 1 1410- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED THA 		8-98049-689-0 02 1 1410- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT<C5T> OD=3.7 L=25 THA 		0-81124-025-0 02 1 1410- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 THA 		0-81124-025-0 02 1 1410- ●

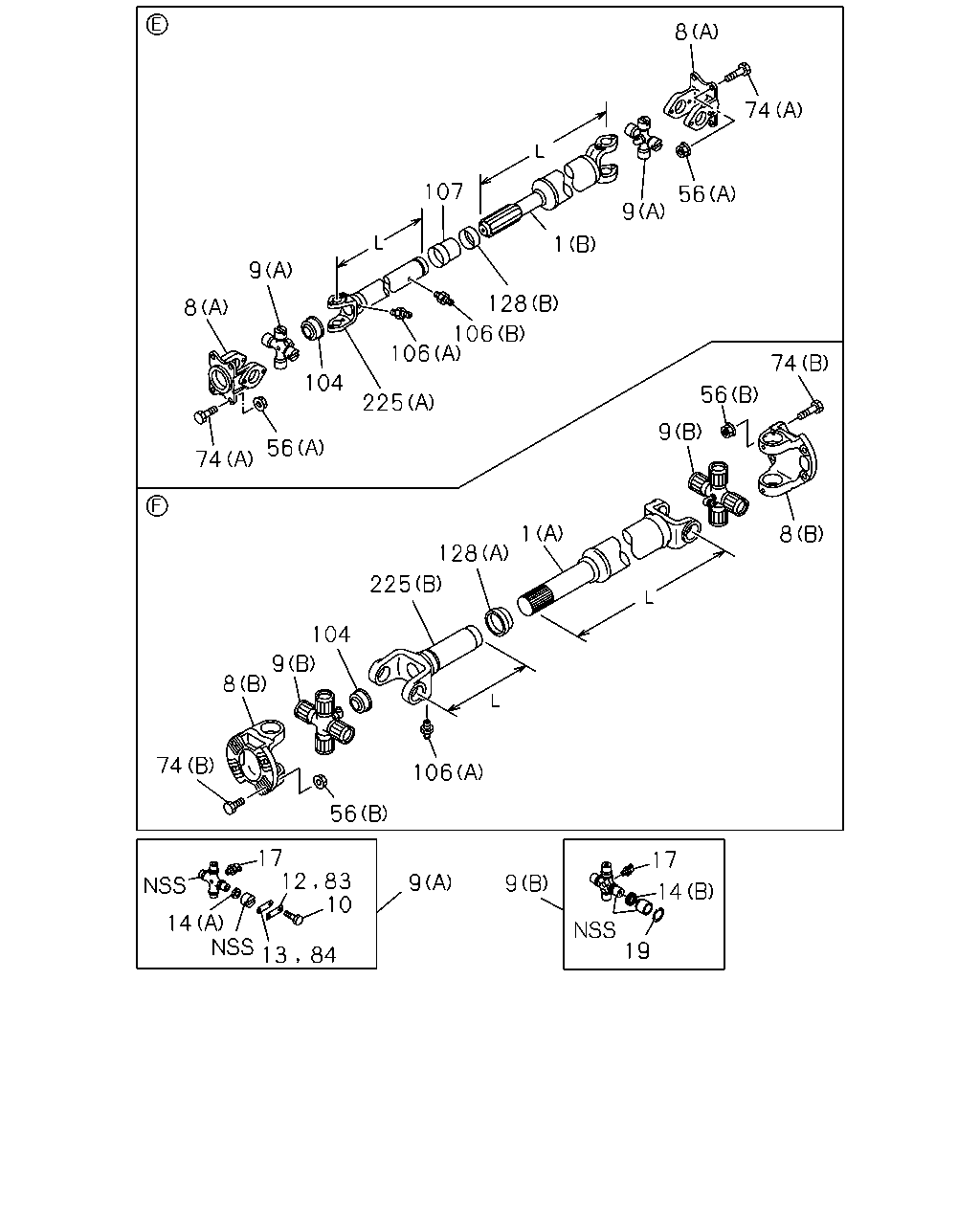

çizim 450718
8 107 9 8 74 56 104 225 106 106 128 1 9 56 74 74 8 9 104 225 128 1 9 56 74 8 106 569 17 12 83 10 84 14 13 9 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=784 THA 		1-37124-195-0 01 1 1410- ●
1 SHAFT; PROP
(F) L=1454 THA 		8-98185-868-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=706 THA 		1-37152-558-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=976 THA 		1-37153-100-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1459 THA 		8-98167-307-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=1199 THA 		8-98185-867-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 03 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) END THA 		1-37300-110-0 02 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-110-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-111-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 2ND THA 		1-37300-111-0 01 1 1410- ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 1410- ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 16 1 1410- ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 24 1 1410- ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1410- ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 08 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
THA 		1-37356-010-0 04 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
THA 		1-37356-010-0 04 1 1410- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
THA 		1-37356-010-0 08 1 1410- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1410- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1410- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 04 1 1410- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 04 1 1410- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 08 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 08 1 1410- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 12 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 04 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 DEGREES PT1/8 ELBOW THA 		0-90301-610-0 01 1 1410- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 THA 		1-09587-102-1 08 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 THA 		1-09587-102-1 04 1 1410- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> T=2.2 THA 		1-09587-102-1 04 1 1410- ●
56 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE THA 		1-09449-065-0 08 1 1410- ● ●
56 NUT; YOKE
(A) M16 FLANGE THA 		1-09449-065-0 08 1 1410- ● ●
56 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE THA 		8-97365-444-0 04 1 1410- ● ●
56 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE THA 		8-97365-444-0 04 1 1410- ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M> (A) M16X48 THA 		1-09000-383-0 08 1 1410- ● ●
74 BOLT; YOKE,TRANS
(A) M16X48 THA 		1-09000-383-0 08 1 1410- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 THA 		1-09000-645-0 04 1 1410- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 THA 		1-09000-645-0 04 1 1410- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT<C5T> (B) M14X50 THA 		1-09000-645-0 04 1 1410- ●
74 BOLT; YOKE,TRANS
(A) M16X48 THA 		1-09000-383-0 04 1 1410- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1410- ● ●
83 PLATE; LK,UJT,PROP SHAFT
THA 		1-37356-010-0 04 1 1410- ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1410- ● ●
84 COVER; UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 04 1 1410- ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-067-0 01 1 1410- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M> (B) MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 01 1 1410- ● ● ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT<C2M> THA 		1-37249-137-1 01 1 1410- ● ●
107 COVER; RET,SLEEVE
THA 		1-37249-137-1 01 1 1410- ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> (B) THA 		1-37247-021-0 01 1 1410- ● ●
128 SEAL; SLEEVE
(B) THA 		1-37247-021-0 01 1 1410- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) THA 		1-37247-019-0 01 1 1410- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) L=332 THA 		1-37241-109-1 01 1 1410- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=332 THA 		1-37241-109-1 01 1 1410- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) L=330 THA 		1-37241-124-0 01 1 1410- ● ●

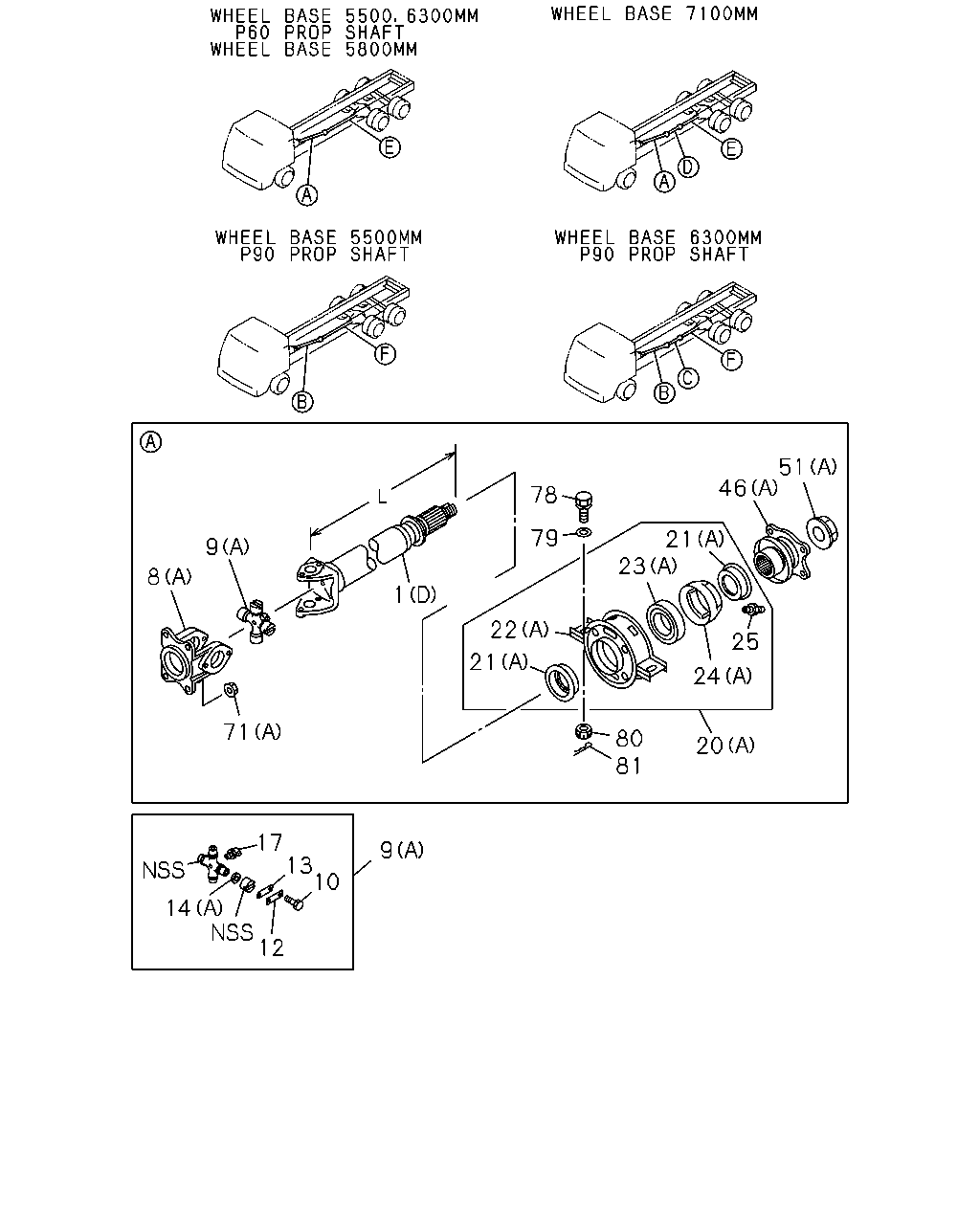

çizim 451441
8 9 71 1 78 79 21 22 23 21 46 51 24 25 80 81 20 17 13 10 9 12 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1194 THA 		1-37124-114-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=904 THA 		1-37124-613-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1279 THA 		1-37123-909-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (E) L=820 THA 		8-98091-468-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (A) L=1039 THA 		1-37124-615-0 01 1 1410- ●
1 SHAFT; PROP
(B) L=784 THA 		1-37124-195-0 01 1 1410- ●
1 SHAFT; PROP
(F) L=1454 THA 		8-98185-868-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=910 THA 		8-98091-476-0 01 1 1410- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (C) L=725 THA 		8-98091-479-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=706 THA 		1-37152-558-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=976 THA 		1-37153-100-0 01 1 1410- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (D) L=1459 THA 		8-98167-307-0 01 1 1410- ●
1 SHAFT; PROP
(D) L=1199 THA 		8-98185-867-0 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 02 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 02 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		1-37211-079-1 01 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 03 1 1410- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37211-072-1 01 1 1410- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-072-1 01 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-094-1 AR 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) END THA 		1-37300-110-0 02 1 1410- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-110-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 1ST THA 		1-37300-111-0 01 1 1410- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 2ND THA 		1-37300-111-0 01 1 1410- ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 16 1 1410- ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 16 1 1410- ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 24 1 1410- ●
10 BOLT; UJT
P60 PROP SHAFT<C2M> M10X20 THA 		0-20951-020-0 08 1 1410- ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 08 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> THA 		1-37356-010-0 04 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
THA 		1-37356-010-0 04 1 1410- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
THA 		1-37356-010-0 04 1 1410- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
THA 		1-37356-010-0 08 1 1410- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1410- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=6 THA 		1-37355-022-0 04 1 1410- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 04 1 1410- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 04 1 1410- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 THA 		1-37355-022-0 08 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 08 1 1410- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 08 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) THA 		1-37249-131-0 04 1 1410- ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 12 1 1410- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) THA 		9-37352-023-0 04 1 1410- ● ●
14 COVER; DUST,SPIDER
(A) THA 		9-37352-023-0 04 1 1410- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 02 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1410- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 03 1 1410- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> 90 DEGREES PT1/8 ELBOW THA 		0-90301-610-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> (B) ID=60 THA 		1-37510-115-0 01 1 1410- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		1-37510-093-3 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) THA 		1-37510-093-3 01 1 1410- ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) THA 		1-37510-093-3 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (B) D=120 THA 		1-09625-127-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> (C) THA 		1-09625-621-0 01 1 1410- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> (A) D=120 THA 		1-09625-126-0 02 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-126-0 02 1 1410- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-126-0 02 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37516-048-2 01 1 1410- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37516-047-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) THA 		1-37516-047-2 01 1 1410- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) THA 		1-37516-047-2 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> (B) THA 		9-00090-256-0 01 1 1410- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> (A) THA 		9-00090-292-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) THA 		9-00090-292-0 01 1 1410- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) THA 		9-00090-292-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37529-109-0 01 1 1410- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37529-039-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
(A) THA 		1-37529-039-0 01 1 1410- ● ●
24 RETAINER; CENTER BRG,1ST
(A) THA 		1-37529-039-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> (B) THA 		1-37245-348-0 01 1 1410- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> (A) THA 		1-37245-283-1 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) THA 		1-37245-283-1 01 1 1410- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) THA 		1-37245-283-1 01 1 1410- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> (B) M39 FLANGE THA 		1-09440-046-0 01 1 1410- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> (A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE THA 		1-09449-051-0 01 1 1410- ●
71 NUT; YOKE
P90 PROP SHAFT<C5T> (B) M14 FLANGE THA 		8-97365-444-0 04 1 1410- ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M> (A) M16 FLANGE THA 		1-09449-065-0 04 1 1410- ● ●
71 NUT; YOKE
(A) M16 FLANGE THA 		1-09449-065-0 04 1 1410- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 THA 		1-09042-030-0 02 1 1410- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 THA 		1-09503-241-1 02 1 1410- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED THA 		8-98049-689-0 02 1 1410- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 THA 		0-81124-025-0 02 1 1410- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
