Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#150432) — 198 parça

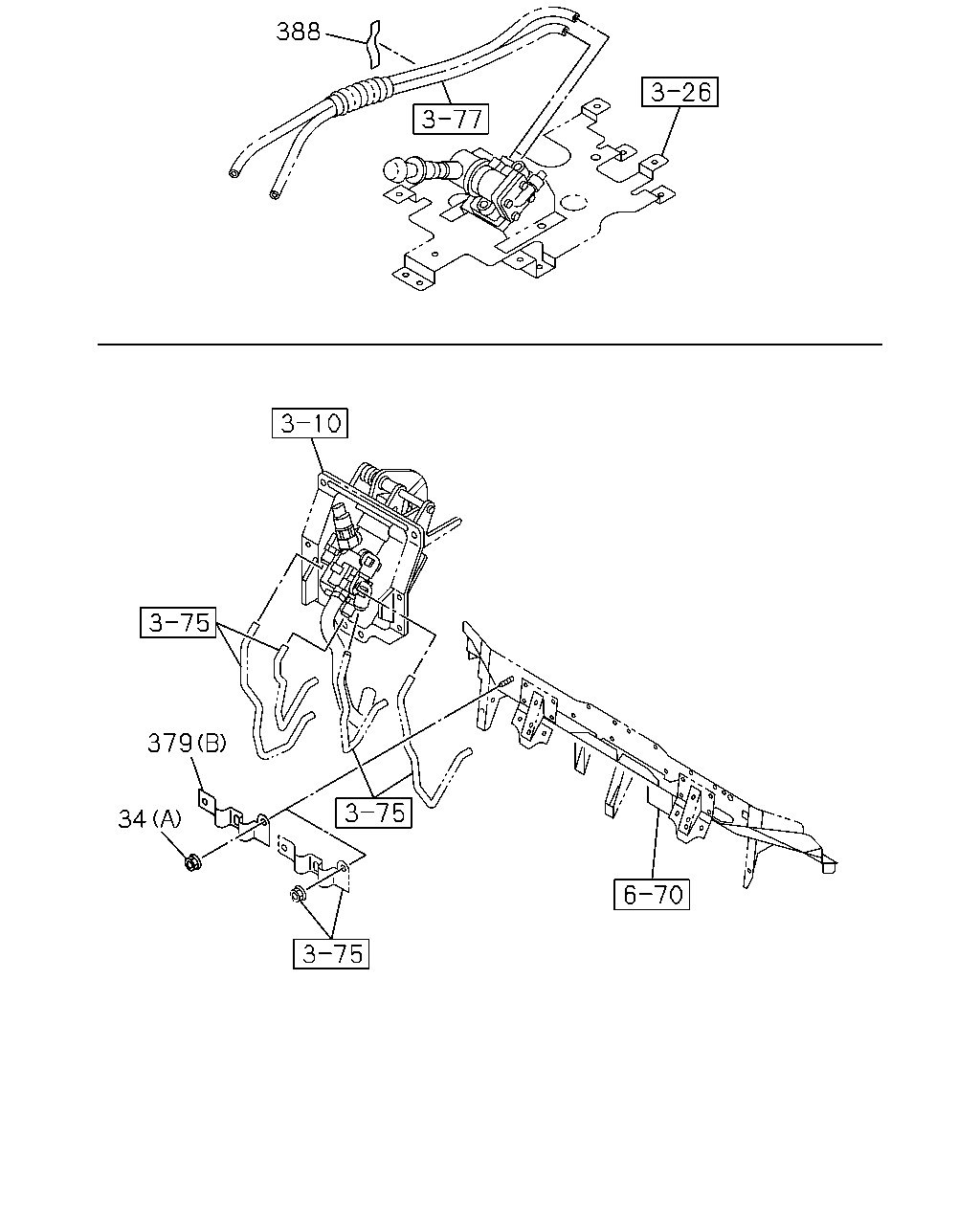

388 379 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M6 FLANGE THA	0-91180-106-0	02	1	1410-
34	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	1410-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=60 H=30 THA	1-47477-716-1	01	1	1410-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=90 THA	1-47477-755-1	01	1	1410-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98044-013-0	01	1	1410-
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> 100X40 THA	1-72498-022-1	03	1	1410-

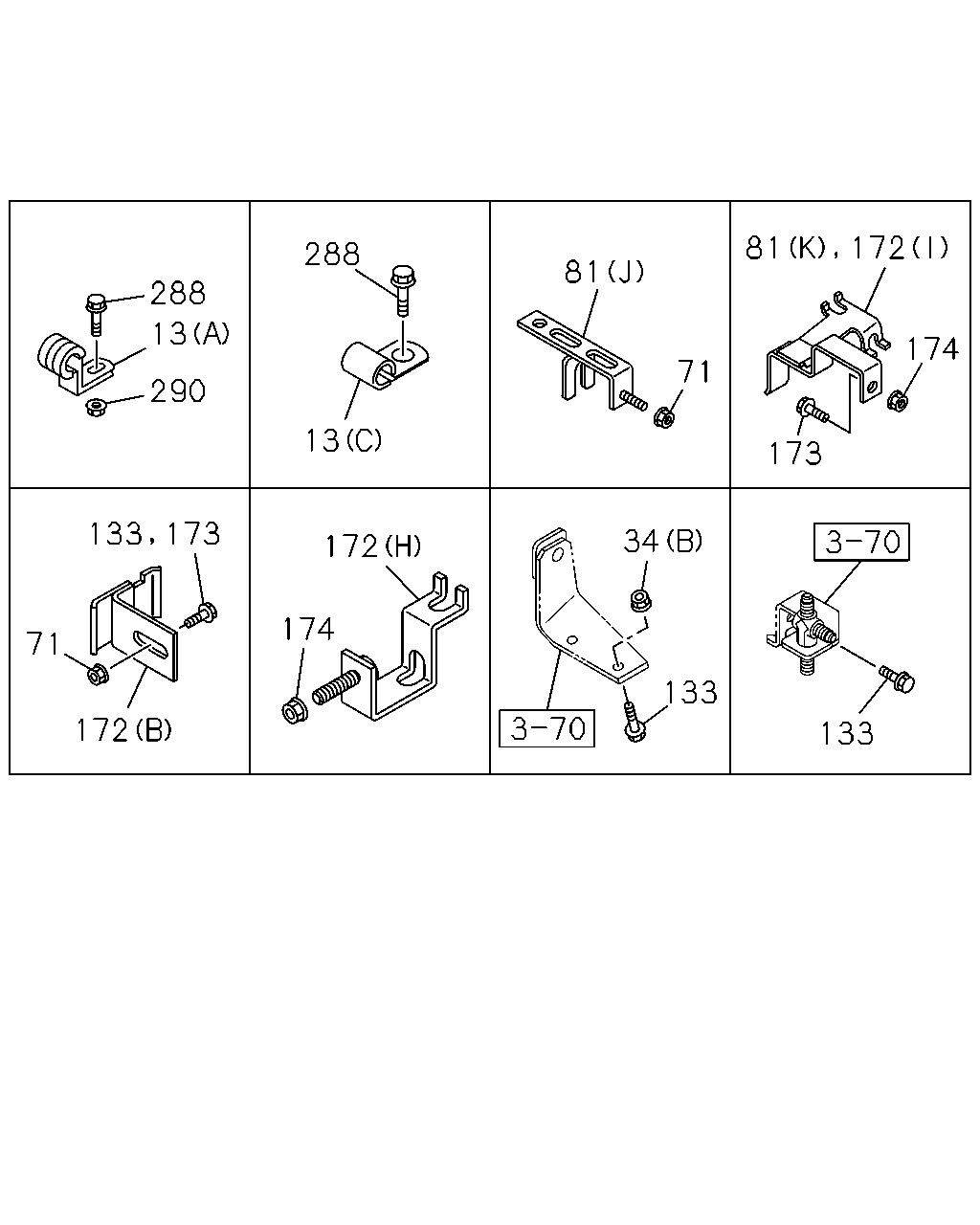

288 13 290 288 13 81 81 172 174 173 71 133 173 71 172 172 174 34 133 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=6.35 & 15 THA	1-09709-276-1	01	1	1410-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=7 L=16 THA	0-95234-625-0	01	1	1410-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=6.35 & 6.35 THA	1-09709-273-1	03	1	1410-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=6.35 & 15 THA	1-09709-276-1	03	1	1410-
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20 THA	1-09700-603-0	01	1	1410-
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M6 FLANGE THA	0-91180-106-0	02	1	1410-
34	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	02	1	1410-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	11	1	1410-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (H) L=170 THA	1-47479-380-0	01	1	1410-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (G) L=65 B=25 THA	8-98135-584-0	01	1	1410-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) THA	8-98177-873-0	01	1	1410-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) THA	8-98182-760-0	01	1	1410-
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) THA	8-98177-873-0	03	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=150 H=30 THA	1-47477-629-2	01	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30 THA	1-47477-645-2	01	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=60 H=30 THA	1-47477-716-1	02	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98031-420-2	01	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) THA	8-98047-730-0	02	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) THA	1-47477-514-3	02	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (E) L=225 THA	1-47477-646-3	01	1	1410-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) THA	8-98139-765-0	01	1	1410-
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
133	BOLT; BRKT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	04	1	1410-
133	BOLT; BRKT ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	03	1	1410-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47477-514-3	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=100 H=30 THA	1-47477-645-2	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=225 THA	1-47477-646-3	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=60 H=30 THA	1-47477-716-1	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47479-693-0	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) THA	8-98031-420-2	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) THA	8-98047-730-0	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) THA	8-98169-222-0	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) THA	8-98182-760-0	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) THA	8-98184-177-0	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) THA	8-98139-765-0	01	1	1410-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	04	1	1410-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	07	1	1410-
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	14	1	1410-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
290	NUT; CLIP,AIR PIPE M8 FLANGE THA	0-91180-108-0	01	1	1410-

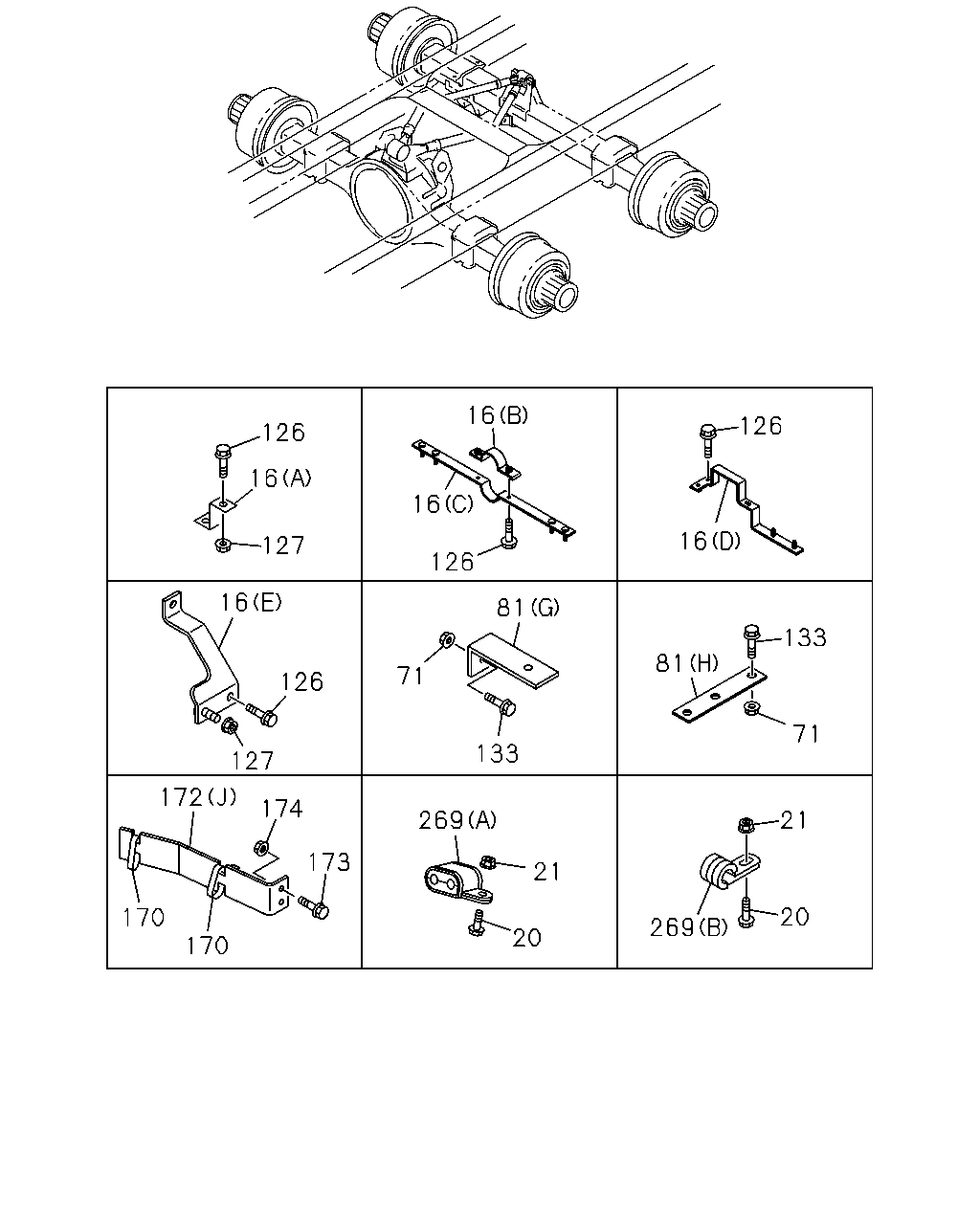

126 16 127 16 16 126 126 16 16 126 127 81 71 133 81 133 71 172 174 173 170 170 269 21 20 21 20 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47475-868-0	01	1	1410-
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47479-546-0	02	1	1410-
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) THA	1-47479-720-0	02	1	1410-
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) THA	1-47479-901-0	02	1	1410-
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) THA	8-98110-074-0	01	1	1410-
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X10 FLANGE THA	0-28050-810-0	02	1	1410-
21	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1410-
21	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	04	1	1410-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	11	1	1410-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (H) L=170 THA	1-47479-380-0	01	1	1410-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (G) L=65 B=25 THA	8-98135-584-0	01	1	1410-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) THA	8-98177-873-0	01	1	1410-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) THA	8-98182-760-0	01	1	1410-
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) THA	8-98177-873-0	03	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=150 H=30 THA	1-47477-629-2	01	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30 THA	1-47477-645-2	01	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=60 H=30 THA	1-47477-716-1	02	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98031-420-2	01	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) THA	8-98047-730-0	02	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) THA	1-47477-514-3	02	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (E) L=225 THA	1-47477-646-3	01	1	1410-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) THA	8-98139-765-0	01	1	1410-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X10 FLANGE THA	0-28050-810-0	04	1	1410-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	04	1	1410-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	01	1	1410-
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1410-
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	01	1	1410-
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
133	BOLT; BRKT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	04	1	1410-
133	BOLT; BRKT ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	03	1	1410-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350 THA	1-09707-183-0	29	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47477-514-3	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=100 H=30 THA	1-47477-645-2	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=225 THA	1-47477-646-3	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=60 H=30 THA	1-47477-716-1	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47479-693-0	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) THA	8-98031-420-2	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) THA	8-98047-730-0	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) THA	8-98169-222-0	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) THA	8-98182-760-0	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) THA	8-98184-177-0	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) THA	8-98139-765-0	01	1	1410-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	04	1	1410-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	07	1	1410-
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	14	1	1410-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=35 L=33 THA	1-09700-945-0	06	1	1410-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=350 THA	1-09707-183-0	01	1	1410-
269	CLIP; BAND,NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) ID=11X2 L=20 THA	0-95325-035-0	02	1	1410-

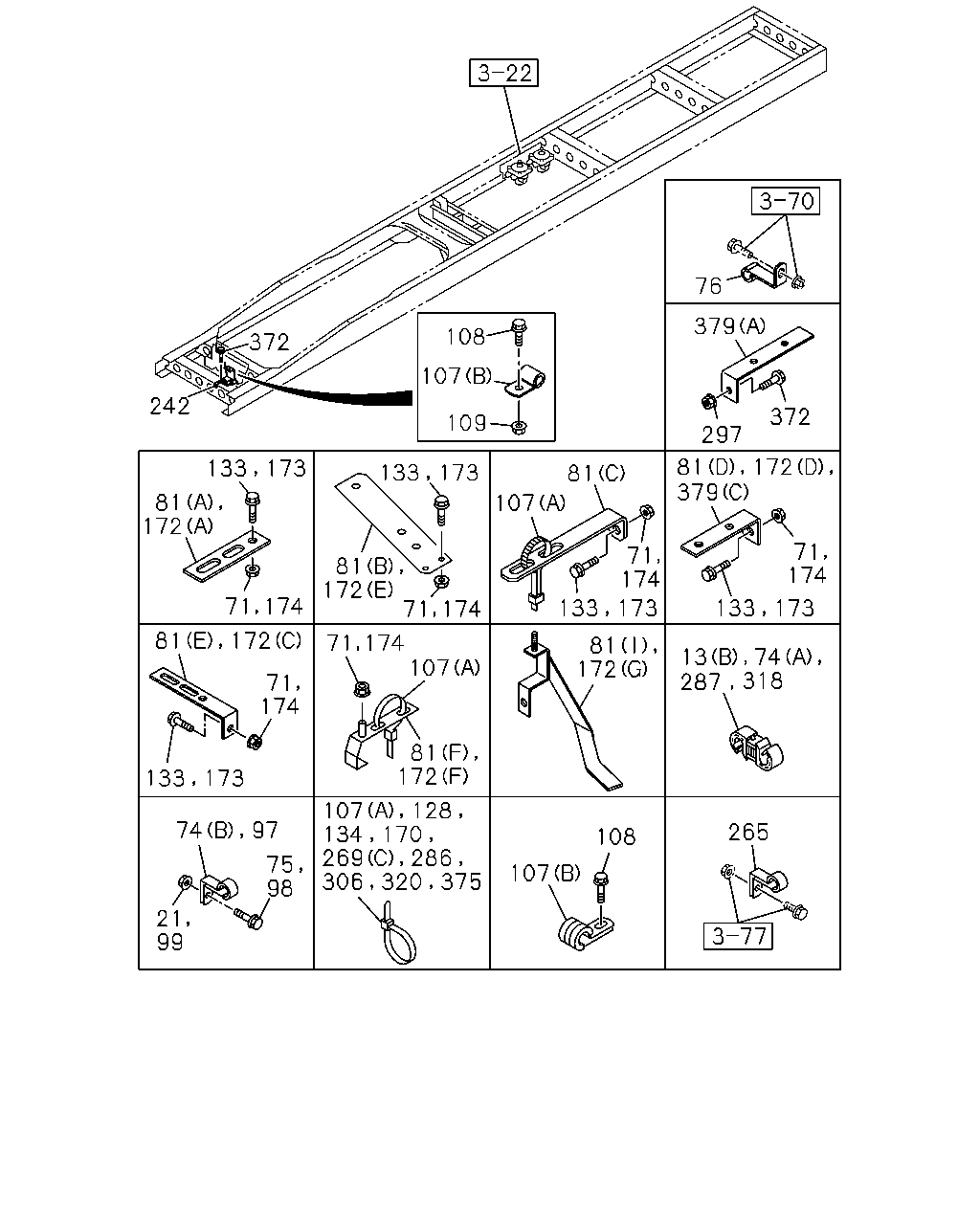

372 242 108 107 109 76 379 297 372 133 173 81 172 133 173 81 172 71 174 74 174 107 81 71 174 133 173 81 172 379 71 174 133 173 81 172 71 174 107 81 133 173 172 81 172 13 74 318 287 74 97 75 98 21 99 107 128 134 170 269 286 306 320 375 108 107 265 71 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=6.35 & 15 THA	1-09709-276-1	01	1	1410-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) ID=7 L=16 THA	0-95234-625-0	01	1	1410-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=6.35 & 6.35 THA	1-09709-273-1	03	1	1410-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=6.35 & 15 THA	1-09709-276-1	03	1	1410-
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20 THA	1-09700-603-0	01	1	1410-
21	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	01	1	1410-
21	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	04	1	1410-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	11	1	1410-
74	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=13 H=50 L=25 THA	1-09700-529-0	01	1	1410-
74	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=12 & 15 THA	1-09709-281-1	01	1	1410-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=12 & 12 THA	1-09709-280-1	01	1	1410-
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
76	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=13 H=50 L=25 THA	1-09700-529-0	01	1	1410-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (H) L=170 THA	1-47479-380-0	01	1	1410-
81	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (G) L=65 B=25 THA	8-98135-584-0	01	1	1410-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) THA	8-98177-873-0	01	1	1410-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) THA	8-98182-760-0	01	1	1410-
81	BRACKET; CLIP ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) THA	8-98177-873-0	03	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=150 H=30 THA	1-47477-629-2	01	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) L=100 H=30 THA	1-47477-645-2	01	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) L=60 H=30 THA	1-47477-716-1	02	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98031-420-2	01	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) THA	8-98047-730-0	02	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) THA	1-47477-514-3	02	1	1410-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (E) L=225 THA	1-47477-646-3	01	1	1410-
81	BRACKET; CLIP MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) THA	8-98139-765-0	01	1	1410-
97	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=11 H=20 L=20 THA	8-98033-780-0	01	1	1410-
98	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	01	1	1410-
99	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1410-
107	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> (B) ID=31 L=30 THA	1-09700-969-0	01	1	1410-
107	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> (B) ID=39 L=33 THA	8-98009-359-0	01	1	1410-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) ID=19 L=40 THA	0-95235-876-0	01	1	1410-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=350 THA	1-09707-183-0	37	1	1410-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) L=350 THA	1-09707-183-0	37	1	1410-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) L=350 THA	1-09707-183-0	35	1	1410-
107	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=350 THA	1-09707-183-0	38	1	1410-
107	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=350 THA	1-09707-183-0	39	1	1410-
108	BOLT; TUBE CLIP ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	01	1	1410-
128	CLIP; NYLON TUBE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350 THA	1-09707-183-0	01	1	1410-
128	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350 THA	1-09707-183-0	01	1	1410-
133	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
133	BOLT; BRKT MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	04	1	1410-
133	BOLT; BRKT ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	03	1	1410-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
133	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE THA	0-28650-820-0	03	1	1410-
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350 THA	1-09707-183-0	01	1	1410-
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350 THA	1-09707-183-0	29	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47477-514-3	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=100 H=30 THA	1-47477-645-2	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=225 THA	1-47477-646-3	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) L=60 H=30 THA	1-47477-716-1	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47479-693-0	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) THA	8-98031-420-2	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) THA	8-98047-730-0	02	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) THA	8-98169-222-0	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) THA	8-98182-760-0	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) THA	8-98184-177-0	01	1	1410-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) THA	8-98139-765-0	01	1	1410-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	04	1	1410-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	07	1	1410-
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	14	1	1410-
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA	8-98106-046-0	01	1	1410-
265	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=21 H=25.5 L=26 THA	8-94176-806-0	01	1	1410-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=35 L=33 THA	1-09700-945-0	06	1	1410-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) L=350 THA	1-09707-183-0	01	1	1410-
269	CLIP; BAND,NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) ID=11X2 L=20 THA	0-95325-035-0	02	1	1410-
286	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=350 THA	1-09707-183-0	05	1	1410-
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350 THA	1-09707-183-0	01	1	1410-
287	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=6.35 & 6.35 THA	1-09709-273-1	01	1	1410-
297	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	02	1	1410-
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350 THA	1-09707-183-0	21	1	1410-
306	CLIP; NYLON TUBE WHEEL BASE 5500MM<55W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> L=350 THA	1-09707-183-0	15	1	1410-
306	CLIP; NYLON TUBE WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350 THA	1-09707-183-0	22	1	1410-
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350 THA	1-09707-183-0	23	1	1410-
306	CLIP; NYLON TUBE WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> L=350 THA	1-09707-183-0	17	1	1410-
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=6.35 & 15 THA	1-09709-276-1	05	1	1410-
318	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=6.35 & 15 THA	1-09709-276-1	03	1	1410-
320	CLIP; BAND,FLEX FIX L=250 THA	5-09707-030-1	01	1	1410-
372	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
372	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
375	CLIP; AIR PIPE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> L=350 THA	1-09707-183-0	01	1	1410-
375	CLIP; AIR PIPE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=350 THA	1-09707-183-0	01	1	1410-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=60 H=30 THA	1-47477-716-1	01	1	1410-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=90 THA	1-47477-755-1	01	1	1410-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98044-013-0	01	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
