◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#150429) — 87 parça

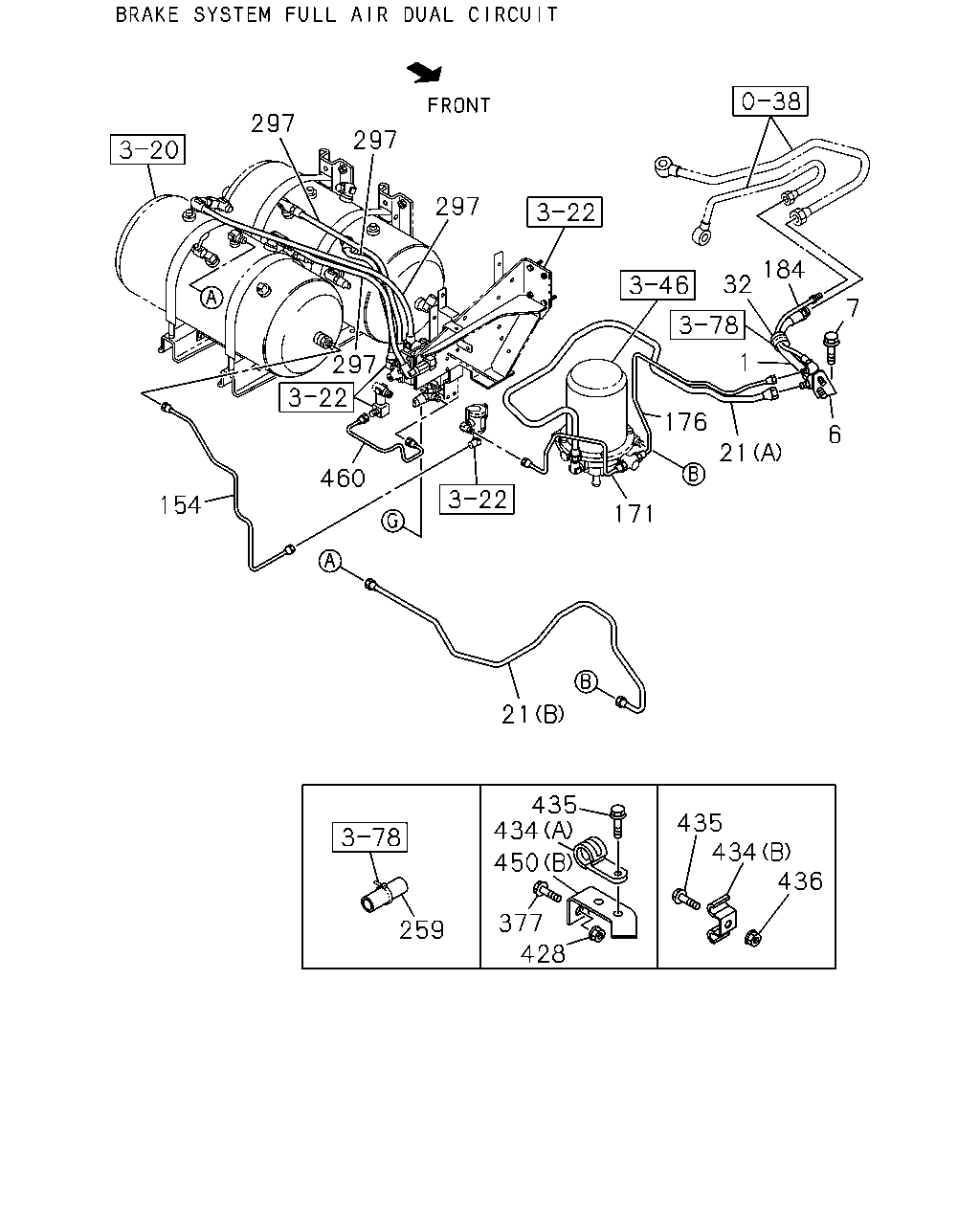

çizim 450355
297 297 297 154 460 297 171 21 176 21 259 428 377 450 434 435 435 434 436 1 6 7 184 32
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=310 THA 		8-97607-730-0 01 1 1410-
6 BRACKET; FLEX HOSE,AIR TANK
THA 		8-98117-117-0 01 1 1410-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE THA 		0-28650-830-0 02 1 1410-
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=1713 THA 		8-98189-194-0 01 1 1410-
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) L=1386 THA 		8-98172-719-0 01 1 1410-
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=1545 THA 		8-98211-175-0 01 1 1410-
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 THA 		1-09337-023-0 01 1 1410-
154 PIPE; AIR,AIR TANK TO AIR GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=480 THA 		8-98173-962-0 01 1 1410-
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=515 SERVICED BY L=550 THA 		1-47428-808-0 01 1 1410-
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=507 SERVICED BY L=550 THA 		1-47428-808-0 01 1 1410-
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=1427 SERVICED BY L=1500 THA 		1-47428-819-0 01 1 1410-
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=864 SERVICED BY L=900 THA 		1-47428-813-0 01 1 1410-
184 HOSE; FLEX,AIR GOV
L=350 THA 		1-09363-624-0 01 1 1410-
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=29 OD=39 L=40 THA 		1-09337-013-0 01 1 1410-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410-
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
377 BOLT; BRKT FIX
M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 02 1 1410-
428 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA 		0-91180-108-0 01 1 1410-
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=16 & 7 L=21 & 17 THA 		1-09700-675-0 02 1 1410-
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=16 L=20 THA 		0-95235-536-0 01 1 1410-
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=16 & 13 L=21.5 & 21.5 THA 		1-09700-668-0 02 1 1410-
435 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
435 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=90 B=25 THA 		1-47475-530-0 01 1 1410-
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=115 B=25 THA 		1-47476-758-0 01 1 1410-
450 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98232-692-0 01 1 1410-
460 PIPE; AIR,PROTECTION VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98184-394-0 01 1 1410-

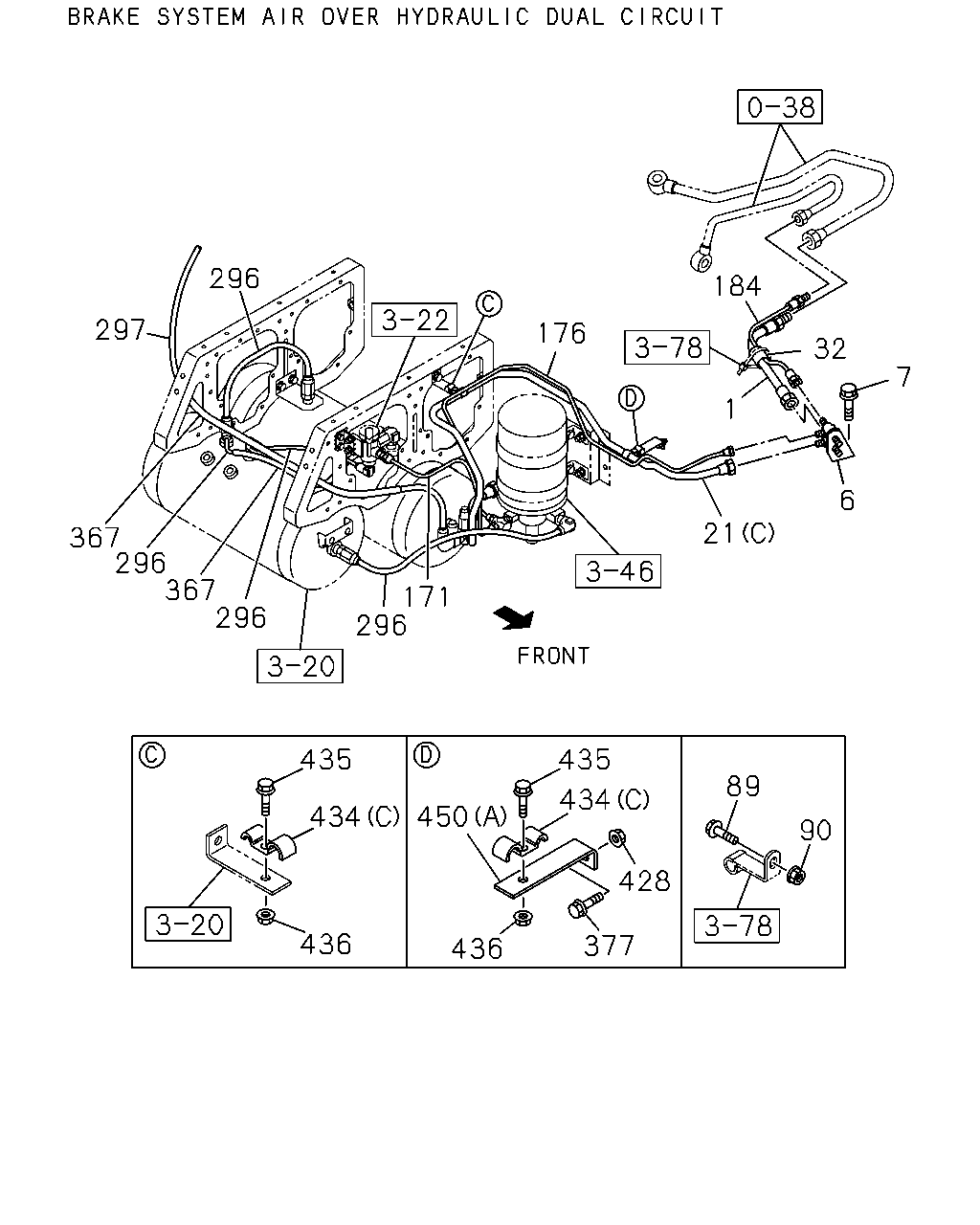

çizim 450448
297 296 176 184 32 7 21 6 171 296 296 367 296 367 436 434 435 450 435 434 428 377 436 90 89
BalonParca AdiParca NoAdetTipApplied Date
6 BRACKET; FLEX HOSE,AIR TANK
THA 		8-98117-117-0 01 1 1410-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE THA 		0-28650-830-0 02 1 1410-
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=1713 THA 		8-98189-194-0 01 1 1410-
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) L=1386 THA 		8-98172-719-0 01 1 1410-
21 PIPE; AIR,UNION TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) L=1545 THA 		8-98211-175-0 01 1 1410-
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 THA 		1-09337-023-0 01 1 1410-
89 BOLT; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
90 NUT; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 01 1 1410-
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=515 SERVICED BY L=550 THA 		1-47428-808-0 01 1 1410-
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=507 SERVICED BY L=550 THA 		1-47428-808-0 01 1 1410-
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=1427 SERVICED BY L=1500 THA 		1-47428-819-0 01 1 1410-
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=864 SERVICED BY L=900 THA 		1-47428-813-0 01 1 1410-
184 HOSE; FLEX,AIR GOV
L=350 THA 		1-09363-624-0 01 1 1410-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 AR 1 1410-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1410-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1410-
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
377 BOLT; BRKT FIX
M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
428 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 02 1 1410-
428 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA 		0-91180-108-0 01 1 1410-
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=16 & 7 L=21 & 17 THA 		1-09700-675-0 02 1 1410-
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) ID=16 L=20 THA 		0-95235-536-0 01 1 1410-
434 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) ID=16 & 13 L=21.5 & 21.5 THA 		1-09700-668-0 02 1 1410-
435 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
435 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
436 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=90 B=25 THA 		1-47475-530-0 01 1 1410-
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=115 B=25 THA 		1-47476-758-0 01 1 1410-
450 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98232-692-0 01 1 1410-

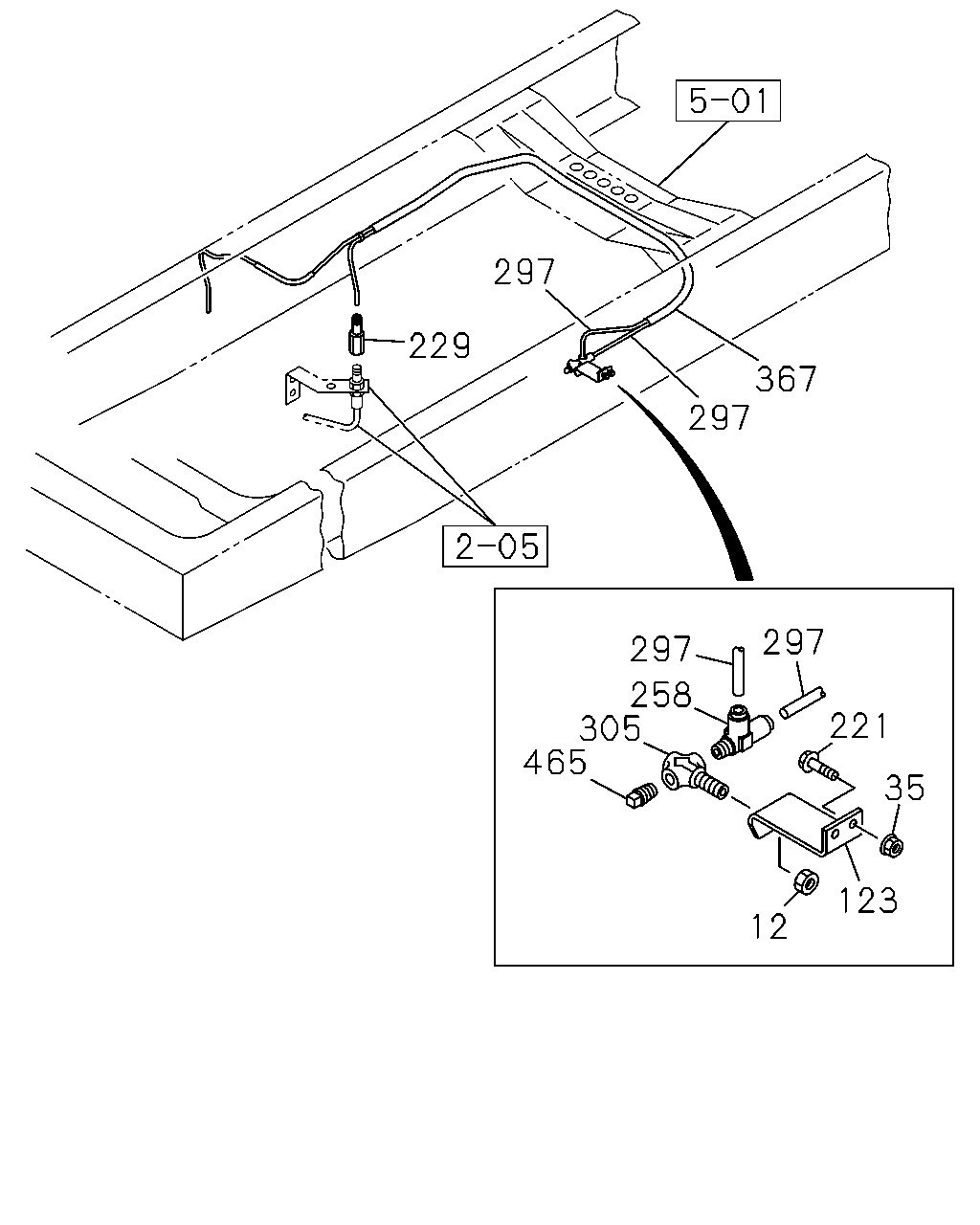

çizim 450517
297 229 367 297 297 297 258 221 305 465 35 123 12
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M12 THA 		0-91111-512-0 01 1 1410-
35 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE THA 		0-91180-108-0 02 1 1410-
123 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> THA 		8-98118-545-0 01 1 1410-
221 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> M8X35 FLANGE THA 		0-28650-835-0 02 1 1410-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410-
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> DIN8X2 & R1/4 3WAY THA 		1-09661-006-0 01 1 1410-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 THA 		1-87411-006-0 AR 1 1410-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1410-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1410-
305 UNION ASM; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> THA 		8-98120-049-0 01 1 1410-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1410-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1410-
465 PLUG
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. TRANSMISSION SIDE PTO WO/LEVER<SH5> PT1/4 THA 		9-99204-513-0 01 1 1410-

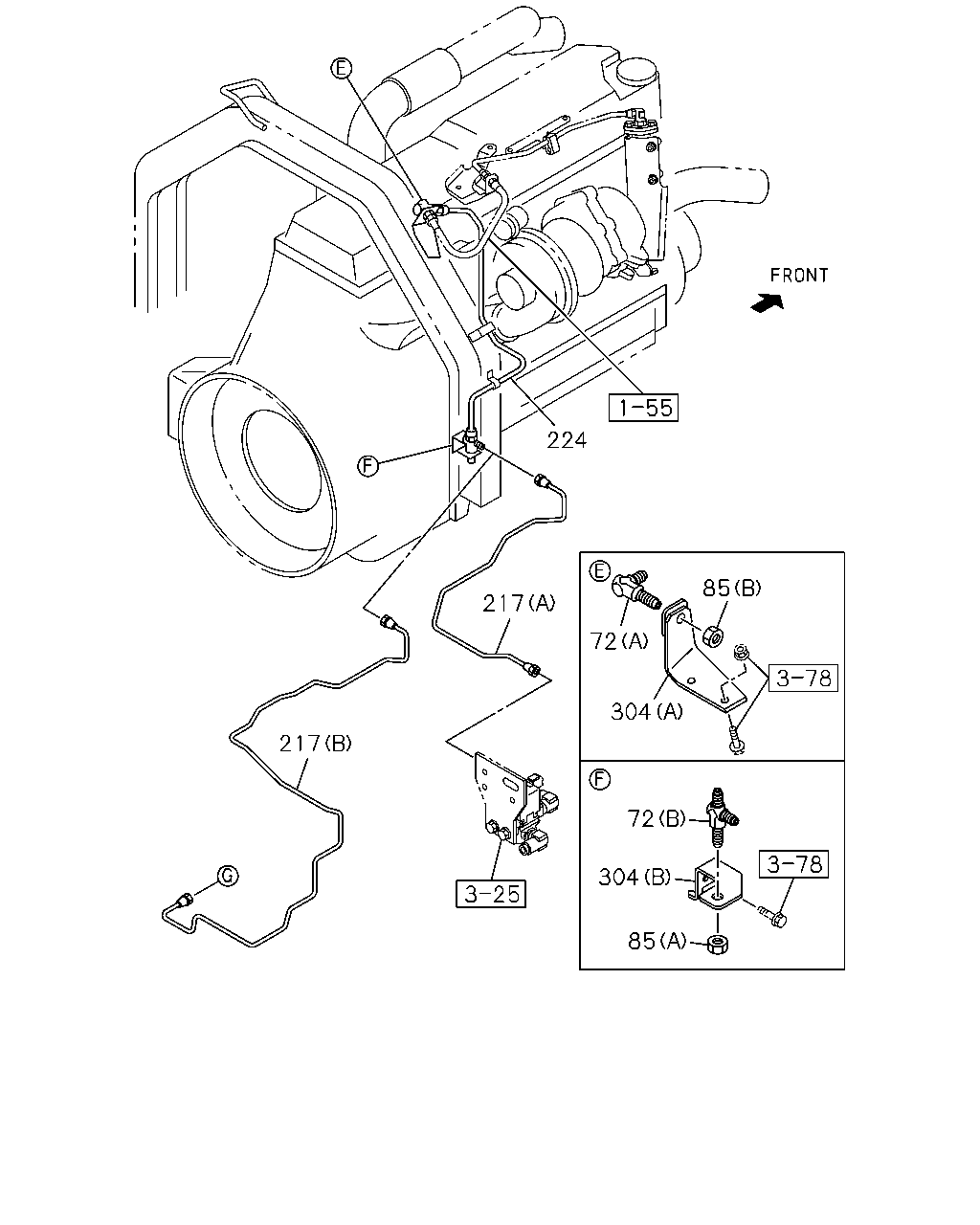

çizim 450578
224 217 217 85 72 304 72 304 85
BalonParca AdiParca NoAdetTipApplied Date
72 UNION; AIR PIPE
(A) M12 ELBOW THA 		0-92125-006-0 01 1 1410-
72 UNION; AIR PIPE
(B) M12 2WAY THA 		1-09654-059-2 01 1 1410-
85 NUT; UNION
(A) M12 THA 		0-91111-512-0 01 1 1410-
85 NUT; UNION
(B) M12 THA 		9-09840-280-0 01 1 1410-
217 PIPE; VAC,UNION TO MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=1042 SERVICED BY L=1100 THA 		1-47428-815-0 01 1 1410-
217 PIPE; VAC,UNION TO MAG VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) L=1897 SERVICED BY L=2000 THA 		1-47428-823-0 01 1 1410-
224 PIPE; AIR,UNION TO FLEX HOSE
L=667 SERVICED BY L=700 THA 		1-47428-811-0 01 1 1410-
304 BRACKET; UNION
(B) THA 		8-98211-164-1 01 1 1410-
304 BRACKET; UNION
(A) THA 		8-98229-691-0 01 1 1410-
