3-55 — BRAKE PIPING; OIL,REAR (#150427) — 57 parça

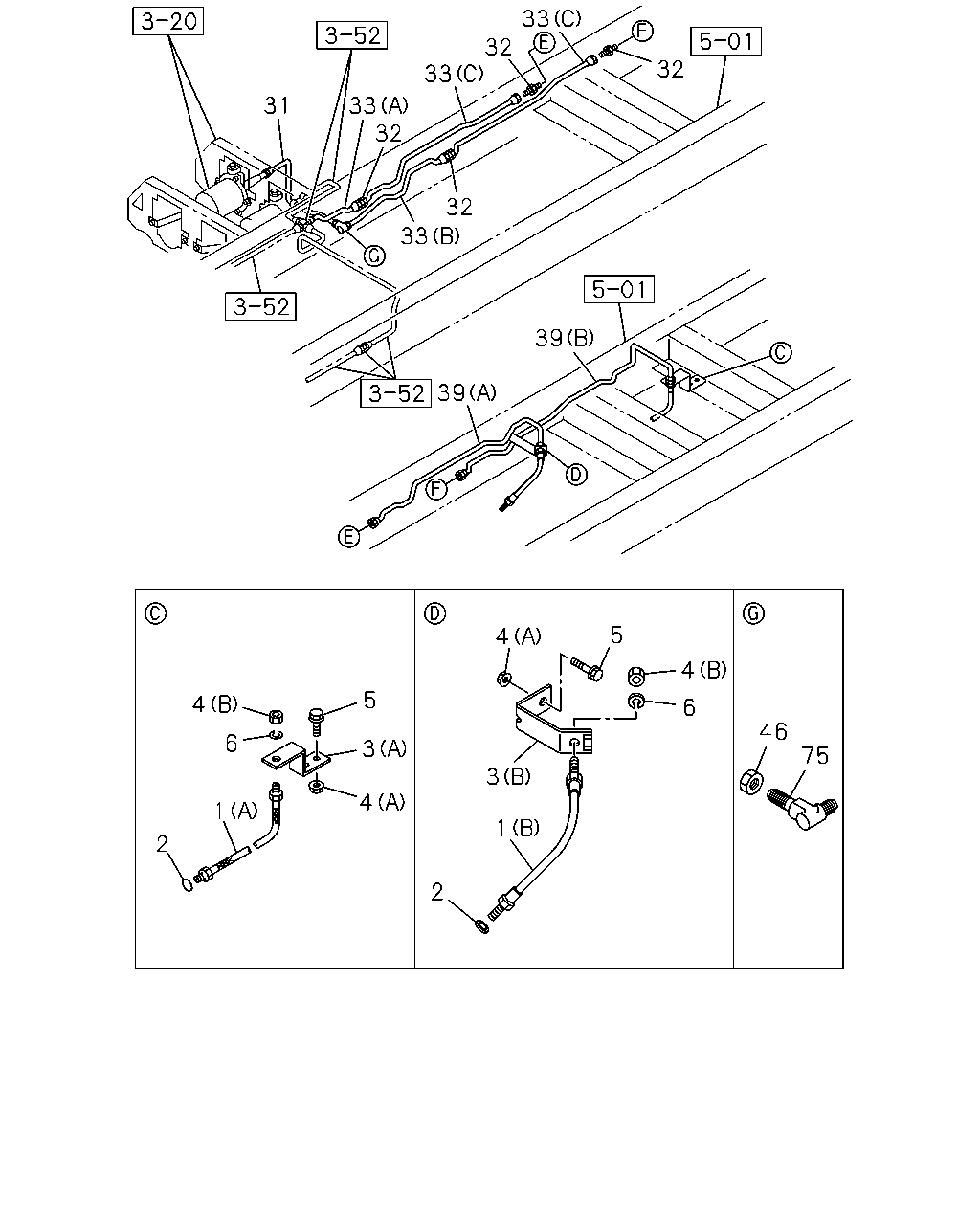

39 39 33 31 32 32 33 46 75 4 5 4 6 3 1 2 5 3 4 1 2 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=525 THA	1-09364-191-0	01	1	1410-
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=675 THA	1-09364-201-0	01	1	1410-
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=9 OD=17 THA	9-09920-472-0	02	1	1410-
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47465-608-0	01	1	1410-
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47475-357-2	01	1	1410-
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12 THA	9-09840-280-0	02	1	1410-
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M8 FLANGE THA	0-91180-108-0	04	1	1410-
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	04	1	1410-
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=12.2 THA	0-91510-512-0	02	1	1410-
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=646 SERVICED BY L=650 THA	1-47428-726-0	01	1	1410-
32	UNION; OIL PIPE WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 L=40 THA	0-92113-006-0	02	1	1410-
32	UNION; OIL PIPE WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 L=40 THA	0-92113-006-0	04	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=1580 SERVICED BY L=1620 THA	1-47428-736-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=1722 SERVICED BY L=1820 THA	1-47428-738-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5800MM<58W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=1922 SERVICED BY L=2000 THA	1-47428-739-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5800MM<58W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=2064 SERVICED BY L=2200 THA	1-47428-740-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM<63W>,WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=2430 SERVICED BY L=2500 THA	1-47428-742-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM<63W>,WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=2572 SERVICED BY L=2650 THA	1-47428-743-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=743 SERVICED BY L=800 THA	1-47428-728-0	02	1	1410-
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=856 SERVICED BY L=900 THA	1-47428-729-0	01	1	1410-
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=2401 SERVICED BY L=2500 THA	1-47428-742-0	01	1	1410-
46	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 THA	9-09840-280-0	01	1	1410-
75	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 ELBOW THA	0-92125-206-0	01	1	1410-

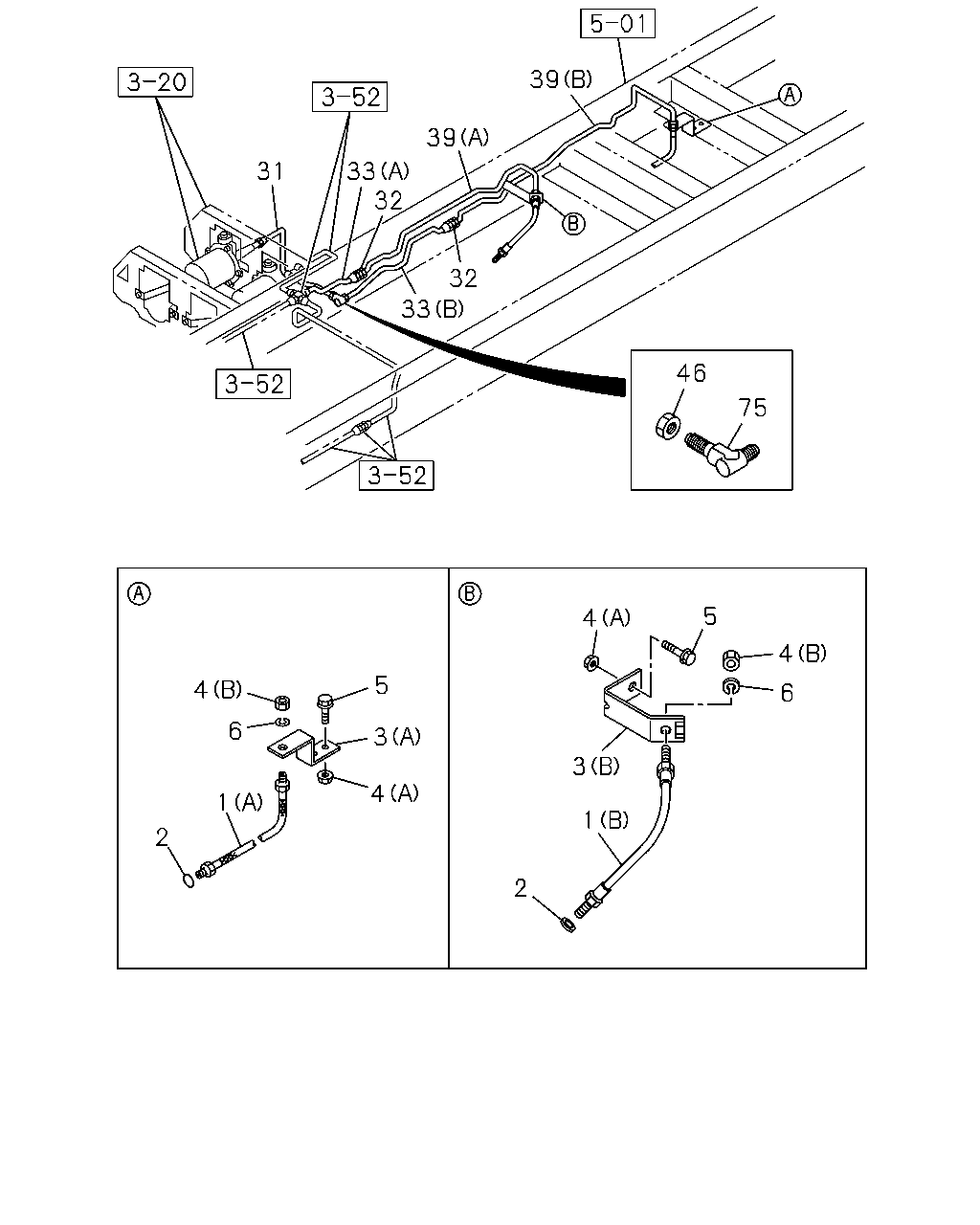

33 32 33 33 32 31 32 32 33 39 39 4 5 6 3 4 1 2 4 5 4 6 3 1 2 46 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=525 THA	1-09364-191-0	01	1	1410-
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=675 THA	1-09364-201-0	01	1	1410-
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=9 OD=17 THA	9-09920-472-0	02	1	1410-
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47465-608-0	01	1	1410-
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47475-357-2	01	1	1410-
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12 THA	9-09840-280-0	02	1	1410-
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M8 FLANGE THA	0-91180-108-0	04	1	1410-
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	04	1	1410-
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=12.2 THA	0-91510-512-0	02	1	1410-
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=646 SERVICED BY L=650 THA	1-47428-726-0	01	1	1410-
32	UNION; OIL PIPE WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 L=40 THA	0-92113-006-0	02	1	1410-
32	UNION; OIL PIPE WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 L=40 THA	0-92113-006-0	04	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=1580 SERVICED BY L=1620 THA	1-47428-736-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5500MM<55W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=1722 SERVICED BY L=1820 THA	1-47428-738-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5800MM<58W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=1922 SERVICED BY L=2000 THA	1-47428-739-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5800MM<58W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=2064 SERVICED BY L=2200 THA	1-47428-740-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM<63W>,WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=2430 SERVICED BY L=2500 THA	1-47428-742-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM<63W>,WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=2572 SERVICED BY L=2650 THA	1-47428-743-0	01	1	1410-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 7100MM<71W> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=743 SERVICED BY L=800 THA	1-47428-728-0	02	1	1410-
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=856 SERVICED BY L=900 THA	1-47428-729-0	01	1	1410-
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=2401 SERVICED BY L=2500 THA	1-47428-742-0	01	1	1410-
46	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 THA	9-09840-280-0	01	1	1410-
75	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 ELBOW THA	0-92125-206-0	01	1	1410-

13 11 1 10 13 2 13 11 10 13 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=525 THA	1-09364-191-0	01	1	1410-
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=675 THA	1-09364-201-0	01	1	1410-
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=9 OD=17 THA	9-09920-472-0	02	1	1410-
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-09903-668-3	01	1	1410-
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-09903-668-3	01	1	1410-
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X25 W/LK WASHER THA	0-50541-025-0	01	1	1410-
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X25 W/LK WASHER THA	0-50541-025-0	01	1	1410-
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) FORWARD THA	8-97922-651-0	01	1	1410-
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) FORWARD THA	8-97922-737-0	01	1	1410-
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) REARWARD THA	8-97922-653-0	01	1	1410-
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) REARWARD THA	8-97922-654-0	01	1	1410-
