◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#150426) — 15 parça

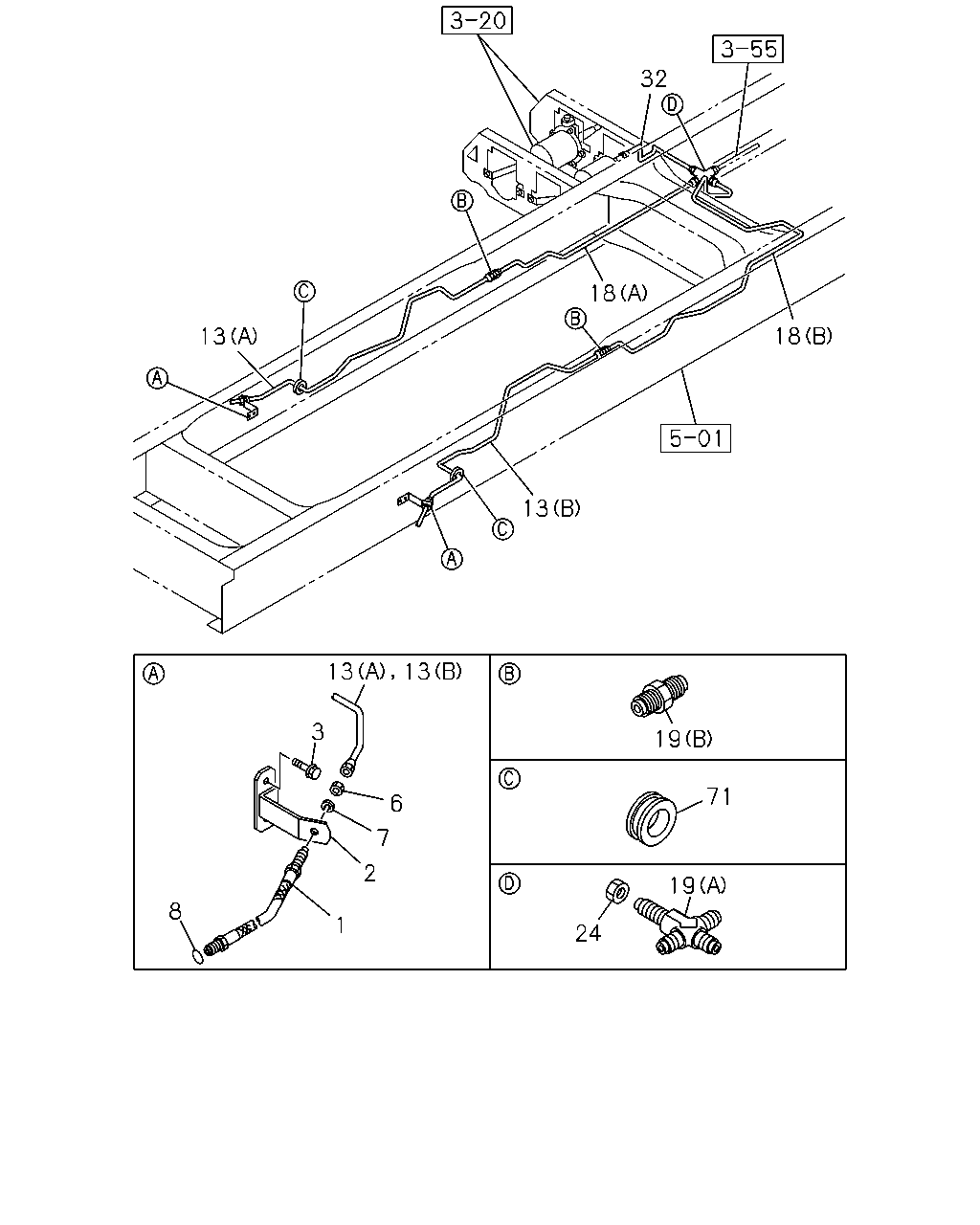

çizim 450383
32 18 18 13 13 13 13 3 6 7 2 1 8 19 71 19 24
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=610 THA 		0-05212-610-0 02 1 1410-
2 BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98177-524-0 02 1 1410-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA 		0-28650-825-0 04 1 1410-
6 NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 THA 		9-09840-280-0 02 1 1410-
7 WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=12.2 THA 		0-91510-512-0 02 1 1410-
8 GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=9 OD=17 THA 		9-09920-472-0 02 1 1410-
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=1506 THA 		8-98219-200-0 01 1 1410-
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=1458 SERVICED BY L=1500 THA 		1-47428-735-0 01 1 1410-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=577 SERVICED BY L=600 THA 		1-47428-725-0 01 1 1410-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=2001 SERVICED BY L=2200 THA 		1-47428-740-0 01 1 1410-
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12 L=40 THA 		0-92113-006-0 02 1 1410-
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA 		1-09656-019-1 01 1 1410-
24 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14 THA 		0-91110-514-0 01 1 1410-
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=381 THA 		8-98184-180-0 01 1 1410-
71 GROMMET; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=24 OD=30 T=17 THA 		9-09956-092-1 02 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
