◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#150424) — 34 parça

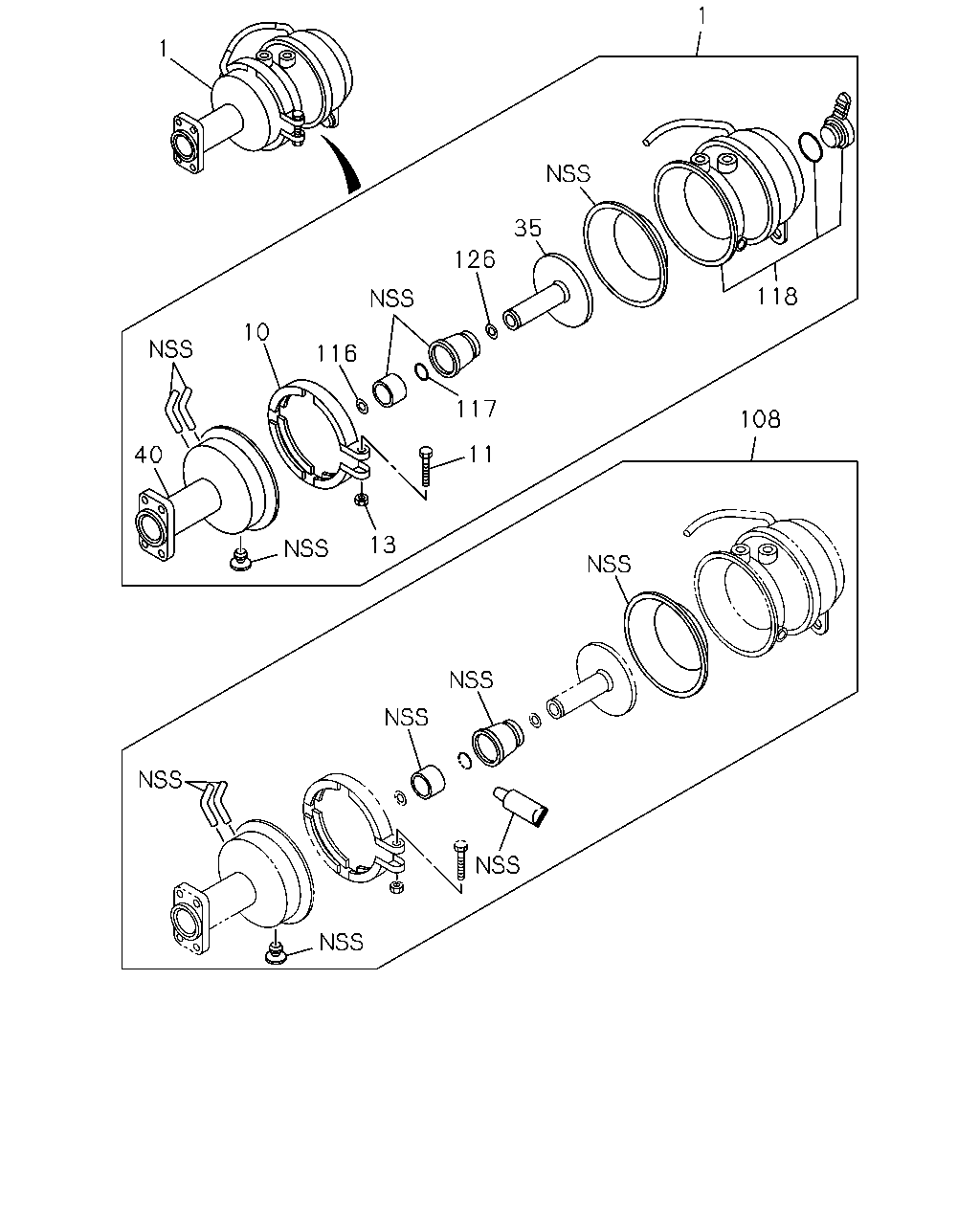

çizim 450345
1 1 35 126 116 10 40 13 11 117 108 118
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		1-87412-461-0 01 1 1410-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		1-87412-462-0 01 1 1410-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		1-87412-459-0 01 1 1410-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		1-87412-460-0 01 1 1410-
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		1-48269-256-0 02 1 1410-
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		8-98167-056-0 02 1 1410-
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48269-257-0 02 1 1410-
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48269-257-0 02 1 1410-
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48269-147-0 02 1 1410-
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48269-147-0 02 1 1410-
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		8-98146-972-0 02 1 1410-
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		8-98146-971-0 02 1 1410-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		1-48251-134-1 01 1 1410-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		1-48251-135-1 01 1 1410-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		1-48251-138-1 01 1 1410-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		1-48251-139-1 01 1 1410-
108 REPAIR KIT; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		8-98146-982-0 02 1 1410-
108 REPAIR KIT; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		8-98146-981-0 02 1 1410-
116 GUIDE; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-963-0 02 1 1410-
116 GUIDE; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-963-0 02 1 1410-
117 RING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-966-0 02 1 1410-
117 RING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-966-0 02 1 1410-
118 CHAMBER; PIGGY BACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		1-87412-111-0 01 1 1410-
118 CHAMBER; PIGGY BACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		1-87412-112-0 01 1 1410-
118 CHAMBER; PIGGY BACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		1-87412-107-0 01 1 1410-
118 CHAMBER; PIGGY BACK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		1-87412-108-0 01 1 1410-
126 SHIM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-965-0 AR 1 1410-
126 SHIM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-965-0 AR 1 1410-
çizim 450380
1 32 1 32 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		1-87412-461-0 01 1 1410-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA 		1-87412-462-0 01 1 1410-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		1-87412-459-0 01 1 1410-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA 		1-87412-460-0 01 1 1410-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1410-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN12 & R3/8 ELBOW THA 		1-09660-959-0 04 1 1410-
