◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11649 - FVM THAILAND EURO3 ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#150423) — 11 parça

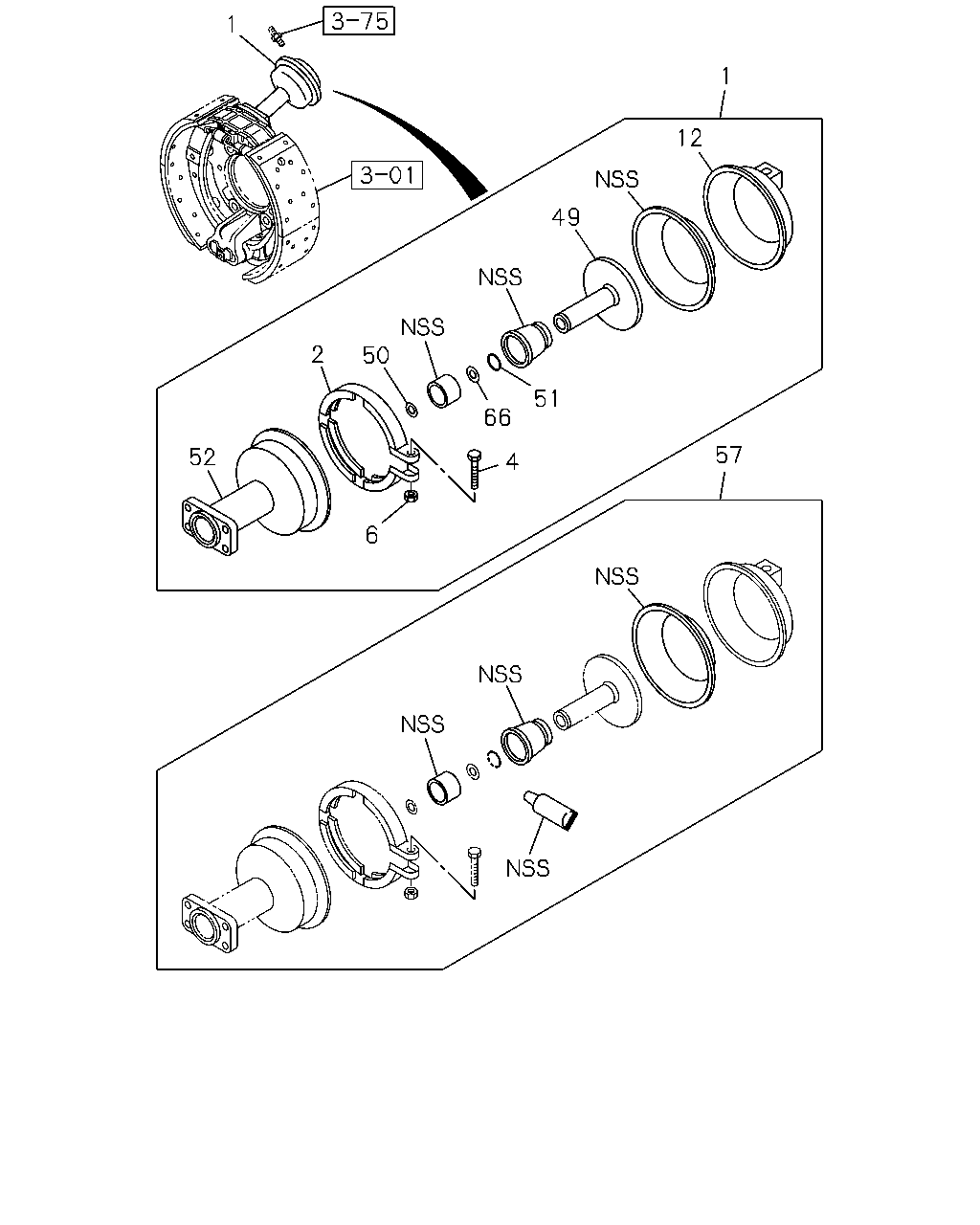

çizim 450799
1 1 12 49 51 66 50 2 6 4 52 57
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-97948-366-0 02 1 1410-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48269-256-0 02 1 1410-
4 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48269-257-0 02 1 1410-
6 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48269-147-0 02 1 1410-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48251-103-0 02 1 1410-
49 ROD; PUSH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-969-0 02 1 1410-
50 GUIDE; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-963-0 02 1 1410-
51 RING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-966-0 02 1 1410-
52 HOUSING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98248-793-0 02 1 1410-
57 REPAIR KIT; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-978-0 02 1 1410-
66 SHIM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98146-965-0 AR 1 1410-
