Isuzu WW
▶
TRUCKS
▶
FVM
▶
11649 - FVM THAILAND EURO3
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#150420) — 32 parça
◀

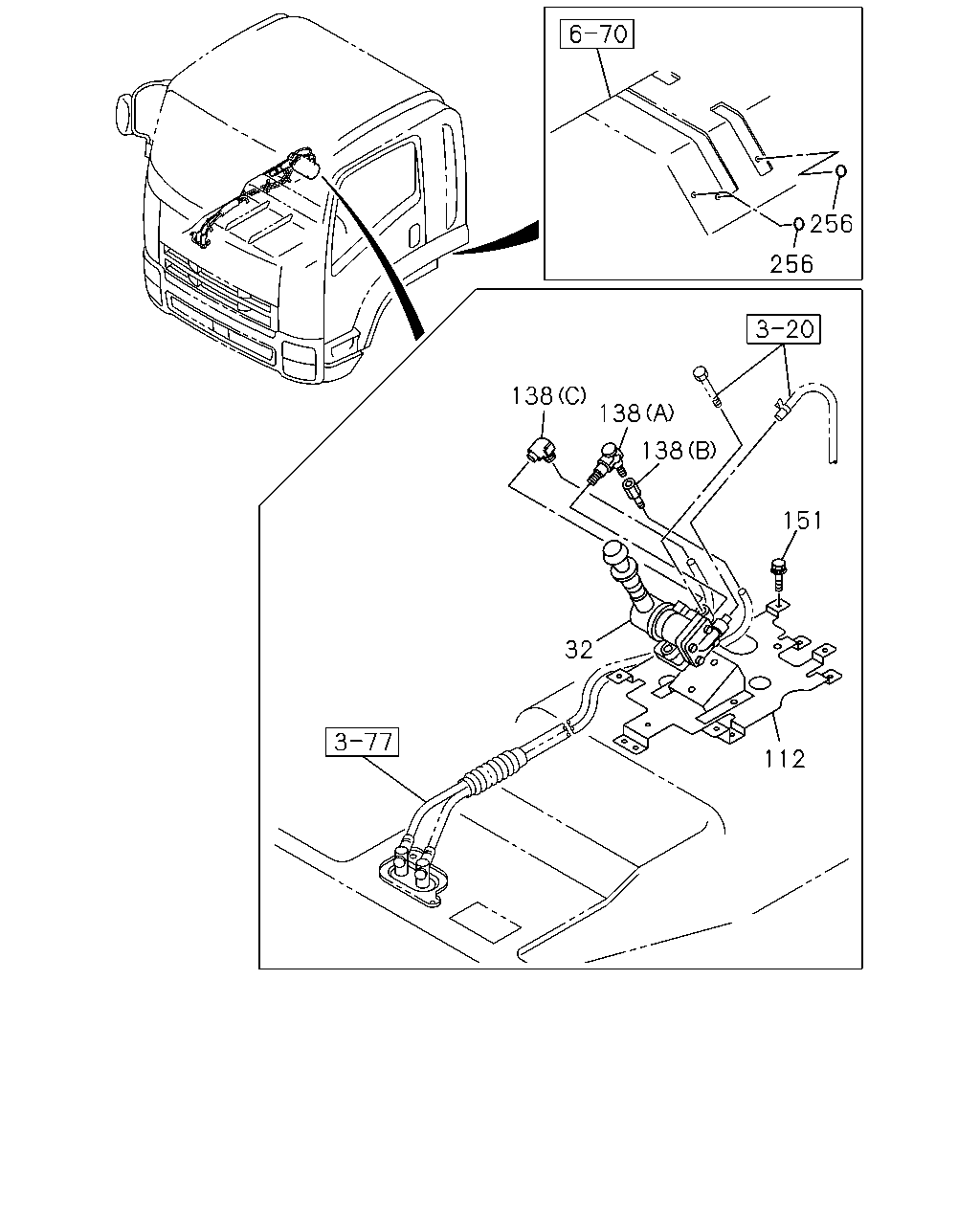

[326A] FIXING (7 parça)

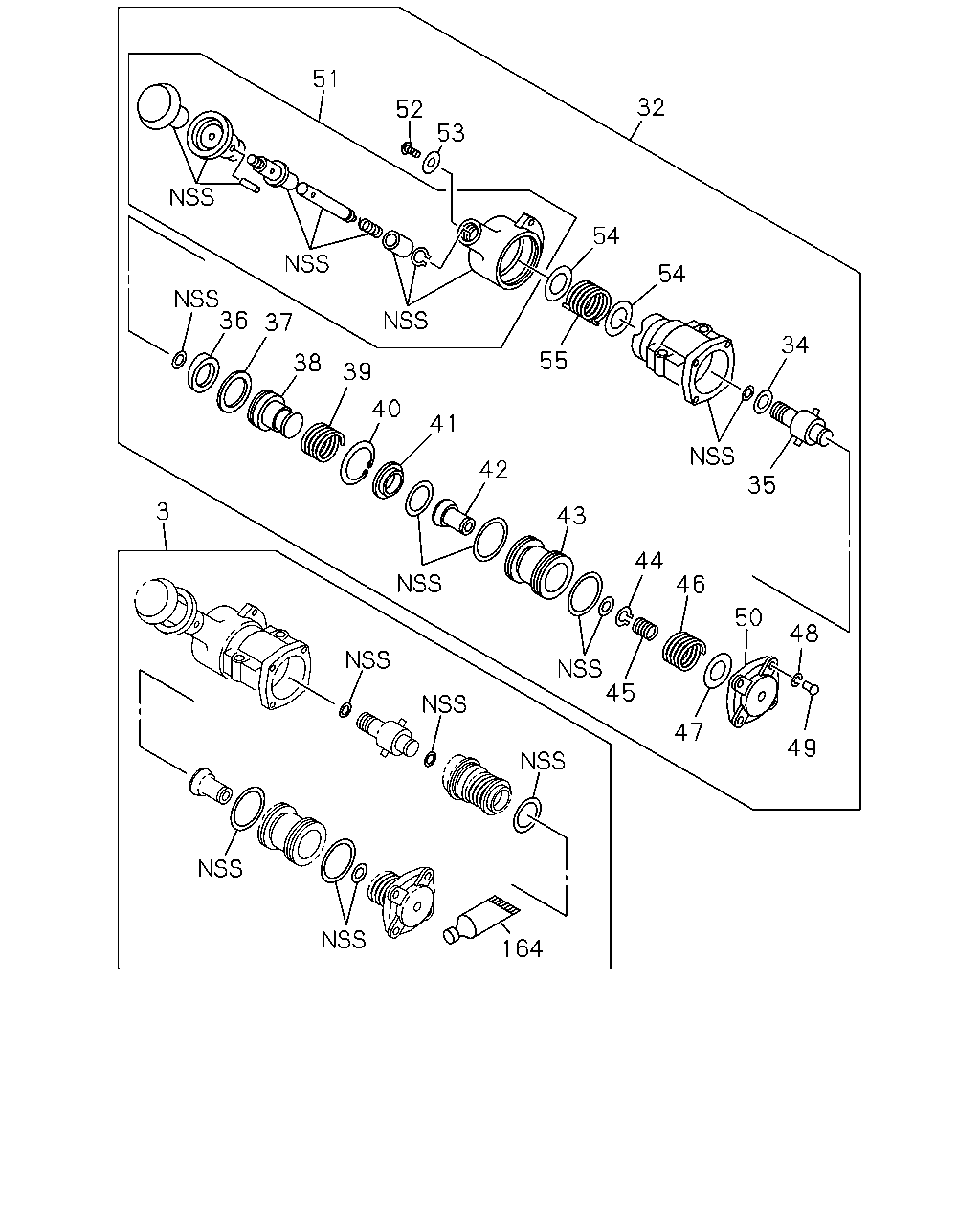

[326A] COMPONENT AND REPAIR KIT (25 parça)
▶
256
256
138
138
138
151
112
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48460-306-0
01
1
1410-
112
BRACKET; CONT VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-73908-054-7
01
1
1410-
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) THA
1-09650-240-1
01
1
1410-
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) DIN8 & M14 STRAIGHT THA
1-09660-874-0
01
1
1410-
138
CONNECTOR; DELIVERY
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (C) DIN8 & R1/4 ELBOW THA
1-09660-956-0
01
1
1410-
151
BOLT; VLV BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M6X16 THA
0-52000-616-0
04
1
1410-
256
SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=25 BLACK THA
1-76798-019-0
08
1
1410-
32
51
52
53
54
54
34
35
55
36
37
38
39
40
41
42
43
44
46
50
48
49
47
45
3
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-096-0
01
1
1410-
32
VALVE; BRK,HAND CONT
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48460-306-0
01
1
1410-
34
SHIM; CAM HOLDER
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-055-0
AR
1
1410-
35
HOLDER; CAM
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-054-0
01
1
1410-
36
RING; CAM
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-056-0
01
1
1410-
37
GUIDE; CAM RING
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-058-0
01
1
1410-
38
SEAT; EXH VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-057-0
01
1
1410-
39
SPRING; RETURN,CAM RING
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-063-0
01
1
1410-
40
RING; SNAP
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-067-0
01
1
1410-
41
SEAT; FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-066-0
01
1
1410-
42
VALVE; FEED
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-065-0
01
1
1410-
43
PISTON; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-064-0
01
1
1410-
44
RING; SNAP,FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-068-0
02
1
1410-
45
SPRING; FEED VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-070-0
01
1
1410-
46
SPRING; MAIN,PISTON
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-089-0
01
1
1410-
47
SHIM; MAIN SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-072-0
AR
1
1410-
48
WASHER; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-091-0
04
1
1410-
49
SCREW; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-092-0
04
1
1410-
50
COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-090-0
01
1
1410-
51
HANDLE ASM; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-122-0
01
1
1410-
52
SCREW; HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-062-0
01
1
1410-
53
WASHER; HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-061-0
01
1
1410-
54
SEAT; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-082-0
02
1
1410-
55
SPRING; RETURN,HANDLE
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-059-0
01
1
1410-
164
GREASE; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> THA
1-48469-084-0
01
1
1410-
