3-20 — AIR TANK (#150417) — 201 parça

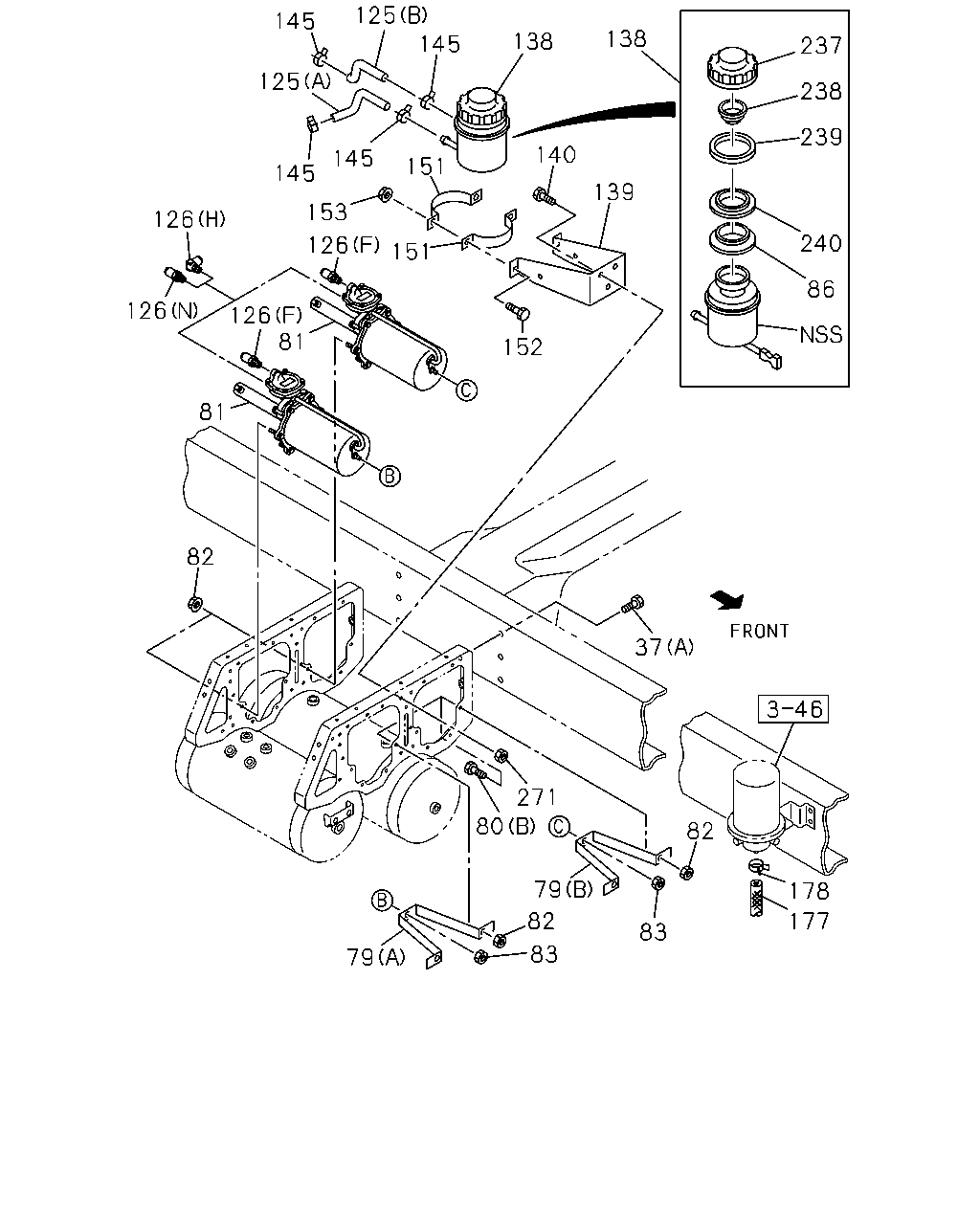

çizim 448546
237 238 239 240 86 79 83 82 79 83 82 178 177 80 271 82 81 37 126 126 126 81 145 125 145 153 126 151 152 125 145 151 145 138 140 139 138
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12X40 FLANGE THA 		0-28651-240-0 06 1 1410-
37 BOLT; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1410-
37 BOLT; AIR TANK
(B) M10X45 FLANGE THA 		0-28051-045-0 04 1 1410-
79 STAY; AIR MASTER TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA 		1-53318-348-0 01 1 1410-
79 STAY; AIR MASTER TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA 		8-98120-254-0 01 1 1410-
80 BOLT; BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 1410-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA 		0-28651-030-0 04 1 1410-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> SECONDARY THA 		1-47800-794-0 01 1 1410-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> PRIMARY THA 		1-47800-795-0 01 1 1410-
82 NUT; STAY,AIR MASTER BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 04 1 1410-
83 NUT; AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 10 1 1410-
86 SEAL; DUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-47529-019-0 01 1 1410-
125 HOSE; OIL TANK TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA 		1-47469-118-0 01 1 1410-
125 HOSE; OIL TANK TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA 		1-47469-119-0 01 1 1410-
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) THA 		1-09656-698-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT THA 		1-09660-877-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (N) DIN12 & R1/2 STRAIGHT THA 		1-09660-966-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY THA 		1-09661-007-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) THA 		1-09650-283-1 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98166-127-0 01 1 1410-
138 TANK ASM; OIL,AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-47530-185-1 01 1 1410-
139 BRACKET; OIL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		8-98174-721-0 01 1 1410-
140 BOLT; OIL TANK TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X25 FLANGE THA 		0-28651-025-0 03 1 1410-
145 CLIP; OIL TANK TO AIR MASTER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 THA 		1-09704-102-0 04 1 1410-
151 BAND; OIL TANK,AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-47537-056-2 02 1 1410-
152 BOLT; OIL TANK TO BAND
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA 		0-28650-820-0 02 1 1410-
153 NUT; OIL TANK TO BAND
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 THA 		0-91110-508-0 02 1 1410-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 1410-
178 CLIP; HOSE
ID=21 THA 		8-94242-034-0 01 1 1410-
237 CAP; OIL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-47525-030-0 01 1 1410-
238 PLATE; BAFFLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-47529-022-0 01 1 1410-
239 FILTER; DUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-47529-017-0 01 1 1410-
240 HOLDER; FILTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-47529-018-0 01 1 1410-
271 NUT; BRKT,HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 03 1 1410-

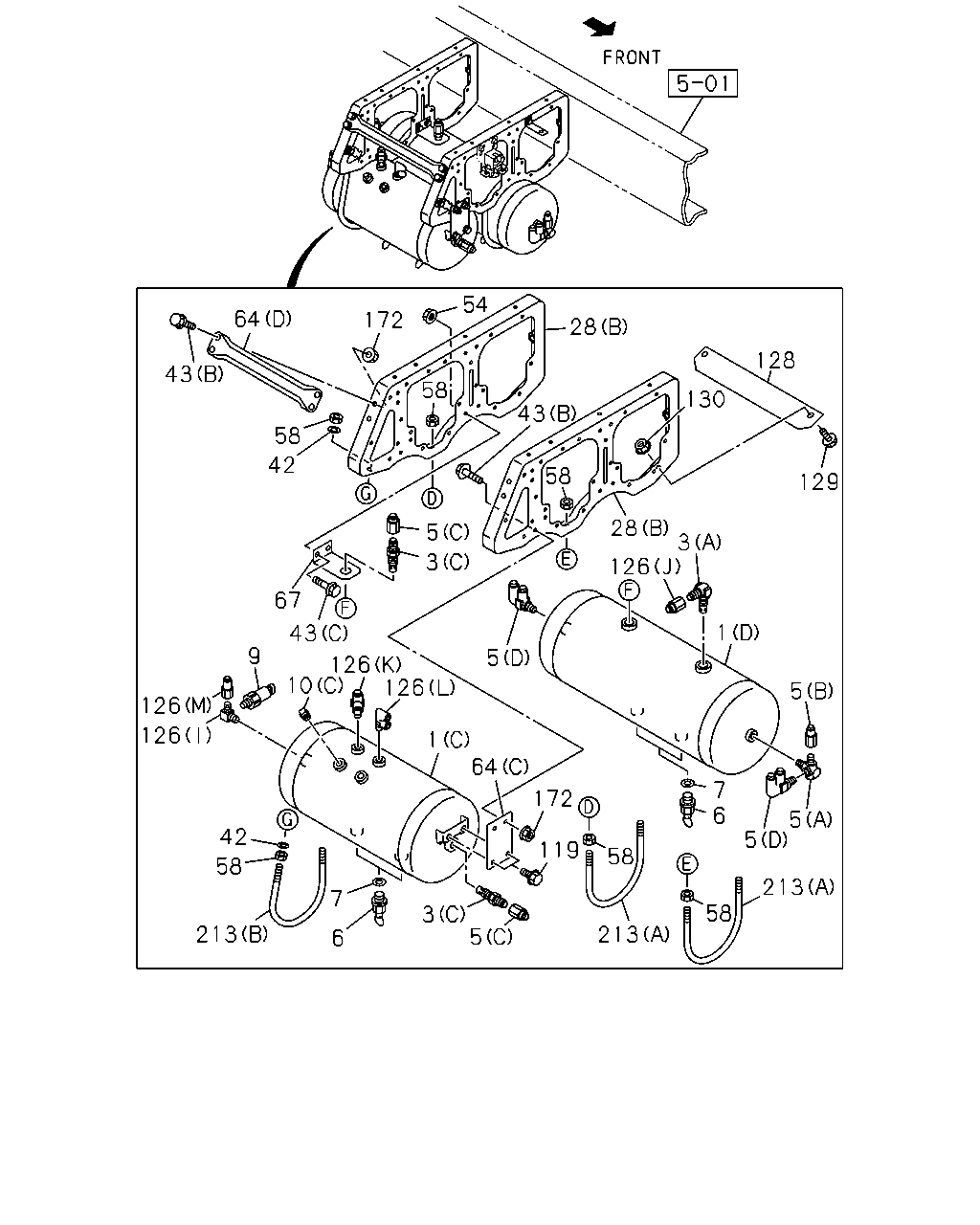

çizim 449028
43 64 58 42 172 54 58 28 43 5 3 58 130 128 129 28 3 126 67 43 9 126 126 10 126 126 1 64 5 42 58 213 7 6 3 5 172 119 58 213 58 213 5 6 7 1 5 5
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA 		8-97948-040-0 01 1 1410-
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) THA 		8-97948-041-0 01 1 1410-
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-98202-945-0 01 1 1410-
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98202-946-0 01 1 1410-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA 		1-48410-182-3 02 1 1410-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48320-031-1 01 1 1410-
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 ELBOW THA 		1-48410-412-0 01 1 1410-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) DIN12 & M16 STRAIGHT THA 		1-09660-876-0 01 1 1410-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) DIN12 & M20 STRAIGHT THA 		1-09660-877-0 02 1 1410-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 1410-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M16 & R3/8 THA 		8-98204-239-0 01 1 1410-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-48312-015-0 05 1 1410-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48312-015-0 04 1 1410-
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 THA 		1-09630-145-0 05 1 1410-
7 GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14 THA 		1-09630-145-0 04 1 1410-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> STAMP 5.5 THA 		8-97609-249-0 01 1 1410-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> STAMP 5.5 THA 		8-97609-249-0 04 1 1410-
10 PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) PT1/4 THA 		9-99204-513-0 01 1 1410-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 THA 		9-09204-517-0 01 1 1410-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4 THA 		9-09204-526-0 03 1 1410-
28 BRACKET; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA 		8-98174-720-0 02 1 1410-
28 BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-97948-888-0 02 1 1410-
42 WASHER; PL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=8.4 OD=18 THA 		0-91610-608-0 04 1 1410-
42 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5 THA 		0-91614-510-0 02 1 1410-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA 		0-28651-030-0 06 1 1410-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1410-
54 NUT; STAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 02 1 1410-
58 NUT; BAND,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 THA 		0-91110-508-0 12 1 1410-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) THA 		1-53318-293-1 01 1 1410-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		1-48317-607-0 01 1 1410-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48317-691-0 01 1 1410-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA 		8-97948-205-0 01 1 1410-
67 STAY; SUB TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-48317-321-2 01 1 1410-
119 BOLT; STAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) THA 		1-09656-698-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT THA 		1-09660-877-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (N) DIN12 & R1/2 STRAIGHT THA 		1-09660-966-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY THA 		1-09661-007-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) THA 		1-09650-283-1 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98166-127-0 01 1 1410-
128 PROTECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-53319-018-0 01 1 1410-
129 BOLT; PROTECTOR FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA 		0-28650-830-0 02 1 1410-
130 NUT; PROTECTOR FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 02 1 1410-
172 NUT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 06 1 1410-
213 BOLT; U AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA 		1-48317-301-0 02 1 1410-
213 BOLT; U AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA 		1-48317-302-0 01 1 1410-
çizim 449035

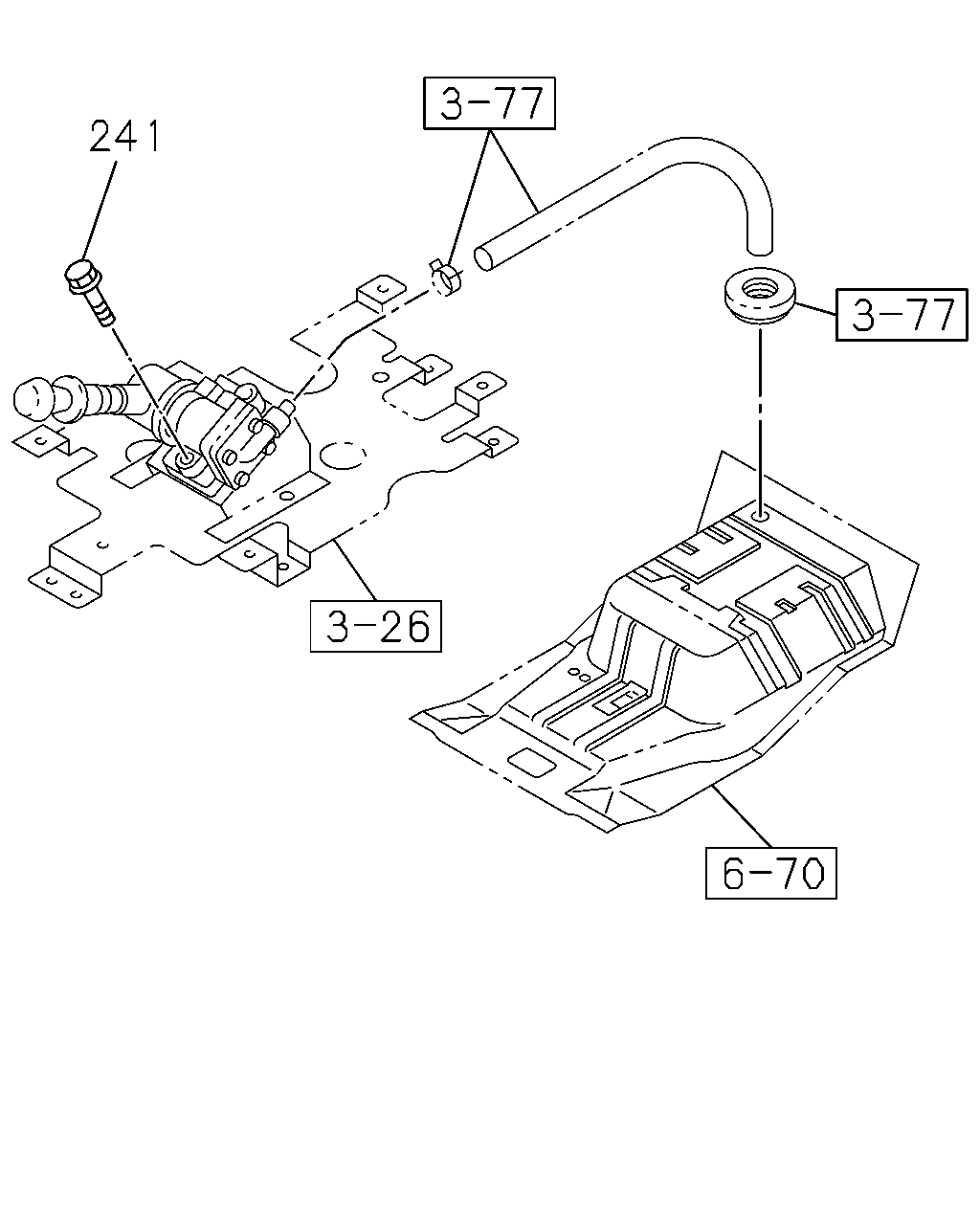

241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X70 FLANGE THA 		0-28050-870-0 02 1 1410-

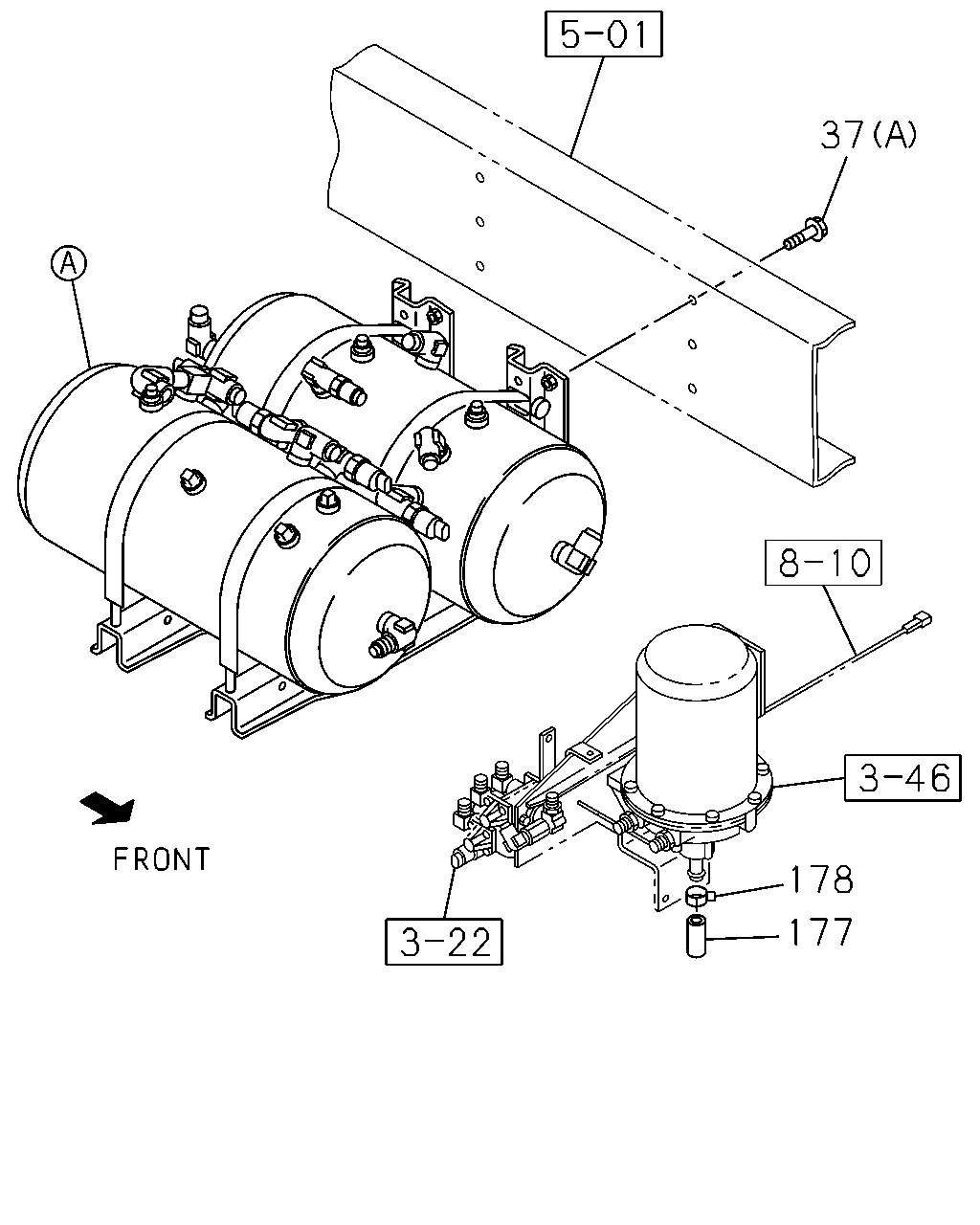

çizim 449547
37 178 177
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12X40 FLANGE THA 		0-28651-240-0 06 1 1410-
37 BOLT; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1410-
37 BOLT; AIR TANK
(B) M10X45 FLANGE THA 		0-28051-045-0 04 1 1410-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 1410-
178 CLIP; HOSE
ID=21 THA 		8-94242-034-0 01 1 1410-

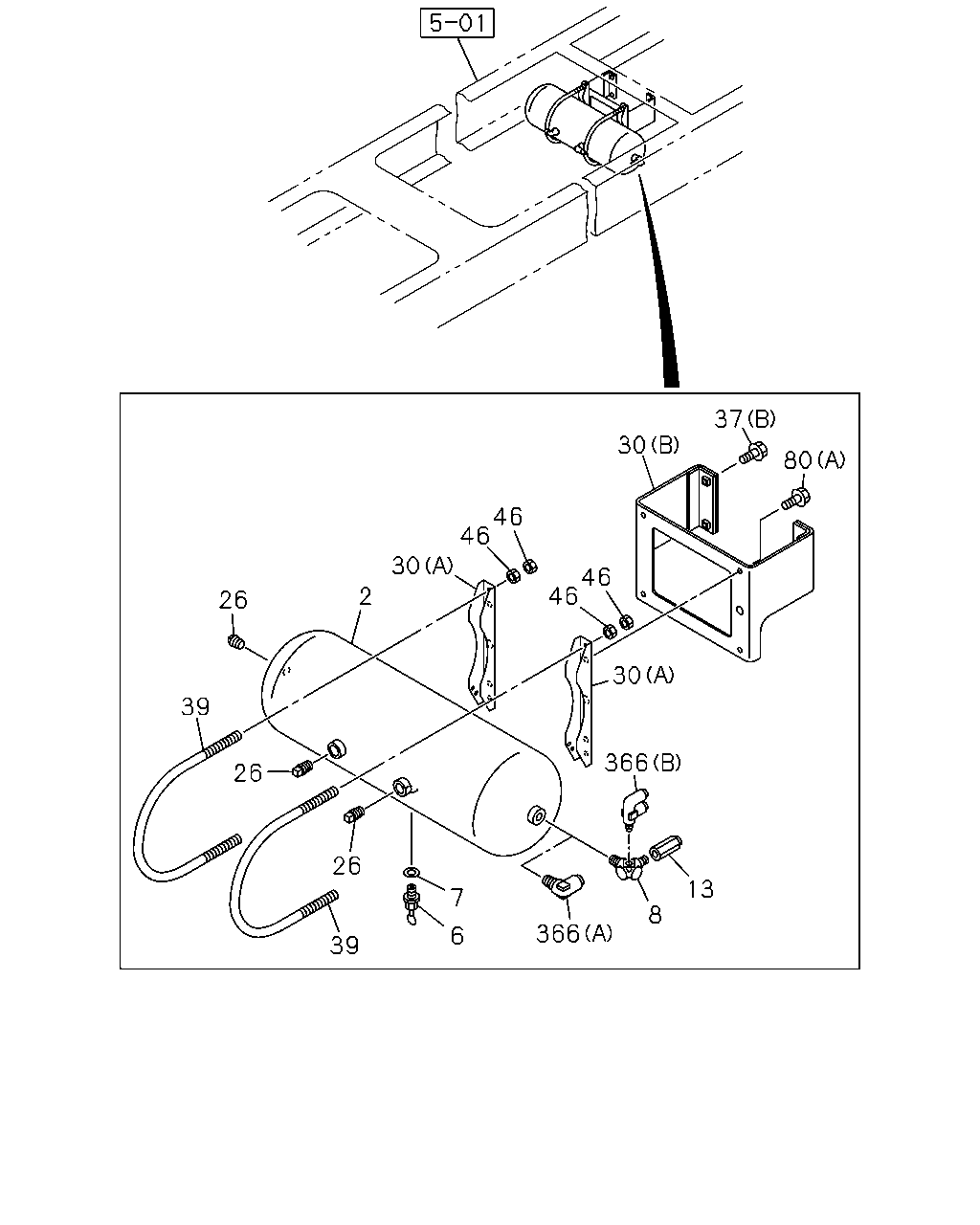

çizim 450406
2 26 39 26 26 39 7 6 366 8 13 366 30 30 46 46 46 46 30 37 80
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
THA 		8-98202-947-0 01 1 1410-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-48312-015-0 05 1 1410-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48312-015-0 04 1 1410-
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 THA 		1-09630-145-0 05 1 1410-
7 GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14 THA 		1-09630-145-0 04 1 1410-
8 CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 & R3/8 THA 		8-98204-239-0 01 1 1410-
13 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN12 & M16 STRAIGHT THA 		1-09660-876-0 01 1 1410-
26 PLUG; SUB AIR TANK
PT3/8 THA 		9-09204-517-0 03 1 1410-
30 BRACKET; AIR TANK,SUB
(A) THA 		8-97948-143-0 02 1 1410-
30 BRACKET; AIR TANK,SUB
(B) THA 		8-98245-717-0 01 1 1410-
37 BOLT; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12X40 FLANGE THA 		0-28651-240-0 06 1 1410-
37 BOLT; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1410-
37 BOLT; AIR TANK
(B) M10X45 FLANGE THA 		0-28051-045-0 04 1 1410-
39 U-BOLT; AIR TANK
THA 		1-48317-289-0 02 1 1410-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 1410-
80 BOLT; BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 1410-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA 		0-28651-030-0 04 1 1410-
366 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410-
366 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1410-

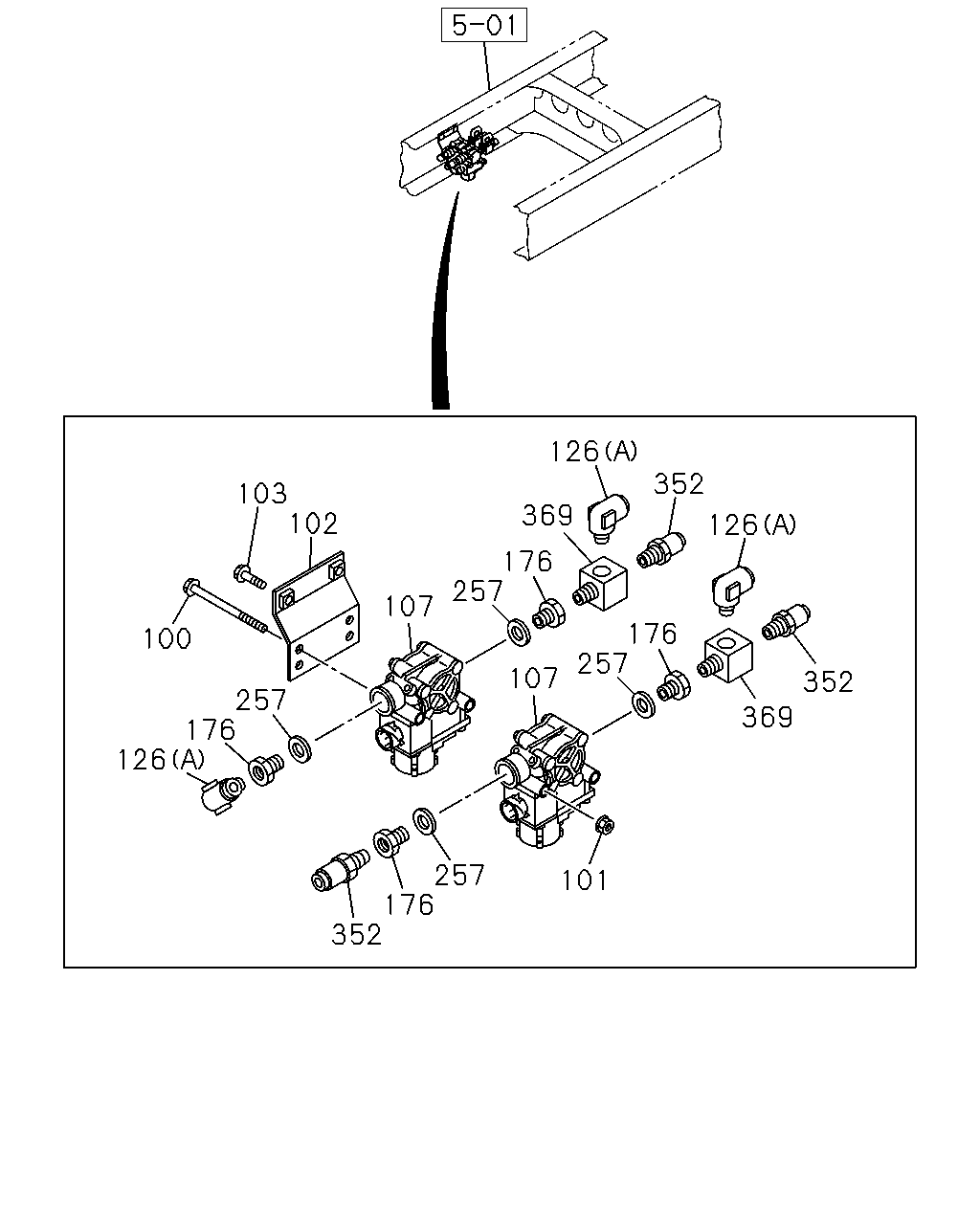

çizim 450795
103 100 126 176 257 102 107 257 176 369 126 352 126 107 257 176 352 176 257 101 369 352
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
ANTI LOCK BRAKE<JE5> M8X140 FLANGE THA 		0-28055-814-0 02 1 1410-
101 NUT; MODULATOR
ANTI LOCK BRAKE<JE5> M8 FLANGE THA 		0-91180-108-0 02 1 1410-
102 BRACKET; MODULATOR
ANTI LOCK BRAKE<JE5> THA 		8-98034-539-2 01 1 1410-1410
103 BOLT; BRKT
ANTI LOCK BRAKE<JE5> M8X30 FLANGE THA 		0-28650-830-0 02 1 1410-
107 MODULATOR; RR
ANTI LOCK BRAKE<JE5> THA 		1-48240-115-0 02 1 1410-1410
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) THA 		1-09656-698-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT THA 		1-09660-877-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (N) DIN12 & R1/2 STRAIGHT THA 		1-09660-966-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY THA 		1-09661-007-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) THA 		1-09650-283-1 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98166-127-0 01 1 1410-
176 ADAPTER
ANTI LOCK BRAKE<JE5> INNER PT3/8,OUTER M22 THA 		1-09650-494-1 04 1 1410-
257 GASKET; PLUG
ANTI LOCK BRAKE<JE5> ID=22.5 THA 		9-09571-422-0 04 1 1410-
352 CONNECTOR; STRAIGHT
ANTI LOCK BRAKE<JE5> DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 03 1 1410-
369 CONNECTOR; 3WAY
ANTI LOCK BRAKE<JE5> THA 		8-98203-578-0 02 1 1410-1410
369 CONNECTOR; 3WAY
ANTI LOCK BRAKE<JE5> PT3/8 3WAY THA 		1-09661-300-0 02 1 1411-

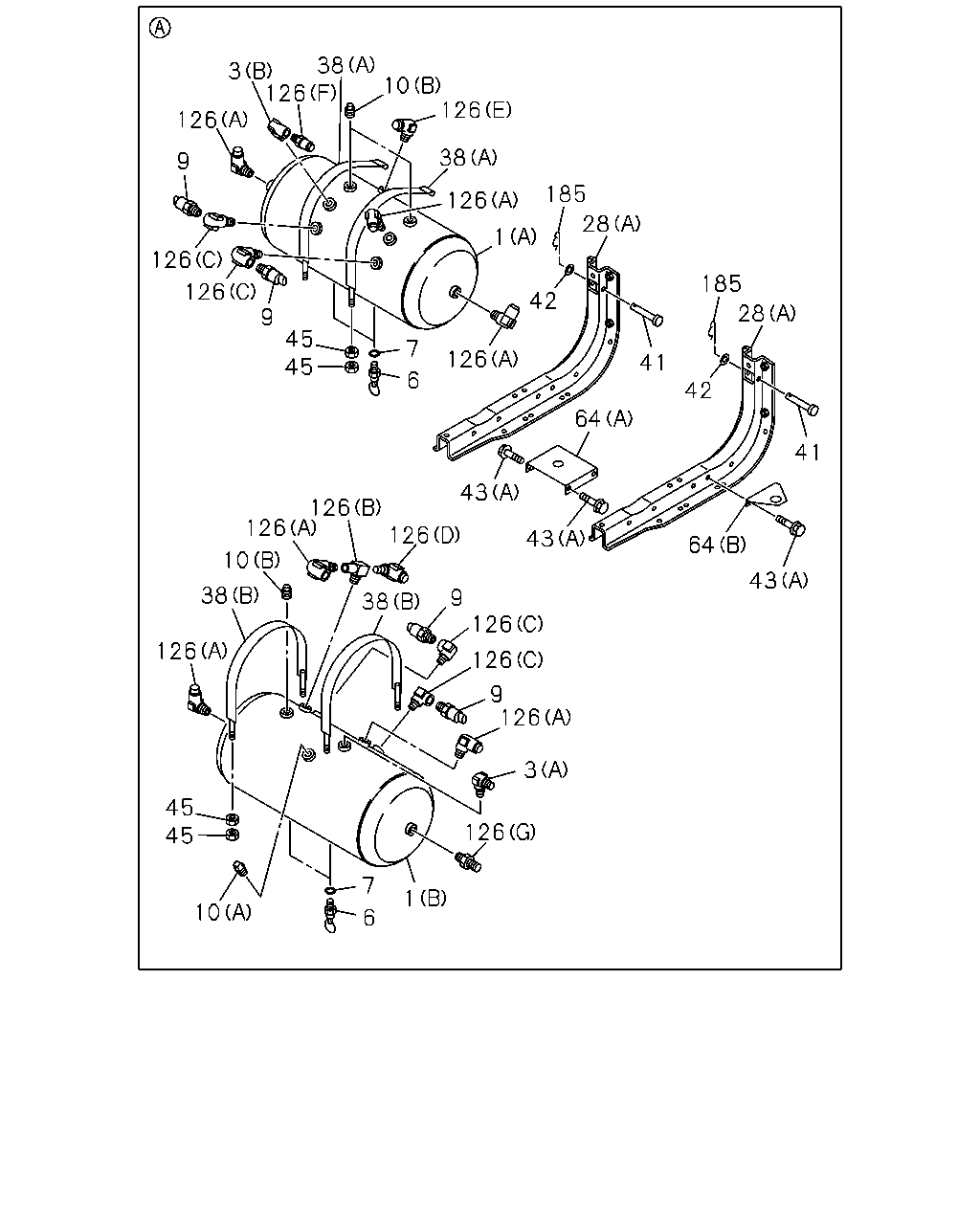

çizim 452002
3 38 126 126 10 9 126 126 9 45 45 126 38 126 1 7 6 185 28 42 126 185 28 41 42 41 64 43 43 64 43 10 45 45 126 38 10 126 126 126 38 9 126 126 9 26 3 126 1 7 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA 		8-97948-040-0 01 1 1410-
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) THA 		8-97948-041-0 01 1 1410-
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-98202-945-0 01 1 1410-
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98202-946-0 01 1 1410-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA 		1-48410-182-3 02 1 1410-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48320-031-1 01 1 1410-
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 ELBOW THA 		1-48410-412-0 01 1 1410-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA 		1-48312-015-0 05 1 1410-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48312-015-0 04 1 1410-
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 THA 		1-09630-145-0 05 1 1410-
7 GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14 THA 		1-09630-145-0 04 1 1410-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> STAMP 5.5 THA 		8-97609-249-0 01 1 1410-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> STAMP 5.5 THA 		8-97609-249-0 04 1 1410-
10 PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) PT1/4 THA 		9-99204-513-0 01 1 1410-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 THA 		9-09204-517-0 01 1 1410-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4 THA 		9-09204-526-0 03 1 1410-
26 PLUG; SUB AIR TANK
PT3/8 THA 		9-09204-517-0 03 1 1410-
28 BRACKET; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA 		8-98174-720-0 02 1 1410-
28 BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-97948-888-0 02 1 1410-
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		1-48317-108-2 02 1 1410-
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48317-109-2 02 1 1410-
41 PIN; BAND FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> OD=10 L=60 THA 		0-82254-060-0 02 1 1410-
42 WASHER; PL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=8.4 OD=18 THA 		0-91610-608-0 04 1 1410-
42 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5 THA 		0-91614-510-0 02 1 1410-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA 		0-28651-030-0 06 1 1410-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1410-
45 NUT; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 THA 		0-91110-508-0 12 1 1410-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) THA 		1-53318-293-1 01 1 1410-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		1-48317-607-0 01 1 1410-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48317-691-0 01 1 1410-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA 		8-97948-205-0 01 1 1410-
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) THA 		1-09656-698-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT THA 		1-09660-877-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (N) DIN12 & R1/2 STRAIGHT THA 		1-09660-966-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY THA 		1-09661-007-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) THA 		1-09650-283-1 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1410-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98166-127-0 01 1 1410-
185 PIN; SNAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=32.6 THA 		8-98062-280-0 02 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
