3-10 — BRAKE PEDAL AND CONTROL (#150415) — 28 parça

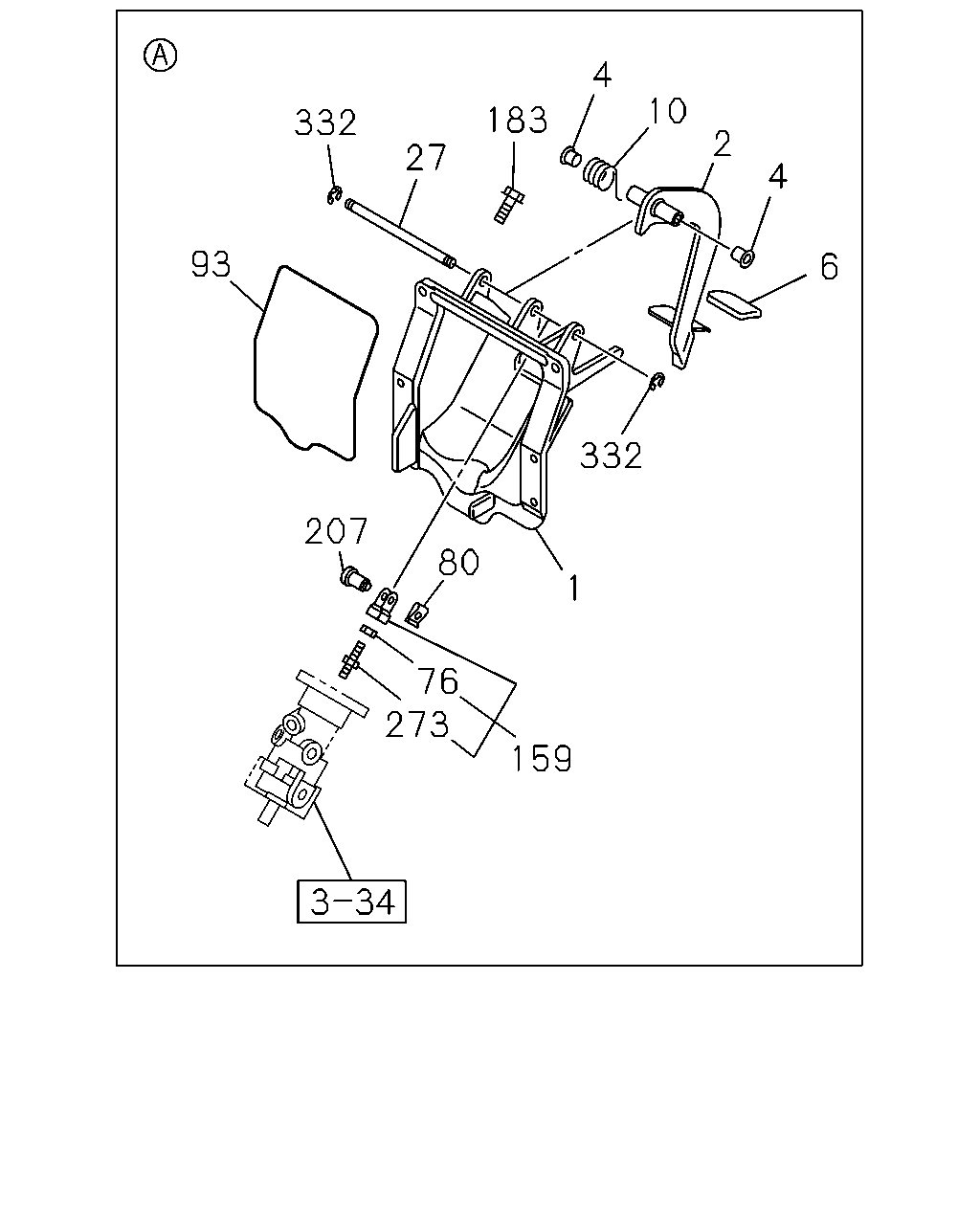

çizim 450246
6 4 2 10 4 183 27 332 93 207 76 273 159 80 1 332
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL
THA 		8-98071-972-1 01 1 1410-
2 PEDAL; BRK
THA 		8-98057-226-0 01 1 1410-
4 BUSHING; BRK PEDAL
THA 		8-94238-596-0 02 1 1410-
6 COVER; BRK PEDAL
THA 		8-98056-865-0 01 1 1410-
10 SPRING; RETURN,BRK PEDAL
THA 		8-98057-232-1 01 1 1410-
27 SHAFT; BRK PEDAL
THA 		8-98057-231-0 01 1 1410-
76 NUT; PUSH ROD
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
80 PIN; SNAP,BRK PEDAL
THA 		8-98007-161-0 01 1 1410-
93 SEAL; BRK PEDAL
THA 		1-48199-534-0 01 1 1410-
159 ROD ASM; PUSH,BRK
THA 		8-98057-234-0 01 1 1410-
183 BOLT; BRK VLV
M8X30 FLANGE THA 		0-28660-830-0 04 1 1410-
207 PIN; JOINT,BRK PEDAL LINK
THA 		8-98147-657-0 01 1 1410-
273 ROD; PULL
THA 		8-98057-233-0 01 1 1410-
332 RING; SNAP
ID=12 THA 		0-91805-512-0 02 1 1410-

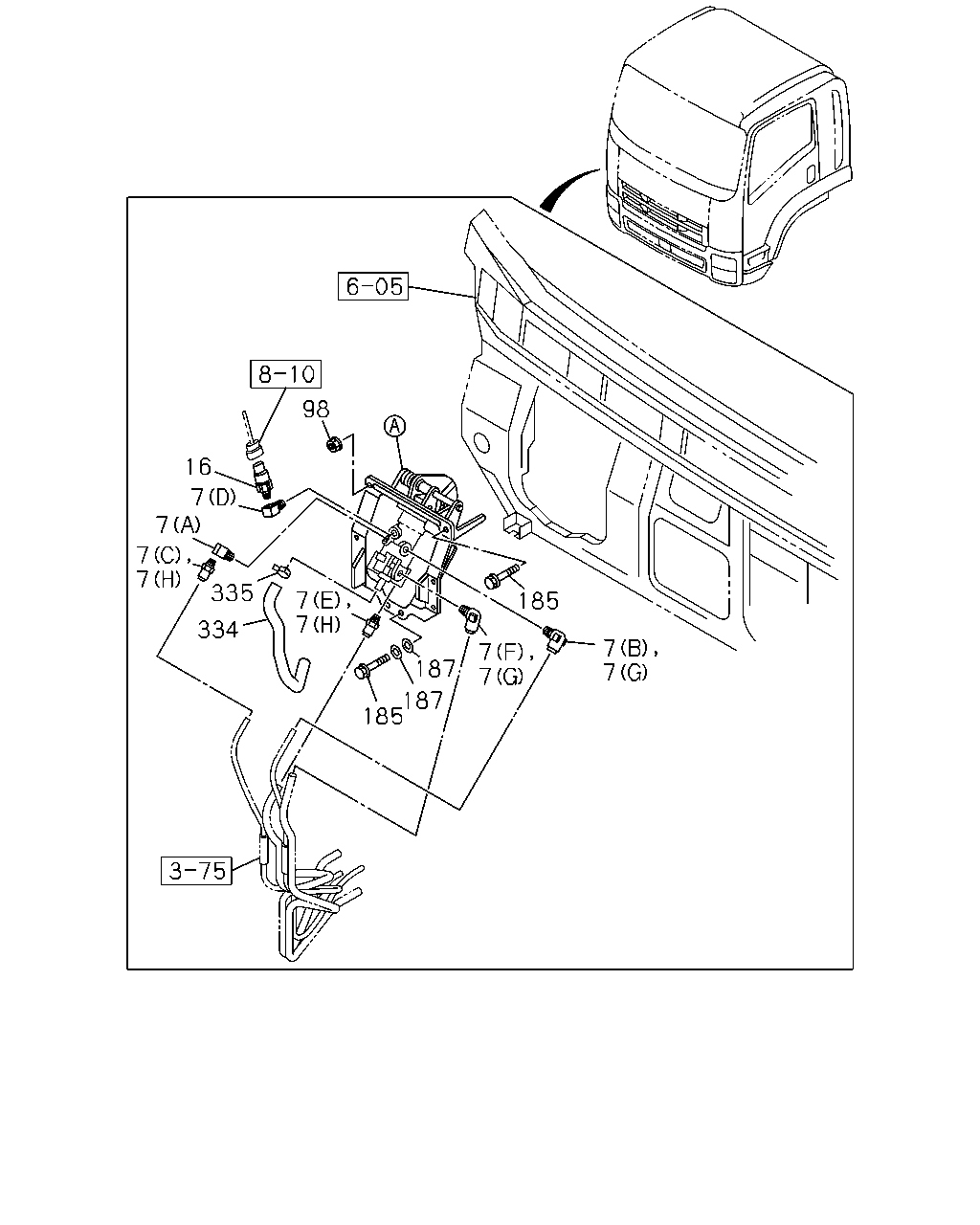

çizim 451903
98 16 7 7 7 335 334 7 7 185 187 187 7 7 185 7 7 7
BalonParca AdiParca NoAdetTipApplied Date
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (G) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 02 1 1410-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 02 1 1410-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1410-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN8 & R3/8 STRAIGHT THA 		1-09660-964-0 01 1 1410-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1410-
7 CONNECTOR; BRK VALVE
(D) PT1/4 2WAY THA 		1-09660-693-0 01 1 1410-
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW THA 		1-09660-696-0 01 1 1410-
16 SWITCH; STOP LAMP
STAMP 0.3 THA 		8-98010-857-0 01 1 1410-
98 NUT; BRKT
M8 FLANGE THA 		0-91180-208-0 01 1 1410-
185 BOLT; BRKT
M8X25 FLANGE THA 		8-98057-109-0 07 1 1410-
187 WASHER; PL,BRKT
ID=8.4 OD=26 THA 		0-91614-808-0 04 1 1410-
334 HOSE; AIR,BRK
THA 		8-97611-145-3 01 1 1410-
335 CLAMP; HOSE
ID=24 THA 		8-98025-921-0 01 1 1410-
