3-08A — PARKING BRAKE (#150414) — 26 parça

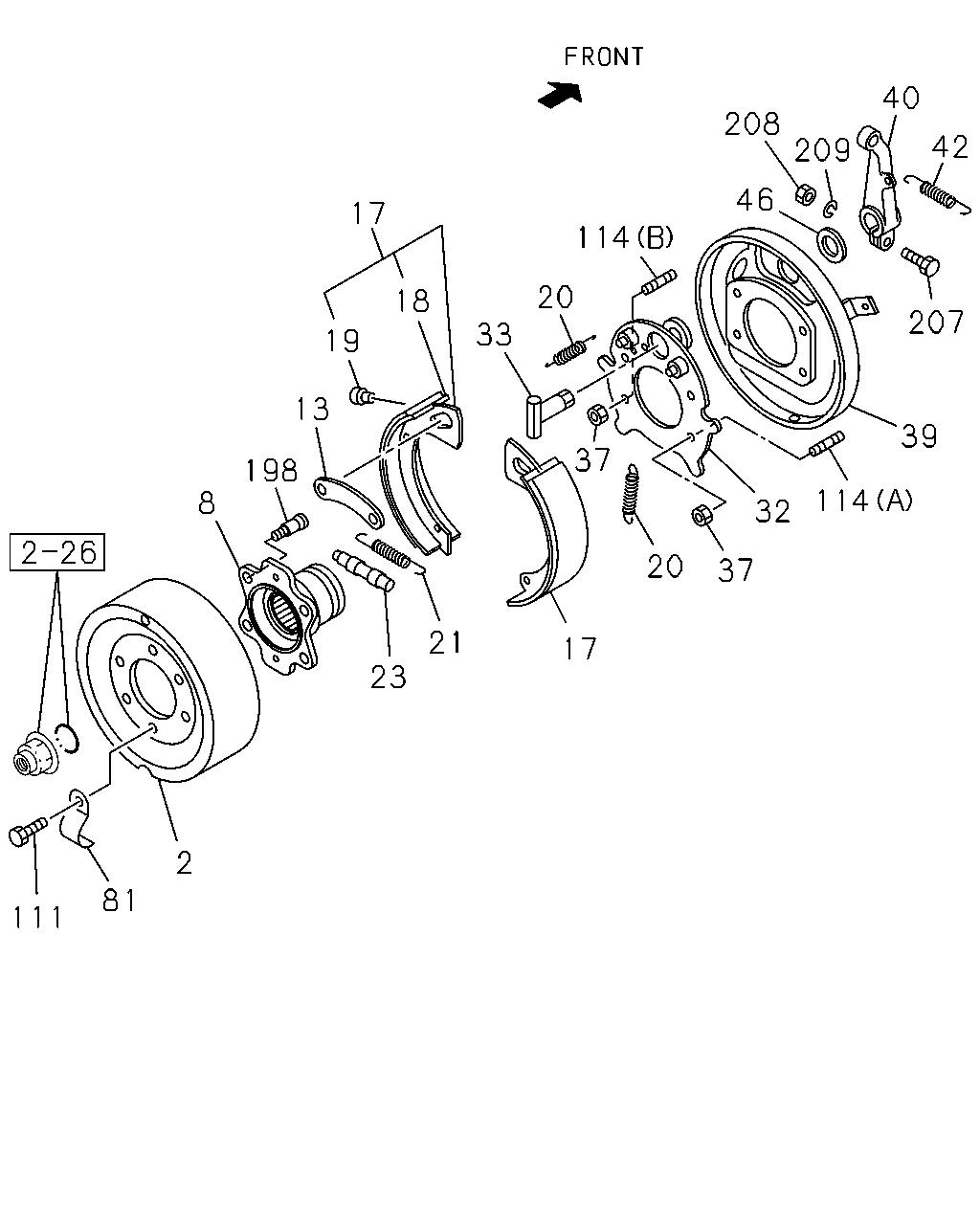

40 42 209 208 46 114 20 33 18 17 19 13 198 8 111 81 2 23 21 17 20 37 32 114 37 39 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DRUM; PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	1-46211-019-0	01	1	1410-
8	FLANGE; PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	8-98153-193-0	01	1	1410-
13	BRACE; PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	9-46239-002-0	01	1	1410-
17	SHOE; PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	1-46220-022-1	02	1	1410-
18	LINING; BRK,PARKING PARKING BRAKE DRUM 10"<B1T> THA	1-46225-023-0	02	1	1410-
19	RIVET; LINING,PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	1-09732-058-0	32	1	1410-
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	9-09942-434-0	02	1	1410-
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE DRUM 10"<B1T> THA	9-09942-516-0	01	1	1410-
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE DRUM 10"<B1T> THA	1-46240-003-0	01	1	1410-
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	1-46213-039-0	01	1	1410-
33	SHAFT; CAM,PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	1-46251-010-0	01	1	1410-
37	NUT; SUPPORT PLATE PARKING BRAKE DRUM 10"<B1T> M14 FLANGE THA	8-97365-444-0	04	1	1410-
39	COVER; DUST,PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	1-46213-038-0	01	1	1410-
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	1-46252-046-0	01	1	1410-
42	SPRING; RETURN,LEVER PARKING BRAKE DRUM 10"<B1T> THA	1-09583-104-0	01	1	1410-
46	WASHER; LEVER PARKING BRAKE DRUM 10"<B1T> THA	9-09855-362-0	01	1	1410-
81	COVER; CHECK HOLE,PARKING BRK PARKING BRAKE DRUM 10"<B1T> THA	1-46219-030-0	02	1	1410-
111	BOLT; COVER,CHECK HOLE PARKING BRAKE DRUM 10"<B1T> M8X20 W/LK WASHER THA	0-50740-820-0	02	1	1410-
114	STUD; SUPPORT PLATE PARKING BRAKE DRUM 10"<B1T> (B) M14X22 WO/DRY-ROCK THA	8-98014-137-0	03	1	1410-
114	STUD; SUPPORT PLATE PARKING BRAKE DRUM 10"<B1T> (A) M14X22 W/DRY-ROCK THA	8-98014-138-0	01	1	1410-
198	BOLT; KNURL PARKING BRAKE DRUM 10"<B1T> M16X55 THA	8-98023-172-0	04	1	1410-
207	BOLT; LEVER PARKING BRAKE DRUM 10"<B1T> THA	8-98061-595-0	01	1	1410-
208	NUT; LEVER PARKING BRAKE DRUM 10"<B1T> M10 THA	0-91111-510-0	01	1	1410-
209	WASHER; SP,LEVER PARKING BRAKE DRUM 10"<B1T> ID=10.2 THA	0-91510-510-0	01	1	1410-

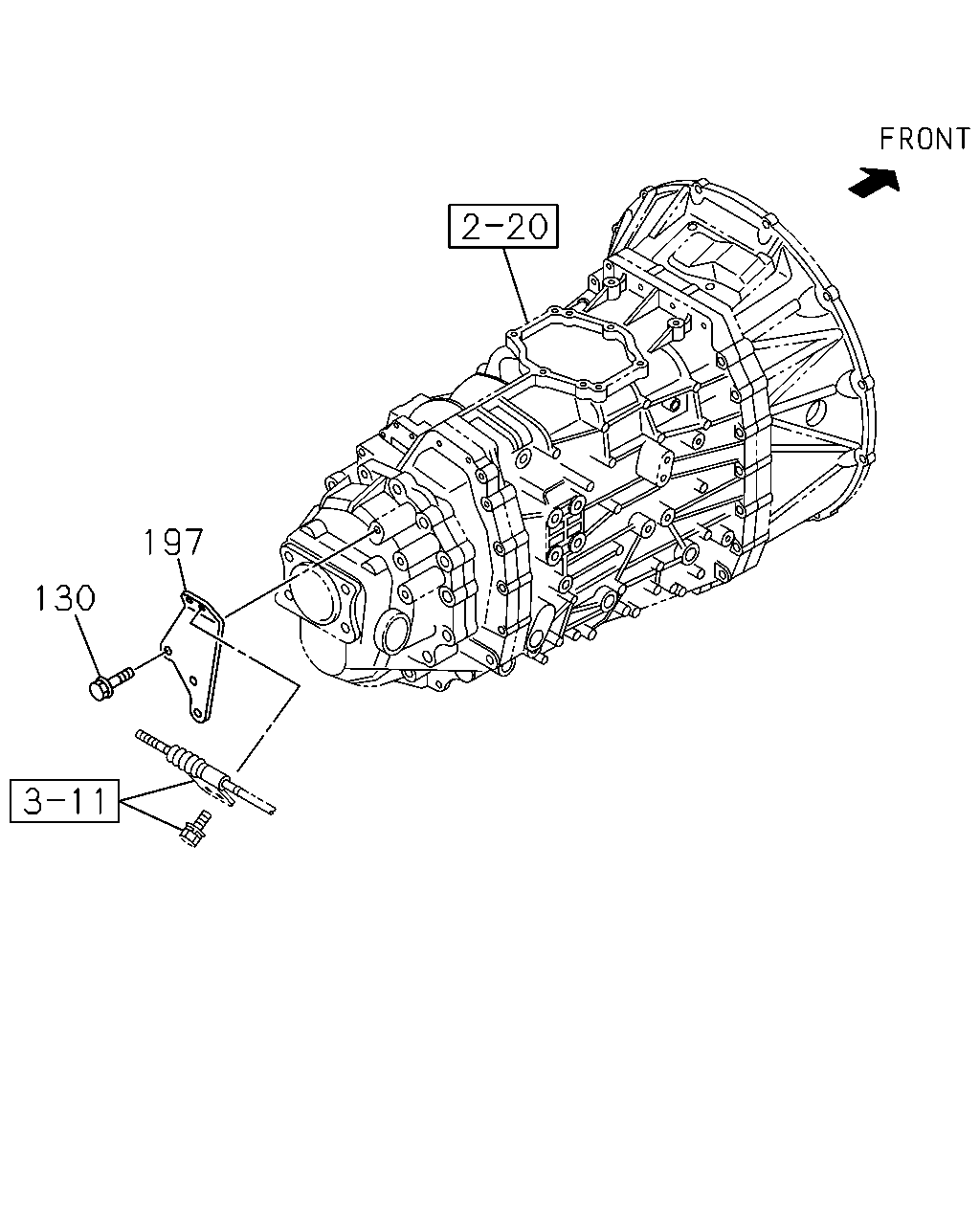

197 130

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	130	BOLT; BRKT PARKING BRAKE DRUM 10"<B1T> M10X25 FLANGE THA	0-28751-025-0	03	1	1410-
	197	BRACKET; CENTER BRAKE CABLE PARKING BRAKE DRUM 10"<B1T> THA	8-98009-002-1	01	1	1410-
