Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#150413) — 258 parça

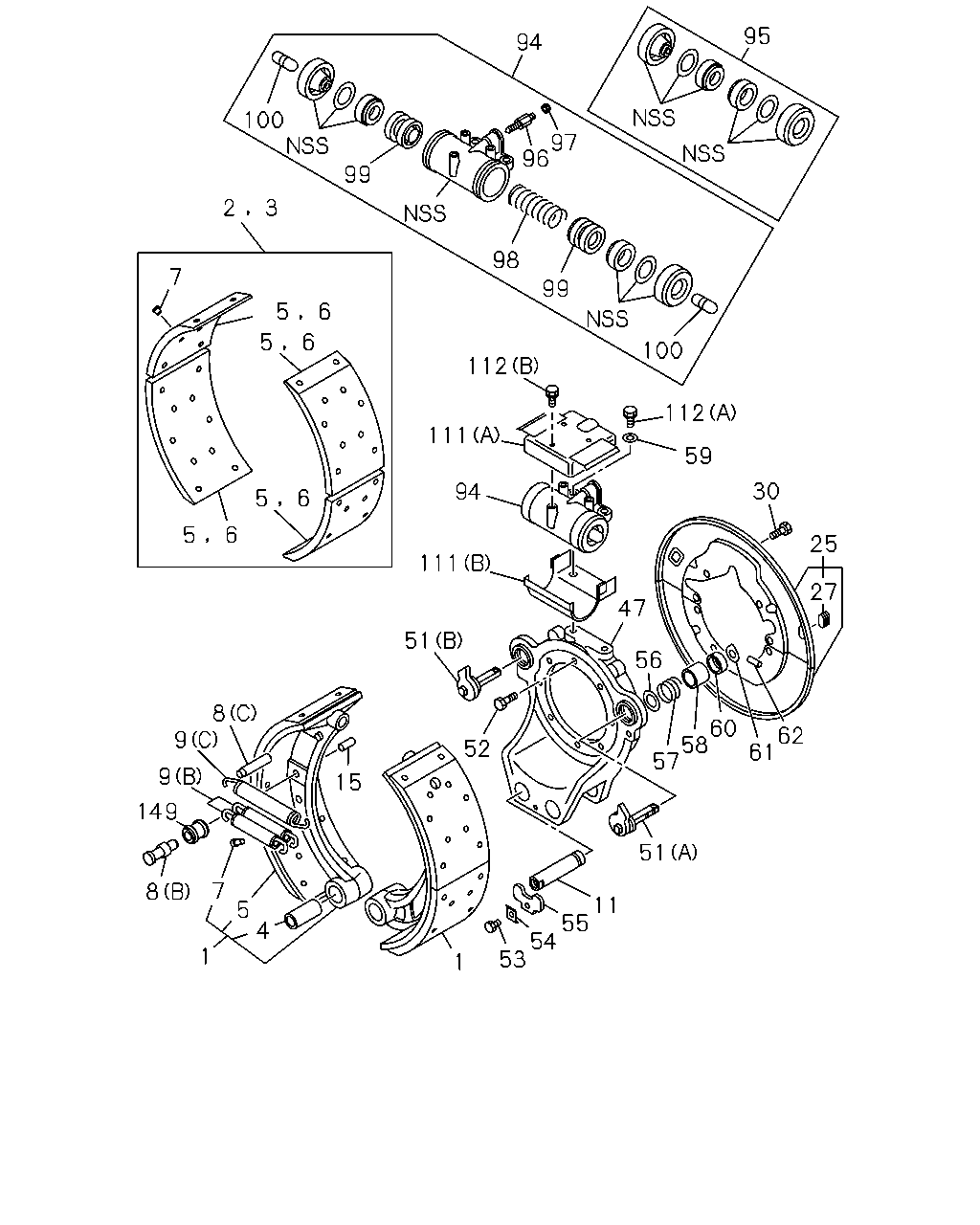

95 94 100 99 96 97 98 99 100 112 111 94 112 59 30 25 27 62 61 60 58 57 56 47 51 11 55 54 53 1 1 4 5 7 8 149 9 9 8 15 52 51 111 6 5 5 6 5 6 6 5 7 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	04	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	04	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1410-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-359-1	02	1	1410-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-359-1	02	1	1410-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88310-773-1	02	1	1410-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88310-773-1	02	1	1410-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-360-1	02	1	1410-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-360-1	02	1	1410-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88310-774-1	02	1	1410-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88310-774-1	02	1	1410-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-012-0	04	1	1410-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-012-0	04	1	1410-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	08	1	1410-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	08	1	1410-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1410-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1410-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-761-0	08	1	1410-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-761-0	08	1	1410-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1410-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1410-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1410-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1410-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1410-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	02	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	02	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	04	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	04	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1410-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	04	1	1410-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	04	1	1410-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1410-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1410-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47116-002-0	04	1	1410-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47116-002-0	04	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47151-526-1	02	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47151-526-1	02	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47151-806-0	01	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47151-806-0	01	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47151-807-0	01	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47151-807-0	01	1	1410-
27	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09333-151-0	04	1	1410-
27	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09333-151-0	04	1	1410-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	1410-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA	8-98091-254-1	01	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA	8-98091-255-1	01	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	02	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	02	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-253-1	02	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA	8-98091-253-1	02	1	1410-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47165-058-1	02	1	1410-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47165-058-1	02	1	1410-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47165-059-1	02	1	1410-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47165-059-1	02	1	1410-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14X50 THA	1-09040-066-0	02	1	1410-1410
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14X50 THA	1-09040-066-0	02	1	1410-1410
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-98281-531-0	02	1	1411-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	8-98281-531-0	02	1	1411-
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	1410-
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	1410-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	1410-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	1410-
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47133-005-0	02	1	1410-
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47133-005-0	02	1	1410-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-033-0	04	1	1410-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-033-0	04	1	1410-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-046-0	04	1	1410-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-046-0	04	1	1410-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-034-0	04	1	1410-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-034-0	04	1	1410-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14.2 THA	0-91510-514-0	04	1	1410-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14.2 THA	0-91510-514-0	04	1	1410-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-031-0	04	1	1410-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-031-0	04	1	1410-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-032-1	04	1	1410-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-032-1	04	1	1410-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-030-0	04	1	1410-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-030-0	04	1	1410-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-684-0	02	1	1410-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-684-0	02	1	1410-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-87830-527-0	02	1	1410-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-87830-527-0	02	1	1410-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47615-002-0	02	1	1410-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47615-002-0	02	1	1410-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> OD=12 THA	1-47619-011-0	02	1	1410-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> OD=12 THA	1-47619-011-0	02	1	1410-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09580-019-0	02	1	1410-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09580-019-0	02	1	1410-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47624-302-0	04	1	1410-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47624-302-0	04	1	1410-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47621-009-0	04	1	1410-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47621-009-0	04	1	1410-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47159-089-0	02	1	1410-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47159-089-0	02	1	1410-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47159-118-0	02	1	1410-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47159-118-0	02	1	1410-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M14X35 THA	0-20851-435-0	04	1	1410-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M14X35 THA	0-20851-435-0	04	1	1410-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98248-393-0	06	1	1410-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	8-98248-393-0	06	1	1410-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47119-024-0	04	1	1410-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47119-024-0	04	1	1410-

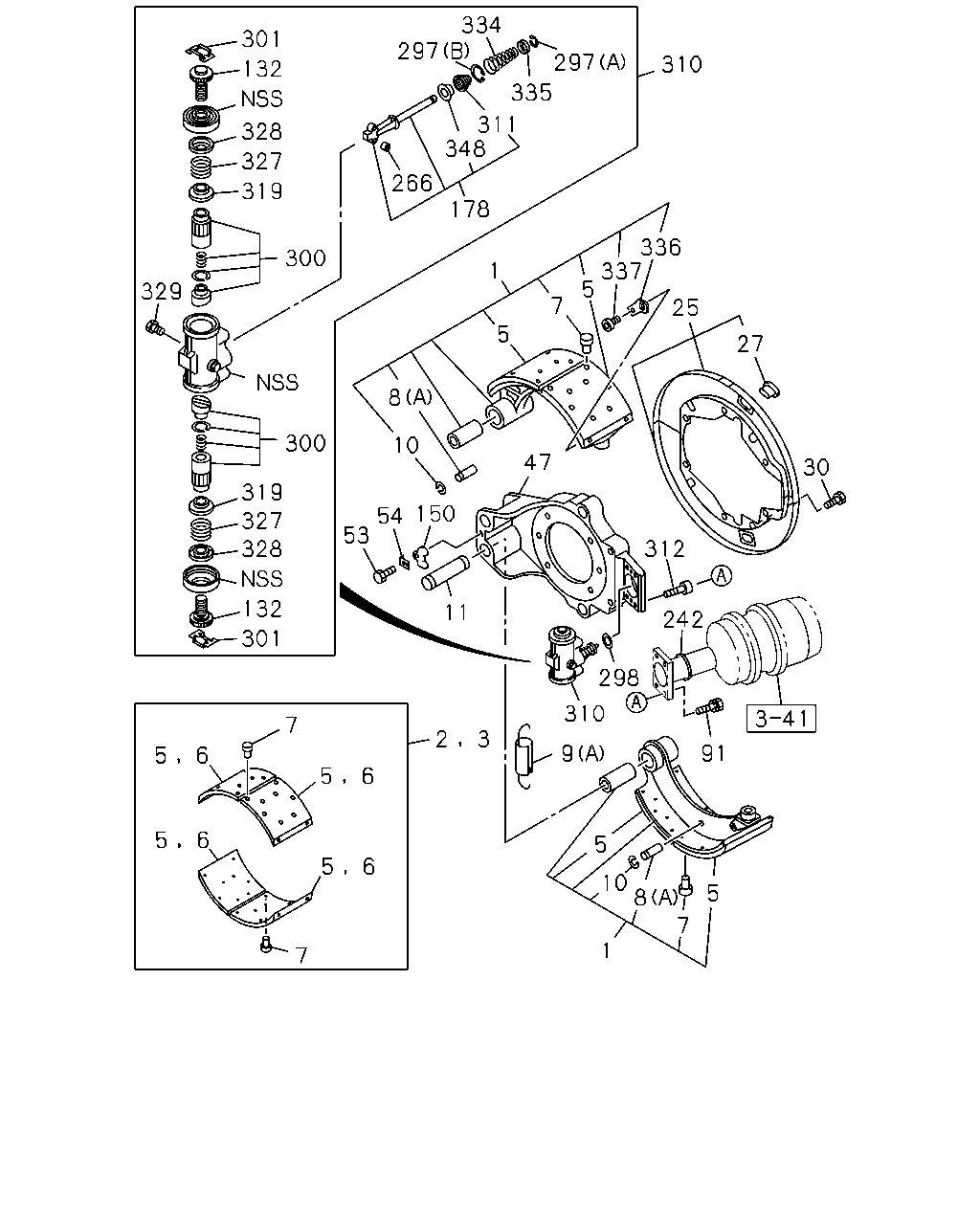

301 132 328 327 319 300 329 300 319 327 328 132 301 53 54 150 10 8 47 5 1 7 5 337 336 25 27 30 312 242 298 310 9 91 11 2 3 5 10 8 7 5 1 5 6 6 5 7 6 5 5 6 7 266 178 348 311 335 297 310 334 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	04	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	04	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1410-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1410-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-359-1	02	1	1410-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-359-1	02	1	1410-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88310-773-1	02	1	1410-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88310-773-1	02	1	1410-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-360-1	02	1	1410-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-360-1	02	1	1410-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88310-774-1	02	1	1410-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88310-774-1	02	1	1410-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	08	1	1410-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	08	1	1410-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1410-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1410-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-761-0	08	1	1410-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-761-0	08	1	1410-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1410-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1410-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1410-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1410-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1410-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1410-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	02	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	02	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	04	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	04	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1410-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1410-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10 THA	0-91805-510-0	04	1	1410-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10 THA	0-91805-510-0	04	1	1410-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	04	1	1410-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	04	1	1410-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1410-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47151-526-1	02	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47151-526-1	02	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47151-806-0	01	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47151-806-0	01	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47151-807-0	01	1	1410-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47151-807-0	01	1	1410-
27	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09333-151-0	04	1	1410-
27	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09333-151-0	04	1	1410-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	1410-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA	8-98091-254-1	01	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> FORWARD THA	8-98091-255-1	01	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	02	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	02	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-253-1	02	1	1410-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA	8-98091-253-1	02	1	1410-
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	1410-
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	1410-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	1410-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	1410-
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X45 THA	1-47139-174-0	08	1	1410-
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X45 THA	1-47139-174-0	08	1	1410-
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47623-035-2	04	1	1410-
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47623-035-2	04	1	1410-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47133-010-0	02	1	1410-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47133-010-0	02	1	1410-
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47640-012-0	02	1	1410-
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47640-012-0	02	1	1410-
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47159-186-0	04	1	1410-
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47159-186-0	04	1	1410-
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47643-007-0	04	1	1410-
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47643-007-0	04	1	1410-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1410-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1410-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1410-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1410-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48259-231-0	02	1	1410-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48259-231-0	02	1	1410-
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-247-1	04	1	1410-
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-247-1	04	1	1410-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1410-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1410-
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47601-087-0	02	1	1410-
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47601-087-0	02	1	1410-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1410-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1410-
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47634-008-0	04	1	1410-
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47634-008-0	04	1	1410-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1410-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1410-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1410-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1410-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1410-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1410-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1410-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1410-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1410-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1410-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1410-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1410-
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-152-0	04	1	1410-
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-152-0	04	1	1410-
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-153-0	04	1	1410-
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-153-0	04	1	1410-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1410-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1410-

346 301 328 327 319 334 297 311 335 297 348 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1410-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1410-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1410-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1410-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1410-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1410-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1410-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1410-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1410-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1410-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1410-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1410-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1410-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1410-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1410-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1410-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1410-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1410-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1410-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1410-
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-403-0	02	1	1410-
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-403-0	02	1	1410-
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-404-0	02	1	1410-
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-404-0	02	1	1410-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1410-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
