3-01 — FRONT WHEEL BRAKE (#150412) — 123 parça

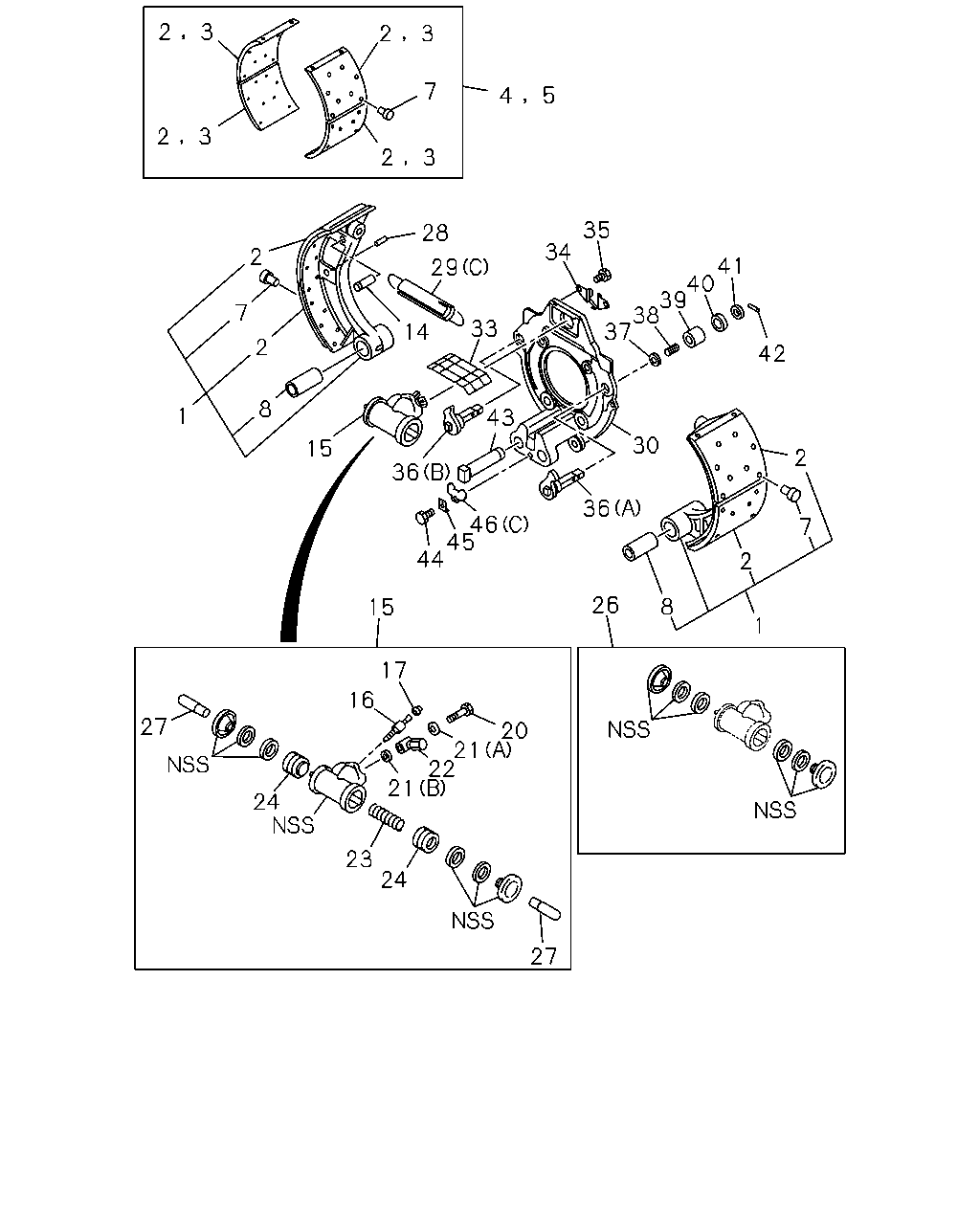

2 3 3 2 2 3 7 3 2 4 5 28 29 2 7 2 1 8 15 14 34 35 41 40 39 38 37 42 2 7 2 1 8 26 36 30 43 46 45 44 15 36 27 17 16 20 21 22 21 24 23 24 27 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-441-0	04	1	1410-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-316-0	01	1	1410-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-317-0	01	1	1410-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-318-0	01	1	1410-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-319-0	01	1	1410-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-758-0	08	1	1410-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-698-0	08	1	1410-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-759-0	08	1	1410-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-699-0	08	1	1410-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-353-1	02	1	1410-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88311-314-0	02	1	1410-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-354-1	02	1	1410-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88311-315-0	02	1	1410-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	80	1	1410-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	80	1	1410-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-011-0	04	1	1410-
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47112-020-0	04	1	1410-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=73.5 THA	1-47119-017-1	04	1	1410-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-177-1	04	1	1410-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-674-0	01	1	1410-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-675-0	01	1	1410-
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=66.5 THA	1-47615-005-0	02	1	1410-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> OD=12 THA	1-47619-011-0	02	1	1410-
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12X40.5 EYE BOLT THA	1-47634-006-0	02	1	1410-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=15.2 THA	1-09630-019-0	02	1	1410-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=12.2 THA	1-09630-020-0	02	1	1410-
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47631-057-1	02	1	1410-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-09940-435-0	02	1	1410-
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1410-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-47624-210-0	04	1	1410-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=47.5 THA	1-87830-521-0	02	1	1410-
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47621-009-0	04	1	1410-
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47116-002-0	04	1	1410-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-269-1	02	1	1410-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-365-1	02	1	1410-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-041-0	02	1	1410-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-435-0	02	1	1410-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-98091-252-0	02	1	1410-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47159-080-0	02	1	1410-
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47159-094-0	02	1	1410-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12X35 W/LK WASHER THA	0-50551-235-0	04	1	1410-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47165-058-1	02	1	1410-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47165-059-1	02	1	1410-
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-033-0	04	1	1410-
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-046-0	04	1	1410-
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-034-0	04	1	1410-
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-031-0	04	1	1410-
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-032-1	04	1	1410-
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-030-0	04	1	1410-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=106.5 THA	1-47131-038-0	04	1	1410-
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=115.5 THA	1-47131-044-0	04	1	1410-
44	BOLT; LOCK,ANCHOR PIN M10X16 THA	1-47139-173-0	02	1	1410-
45	WASHER; LK THA	1-47133-011-0	02	1	1410-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47133-005-0	02	1	1410-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-152-0	04	1	1410-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47133-010-0	02	1	1410-

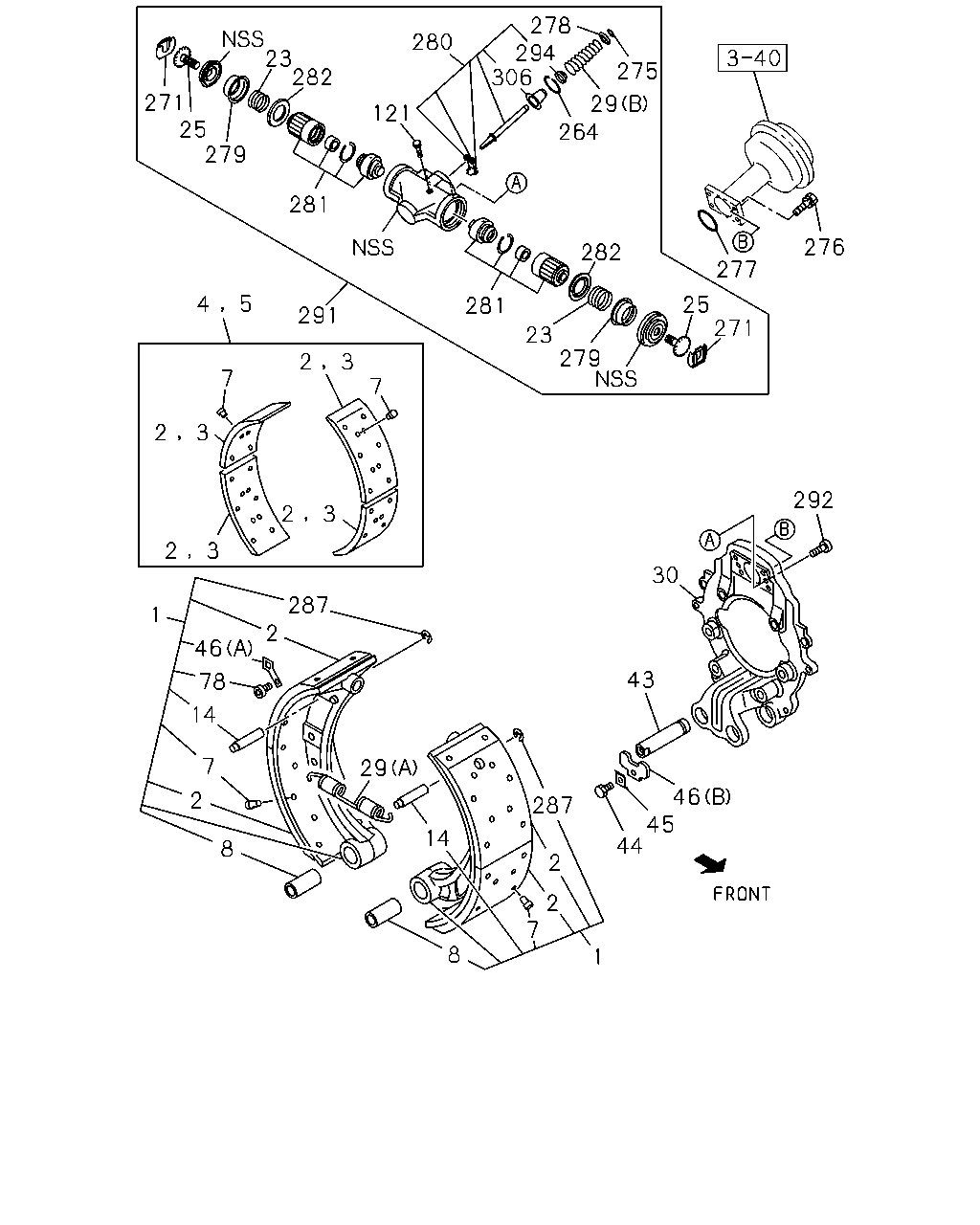

271 25 279 281 281 23 279 271 25 282 121 280 278 294 306 275 29 264 23 282 276 277 4 5 291 7 3 2 7 3 2 2 3 2 3 287 2 46 78 14 7 2 1 8 29 14 287 2 2 7 1 8 44 45 46 43 30 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-441-0	04	1	1410-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-316-0	01	1	1410-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-317-0	01	1	1410-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-318-0	01	1	1410-
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-319-0	01	1	1410-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-758-0	08	1	1410-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-698-0	08	1	1410-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-759-0	08	1	1410-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-699-0	08	1	1410-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-353-1	02	1	1410-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88311-314-0	02	1	1410-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-88311-354-1	02	1	1410-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-88311-315-0	02	1	1410-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	80	1	1410-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	80	1	1410-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-011-0	04	1	1410-
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47112-020-0	04	1	1410-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=73.5 THA	1-47119-017-1	04	1	1410-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-177-1	04	1	1410-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-09940-435-0	02	1	1410-
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1410-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47623-035-2	04	1	1410-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-269-1	02	1	1410-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-365-1	02	1	1410-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-041-0	02	1	1410-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-435-0	02	1	1410-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-98091-252-0	02	1	1410-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=106.5 THA	1-47131-038-0	04	1	1410-
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=115.5 THA	1-47131-044-0	04	1	1410-
44	BOLT; LOCK,ANCHOR PIN M10X16 THA	1-47139-173-0	02	1	1410-
45	WASHER; LK THA	1-47133-011-0	02	1	1410-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47133-005-0	02	1	1410-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-152-0	04	1	1410-
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47133-010-0	02	1	1410-
78	BOLT; LK,PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-153-0	04	1	1410-
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1410-
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-034-1	02	1	1410-
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1410-
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-031-0	02	1	1410-
276	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X42.5 THA	1-47139-163-0	08	1	1410-
277	RING; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48259-231-0	02	1	1410-
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1410-
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1410-
280	WEDGE; FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47640-012-0	02	1	1410-
281	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-247-1	04	1	1410-
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1410-
287	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10 THA	0-91805-510-0	08	1	1410-
291	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47601-087-0	02	1	1410-
292	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47634-008-0	04	1	1410-
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1410-
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1410-

271 279 23 282 304 121 278 294 306 275 29 264 282 271 279 23 305 271 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-09940-435-0	02	1	1410-
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1410-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-269-1	02	1	1410-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-365-1	02	1	1410-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-041-0	02	1	1410-
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1410-
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-034-1	02	1	1410-
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1410-
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-031-0	02	1	1410-
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1410-
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1410-
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1410-
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1410-
304	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-403-0	02	1	1410-
305	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-404-0	02	1	1410-
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1410-
