2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#150408) — 34 parça

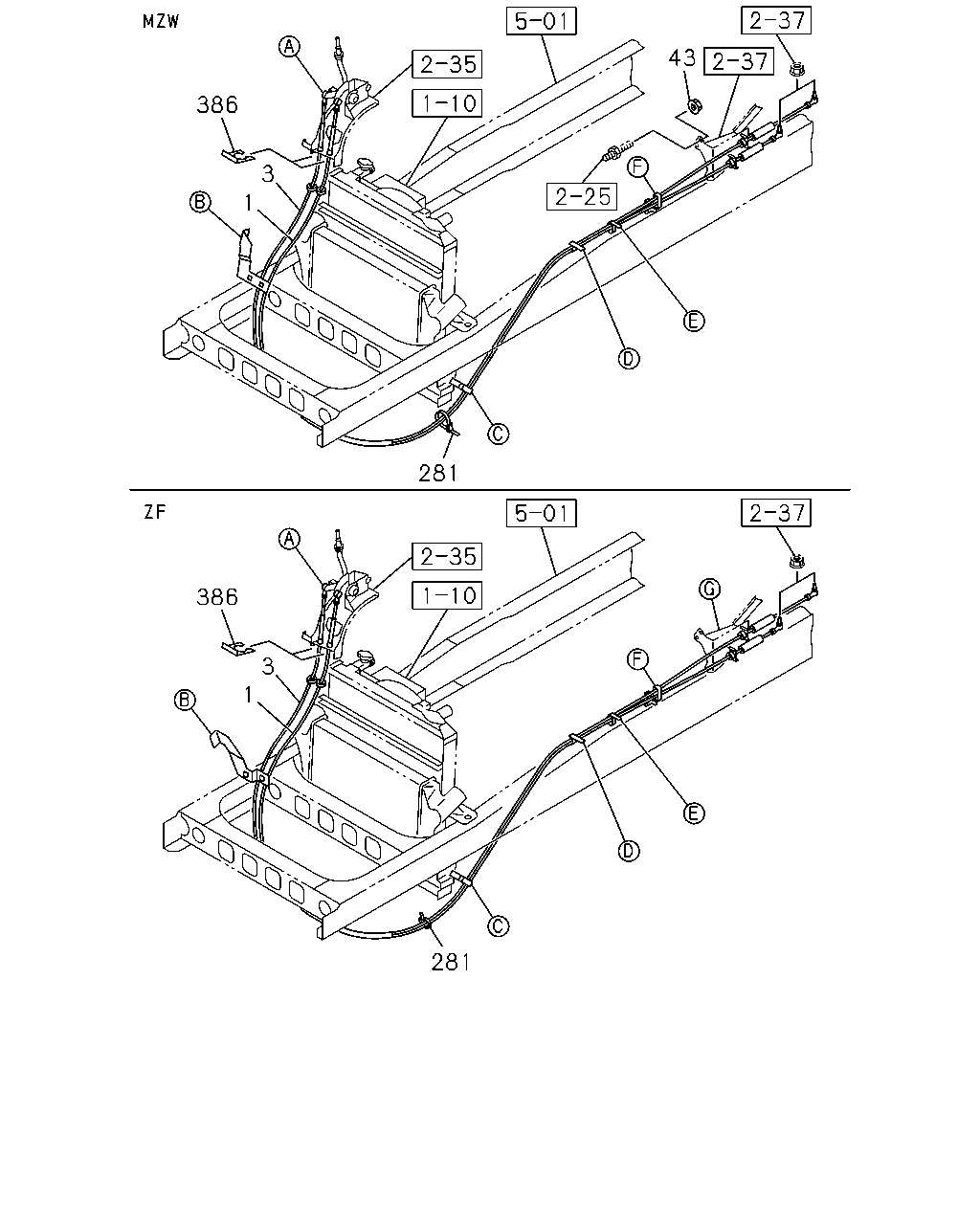

çizim 449847
386 3 1 43 281 386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T<Y5E> L=3600 THA 		8-98017-474-5 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T<RSZ> L=3510 THA 		8-97948-242-0 01 1 1410-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T<Y5E> L=3560 THA 		8-97948-244-0 01 1 1410-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T<RSZ> L=3690 THA 		8-97948-243-0 01 1 1410-
43 NUT; BRKT
MZW6P M/T<RSZ> M10 FLANGE THA 		0-91180-210-0 02 1 1410-
281 CLIP; BAND
L=300 THA 		1-09707-001-1 01 1 1410-
386 CLIP; CONT CABLE & TUBE
THA 		1-09700-966-1 02 1 1410-

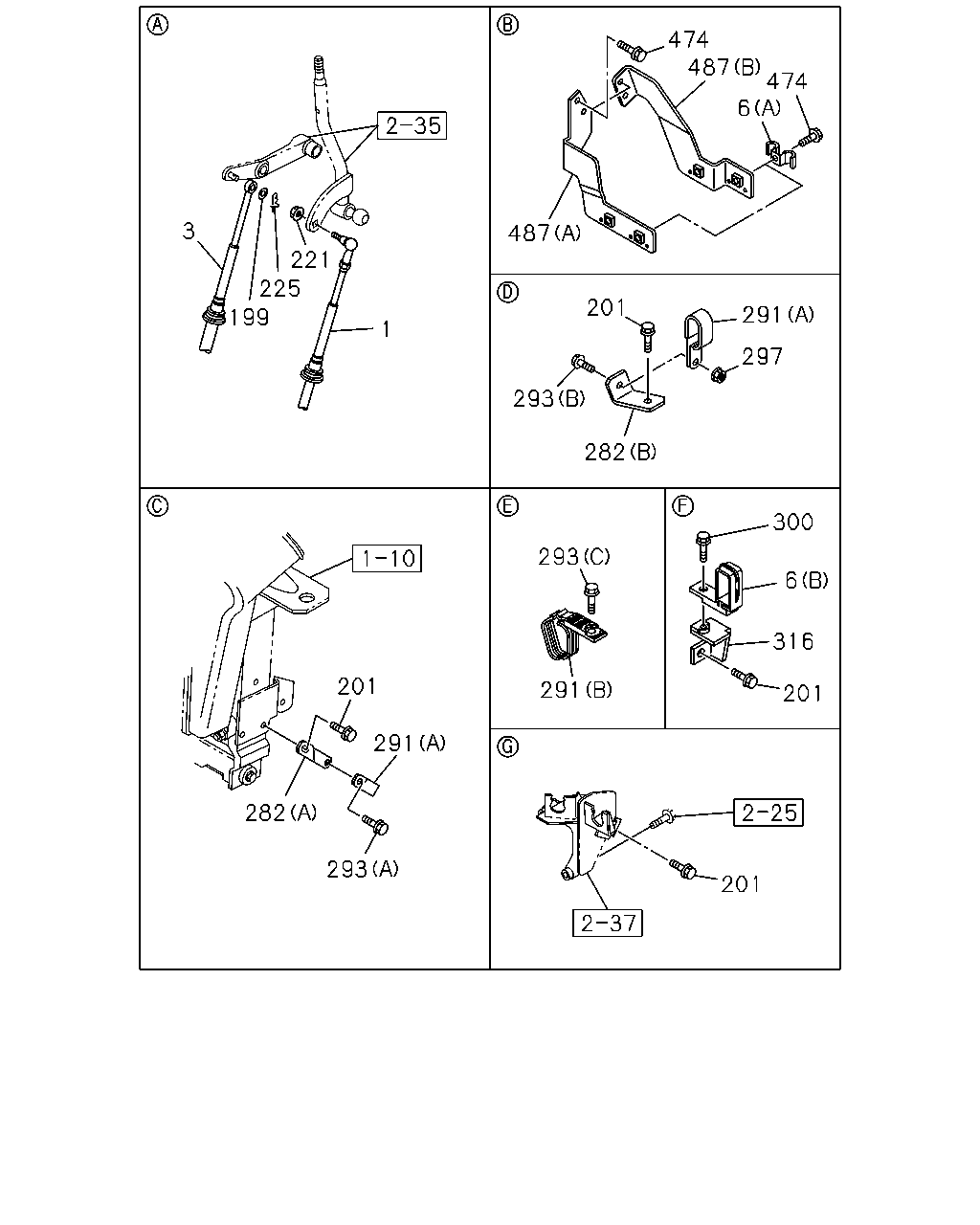

çizim 449937
221 225 199 3 1 201 291 282 293 291 293 300 6 316 201 282 293 201 291 297 201 487 474 474 487 6
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T<Y5E> L=3600 THA 		8-98017-474-5 01 1 1410-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T<RSZ> L=3510 THA 		8-97948-242-0 01 1 1410-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T<Y5E> L=3560 THA 		8-97948-244-0 01 1 1410-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T<RSZ> L=3690 THA 		8-97948-243-0 01 1 1410-
6 CLIP; CABLE
ZF9S1110 M/T<Y5E> (B) ID=13 & 10 & 10 L=35.5 THA 		8-98023-991-0 01 1 1410-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 THA 		1-09700-739-0 01 1 1410-
199 WASHER; PL,SELECT
ID=8.4 OD=16 THA 		0-91614-508-0 01 1 1410-
201 BOLT; BRKT
ZF9S1110 M/T<Y5E> M12X35 FLANGE THA 		0-28151-235-0 01 1 1410-
201 BOLT; BRKT
M8X16 FLANGE THA 		0-28050-816-0 01 1 1410-
201 BOLT; BRKT
ZF9S1110 M/T<Y5E> M8X16 FLANGE THA 		0-28050-816-0 01 1 1410-
201 BOLT; BRKT
M8X20 FLANGE THA 		0-28050-820-0 01 1 1410-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE THA 		1-09440-062-1 01 1 1410-
225 PIN; SELECT CABLE
L=27.7 THA 		8-94111-137-0 01 1 1410-
282 BRACKET; TRANS SIDE
6HK1-TCS ENG<80L> (A) THA 		8-98098-265-2 01 1 1410-
282 BRACKET; TRANS SIDE
6HK1-TCN ENG<82L> (A) THA 		8-98010-418-0 01 1 1410-
282 BRACKET; TRANS SIDE
(B) THA 		1-82699-199-0 01 1 1410-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 THA 		0-95325-026-0 02 1 1410-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 THA 		8-98023-991-0 01 1 1410-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 1410-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X25 FLANGE THA 		0-28050-825-0 01 1 1410-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
297 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
300 BOLT; CLIP
ZF9S1110 M/T<Y5E> M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
316 BRACKET; CLIP
ZF9S1110 M/T<Y5E> THA 		8-98086-439-0 01 1 1410-
474 BOLT; BRKT
M8X25 W/WASHER THA 		0-51640-825-0 03 1 1410-
487 BRACKET; CONT CABLE
6HK1-TCS ENG<80L> (A) THA 		8-98100-413-0 01 1 1410-
487 BRACKET; CONT CABLE
6HK1-TCN ENG<82L> (B) THA 		8-98183-009-0 01 1 1410-
